Product Overview
Description
Products Description
Product Name : Cat8 FTP Field Termination Plug
Rj45 Connectors is mainly composed of two parts: plug housing + gold sheet. Rj45 connectors can be divided into network rj45
connectors and telephone rj45 connectors according to its use. Network rj45 connectors include five types of unshielded/shielded
rj45 connectors and six types of unshielded/shielded rj45 connectors. This product is six types of non-shielded and non-beating
rj45 connector.
Network connectors is used for data transmission interface, telephone rj45 connector is used for voice transmission interface, and
it is suitable for end connection between field and connecting cable to realize the connection between equipment, jumper frame and
module.
Product characteristics :
The rj45 connectors of this product is designed and manufactured according to international standards EIA/TIA-568B and
YD/T926.1-2009. Compared with the requirements of the above transmission system standards, it can achieve higher reliability and
has the functions of preventing loosening, self-locking and flexible plug-in and pull-out.
The shell material of the rj45 connectors is APS of high quality. The gold sheet material is phosphor bronze. The surface is
treated by nickel plating. The thickness of gold plating on the contact is 3μ (inch), and the plugging life is more than 1000
times. It is suitable for terminal connection between field and connecting cable, and realizes connection among equipment, jumper
frame and module.
The performance of the rj45 connectors meets the requirements of EIA/TIA-568B six types of wire.
This six types of rj45 connectors can be directly threaded by hand, the right sequence can be, tool-free operation, convenient and
fast, for home office preferred.
Main parameters :
Industry standards: RoHS standards, ELV standards, FCC certification requirements.
Shell material: polycarbonate.
Shell fire protection grade: at least meet the safety requirements of UL94V-0.
Terminal material: phosphorus bronze.
Contact area coating: gold plating 30μ (inch).
Ambient temperature: -40°C~+60°C
Working voltage: maximum 150V working voltage, working current is 1.5A at 25°C.
Durability: At least 750 plugs.
Tension strength to socket: at least 30N.
Voltage withstand strength: AC 1000V, 1 minute no breakdown and arc phenomenon.
Insulation resistance: minimum 350 MΩ.
Conductor contact resistance: not more than 20 mΩ.
Rj45 Connectors is mainly composed of two parts: plug housing + gold sheet. Rj45 connectors can be divided into network rj45
connectors and telephone rj45 connectors according to its use. Network rj45 connectors include five types of unshielded/shielded
rj45 connectors and six types of unshielded/shielded rj45 connectors. This product is six types of non-shielded and non-beating
rj45 connector.
Network connectors is used for data transmission interface, telephone rj45 connector is used for voice transmission interface, and
it is suitable for end connection between field and connecting cable to realize the connection between equipment, jumper frame and
module.
Product characteristics :
The rj45 connectors of this product is designed and manufactured according to international standards EIA/TIA-568B and
YD/T926.1-2009. Compared with the requirements of the above transmission system standards, it can achieve higher reliability and
has the functions of preventing loosening, self-locking and flexible plug-in and pull-out.
The shell material of the rj45 connectors is APS of high quality. The gold sheet material is phosphor bronze. The surface is
treated by nickel plating. The thickness of gold plating on the contact is 3μ (inch), and the plugging life is more than 1000
times. It is suitable for terminal connection between field and connecting cable, and realizes connection among equipment, jumper
frame and module.
The performance of the rj45 connectors meets the requirements of EIA/TIA-568B six types of wire.
This six types of rj45 connectors can be directly threaded by hand, the right sequence can be, tool-free operation, convenient and
fast, for home office preferred.
Main parameters :
Industry standards: RoHS standards, ELV standards, FCC certification requirements.
Shell material: polycarbonate.
Shell fire protection grade: at least meet the safety requirements of UL94V-0.
Terminal material: phosphorus bronze.
Contact area coating: gold plating 30μ (inch).
Ambient temperature: -40°C~+60°C
Working voltage: maximum 150V working voltage, working current is 1.5A at 25°C.
Durability: At least 750 plugs.
Tension strength to socket: at least 30N.
Voltage withstand strength: AC 1000V, 1 minute no breakdown and arc phenomenon.
Insulation resistance: minimum 350 MΩ.
Conductor contact resistance: not more than 20 mΩ.
Gender | Male |
Shell Material | Zinc Alloy+ PC/ABS |
Pin Material | Golden plate |
Durability | over 1000 mating cycles |
Standard | IEC standard |
Color | Nature |
Temperature Range | -40°C~+70°C |
OEM/ODM | Yes |
Details Images

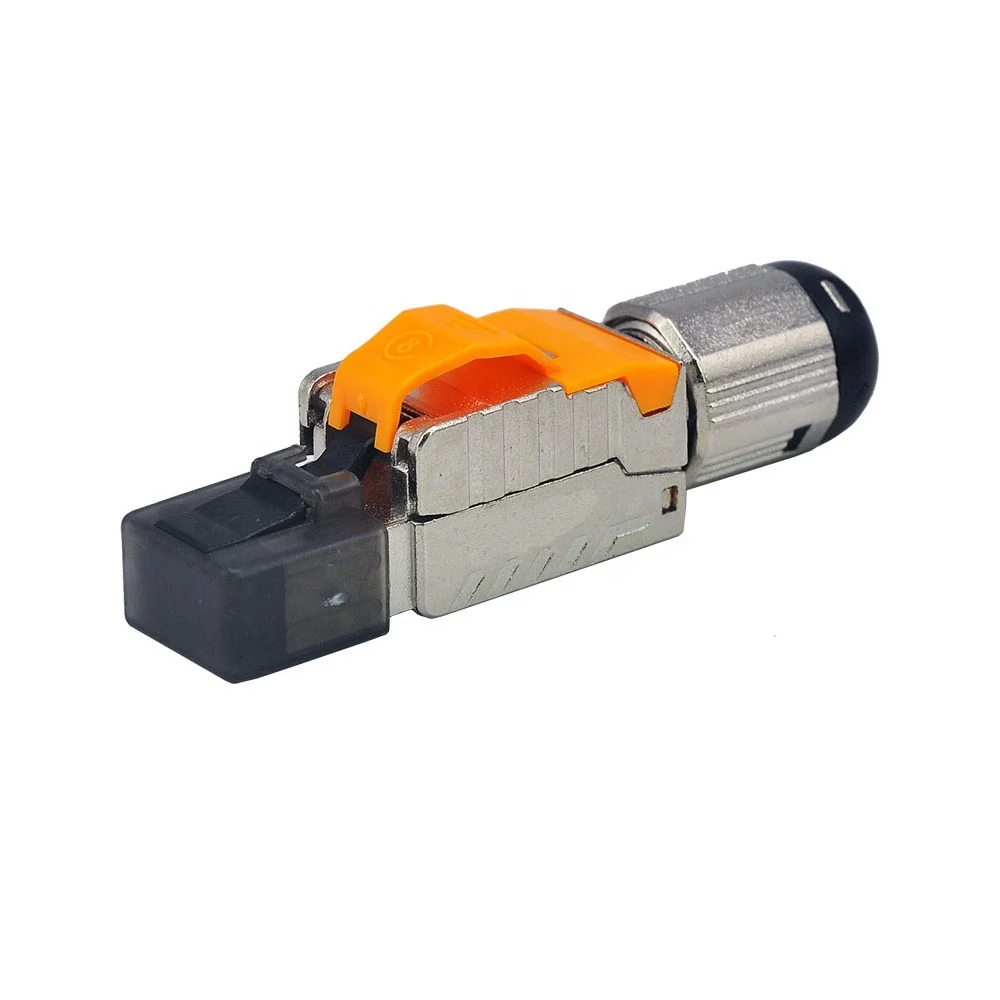

fit 5G network 40Gbps Cat 6A Cat 7 Cat 8 RJ45 Connectors Tool Free Easy Jack Shielding Metal Die-Cast Field Termination Plug

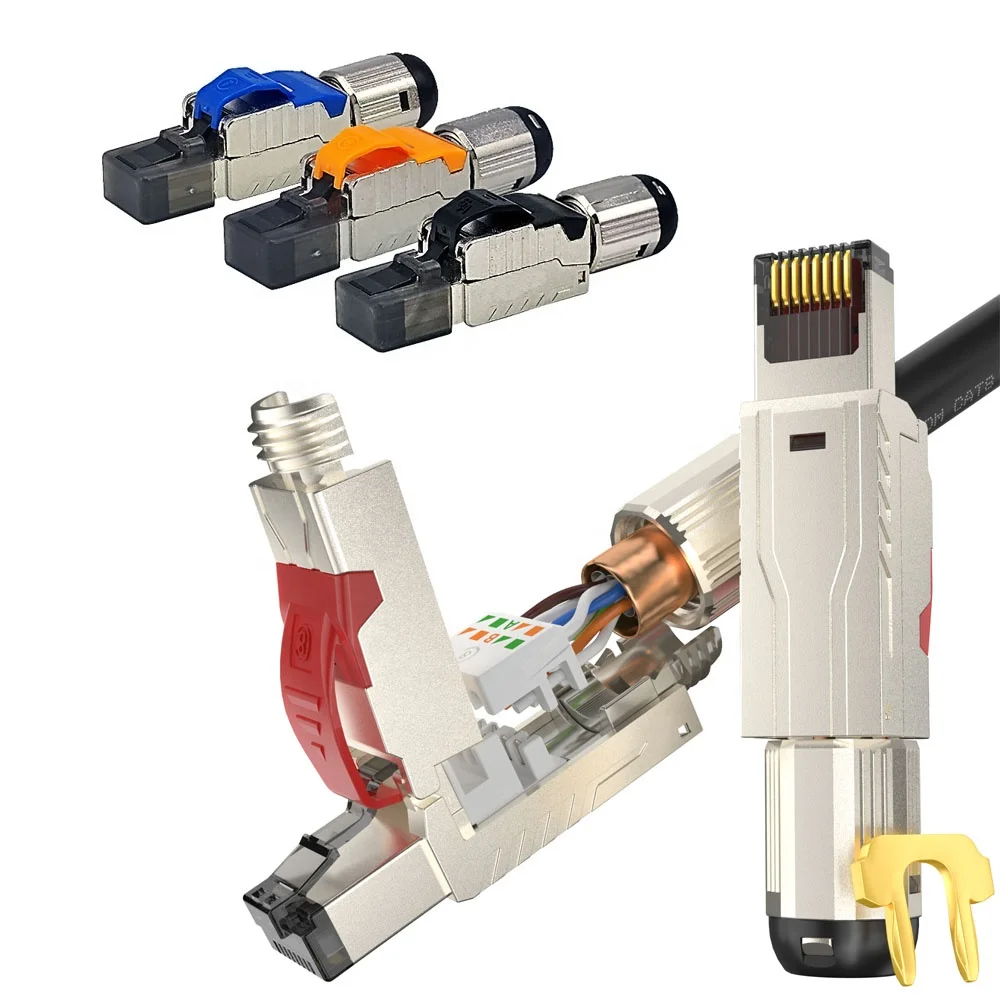

Modular plugs with robust die-cast housing provides superior shielding and mitigates alien crosstalk on a Cat 8 Ethernet cable;
Supports 22 AWG to 24 AWG shielded Cat8 wire with an outside diameter between 7.0 and 8.5mm; Backwards compatible as Cat 6A, or

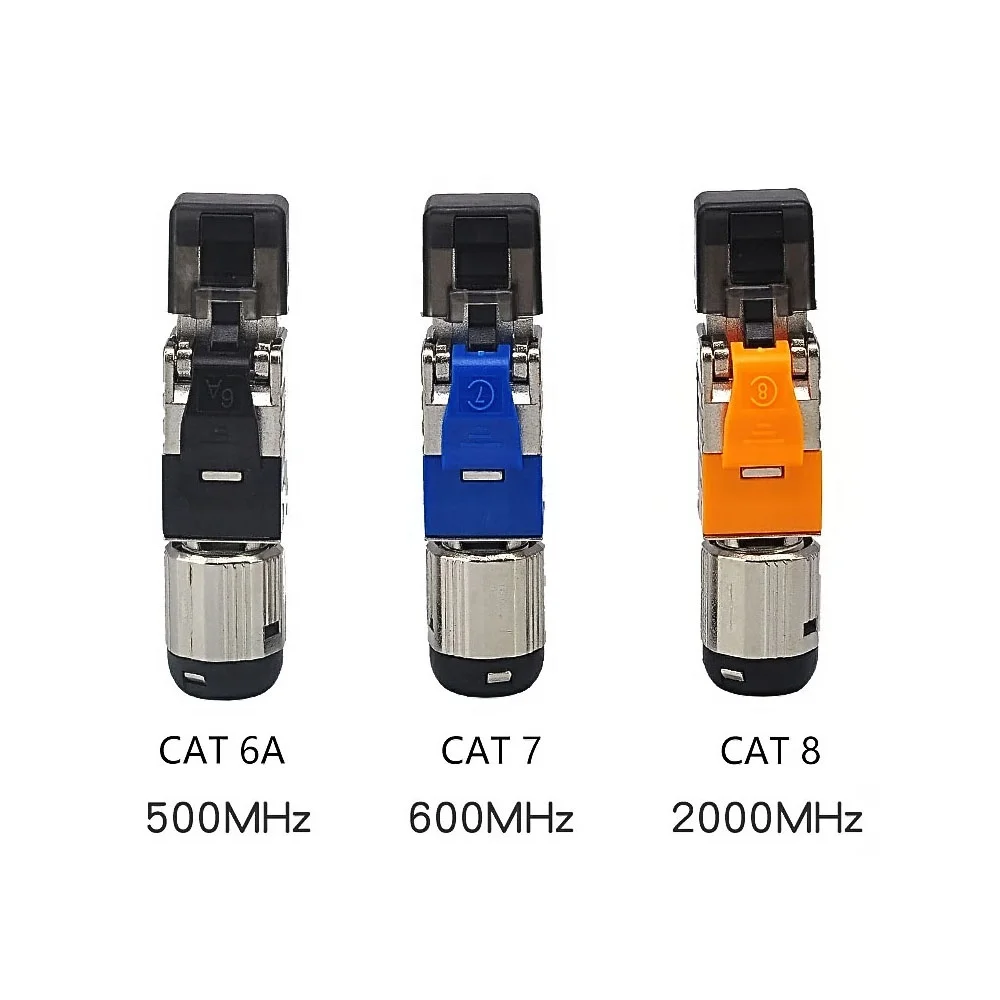

Cat 7 connector CAT8 PERFORMANCE for a 10GBASE-T, 25GBASE-T or even a 40GBASE-T channel compliant network up to 30 meters; GHMT
Cat 8 channel performance verified; Fully backwards compatible with Cat 6 (Cat6), Cat 6A (Cat6A), Cat 7 (Cat7A) Ethernet networks

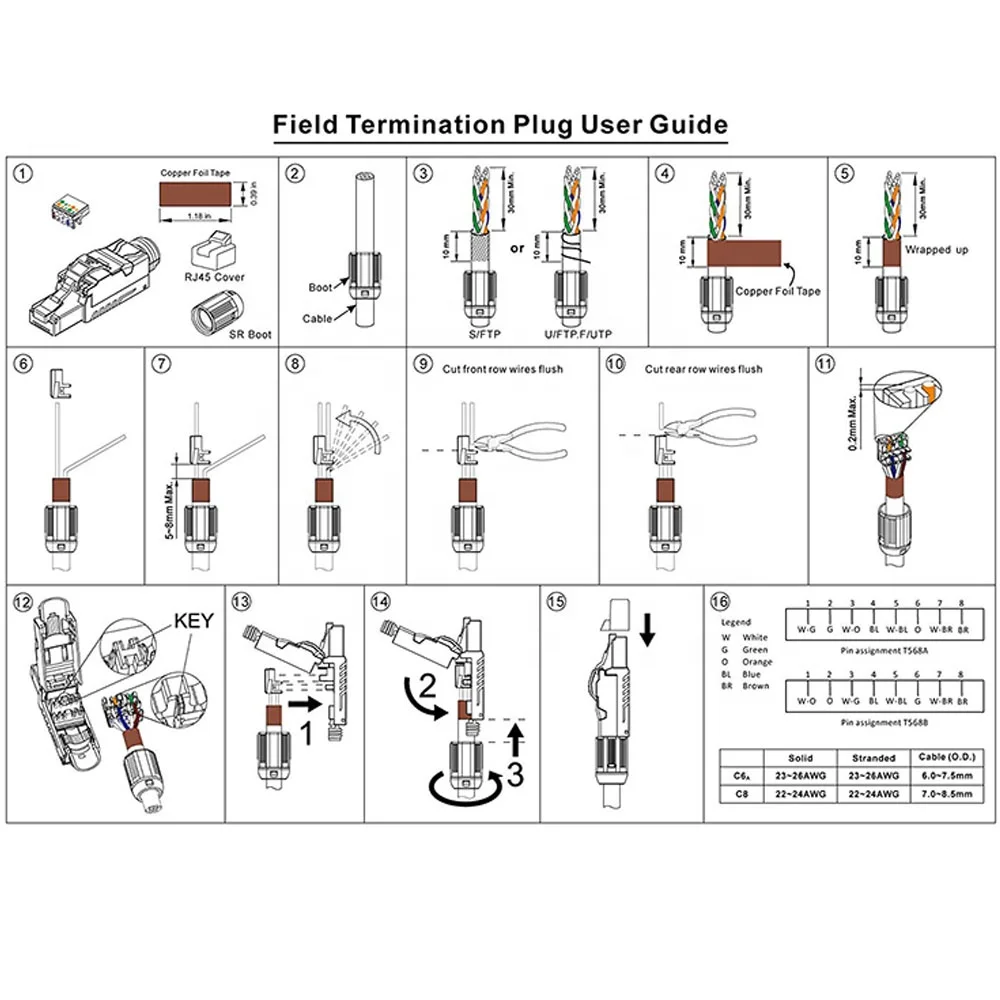

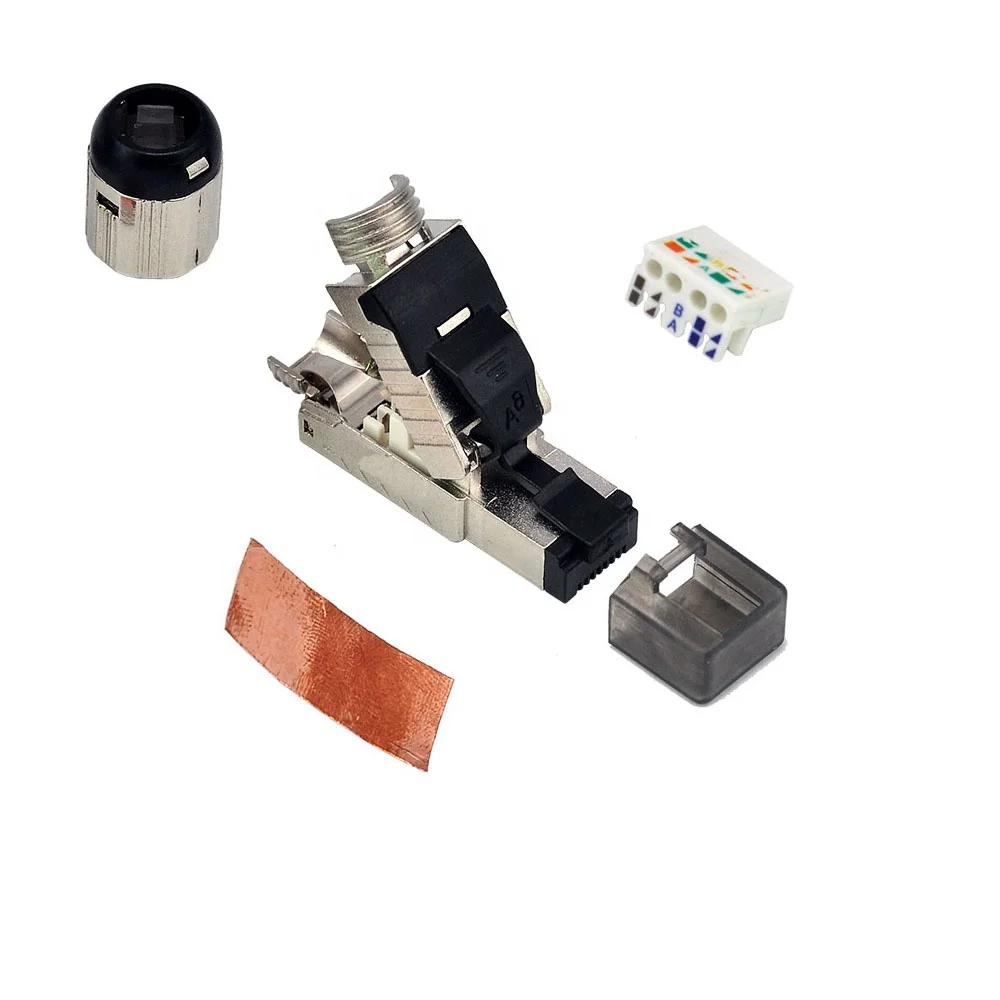

IMPACT TOOL FREE RJ45 CONNECTOR with an open hinged design simplifies placement and termination of bulky shielded cable; IDC
modules can be wired for T568A or T568B wiring with a color-coded pass through termination cap SUPERIOR CONSTRUCTION combines a
one piece metal housing with an integrated silencing cylinder to suppress EMI, NEXT, a nd AXT electromagnetic noise and crosstalk;
A screw-on metal strain-relief boot protects the cable integrity and increases the shielding performance; An IP20 rated dust cover
protects the RJ45 contacts when transporting or storing a terminated cable PoE PLUS COMPLIANT for IEEE 802.3at Power over Ethernet
(PoE+) applications; Terminate a Cat8 Ethernet cable with support for Cat 8 auto-negotiation in a mixed network with variable data
transfer speeds to a 1 GB switch, 10 GB switch or 40 GB switch
Cat 7 connector CAT8 PERFORMANCE for a 10GBASE-T, 25GBASE-T or even a 40GBASE-T channel compliant network up to 30 meters; GHMT
Cat 8 channel performance verified; Fully backwards compatible with Cat 6 (Cat6), Cat 6A (Cat6A), Cat 7 (Cat7A) Ethernet networks
IMPACT TOOL FREE RJ45 CONNECTOR with an open hinged design simplifies placement and termination of bulky shielded cable; IDC
modules can be wired for T568A or T568B wiring with a color-coded pass through termination cap SUPERIOR CONSTRUCTION combines a
one piece metal housing with an integrated silencing cylinder to suppress EMI, NEXT, a nd AXT electromagnetic noise and crosstalk;
A screw-on metal strain-relief boot protects the cable integrity and increases the shielding performance; An IP20 rated dust cover
protects the RJ45 contacts when transporting or storing a terminated cable PoE PLUS COMPLIANT for IEEE 802.3at Power over Ethernet
(PoE+) applications; Terminate a Cat8 Ethernet cable with support for Cat 8 auto-negotiation in a mixed network with variable data
transfer speeds to a 1 GB switch, 10 GB switch or 40 GB switch
