Air Splicer
US $220.00-$250.00
Top quality stainless steel chemical fiber spinneret cleaning
- Category: Textile Machine Parts >>>
- Supplier: Xinghua Xiangda Chemical Fiber Machinery Co. Ltd.
Share on (1600270857732):
Product Overview
Description
Product Description

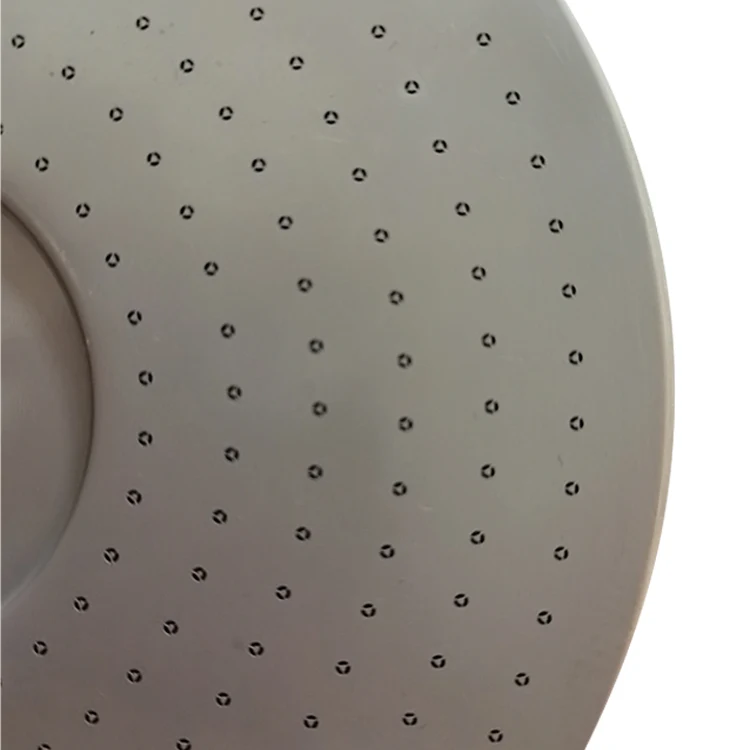

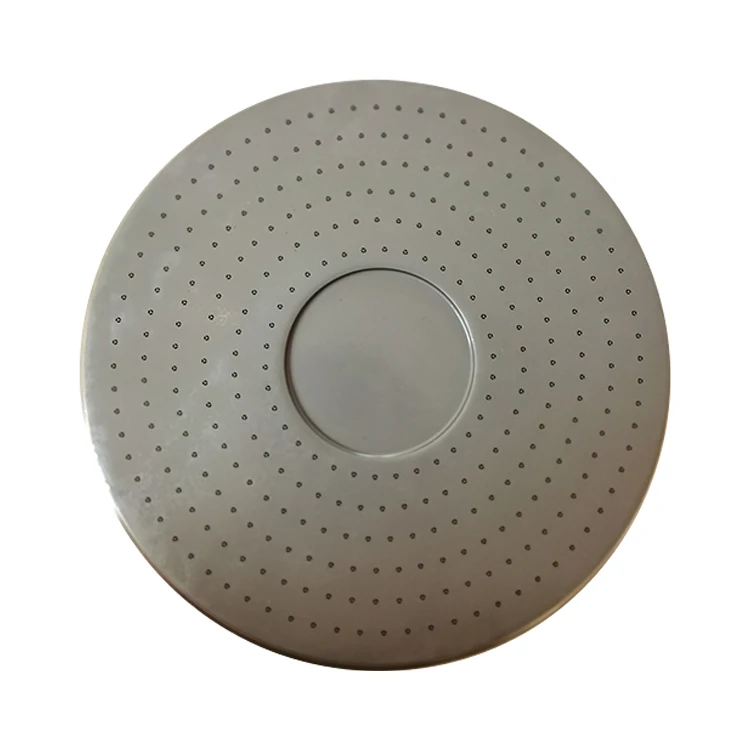

Top quality stainless steel chemical fiber spinneret cleaning
Product Detail
| Brand | xiangda |
| Material | SUS630 |
| Mold Base Life | 500,000 - 3,000,000 Shots |
| Cavity | Single, Multi,Customized |
| Mirror Polishing | N1 |
| Grinding | N2-N4 |
| Tolerance Capillaries | 0.002mm |
| HRC | 40-45 degree |
| Packing | Foam box packing |
| Concentricity | 0.005mm |
| ROUND CAPILLARY SPECIFICATIONS | |||||
| Dia.Of The Capllaries/D | L/D Of The Capillaries | Dia.Of The Capllaries Tolerance | Length Of The Capillaries Tolerance | ||
| Precise Grade | Height Precise Grade | Precise Grade | Height Precise Grade | ||
| 0.04-0.1mm | 1/1-5/1 | ±0.002 | ±0.001 | ±0.01 | ±0.02 |
| 0.1-0.5mm | 1/1-5/1 | ±0.002 | ±0.001 | ±0.01 | ±0.02 |
| 0.5-1mm | 1/1-10/1 | ±0.002 | ±0.001 | ±0.01 | ±0.02 |
| 1-2mm | 1/1-20/1 | ±0.004 | ±0.002 | ±0.02 | ±0.03 |
| Chamfering of guide hole | N5-N7 | ||||
| Guide Hole | N3-N6 | ||||
| Excessive Angle | N2-N6 | ||||
| Capillaries | N1-N3 | ||||
| Mirror Polishing | N1 | ||||
| Grinding | N2-N4 | ||||
Q1:A re you trading company or manufacturer ？
A: We are factory, and we can supply spinnerets and nozzles according to your requirements.
Q2: How long is your delivery time?
A: It is generally 30 working days. if the goods are not in stock, it is according to quantity.
Q3: DO you provide samples？ is it free or extra？
A: Yes, we could offer the sample for extra charge and do not pay the cost of freight.
Q4: What is your terms of payment？
A: For small amount less than 5000usd we accept T/T, PaypaI or WesterUnion. For normal products we accept 30%T/T first, then 70% efore shipment, for special ODM products, we accept 100% T/T first.
Q5 ： What is you r R&D ability and quality level?
A: AII our design engineer and inspection engineer with over 10 years experiences on fields, we are official supplier for many
famous factories.
