factory price 2mm 5mm 3mm precision bearing ball chrome steel ball
- Category: >>>
- Supplier: Feicheng City Tianyuan Industry &Trade Co. Ltd.
Share on (1600271135096):
Product Overview
Description

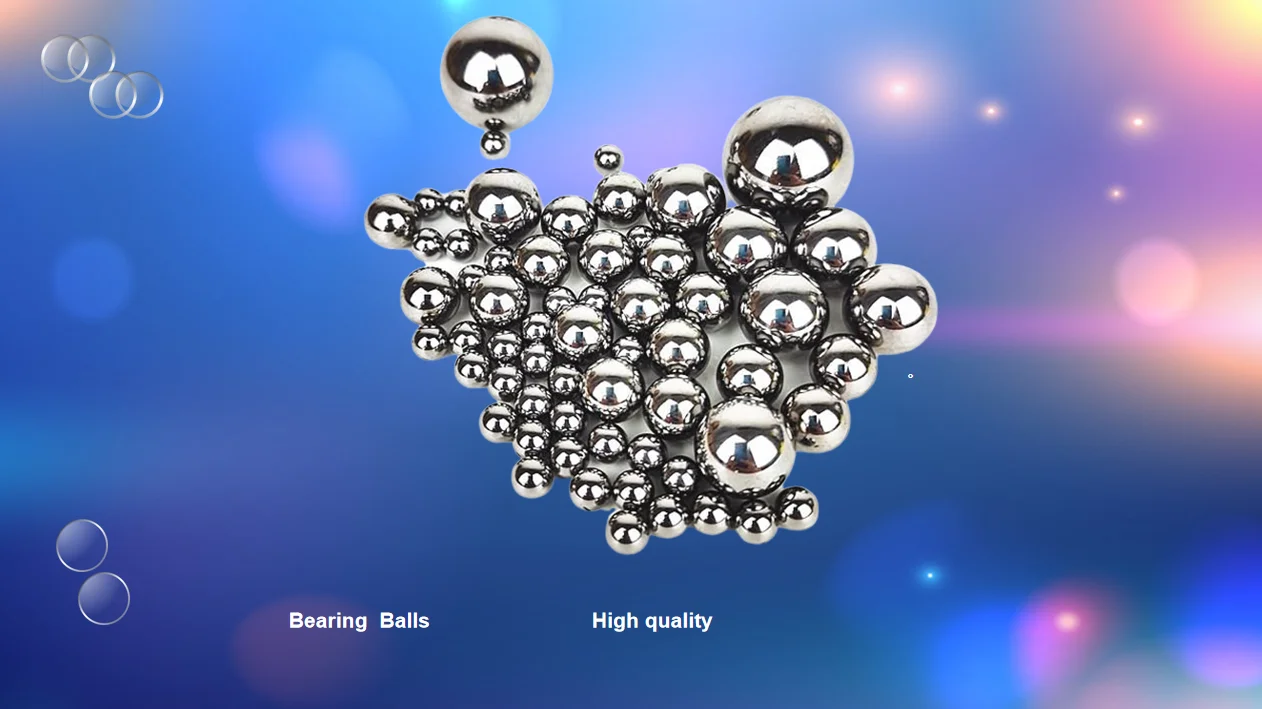

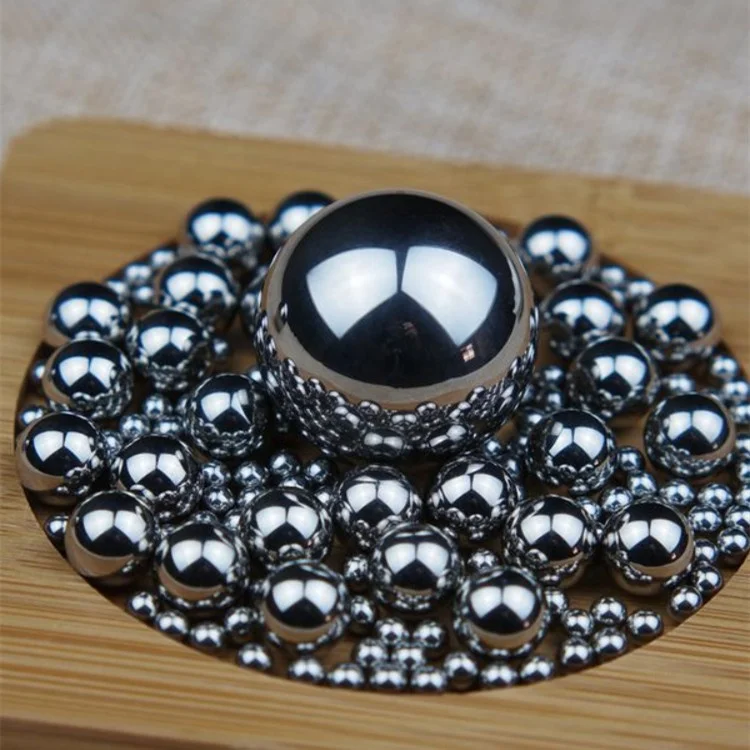

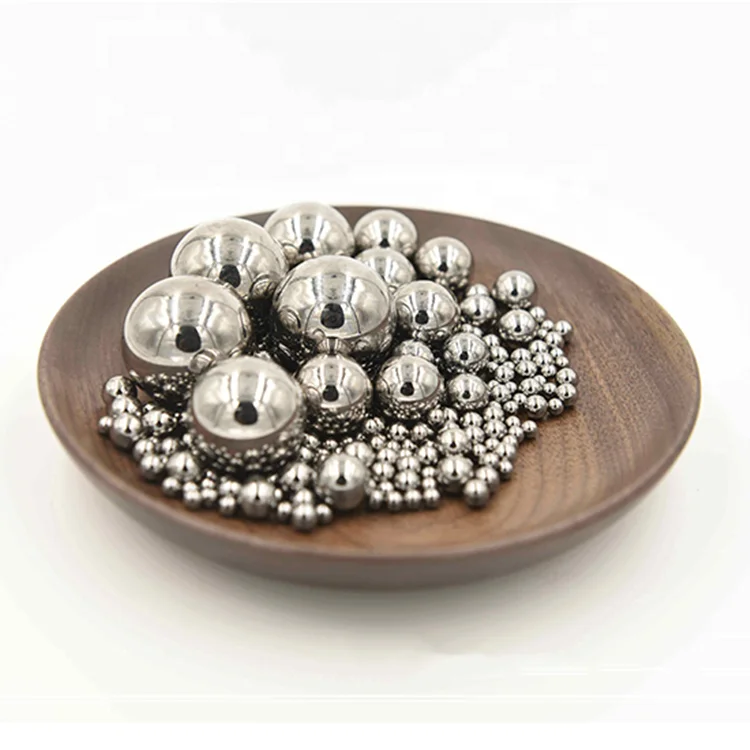

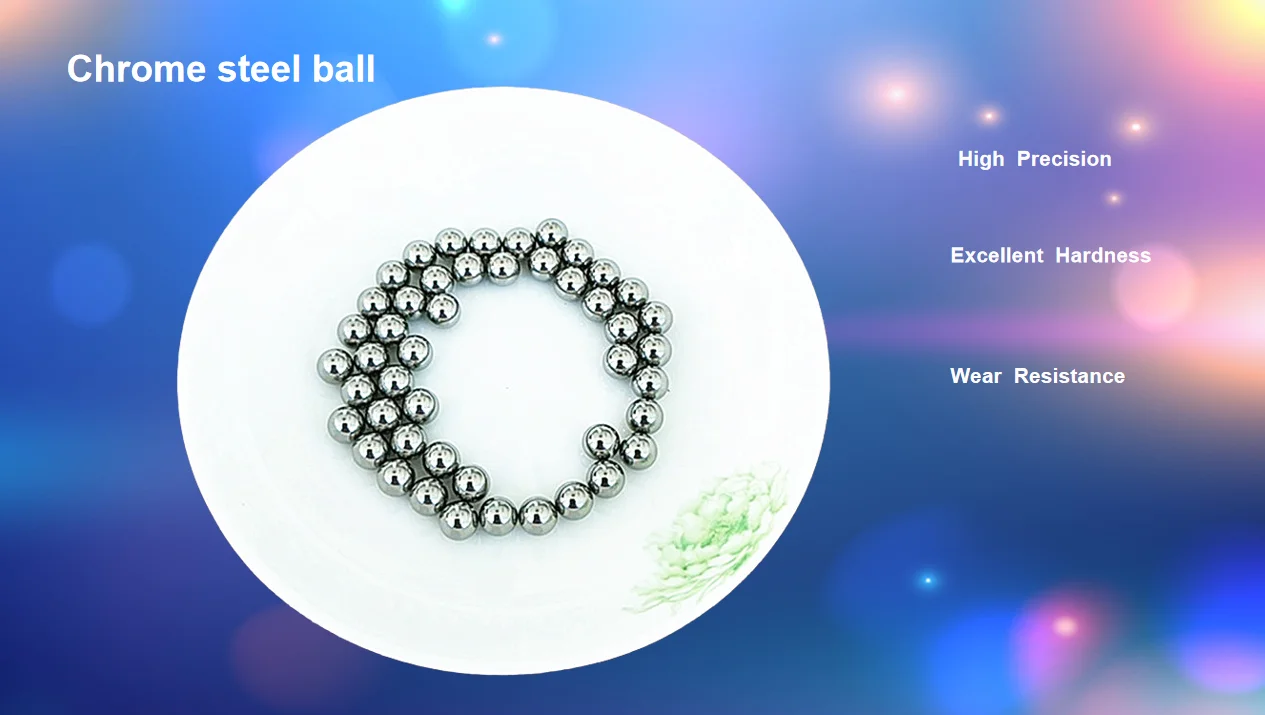

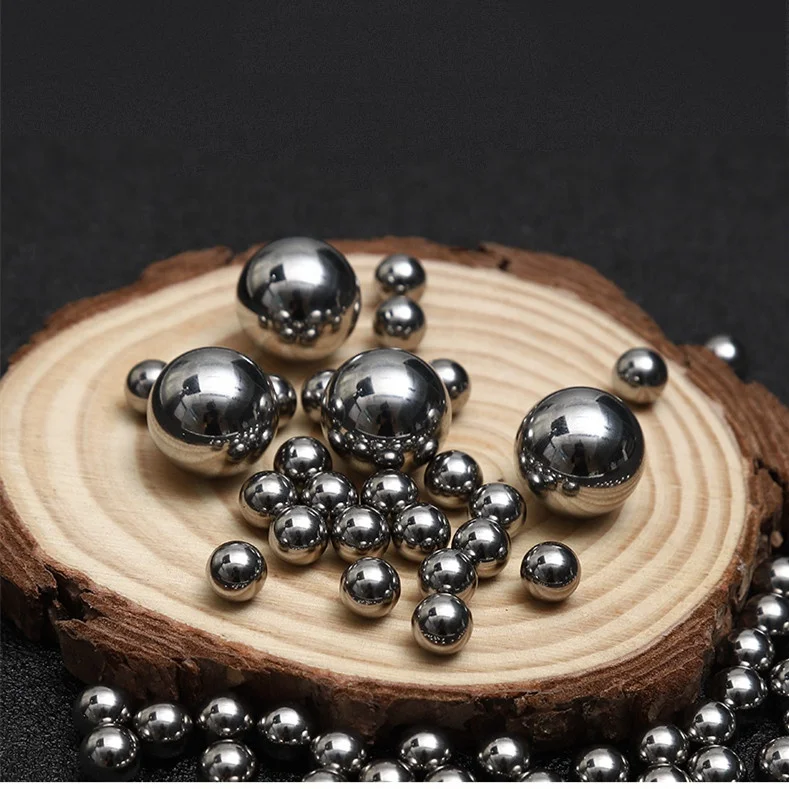

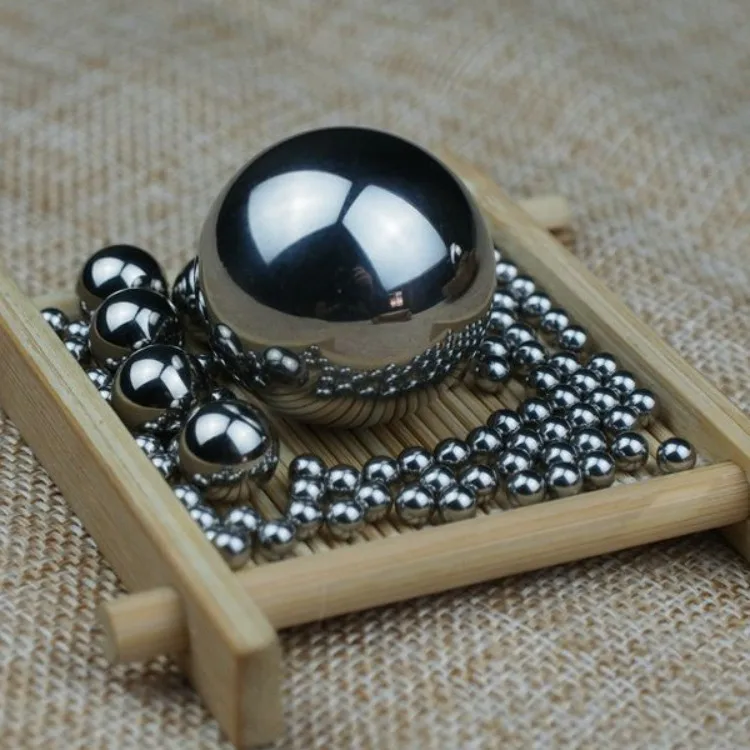

factory price 2mm 5mm 3mm precision bearing ball chrome steel ball
Product Description
Chrome steel balls are also known as high-carbon chromium alloy steel balls. Our factory mainly selects GCr15 raw materials from large steel plants for production in strict accordance with the national standard GB/T308.1-2013. GCr15 is the domestic name, the American standard is AISI52100, the Japanese standard is SUJ2, and the German standard is 100Cr6/1.3506, all of which are a kind of material.
This material has high hardness, tensile strength, contact fatigue strength and wear resistance, and considerable toughness, which meets the requirements for corrosion resistance and high temperature resistance under certain conditions. Bearing steel ball is one of the important parts of ball bearings. The quality of the bearing has a great influence on the dynamic performance and service life of the bearing. The reduction of bearing vibration value and the increase of service life and the improvement of the surface quality of the bearing steel ball Inseparable.
Chrome steel ball/bearing steel ball | ||||||||||
1. Material | AISI 52100/ 100Cr6/ 100C6/ SUJ2/ Wks 1.3505 | |||||||||
2. Size Range | 0.6mm-180mm | |||||||||
3. Grade | G10-1000 | |||||||||
4. Hardness | 58-65 HRC | |||||||||
5. Magnetic | Yes | |||||||||
6. Applications | Bearings, Ball screws, Automotive (transmission, steering, anti-lock brakes) Valves... | |||||||||
7. Chemical composition | ||||||||||
| C% | Si% | Mn% | S% | P% | Cr% | Mo% | Cu% | Al% | O% |
min. | 0.93 | 0.15 | 0.25 | --- | --- | 1.35 | --- | --- | --- | --- |
max. | 1.05 | 0.35 | 0.45 | 0.015 | 0.025 | 1.65 | 0.1 | 0.3 | 0.05 | 0.0015 |
8.Packing | Standard: 10kg or 20kg per carton,1 ton per pallet or as customer required | |||||||||
9.Conditioning | dry or oiled | |||||||||
10.Delivery time | Stock within a short time or 25 days. | |||||||||
Application

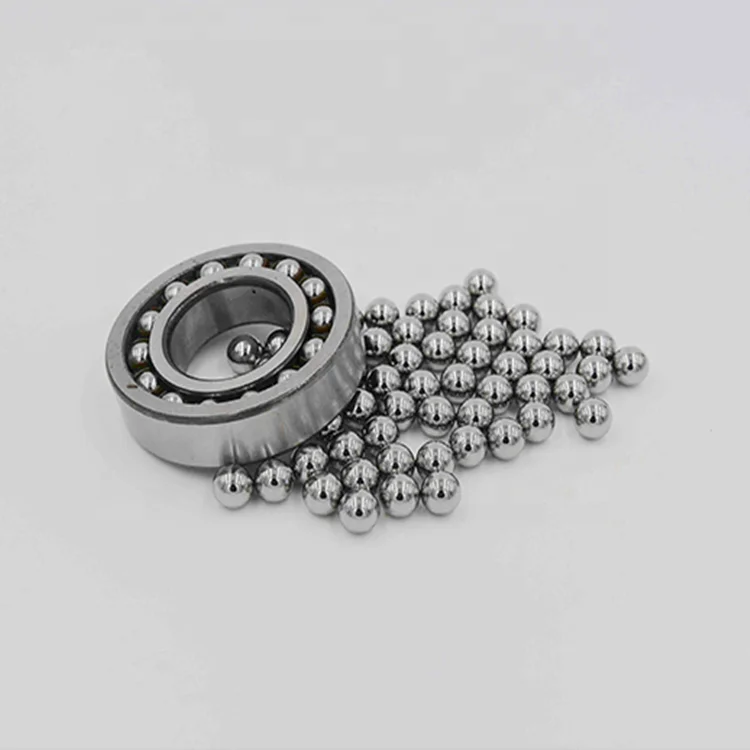

Chrome steel balls are used as rolling elements in ball bearings to carry and transfer loads. Because the steel ball works under bad hand conditions, it is easy to cause fatigue damage. A large number of experiments have proved that in the fatigue-damaged bearings, more than 60% of the bearings are scrapped due to the first failure of the steel ball. At the same time, steel balls are the most critical parts in low-vibration and low-noise bearings. Therefore, choosing high-quality chrome steel balls is the key to ensuring bearing quality and life. In Ball Bearings,Grade 20, hardened chrome steel balls are applicable. Manufactured in high carbon high chrome steel, also called bearing steel (AISI-52100 / EN-31)
Ball Diameter Tolerance: 0.000020 inch or 0.0005 mm or 0.50 microns.Basic Diameter Tolerance: ± 0.0001" or ± 0.0025 mm or ± 2.50 microns
Meanwhile, chrome steel balls are also widely used in ball valve, ball screw, aviation, auto parts, wind power generation, ball pen and home appliance.

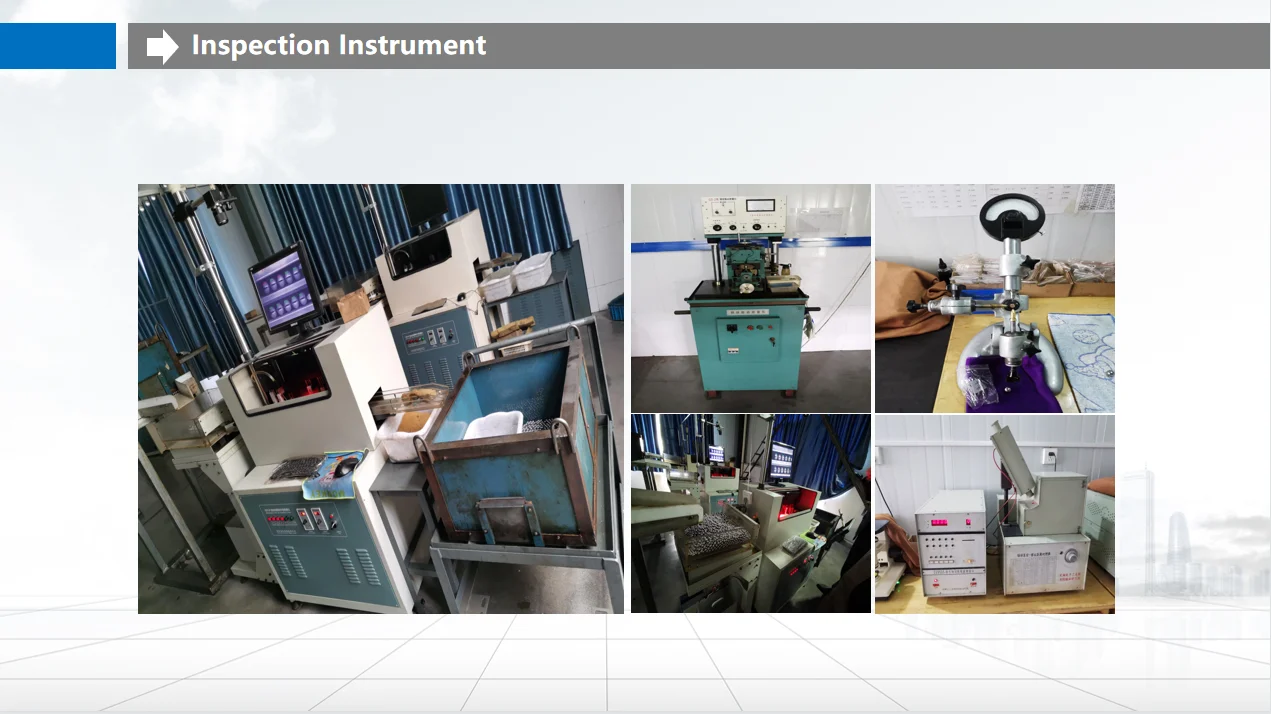

Inspection
Stable product quality depends on advanced testing equipment to ensure, our inspection equipments include: Rockwell hardness tester, Metallurgical microscope, Laser steel ball roughness measuring instrument, Steel ball vibrometer, Steel ball optical photoelectric instrument and Steel ball sorter
Related Products
Company Information

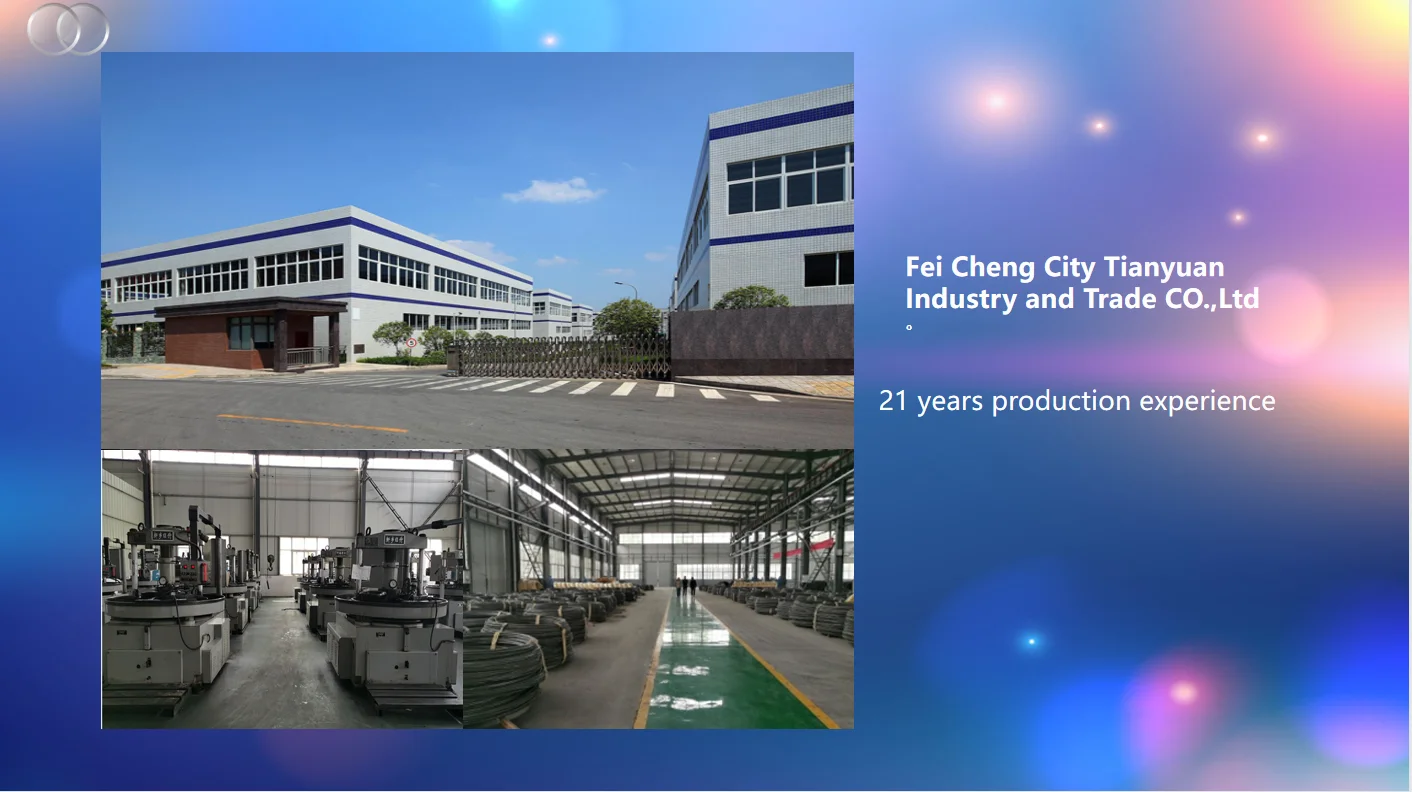

Feicheng Tianyuan Industry and Trade Co., Ltd. is a large-scale manufacturer with 21 years of production experience. The company has just introduced a number of advanced steel ball production and testing equipment, which greatly improves production efficiency and product quality, and provides new and old customers with more high-quality and better-priced steel balls. The main specifications are 0.5-110MM, and the main models are stainless steel. Balls, bearing steel balls, chromium steel balls, electroplated steel balls, miniature steel balls, extra-large steel balls, etc. In recent years, we have continued to improve the process, reduce costs, and provide customers with products with stable quality and reasonable prices
Our Professional Team
With an experienced and professional team,we have exported our products to more than 30 countries and regions over the word,Our products enjoy a good reputation among our customers,we welcome customers,business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
Exhibition
The Canton Fair is currently China's arrogant international trade event with the most comprehensive product categories and the largest transaction volume. We have participated in the Canton Fair many times, where we met many of our old overseas customers, which enhanced our friendship. At the same time, we communicated with new customers and exchanged business information.

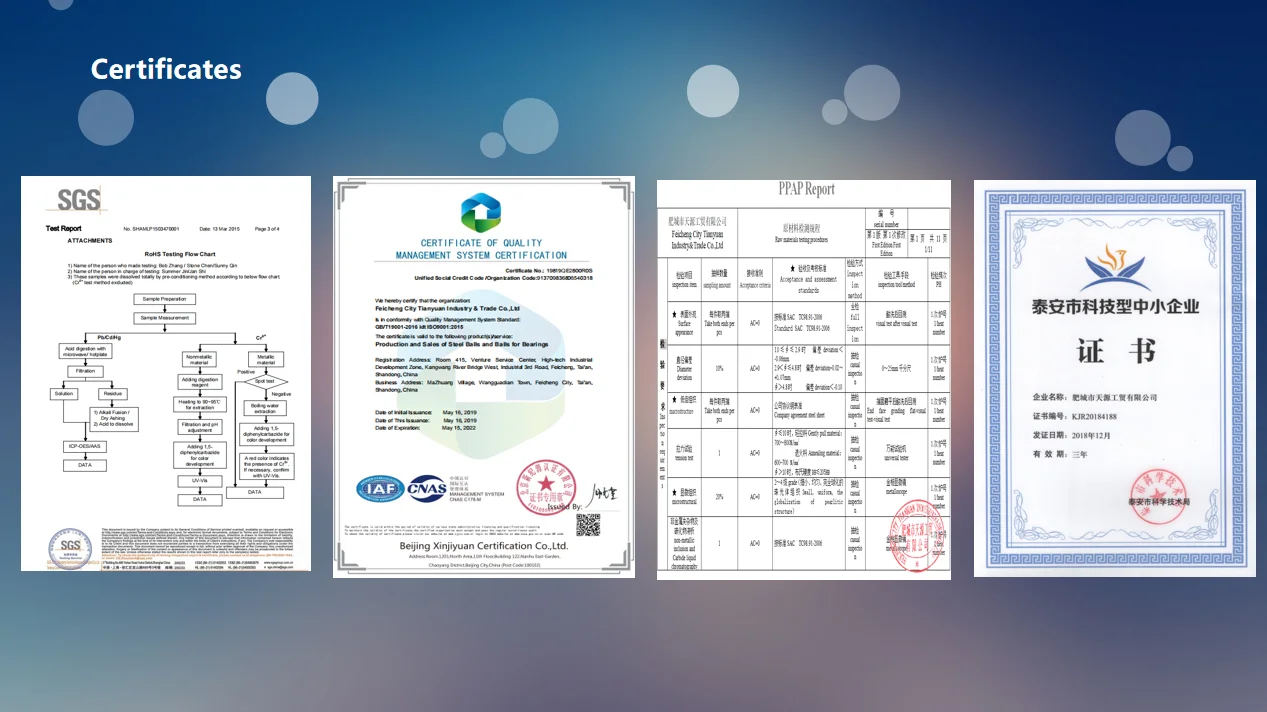

Certifications
We have the above Certificates:
Business License
Organization Code Certificate
PPAP Report
Permission License
SGS Certificate
Certificate of quality management system certification
GB/T19001-2016 idt ISO9001:2015
IATF 16949:2016
Certificate of Honor
Patent Certificate

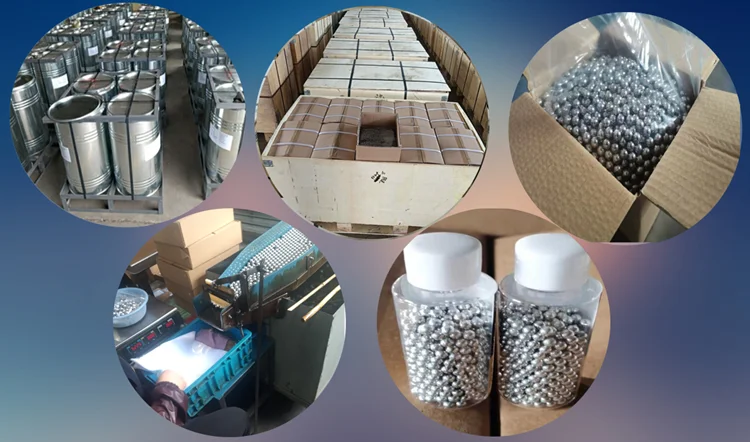

Packaging & Shipping
(1)We have below packages for your references:
1, woven bag
2, woven bag + carton box
3, woven bag + carton box + wood pallet
4, woven bag + carton box + wood cases
5, boxes + carton box + wood cases
(2)Our loading ports can be as follows:
Qingdao, Shanghai, Tianjin,Shenzhen,Ningbo,Guangzhou,Suzhou,Dalian,Tangshan, Qinhugndao,Yingkou.
(3)Our transportation ways are as below:
By railway, road, sea and air .
Customer visiting
For the past years, our export amount has reached more than six millions dollars. ,Our customers come from America,England,Italy,Germany, Russia, Turkey, France, Belgium, Brazil, Thailand, Mexico, India, Slovenia and many other countries all over the world.
FAQ
Q:Are you the factory or trade company?
A:Yes, we are professional the original factory of steel balls.
Q:Free sample can be provied?
A:Of course, we can.Free samples can be offered for your quality check.
Q:What's the inspection method to ensure the quality of steel balls?
A:Roller sorting, optical machine sorting and visual inspection.
Q:How is the after sales service?
A:Please contact us in 24 hours freely.We will reply you in 1 hour.
Q: Can I come visit your office and factory?
A:Yes, and we shall be greatly honored by your gracious presence.
Q: What is your delivery time for the order?
A: Normally our delivery time is 15-20 days, but if we have the products you want in our stock, the delivery time will be in about one week or less.
Q: Which country is your main market now?
A: Mid-East, North Africa, West Africa, South-east Asia, South America and Northern Europe district. Especially, a firm customer base in Saudi, Morocco, Nigeria, India, Bangladesh, and Russia etc.
