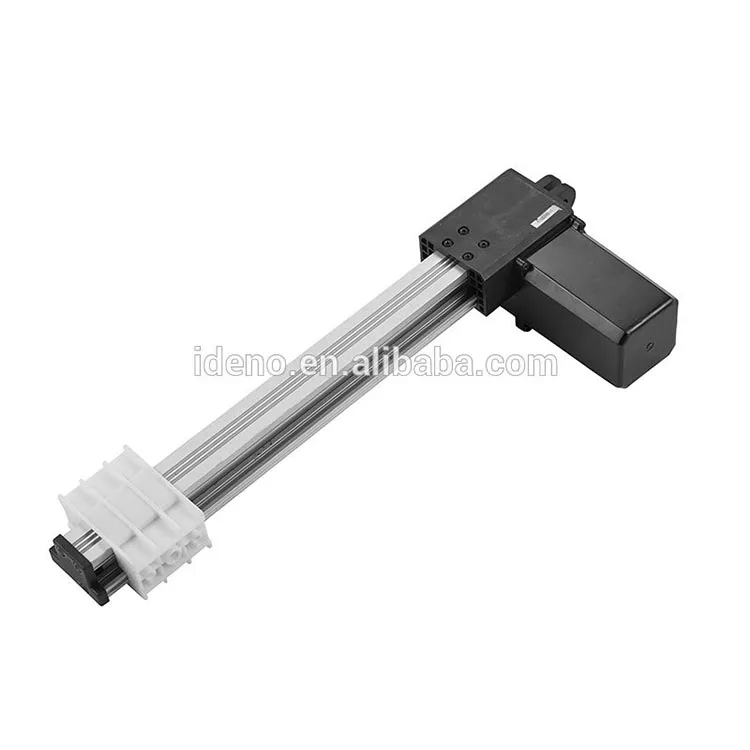

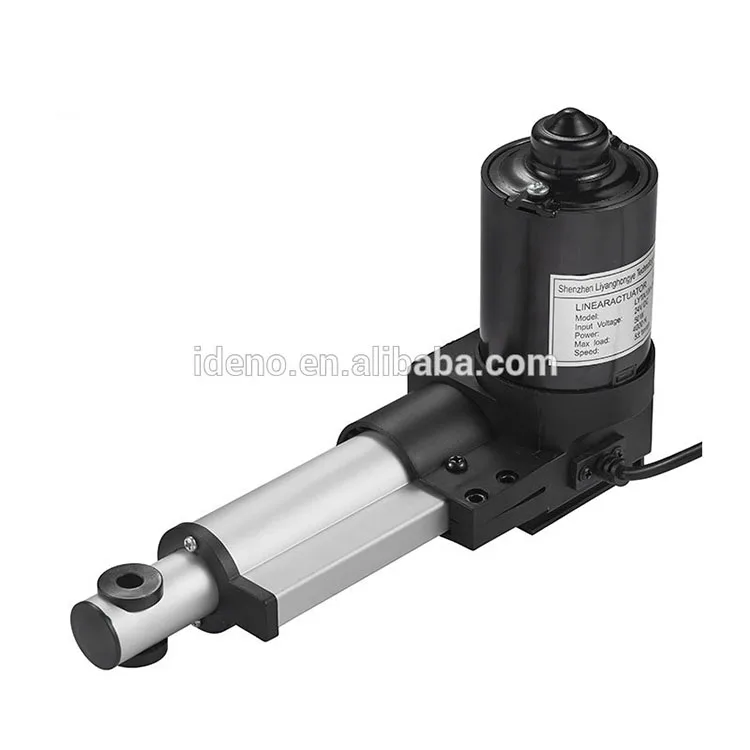

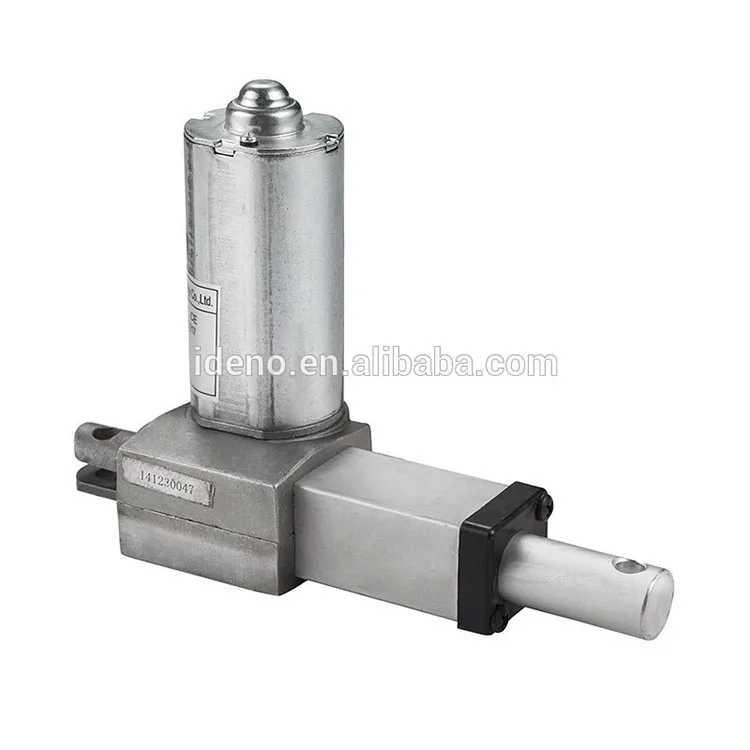

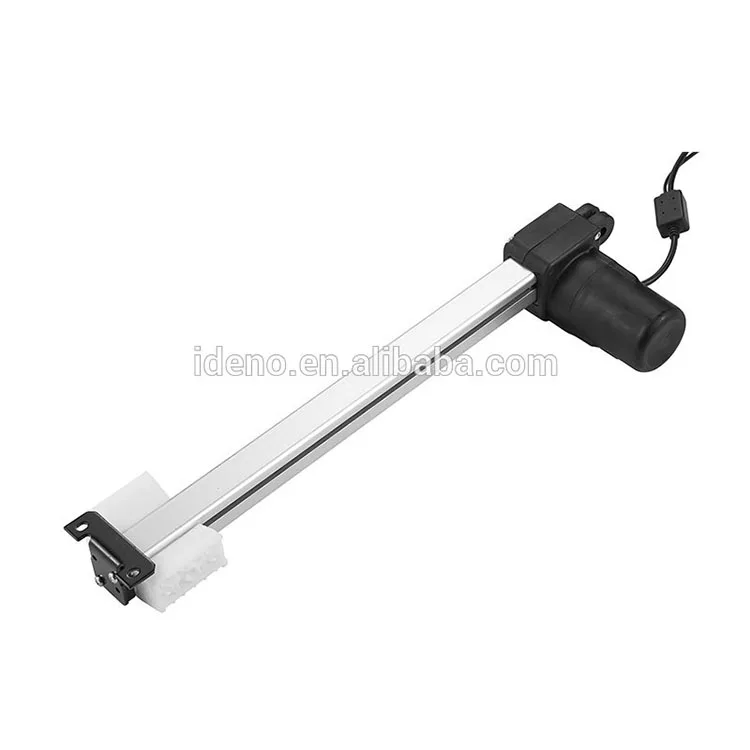

New Design Linear Actuator Combined With Small Vibration Massage Machine Full Body
- Category: >>>
- Supplier: Anji Linuo Electronic Thchnology Co. Ltd.
Share on (1600271364067):
Product Overview
Description
Please Attention:
01.Refound money for all goods didn't sold out within 12 months.
02.3% discount for each week delay delivery time.
03.FREE Hotel during visiting our factory.
04.FREE Sample charge for all orders more than $500.
05.We accept Small Order to check quality & support OEM Designs.
06. We support customers by HD PHOTO&HD VIDEOS to help you grew up online store.
07. We had the honor to serve some of Famous Brand all over the world.
Product Information
General Features | ||||||||||||
Voltage of motor | 24VDC | |||||||||||
Maximum load ( push) | 8000N | |||||||||||
Maximum load (pull) | 4000N | |||||||||||
Maximum speed | 60mm/s | |||||||||||
Min mounting dimension | Stroke+150mm and stroke+175mm with piston rod eye | |||||||||||
Limit switch | Built-in, not adjustable | |||||||||||
Color | Grey | |||||||||||
Protection class | IP20 | |||||||||||
Duty cycle | 10%, max 2 min. continuous use ( followed by 18 min. break) | |||||||||||
Ambient temperature | +5°C ~ +40°C | |||||||||||
Certification | RoHS compliant | |||||||||||
Optional Features | ||||||||||||
Protection class | 1.IP20 2.IPX4 | |||||||||||
Safety option | 1. Safety nut 2. Mechanical splines | |||||||||||
Special option | -30°C ~ +50°C | |||||||||||
Position signal | Hall sensors | |||||||||||
Stroke tube | 1.Stainless steel tube 2. Aluminium tube with surface handled 3.Steel tube with wear-resistant powder painted | |||||||||||
Voltage | 1.12VDC 2.24VDC 3.36VDC | |||||||||||
Load and Speed | ||||||||||||
Code | Maximum load (N) | Self lock (N) | Full load current (A) | Speed (mm/s) | ||||||||
Push | Pull | No load | Rated load | |||||||||
A | 8000 | 4000 | 8000 | 3.7 | 4.1 | 2.6 | ||||||
B | 6000 | 4000 | 6000 | 3.5 | 5.5 | 3.6 | ||||||
C | 4000 | 4000 | 4000 | 3.4 | 8.2 | 5.3 | ||||||
D | 3000 | 3000 | 3000 | 3.3 | 11 | 7.5 | ||||||
E | 2000 | 2000 | 2000 | 3.2 | 16.5 | 11 | ||||||
F | 1500 | 1500 | 1500 | 3.1 | 22 | 15 | ||||||
G | 1000 | 1000 | 1000 | 3 | 33.5 | 23 | ||||||
H | 750 | 750 | 750 | 3 | 45 | 31 | ||||||
I | 600 | 600 | 600 | 3 | 56 | 39 | ||||||
More Products
Why Choose Us

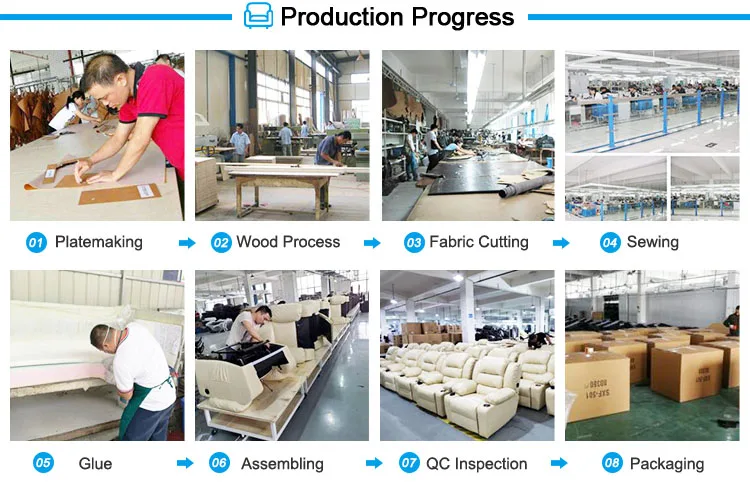

Production Progress
Packing
FAQ
FAQ:
1. Are you a factory or trading company?
We are factory. We can guarantee our price is first-hand and competitive.
2. When can I get the quotation?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get theprice,please call us or tell us in your e-mail so that we will regard your inquiry priority.
3. How can I get a sample to check your quality?
After price confirmation,you can require for samples to check our quality counter display. Please noted some of our samples can be FREE CHARGE and we can refund you sample charge if your order can reach to specified quantity.
4. How long can I expect to get the samples?
After you pay the sample charge and send us confirmed files, the sample will be ready in 3-7days. Then sample will be sent to you via express and arrive in 3-7 working days. You can use your own express account or prepay us if you do not have an account.
5. Can you design for us?
Yes. We have a professional team having rich experience in box design andmanufacturing. Just tell us your idea and we will help to carry out your ideas into perfect packing boxes. It does not matter if you do not have someone to complete files. Send us high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
6. Can we use our own brand on the product, even on the packing box?
Yes, OEM/ODM is available for you. Please send us your brand or logo details during the negotiation and assure the brand is your own and legal for you to use.
7. How can I place an order?
You can contact any of our sales person for an order. Please provide the details of your requirements as clear as possible. So we can send you the exactly offer at the first time.
8. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The leading time of MOQ is about 15 to 35 days. Generally speaking, we suggest that you start inquiry three months before the date you would like to get the products at your country.
9. What is your terms of delivery?
We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.
