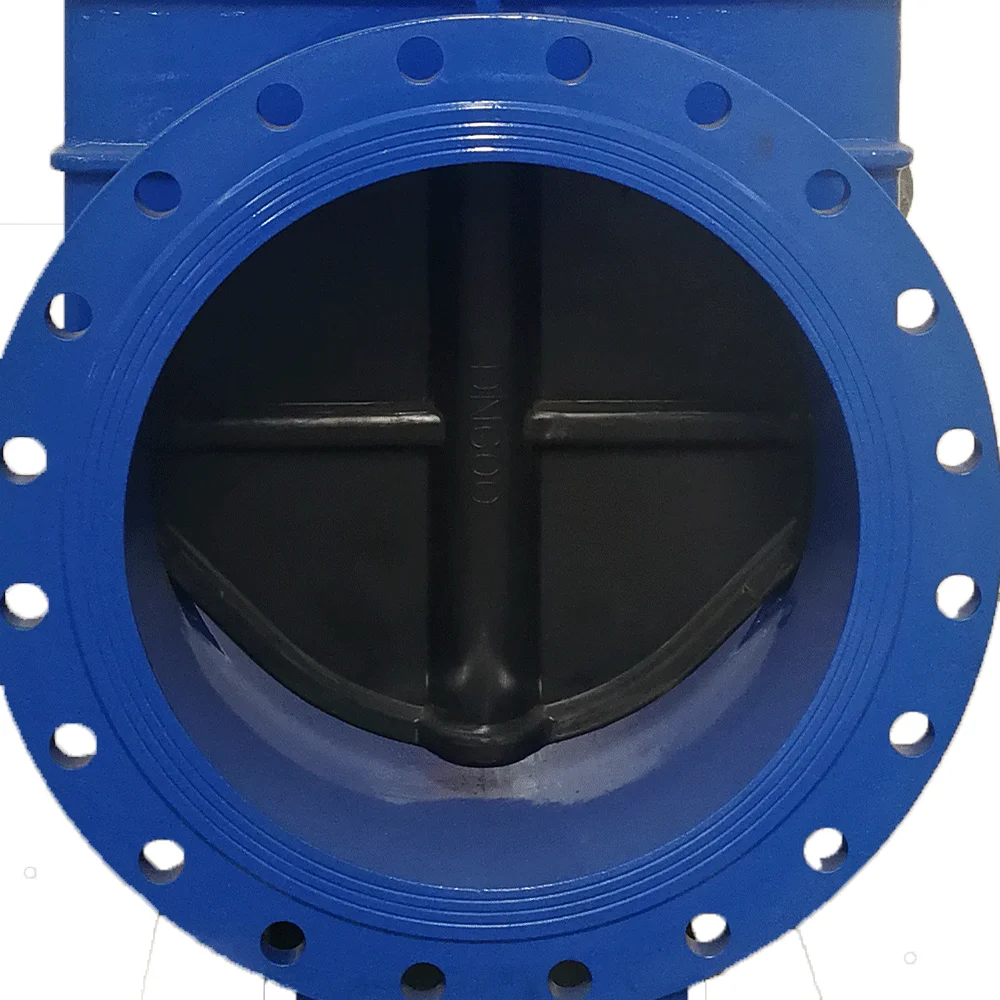

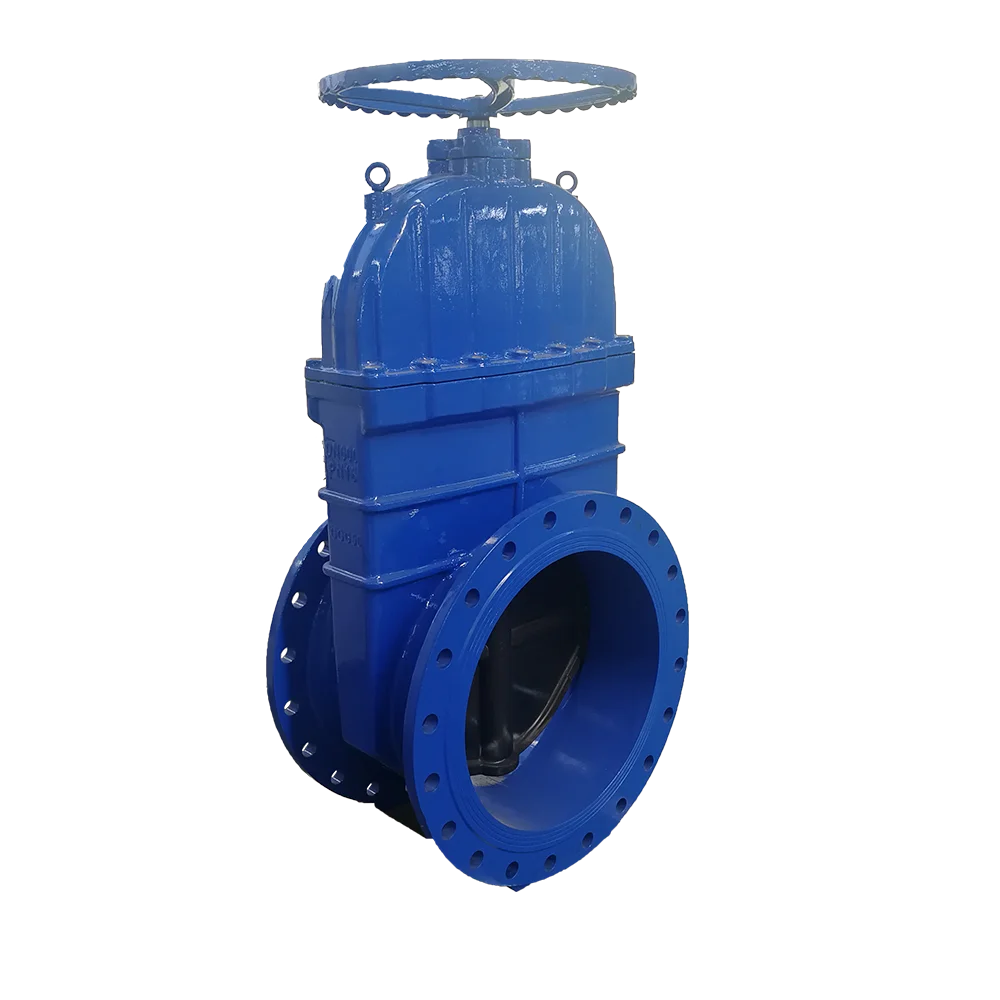

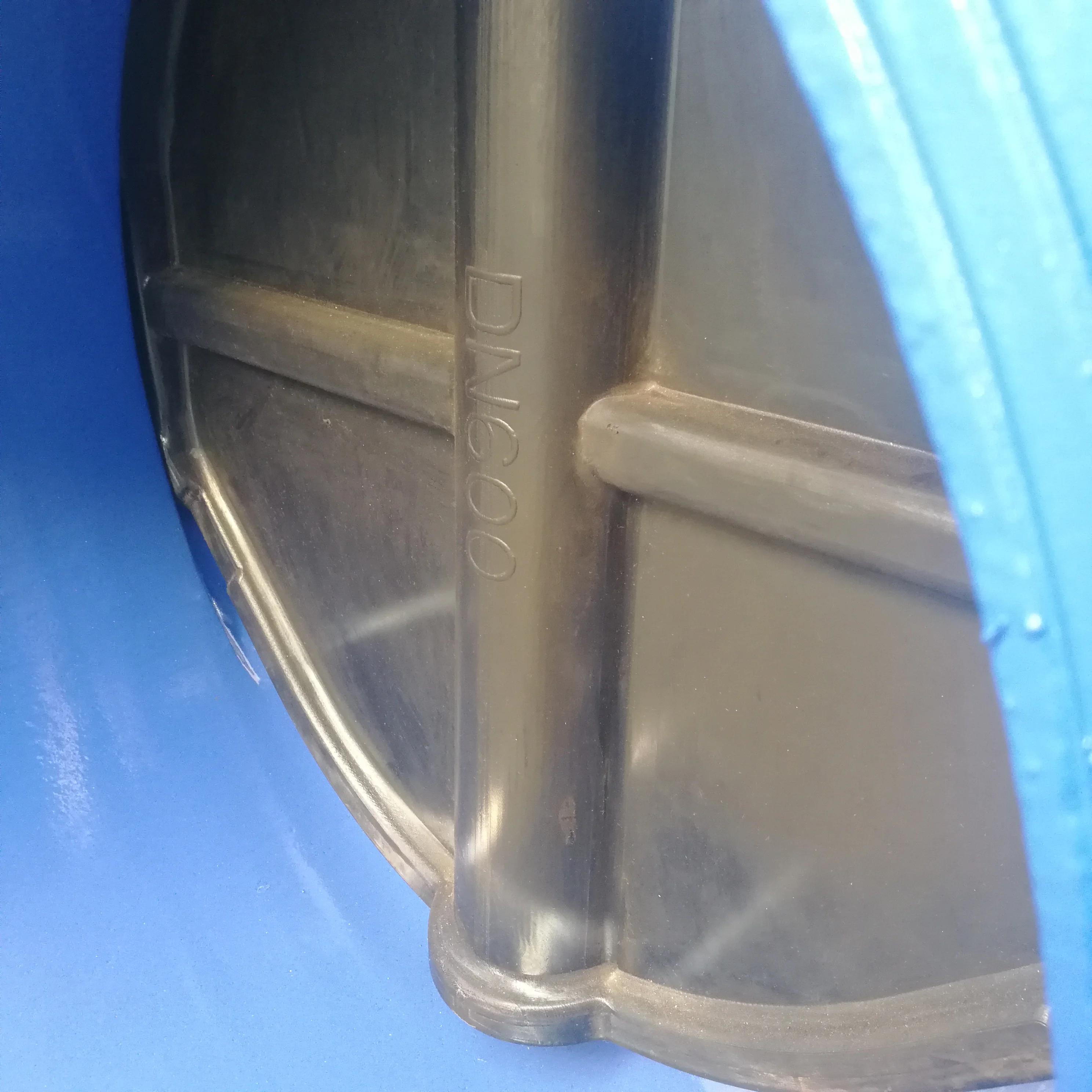

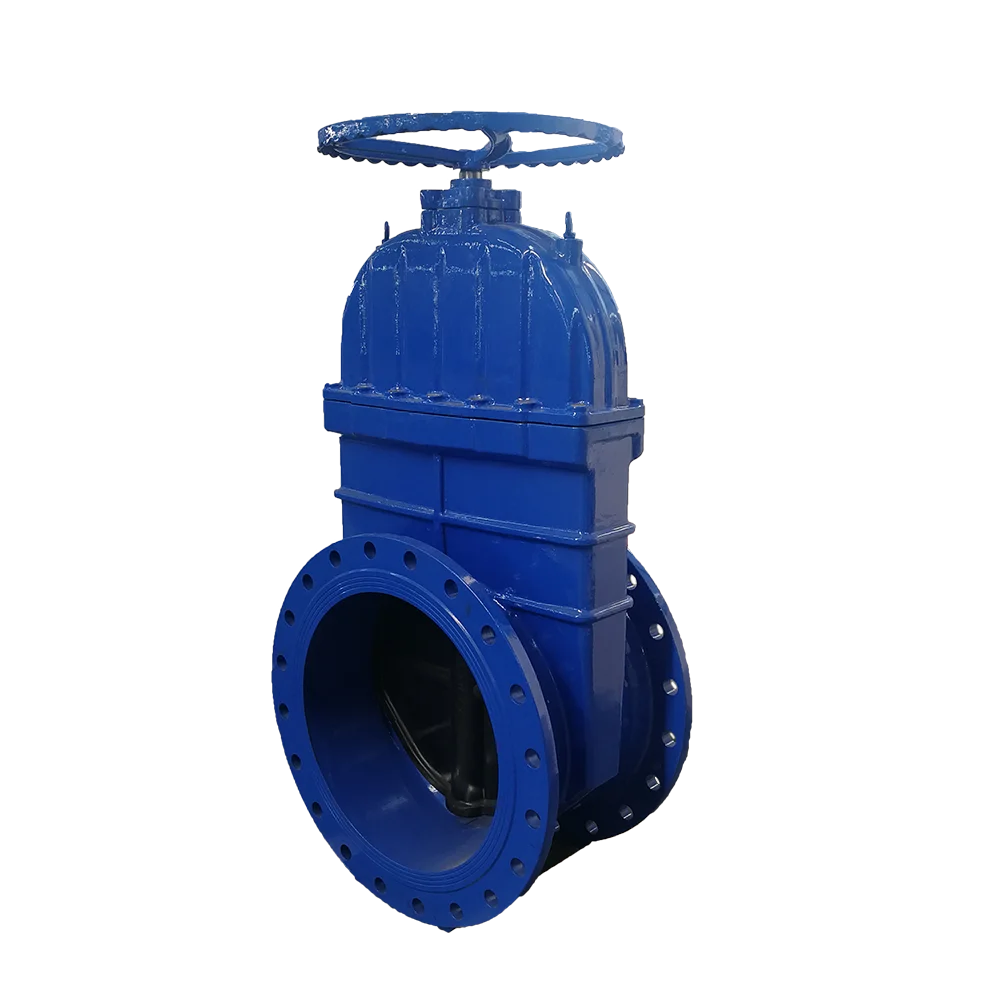

Z45X 16Q DN600 Flange connection Ductile cast iron Manual Non rising stem gate valves
- Category: >>>
- Supplier: Zhengzhou Top Valve Fluid Technology Co. Ltd
Share on (1600271375845):
Product Overview
Description
Type | Gate valve |
Modle | Z45X-16Q DN600 |
Nominal diameter | DN600 |
Nominal pressure | PN16 |
Power | Manual |
Operating temperature | 0~120℃ |
Medium | water、oil、gas |
Flange end | GB/T 17241.6 GB/T 9133 |
Pressure test | GB/T 13927 API598 |
Port | To be negotiated |
Transport | By sea |
Technical analysis
Technical analysis, drawing dismantling, drawing issuance, scheduling production tasks
Blank or raw material
Purchasing relevant blanks or raw materials according to the requirements of the production task
Welding
Adopt robot automatic welding, improve efficiency and welding effect
Lathe processing
Fully automatic CNC center to ensure processing quality
Boring & tapping
Multiple devices can run at the same time
Grind
After grinding to ensure a good sealing effect on the sealing surface
Assembly
Experienced employees can quickly complete assembly and commissioning
Pressure test
Ensure that the product has a good sealing effect and zero leakage
Title goes here.
Spray paint or plastic spray according to design specifications or customer requirements
3D model
Establish a three-dimensional model for relevant technical analysis
Flaw detection
Ultrasonic flaw detection to ensure that there is no damage inside the product and the quality is qualified
Spectral detection
Check whether the material meets the technical requirements
Live teaching
Engineers carry out technical guidance on site to ensure that there is no technical error
Paint Film Thickness Gauge
Test whether the paint thickness meets the standard
Pressure testing
Perform pressure test according to national design standards to ensure good sealing performance of the valve
Bubble paper + plastic film + wooden box，or according to your request
