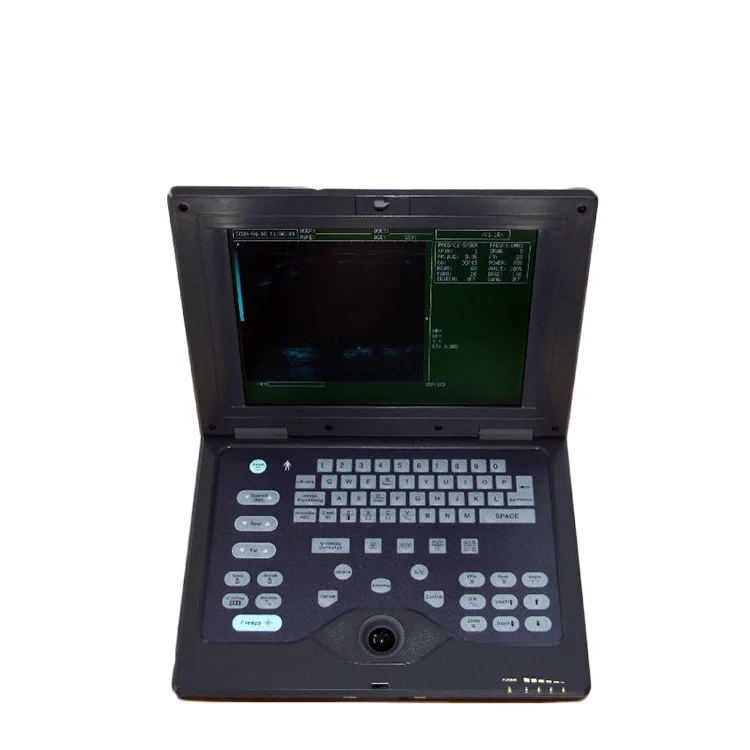

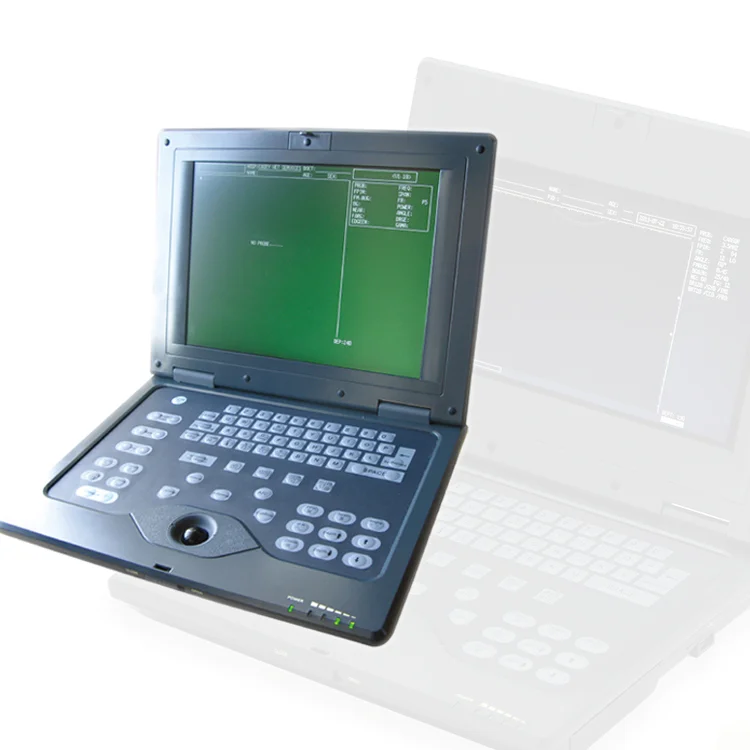

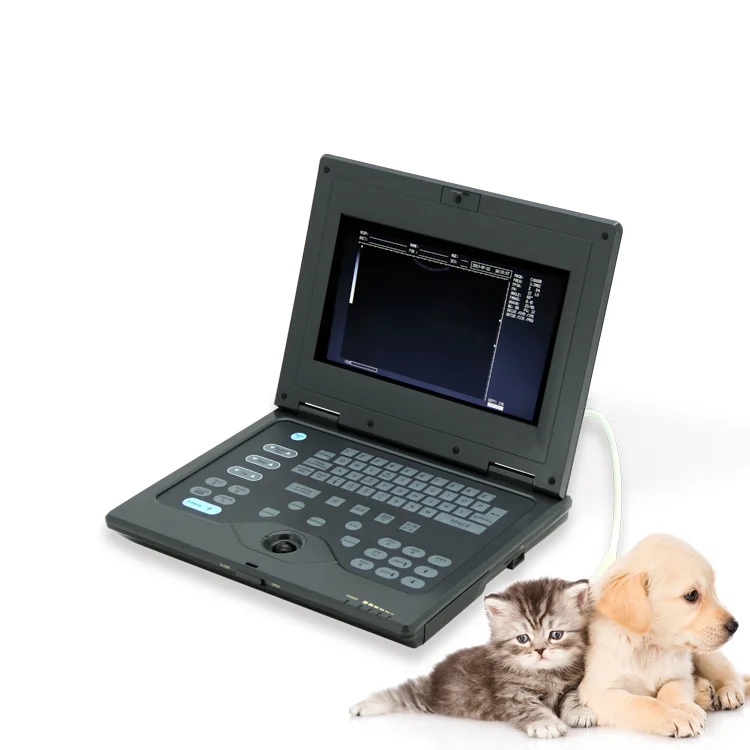

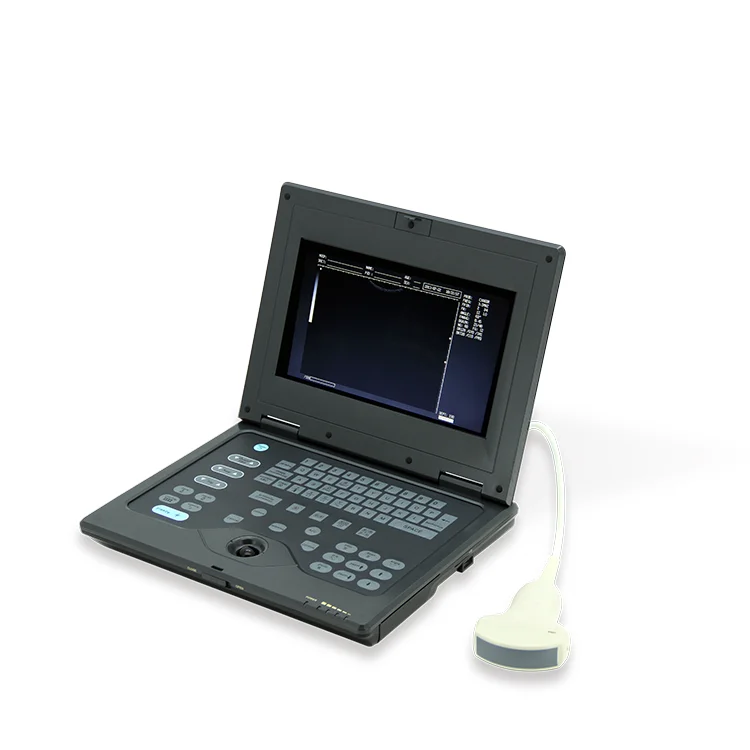

CONTEC CMS600P-VET portable animal ultrasound scanner vet equipment
Products Description
Model | CMS600P-VET |
Warranty Service | 1 year |
After-sales service | Online technical support |
Origin | Jiangsu, China |
Interface | USB,Video,VGA |
Power consumption | ≤45 VA |
Operational voltage | DC14V±0.5V, 3A |
Focus mode | electronic focusing, focus number and focus position can be adjusted. |
Horizontal geometric position precision | ≤5% |
Dimension | 292 mm*232 mm*47 mm |
Introduction
CMS600P-VET is a notebook veterinary B-ultrasound diagnostic system. The device adopts digital beam-forming (DBF), real time
dynamic aperture (RDA), real time dynamic beam apodization (DRA), real time dynamic receiving focusing (DRF), digital frequency
scan (DFS), frame correlation technologies. It is applicable to the measurement and calculation of the obstetric for swine,
bovine, sheep, equine, cat, dog and other animals.
FeaturesCMS600P-VET is a notebook veterinary B-ultrasound diagnostic system. The device adopts digital beam-forming (DBF), real time
dynamic aperture (RDA), real time dynamic beam apodization (DRA), real time dynamic receiving focusing (DRF), digital frequency
scan (DFS), frame correlation technologies. It is applicable to the measurement and calculation of the obstetric for swine,
bovine, sheep, equine, cat, dog and other animals.
1)Adopts high-resolution LCD screen.
2)Clear and stable image quality, high resolution.
3)Optional multiple probes, satisfying different diagnosis requirements.
4)Pseudo-color display function.
5)PAL-D video output offers connection to external video image printer and large-screen monitor and other equipment.
6)High speed USB2.0 port provides real time image uploaded to computer.
Performance
Display mode: B, 2B, 4B, BM, M, BM/M.
Focus mode: electronic focusing, focus number and focus position can be adjusted.
Gain: near field, far field and total gain can be adjusted separately.
Image flip: up and down flip, left and right flip, black-and-white flip.
Character display: date, time, animal name, animal age, doctor, hospital, serial number, probe and image description, etc.
Measurement and calculation: distance, circumference, area, volume and gestational age for swine, equine, bovine, sheep, dog and
cat.
Safety
Type of protection against electric shock: class Ⅱ equipment
Degree of protection against electric shock: type B applied part
Operational voltage: DC14V±0.5V, 3A
Power consumption: ≤45 VA
2)Clear and stable image quality, high resolution.
3)Optional multiple probes, satisfying different diagnosis requirements.
4)Pseudo-color display function.
5)PAL-D video output offers connection to external video image printer and large-screen monitor and other equipment.
6)High speed USB2.0 port provides real time image uploaded to computer.
Performance
Display mode: B, 2B, 4B, BM, M, BM/M.
Focus mode: electronic focusing, focus number and focus position can be adjusted.
Gain: near field, far field and total gain can be adjusted separately.
Image flip: up and down flip, left and right flip, black-and-white flip.
Character display: date, time, animal name, animal age, doctor, hospital, serial number, probe and image description, etc.
Measurement and calculation: distance, circumference, area, volume and gestational age for swine, equine, bovine, sheep, dog and
cat.
Safety
Type of protection against electric shock: class Ⅱ equipment
Degree of protection against electric shock: type B applied part
Operational voltage: DC14V±0.5V, 3A
Power consumption: ≤45 VA
