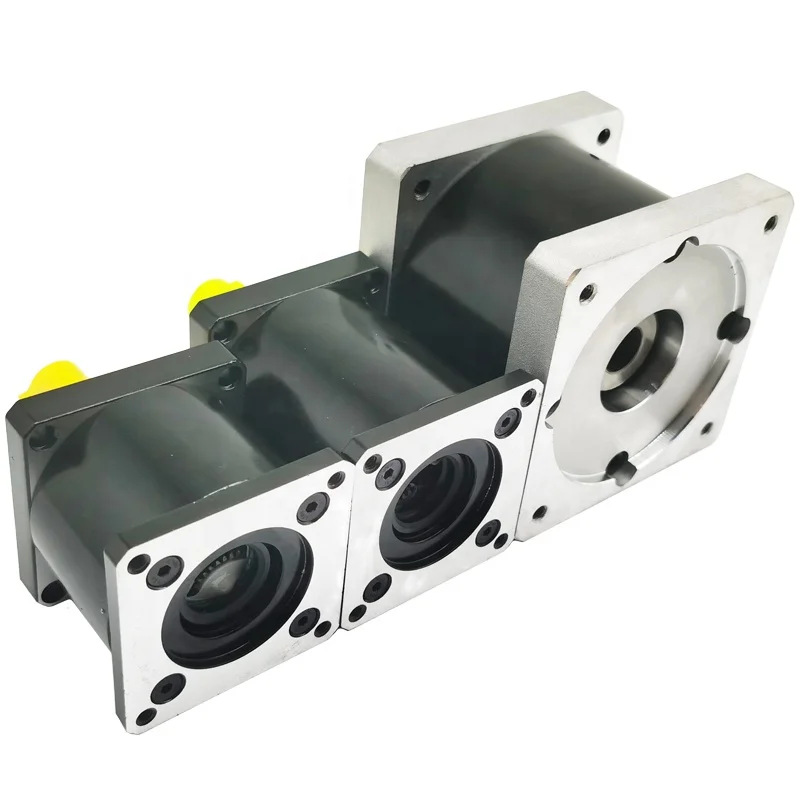

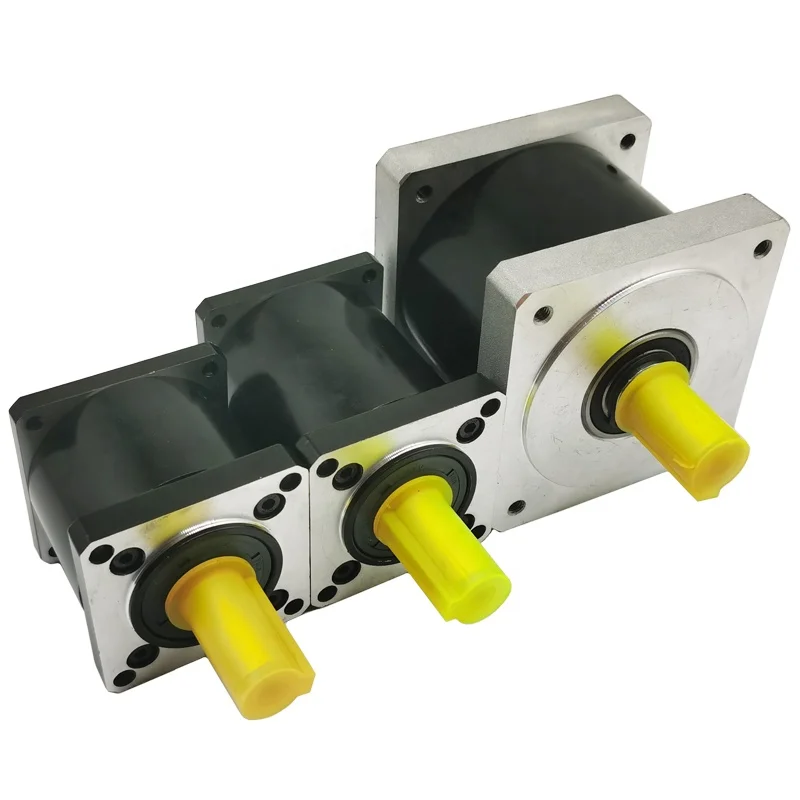

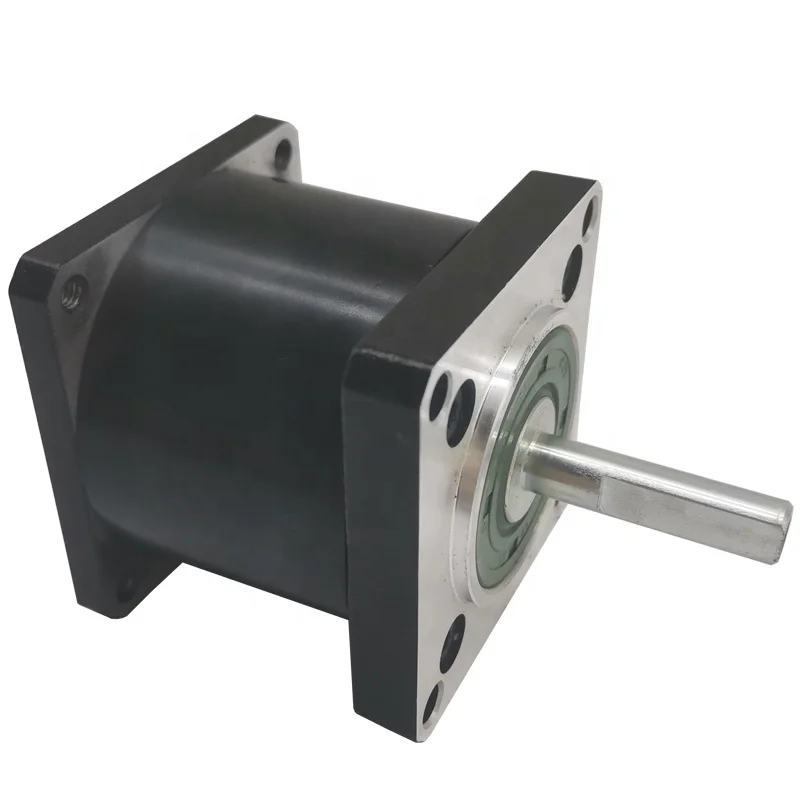

10:1 high Precision nema 23 speed reducer planetary gear reducer gearbox

Share on:

Price:RUB 2,142.29
Price in USD:Details


Product Overview


10:1 high Precision nema 23 speed reducer planetary gear reducer gearbox


Product Description


   Technical Data           Level 1                      Level 2
             Gear Ratio 4,5,10 16,20,25,40,50,100
   Length mm 53 71
  Rated Load Nm 6 25
 Maximum Load Nm 12 40
Efficiency % 95 90
         Backlash  arcmin ≤15 ≤25
        Weight KG 0.8 1.1
Rated Input Speed rpm 3000 3000
 Maximum Input Speed rpm 5000 5000
Protection Grade IP 65 65
Lubrication    Fat (Lifelong Lubrication)                                Fat (Lifelong Lubrication)
 Noise dB ≤45 ≤45
  Life h ~20000 ~20000




our related products:



Packaging & Shipping

We provide standard packing for products.

Plastic foam will be put in carton boxes.



We deliver our goods by sea, air and courier service.

You may contact us to check the shipping status of your order.

Shipping time, after confirmed the details, usually one week is enough for us to make stepper motor sample. Bulk order delivery time depends on the quantity that you need.

Our Services

customization and OEM is available.

Warranty: 18 months
