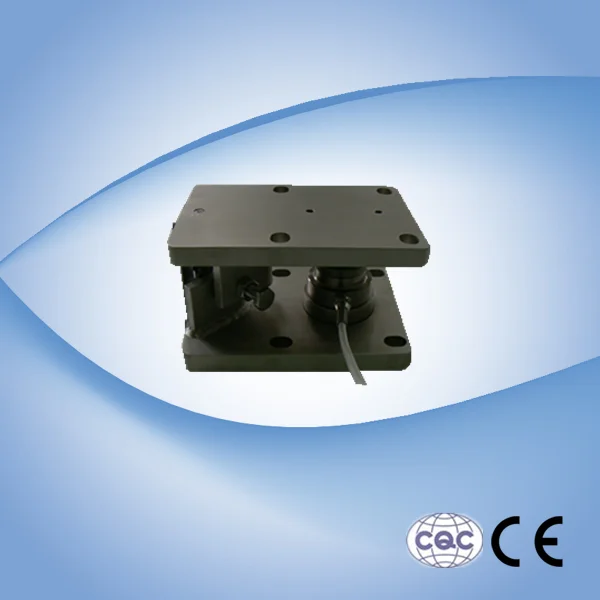

1t 2t 5t 10t 20t weighing transducer and module for hopper scale

Product Overview

Description

Description:





Features:

1. Alloy steel or stainless steel materials.

2. Reasonable structure, installation components is stable and reliable.

3. Capacity range :1-20t

4. Outlet with standard way for four wires, optional six wires.

5. Used in the hopper scale and weighing system.

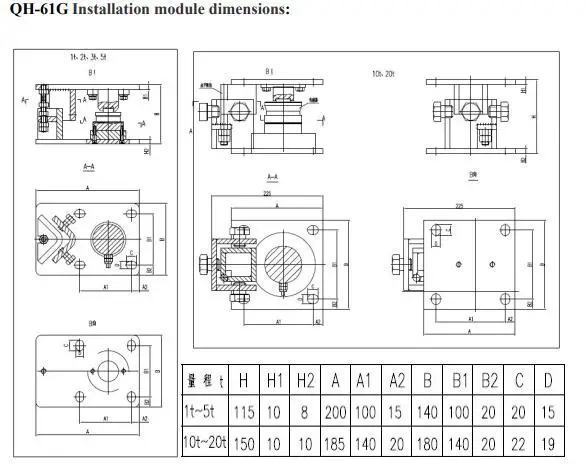

QH-61G Installation module dimensions:

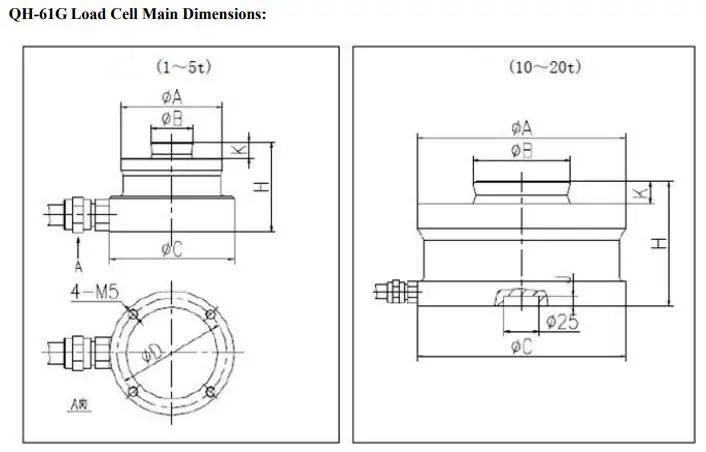

QH-61G Load Cell Main Dimensions:





CAP (t)	Dimensions(mm)
	A	B	C	D	H	K
1~2	49	18.5	60	53	43	7.5
5	49	18.5	60	53	43	7.5
10	75	30	75	/	50	6.5
20	75	30	75	/	50	6.5

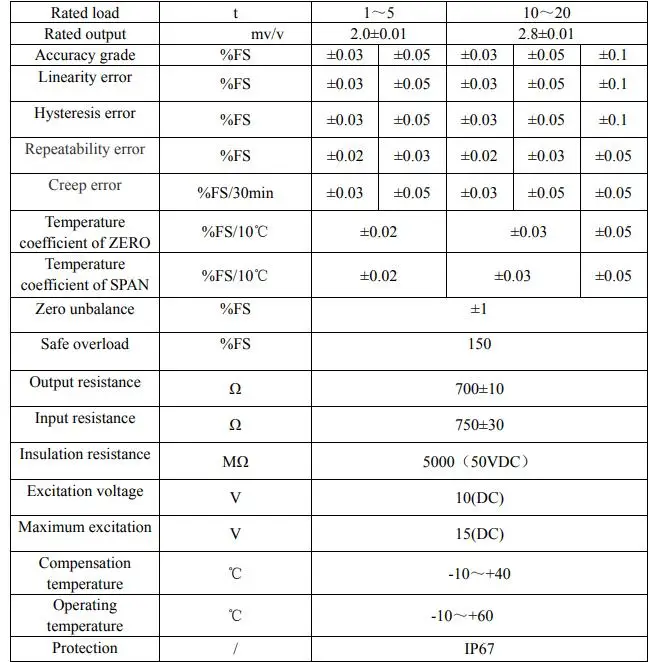

QH-61G Specification:

Mode of connection:

4-core 12 meters cable Excitation+ red; Signal+ green ; Excitation- black ;Signal- white.
