VPK-YW600 X-ray liquid level detection machine

VPK-YW600 X-ray liquid level detection machine2021

YW600 Filling liquid level detector is a kind of liquid level measuring instrument developed by our company.

The principle that the intensity of rays varies with the position of the material surface to control the capacity of liquid material to be tested and filled because of its non-contact measurement.

It solves the problem that the conventional weighing method can not measure the volume of liquid material on production line.

So it is widely used in food.medicine and chemical industry. whether bottle or can on-line automatic control of liquid material production line.

Application: on-line detection of liquid level,such as cans、PET bottles、glass bottles、Etc.

Product Paramenters

Technical Parameter:
Model:			VPH-YW600


Capacity:			600-1500 C/M
Suitable Can Size:			At will
Power:			300W
Weight:			50Kgs
Dimension:			300mm×200mm×1800mm

Functional description :

Scope of application: online liquid level detection of two- piece-can, three-piece-can, PET bottle and glass bottle

1. Technological characteristics

(1)Without warming-up, the detection can be conducted directly after starting up the product.

(2)Non-contact inspection, fast inspection speed, and high accuracy.

(3)The product can automatically fit to the different production line speed and realize dynamics detection.

(4)The product is manufactured with stainless steel shell and seal design mainframe, which is anti-fog, anti-water drop and possesses strong environmental suitability.

(5)The radiation of high-frequency ray will be automatically interdicted at free time.

(6)The product employs hardware circuit implementation and built in operate system, which can ensure long-term stable operation.

(7)Simultaneous alarm of sound and light, automatic remove of unqualified container.

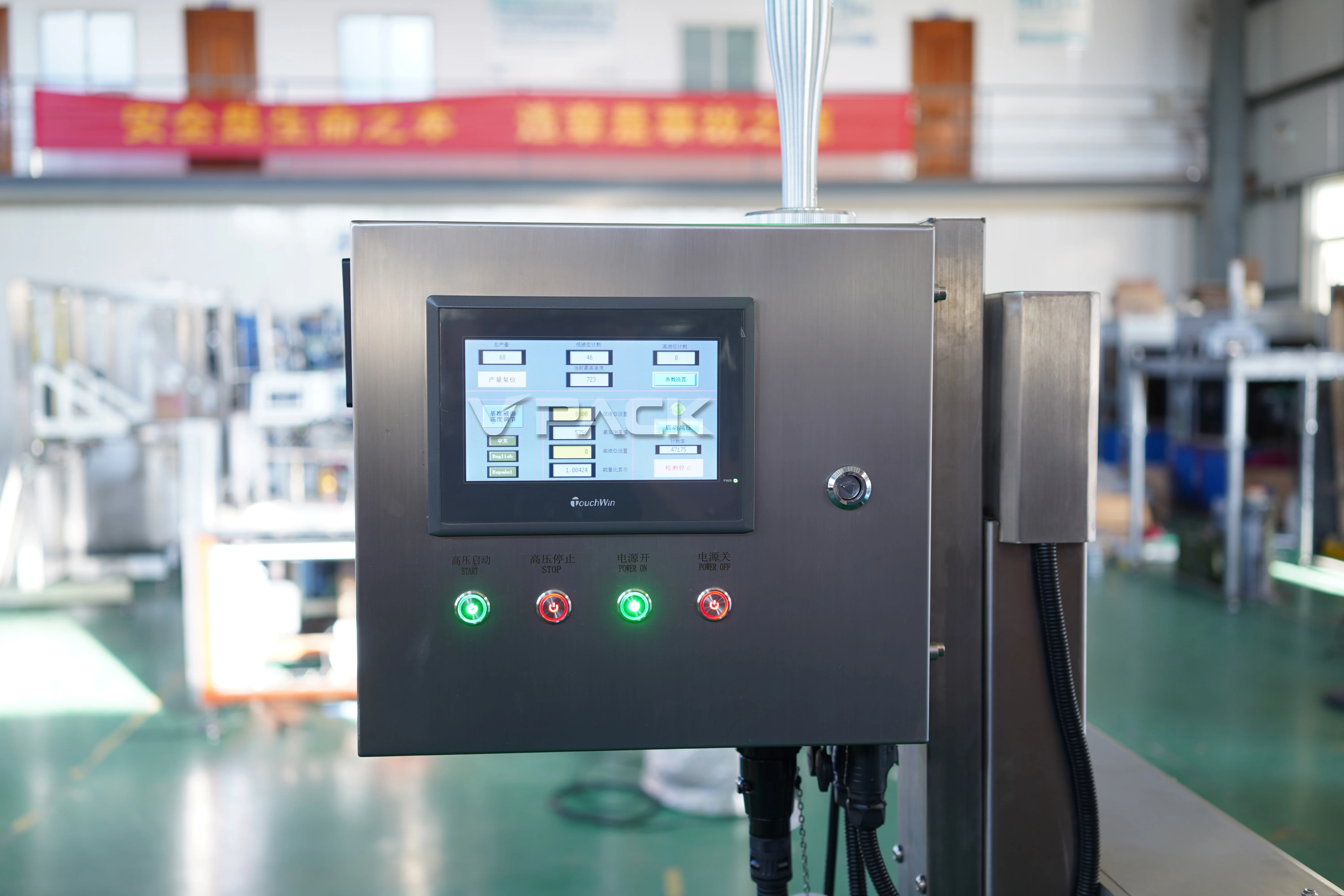

(8)The 9 inch touch screen display provides simple and reliable man-machine operate interface, which is flexible and convenient to change bottle type.

(9)Large screen Chinese display, LED backlit liquid crystal, clear and bright character, man and machine communicate method operation.

(10)Without isotope radioactive source, the product employs soft ray design while its ray protection is safety and reliable.

2. Major technological indicators

(1)Band carrier linear speed of production: ≤1.8M/s

(2)Container diameter:20MM-100MM (Different detectors for different containers concentrations and diameters)
(3)Dynamics container resolution: ±2MM(bubble and shaking may influence the accuracy)

(4)Static liquid level detection accuracy: ≤0.5MM (water)

(5)Static l detection stability of 8 hours: ≤0.15MM(water)

(6)Unqualified container remove ratio: ≥99%(detection
speed:1200 can/min)

(7)Temperature error:0-40 ℃ ≤0.25MM for the temperature error of the detection value of 20 ℃

(8)Working requirements:10MS minimum time width (both with and without can)

(9)Usage environment: 0-40 ℃ temperature, relative humidity≤95%

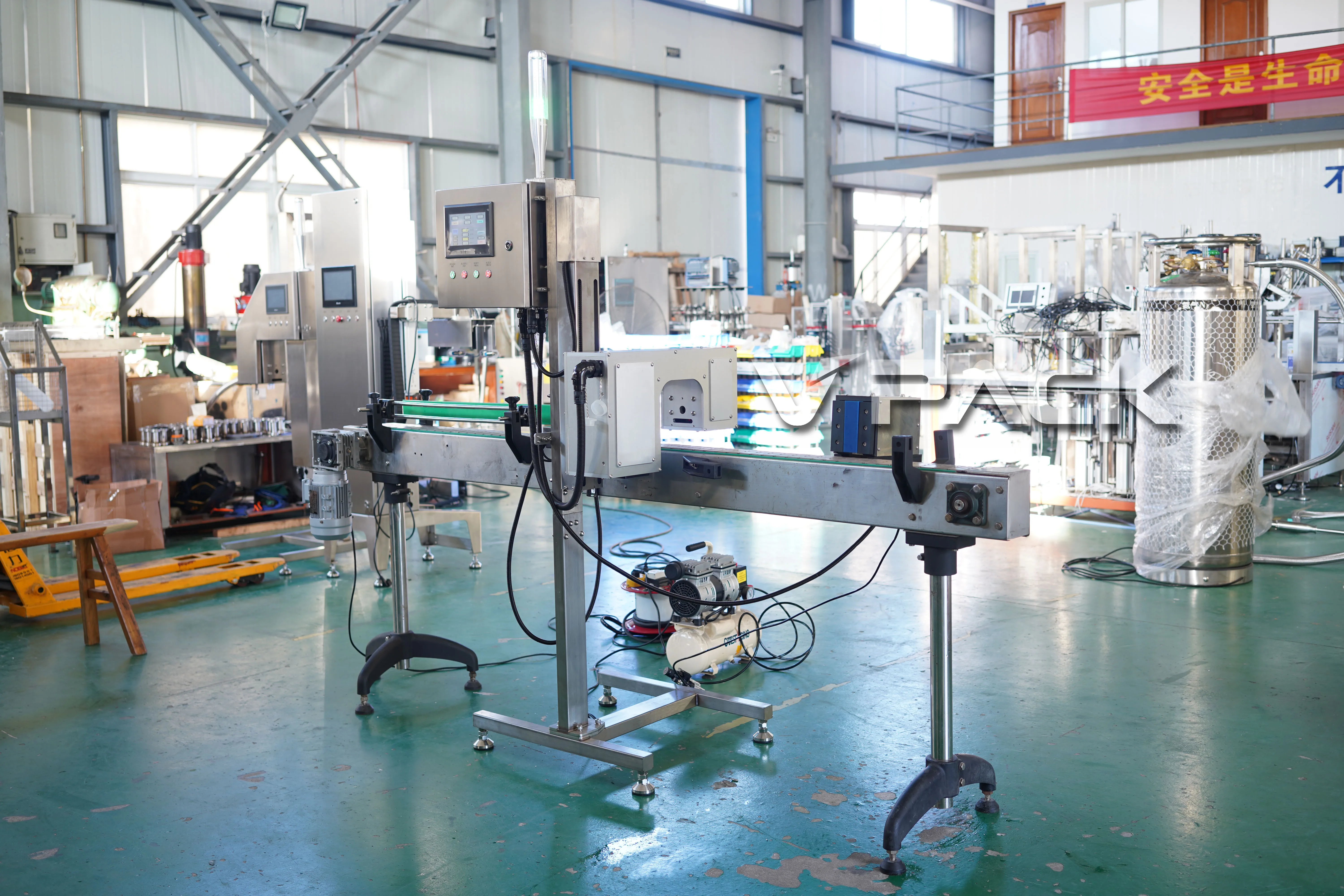

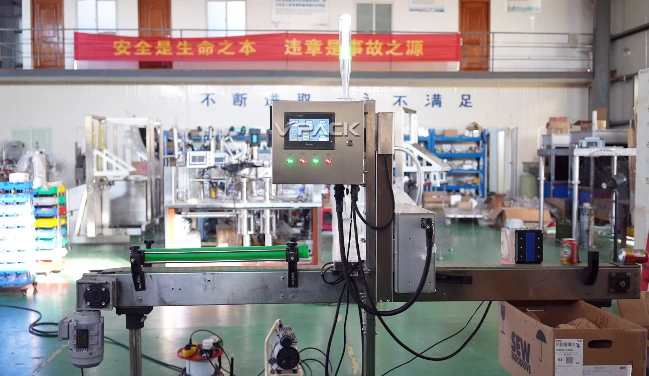

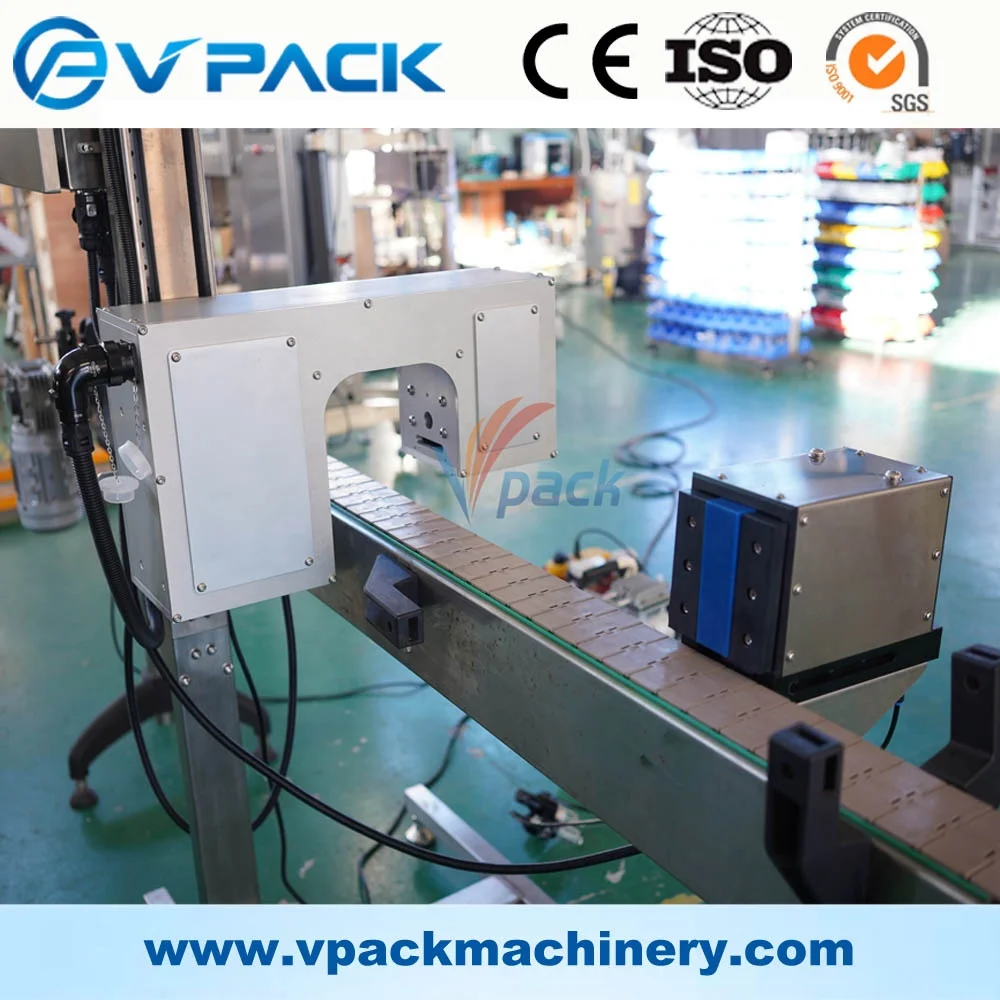

Details Images
