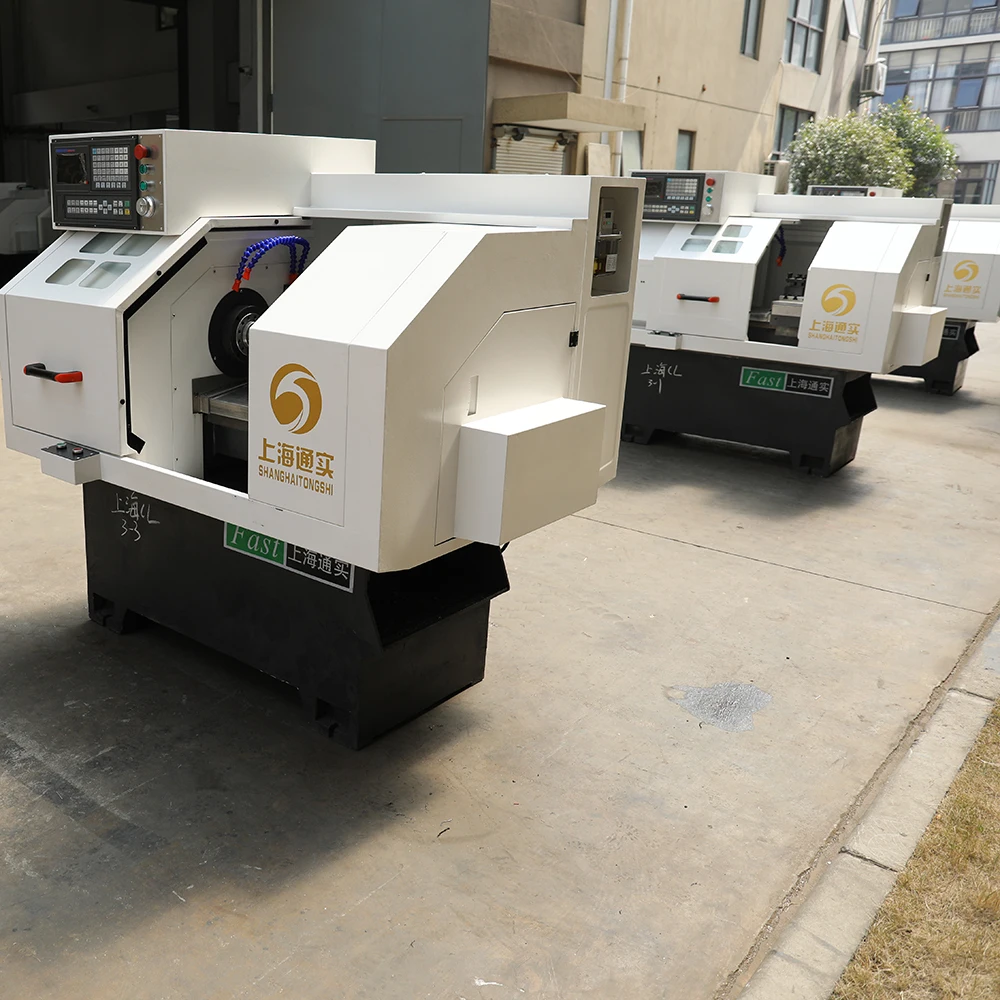

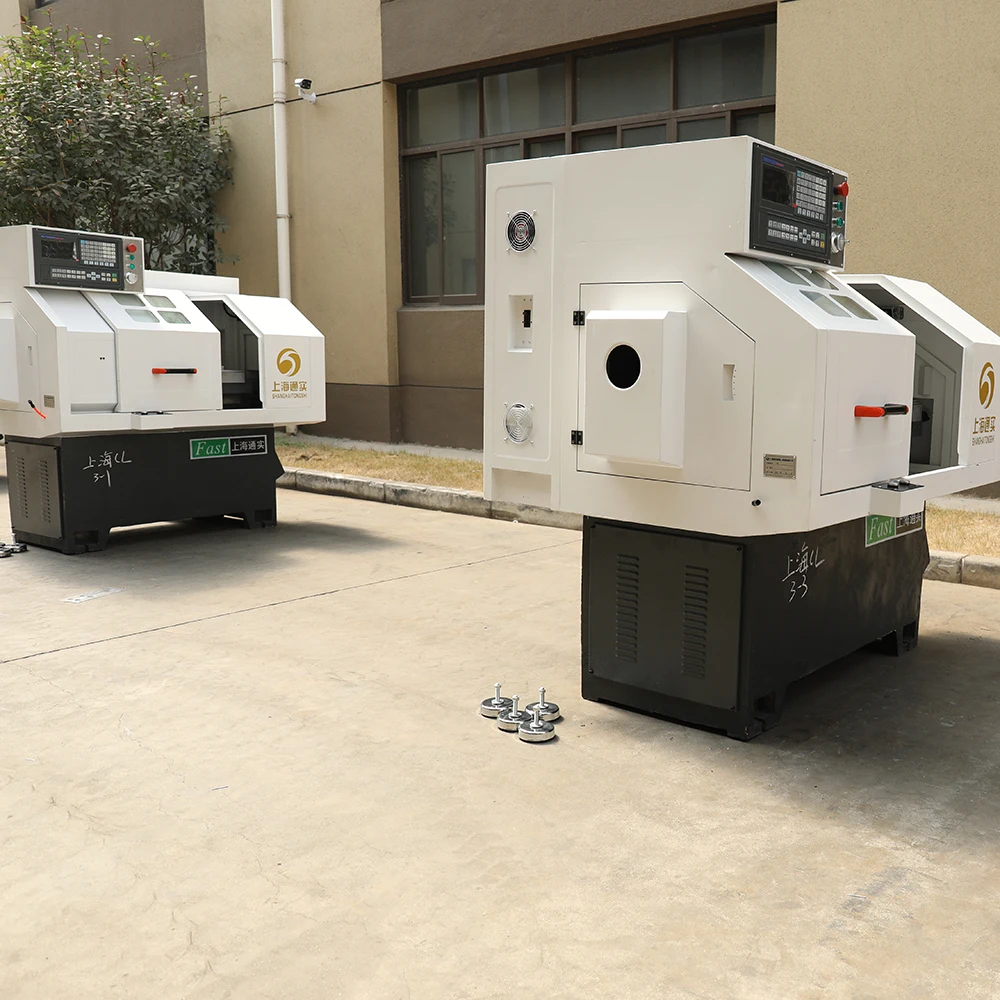

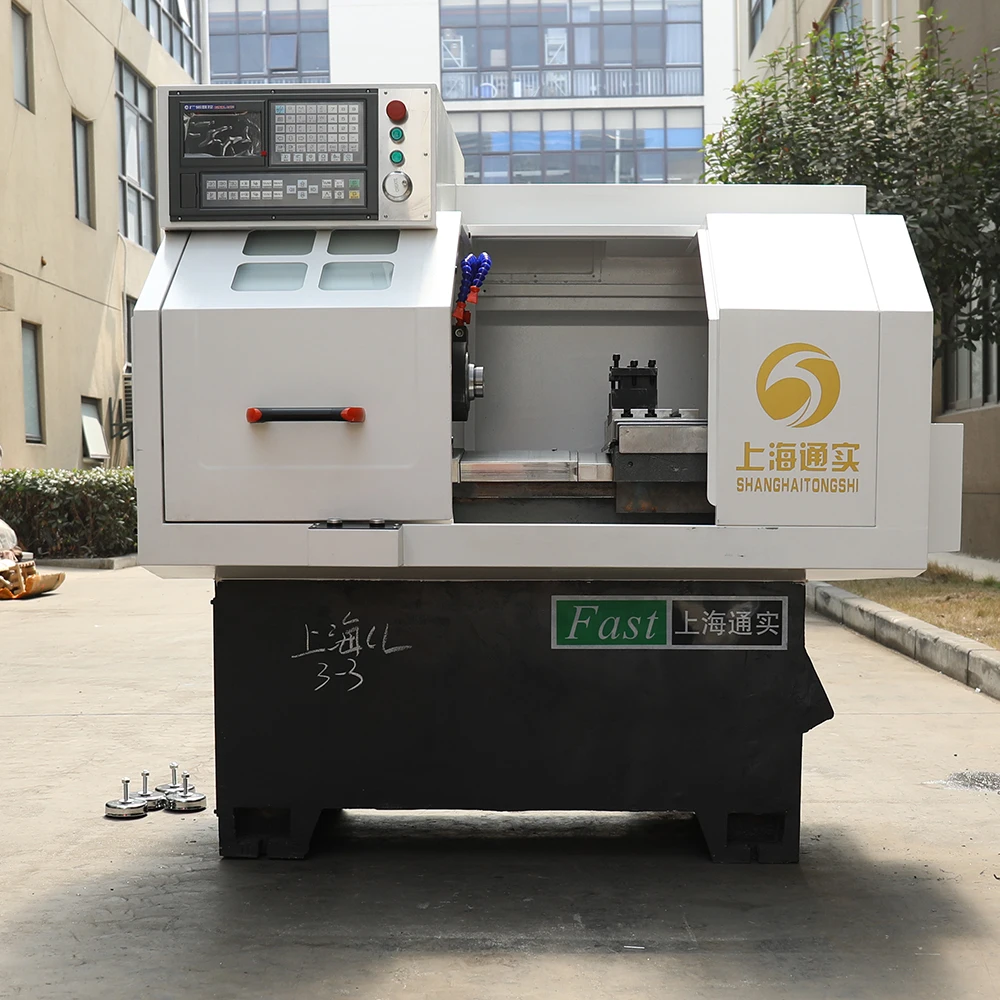

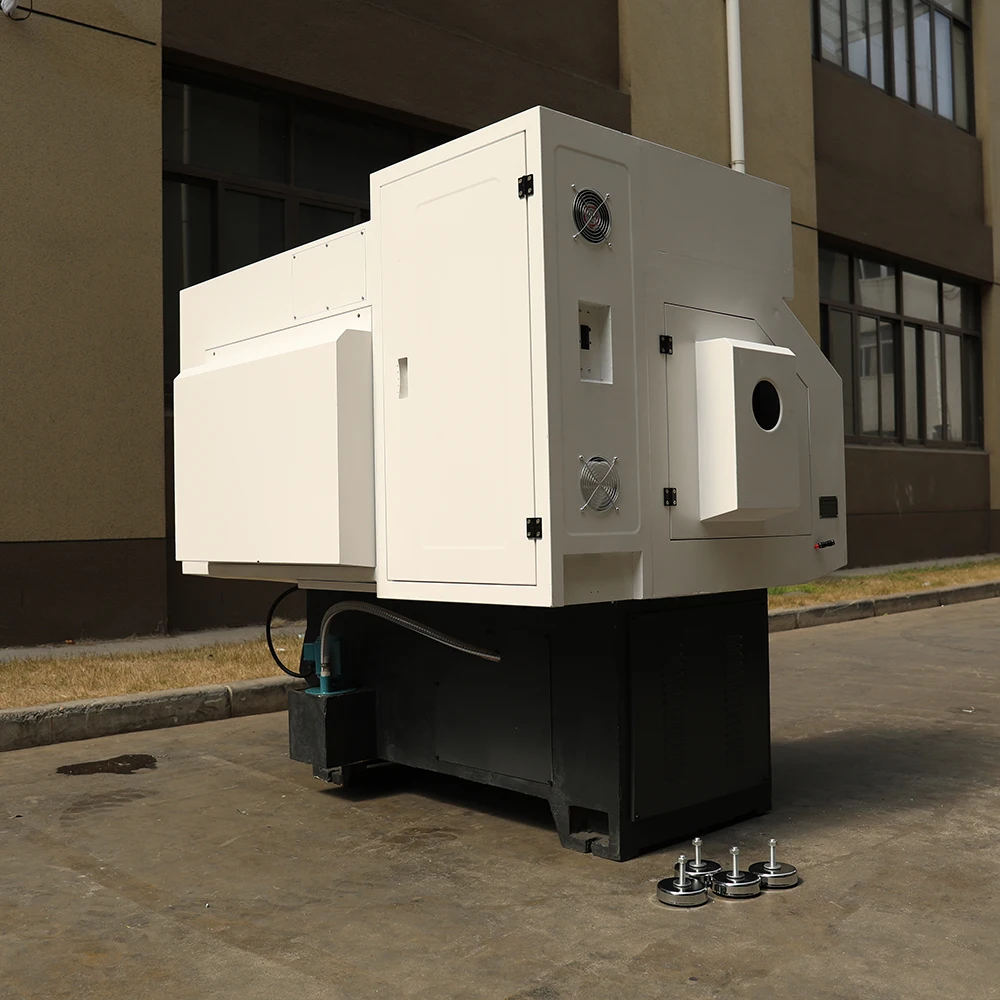

TS 0640 High Precision 2 Spindle Swiss Type ck 0640 Pipe Thread ck0640 Cnc Automatic Lathe Machine With CE
TS 0640 High Precision 2 Spindle Swiss Type ck 0640 Pipe Thread ck0640 Cnc Automatic Lathe Machine With CE
TS 0640 High Precision 2 Spindle Swiss Type ck 0640 Pipe Thread ck0640 Cnc Automatic Lathe Machine With CE
TS 0640 High Precision 2 Spindle Swiss Type ck 0640 Pipe Thread ck0640 Cnc Automatic Lathe Machine With CE
TS 0640 High Precision 2 Spindle Swiss Type ck 0640 Pipe Thread ck0640 Cnc Automatic Lathe Machine With CE
TS 0640 High Precision 2 Spindle Swiss Type ck 0640 Pipe Thread ck0640 Cnc Automatic Lathe Machine With CE

TS 0640 High Precision 2 Spindle Swiss Type ck 0640 Pipe Thread ck0640 Cnc Automatic Lathe Machine With CE

Share on (1600272201878):


Price:$4,180.00 - $4,280.00

Quantity:


Product Overview

Description



Product Description

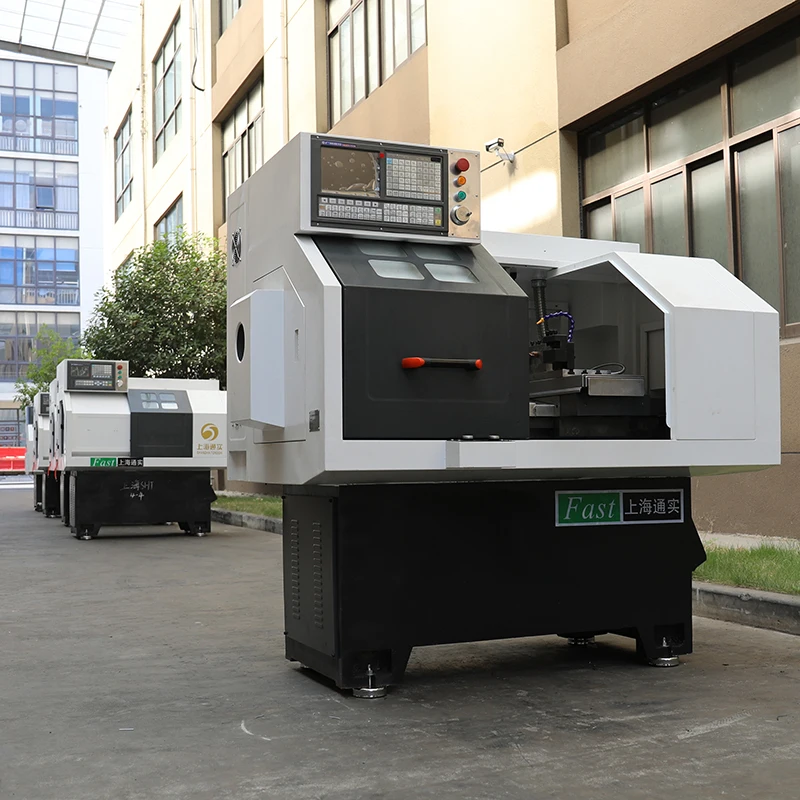

TS 0640 high quality automatic CNC lathe machine


Model Number
TS 0630
TS 0640
Max. Swing Diameter over bed
300mm
400mm
Max. Swing Diameter over carriage
80mm
90mm
Max Working Length
180mm
180mm
Spindle Speed
150-3000r/min
150-3000r/min
Spindle Motor Power
3kW
3kW
Spindle Bore
38mm
48mm

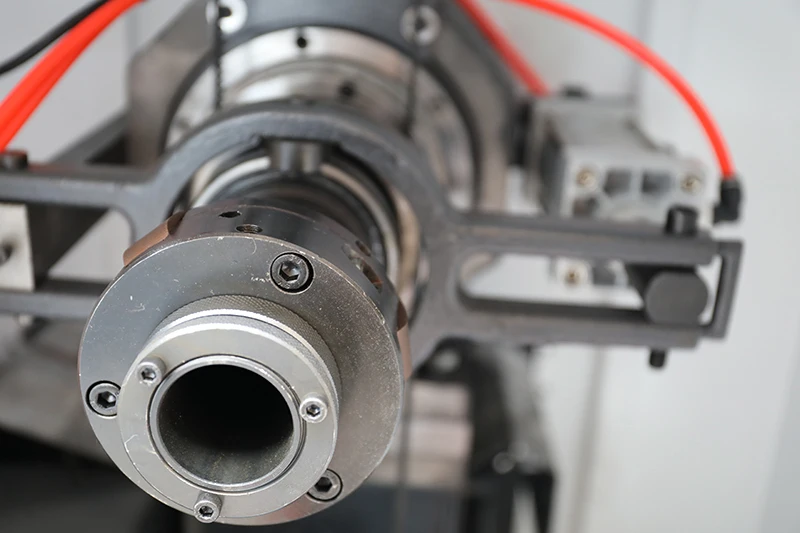

Spindle type
Pneumatic collet
Pneumatic collet
X travel
180mm
180mm
Z travel
180mm
180mm
X axix max moving speed
6000mm/min
6000mm/min
Z axix max moving speed
10000mm/min
10000mm/min

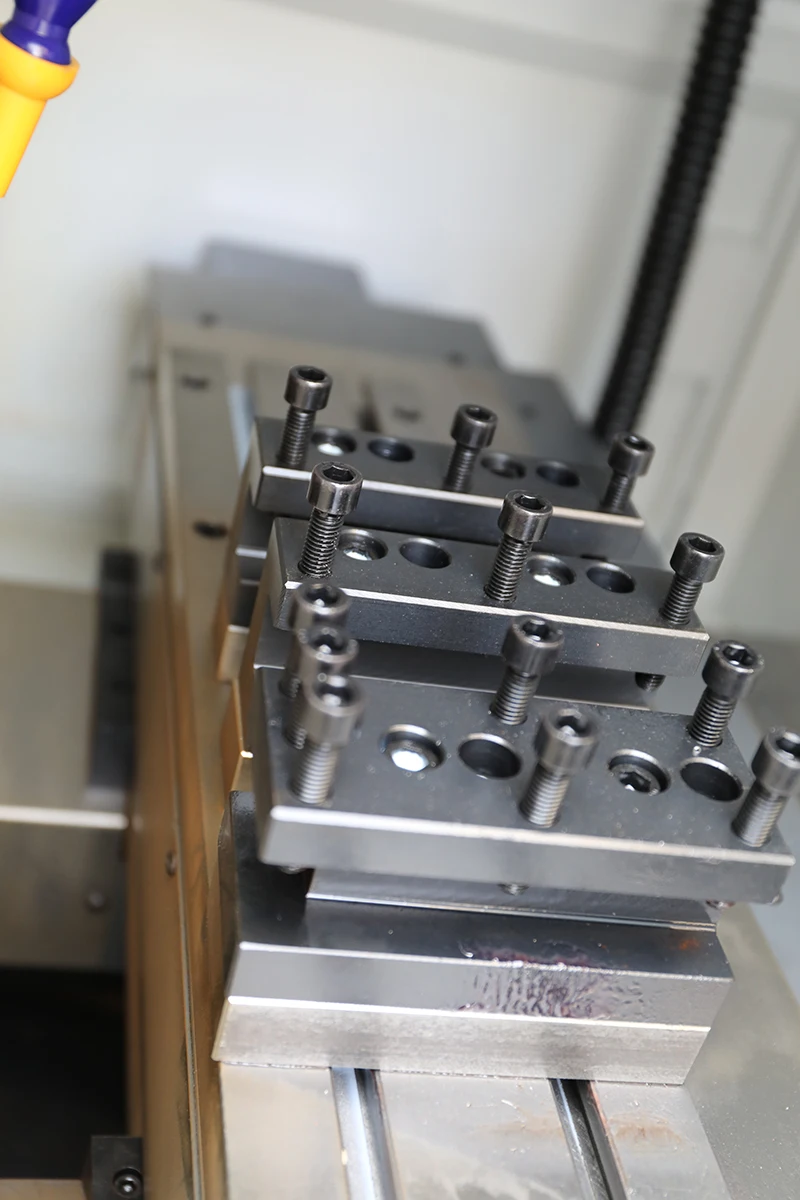

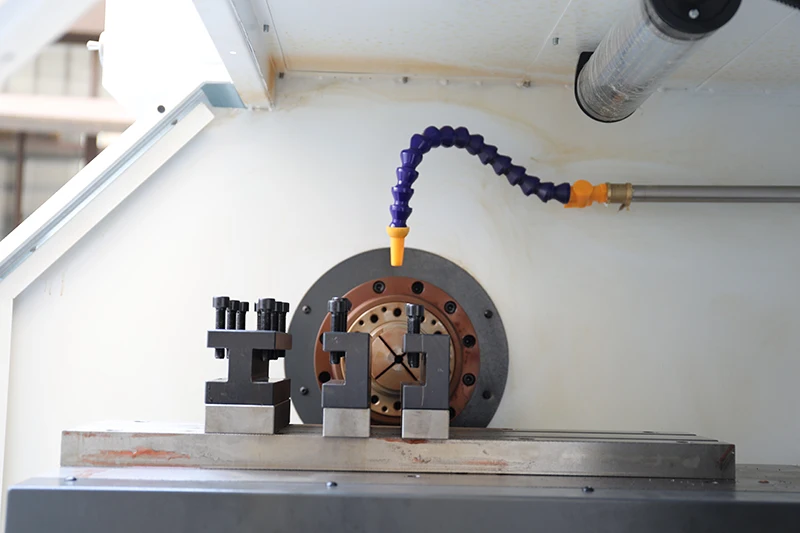

Tool Post Stations
Row knife
Row knife
Tool Dimension
16mm×16mm
16mm×16mm
Repeatability accuracy (X/Z)
0.008mm/0.01mm
0.008mm/0.01mm
Power supply
380V, 3 phase
380V, 3 phase
CNC System
GSK or As required
GSK or As required
Weight (NW)
1000kG
1000kG
Dimension(L*W*H)
1310×1010×1410mm
1310×1010×1410mm

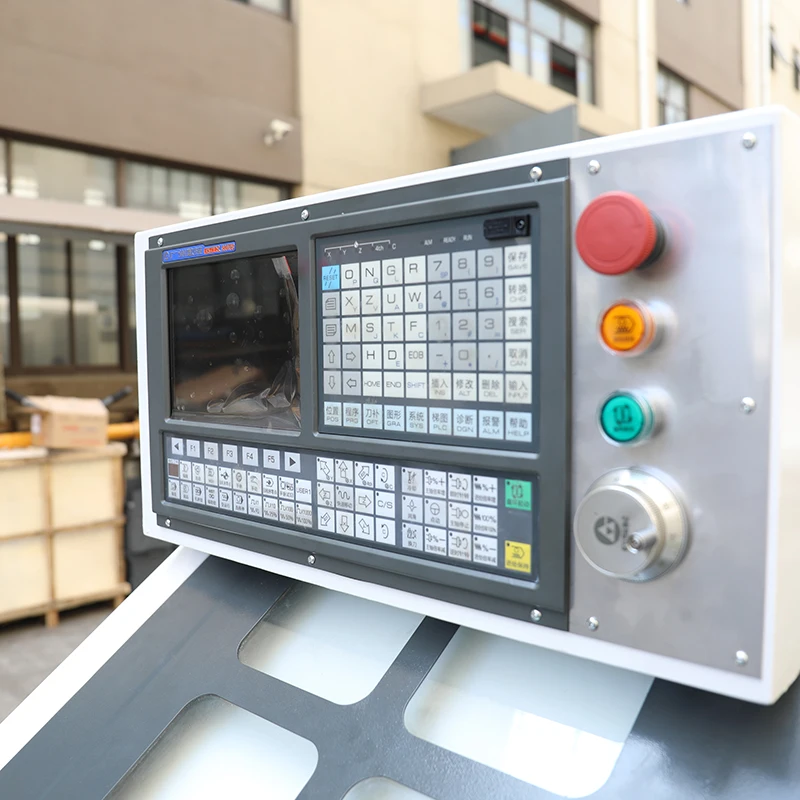

GSK 980TC3 control system


Processed products




Recommend Products




Model
Structure Style
Swing Diameter over bed(mm)
Processing Length(mm)
Guideway
X travel (mm)
Z travel (mm)
Tailstock
0630
Flat bed
300
180
Hard guideway
180
180
○
0640
Flat bed
400
180
Hard guideway
250
180
○
6132
Flat bed
320
350
Hard guideway
200
400
●
6136
Flat bed
360
750
Hard guideway
180
750
●
6140
Flat bed
400
750
Hard guideway
240
750
●
6150
Flat bed
500
1000
Hard guideway
300
1000
●
6180
Flat bed
800
1500
Hard guideway
500
1500
●
30G
Flat bed
300
350
Linear guideway
300
350
○
40G
Flat bed
300
280
Linear guideway
280
280
○




Model
Structure Style
Swing Diameter over bed(mm)
Processing Length(mm)
Guideway
X travel (mm)
Z travel (mm)
Tailstock
Other
32L
Slant bed
320
100
Linear guideway
600
250
○

36L
Slant bed
400
160
Linear guideway
600
250
○

46L
Slant bed
450
160
Linear guideway
720
310
○

46T
Slant bed
450
300
Linear guideway
150
450
●
Hydraulic tool turret
52T
Slant bed
500
400
Linear guideway
220
480
●
Hydraulic tool turret


Processed products




Why Choose Us




Customer Photos




Certifications




Packing & Delivery


Port of loading: Shanghai China.
By Express, by Sea, by Air Freight, depending on your choice.






FAQ


Q1: Where is the factory located? How can I visit there?
A1: Our factory is located in Shanghai, China. And we warmly welcome you to visit us.

Q2: Do you have CE certification?
A2: Yes, we have CE certification, the quality of our machines is guaranteed.

Q3: What's your payment terms?
A3: Our payment term is 30% T/T in advance, 70% T/T before shipment.

Q4: How can I get the quotation?
A4: You can send the inquiry on alibaba.com, or send email to us. It is better if you can tell what is your detailed requests.

Q5: How can I choose the most suitable machines ?
A5: Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.

Q6: If still confused. What can I do?
A6: Please feel free to contact us via Email or trade manager. Thanks !
