Shrink Sleeve Label Ribbon Flexo Printing Machine
Video link:
https://www.youtube.com/watch?v=bEFgftoA7pE
Application:
This machine can print bopp, pet, pvc, cpp, nylon, non woven, woven sack, paper,
aluminum foil ect.
Feature:
1. Pneumatic printing cylinder lift and lower
2. Automatic tension control
3. Servo control EPC device.
4. Unwind and rewind adopt air shaft
5. The printing ink is spread by ceramic anilox roller and enclosed doctor blade chamber
6. IR heating, independent constant temperature control.
7. Cold air box which can effectively prevent ink adhesion after printing.
8. 360° adjustable longitudinal register device, reverse printing device is installed.
9. Main motor inverter control
10. When printing plate fall, ink motor stop,when it lift, ink motor starts automatically.
11. Meter counter can set printing length according to the requirements,machine
automatically stops when reaching to the set value or the material is cut off.
Specification:
| Model | YTG6800 |
| Max width of printing material | 800mm |
| Max printing width | 760mm |
| Printing length | 200-1000mm |
| Printing colors | 6 |
| Max diameter of unwind and rewind | 800mm |
| Max speed | 120m/min |
| Thickness of plate (Including Two-sided Glue Paper) | 1.14mm or 2.38mm or customized |
| Total power | 44KW |
| Heating power | 34KW |
| Main motor | 5.5KW |
| Weight | 7200kg |
| Dimension | 6000*3050*2900mm |

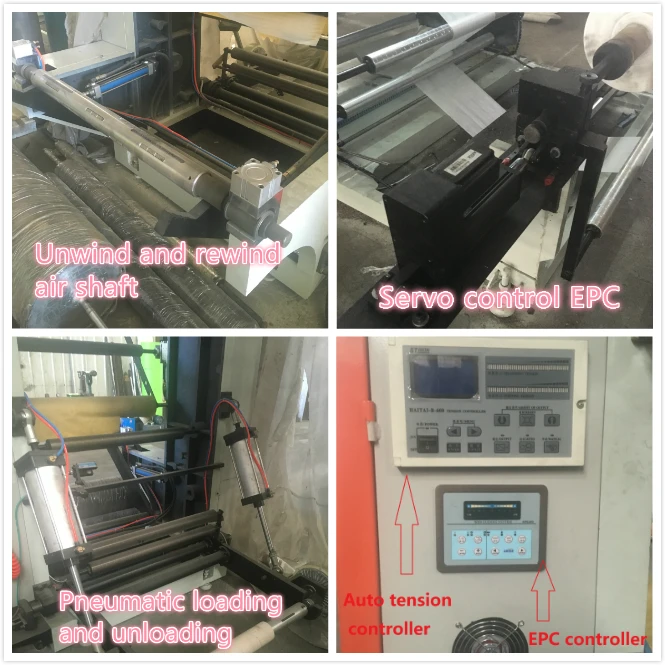

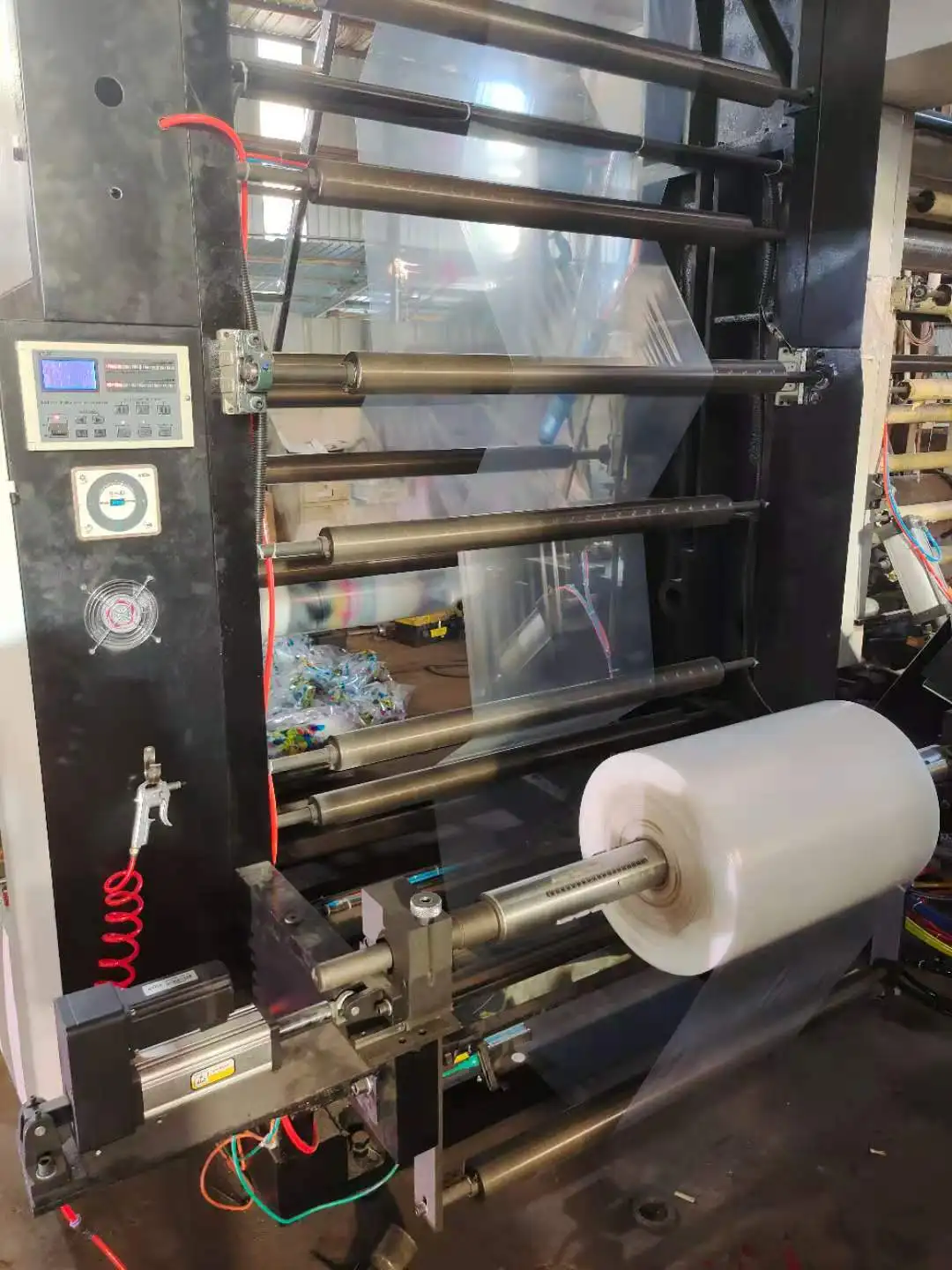

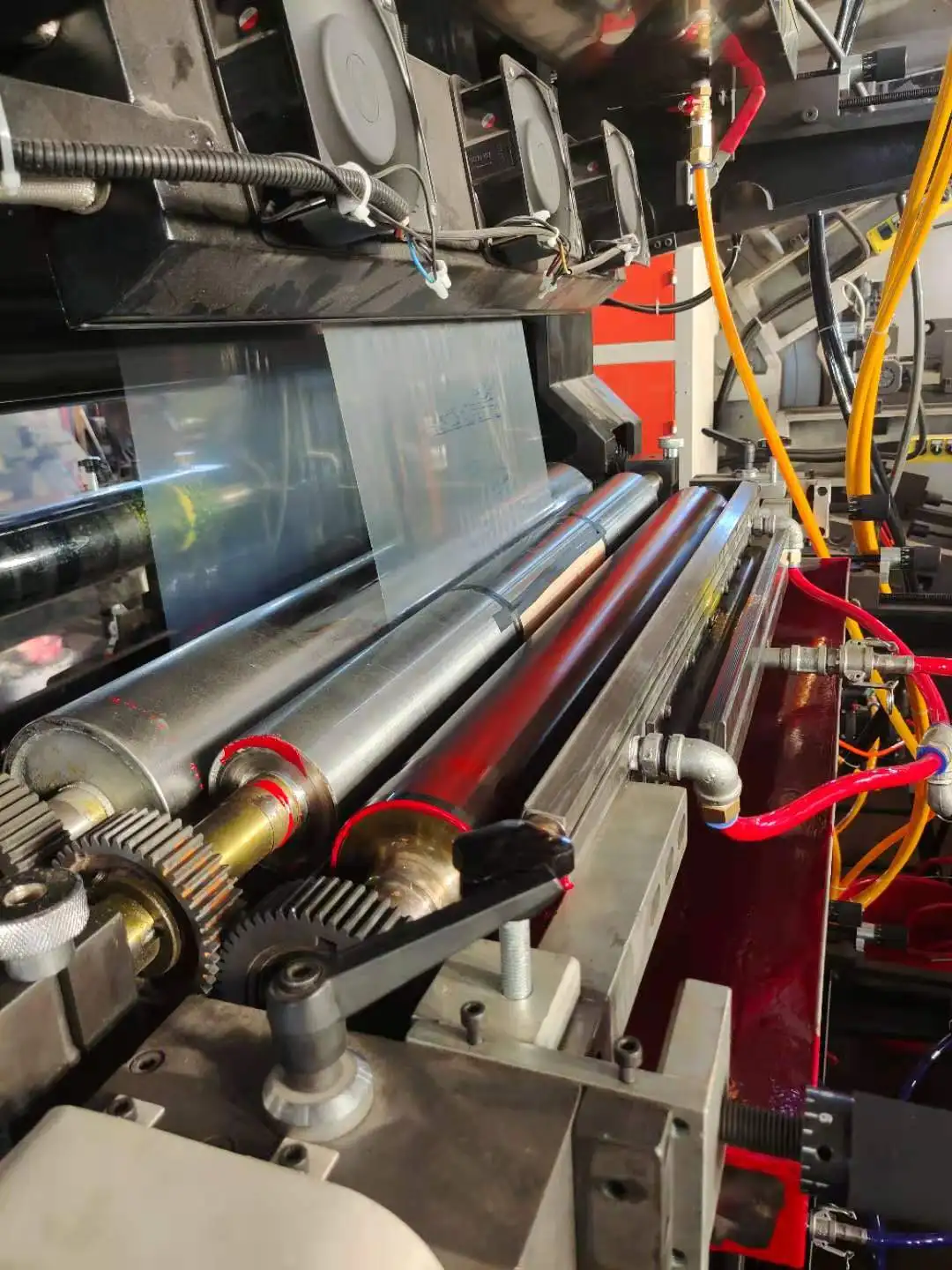

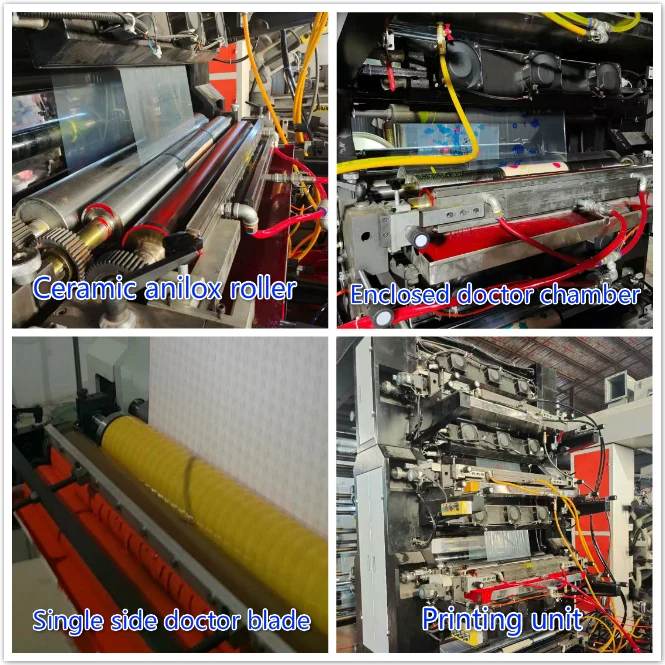

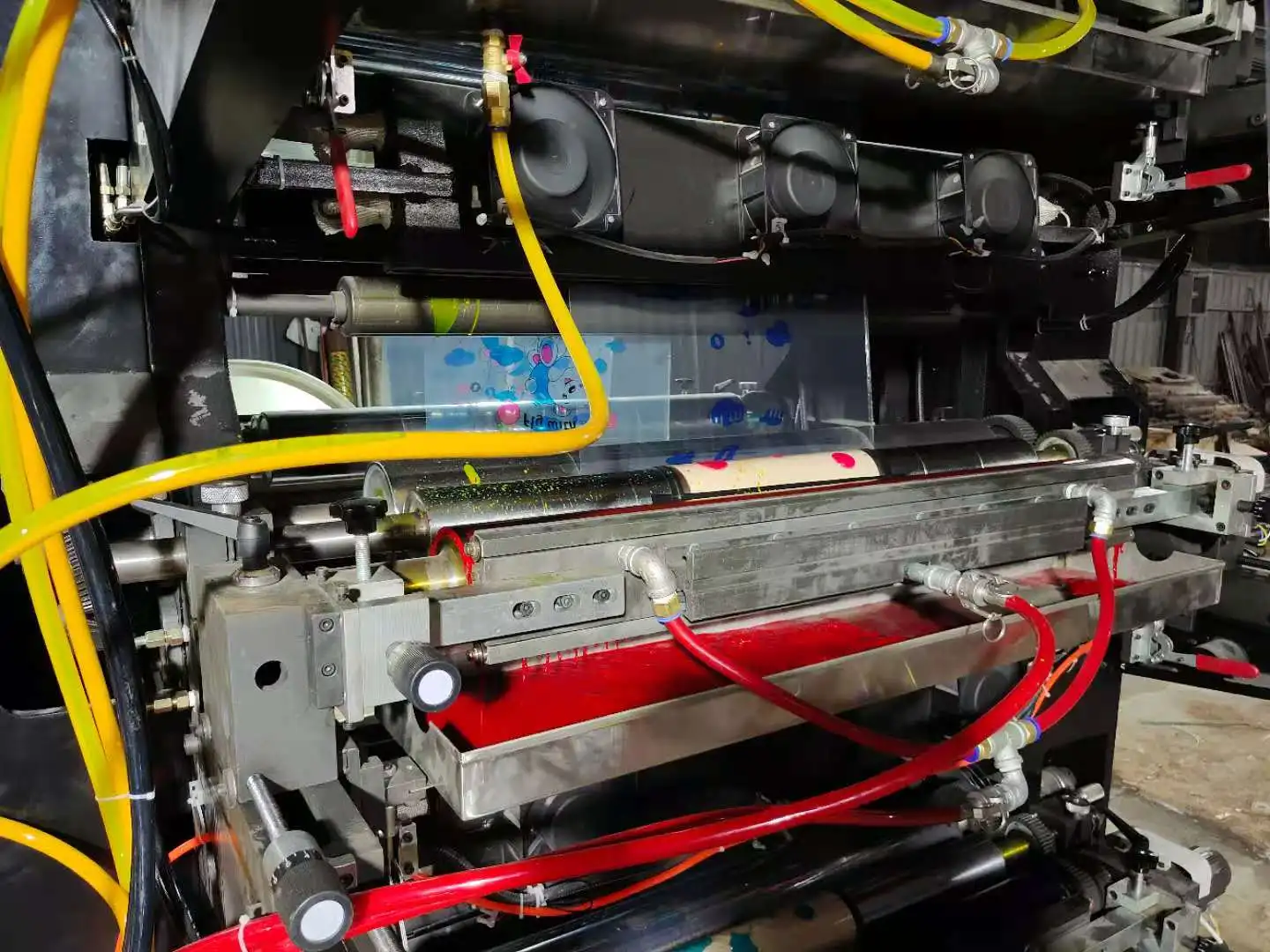

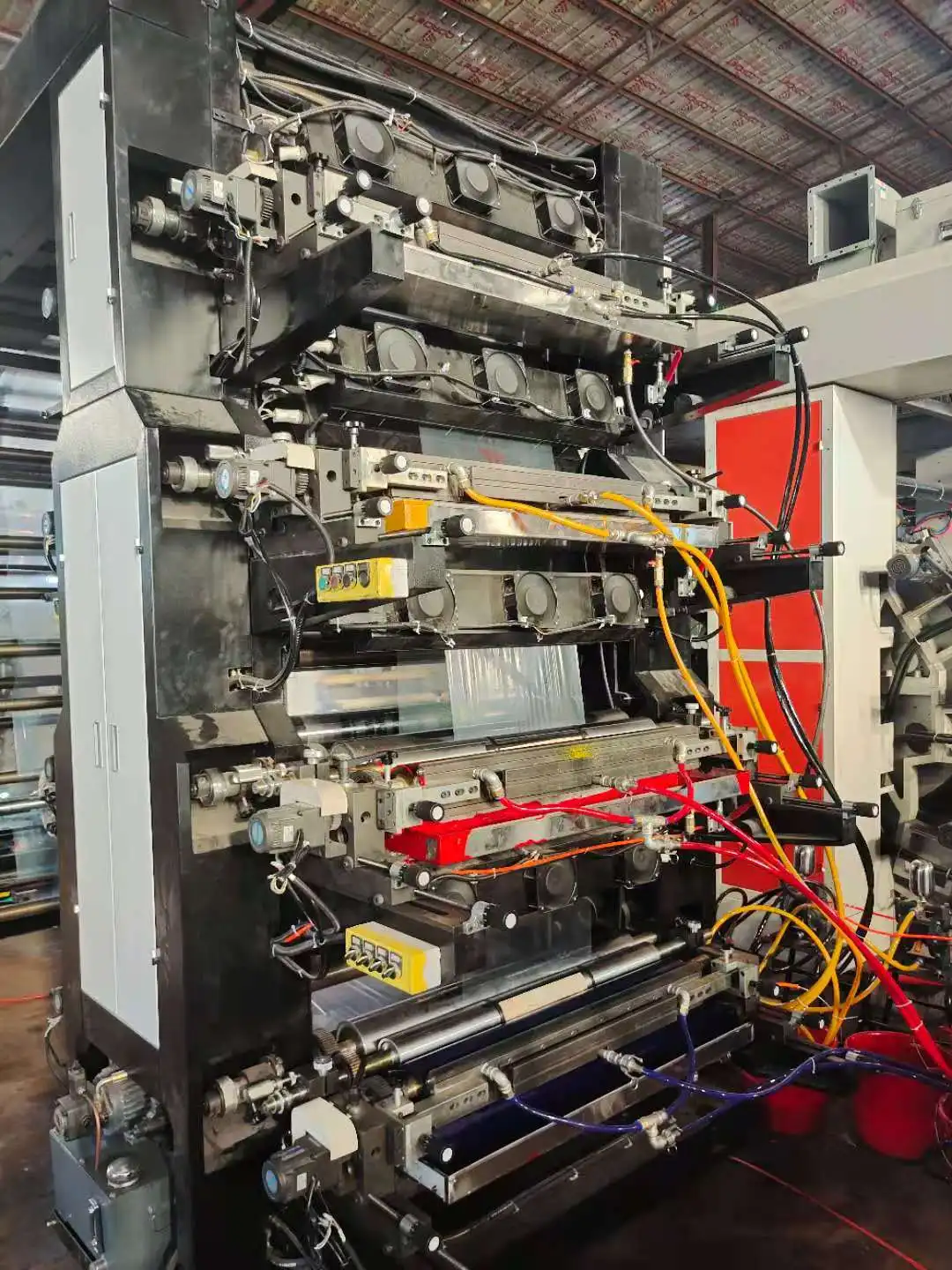

Machine detailes:
Printing sample:
Certification:

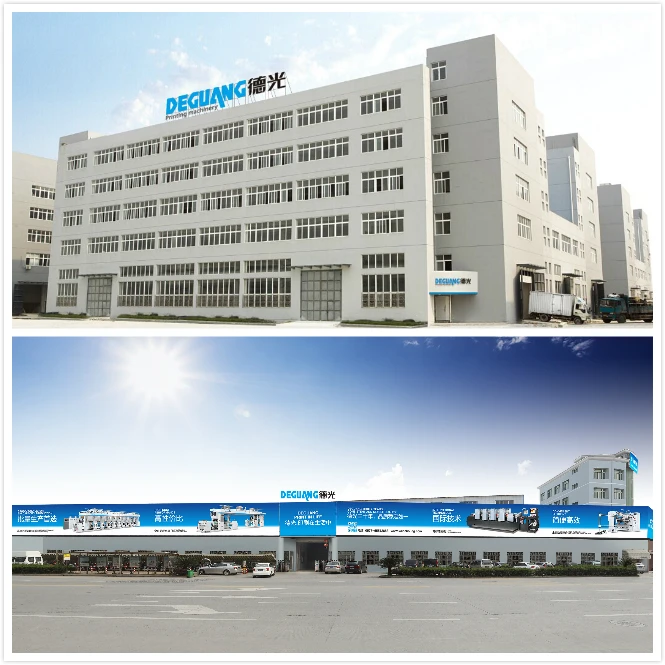

Our company:

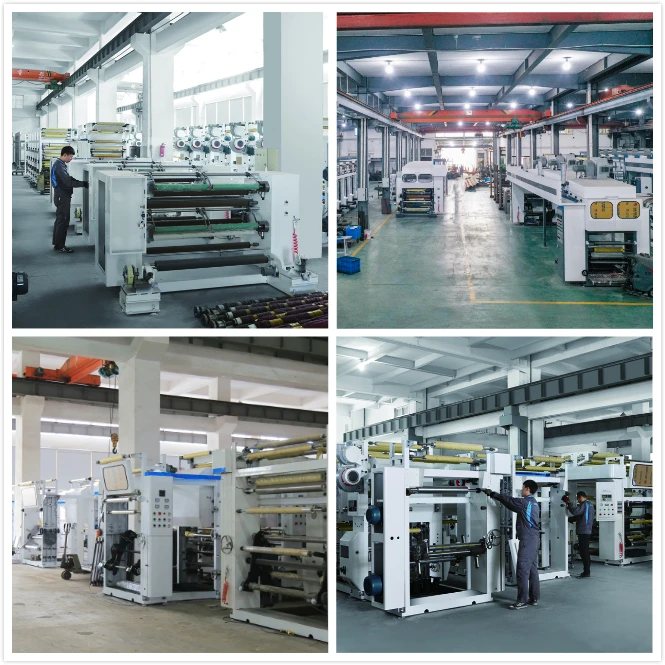

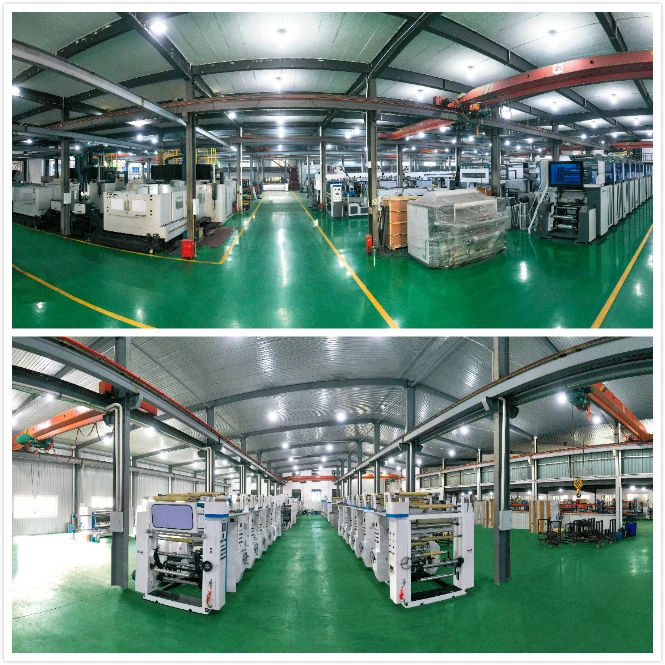

Workshop:

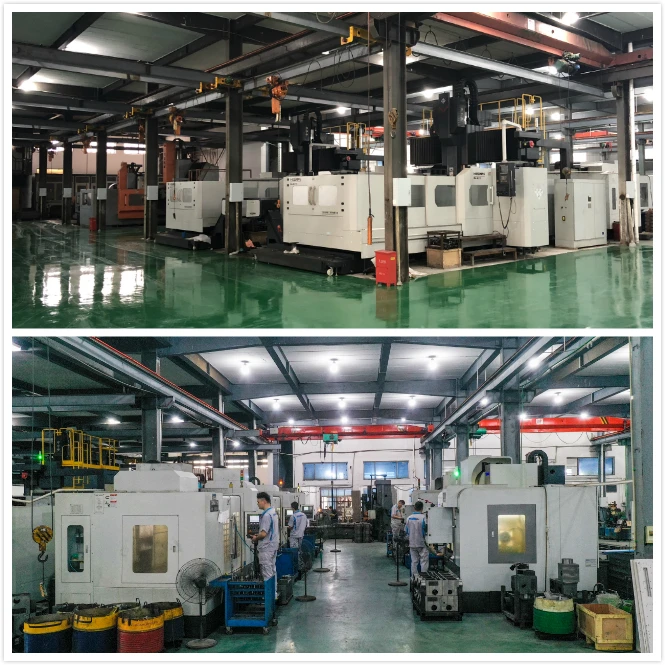

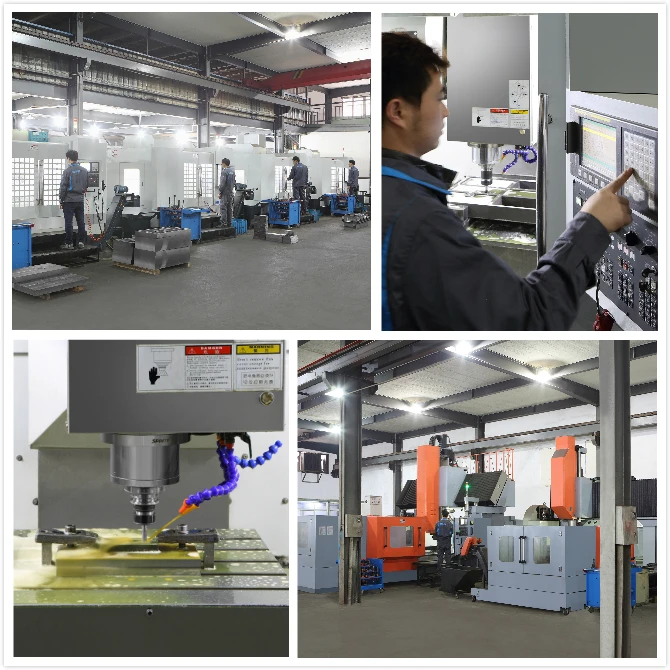

CNC facility:

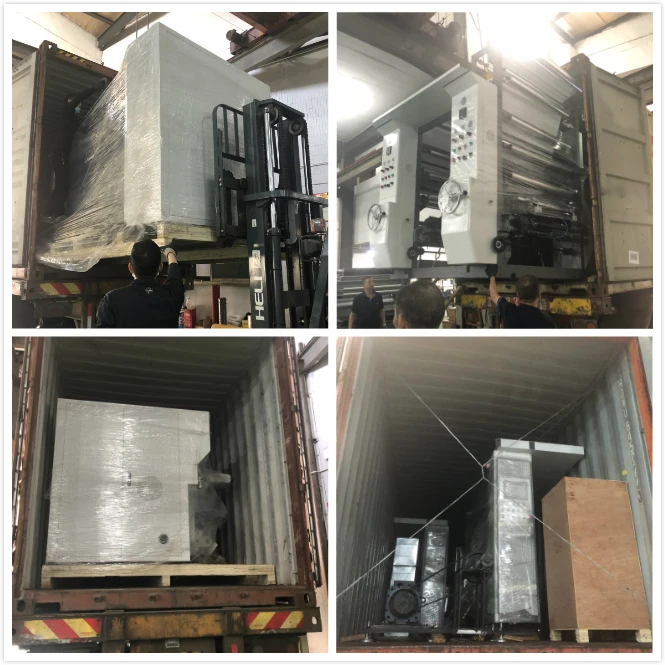

Packing and shipping:
Exhibition:
