outdoor light post aluminium diecasting parts led road light led trending products intelligent zigbee bright small street lamp
- Category: >>>
- Supplier: Ningbo Die-Casting Man Technology Co. Ltd.
Share on (1600272931601):
Product Overview
Description
Product Description
Product Code | YASL-14-40 | YASL-14-80 | YASL-14-120 |
Input Wattage | 40W | 80W | 150W |
Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K |
Luminous Flux | 4400-5000lm | 9200-10400lm | 16500-18750lm |
Input Voltage | AC90-305V | AC90-305V | AC90-305V |
Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz |
Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 |
color rendering index | Ra≥70 | Ra≥70 | Ra≥70 |
Temperature of Working Condition | -40-50℃ | -40-50℃ | -40-50℃ |
Humidity of Working Condition | 20%-90%RH | 20%-90%RH | 20%-90%RH |
LED Lifetime | 50000h | 50000h | 50000h |
Protection Grade | IP66 | IP66 | IP66 |
Installation Pipe Diameter | ⌀60mm | ⌀60mm | ⌀70mm |
Installation Height | 4-7m | 6-10m | 8-12m |
Net Weight | 4.6kg | 6.0kg | 9.8kg |
Gross Weight | 5.0kg | 6.5kg | 10.6kg |
Packing Size(mm) | 660×315×185 | 770×315×185 | 800×290×400 |

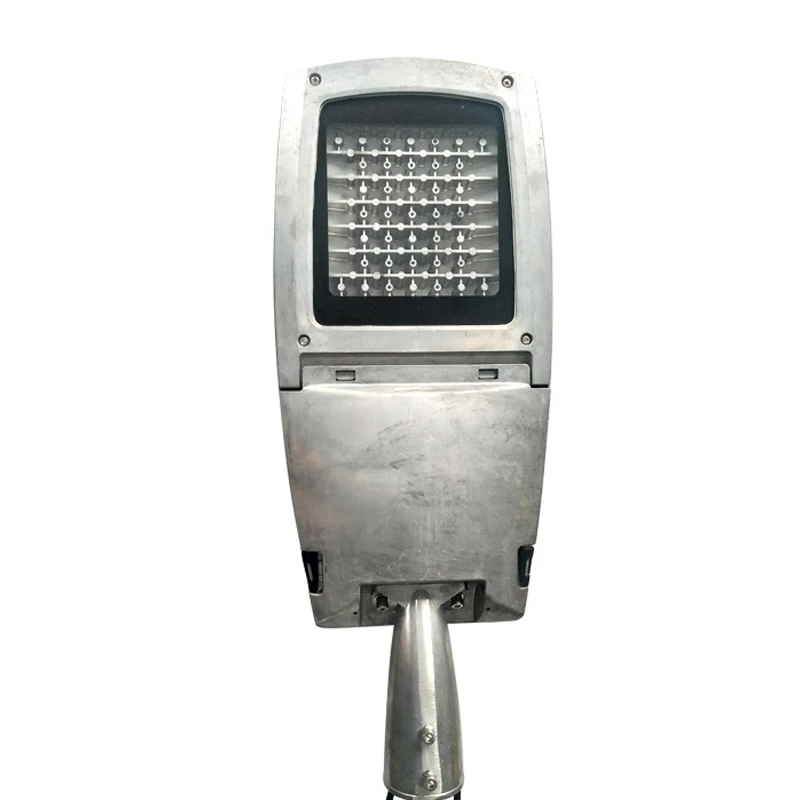

Product name | High Quality different colors input wattage 120w IP66 led street light |
POWER | 30W 50W 80W 100W 120W 150W 200W |
Material: | body made from die-casting aluminum, coated with UV and corrosion resistance coataing, suitable for pole top mounting with symmetrical light beam. All exposed metal parts (e.g. screws) are with corrosion resistance. |
Color Temperature | 2700K, 3000K, 4000K, 5700K, 6500K |
Body COLOR | Double gray, Sandy black ,Silver, other Ral no. available |
Size: | 738*289*118mm |
Input Voltage | AC90-305V |
Protection Grade | IP66 |
Clr Rendering index | Ra≥70 |
OEM,ODM | Welcome |
MOQ | no requirement |
Sample Lead Time | 7-15days |
Payment Terms | LC at sight or T/T 30% in advance ,balance against shipping documents |
FOB | NINGBO/SHANGHAI |
Production Time | 30-40days according to order quantity |
Product Advantage:
1. repair light without main power off by help of cut off switch device.

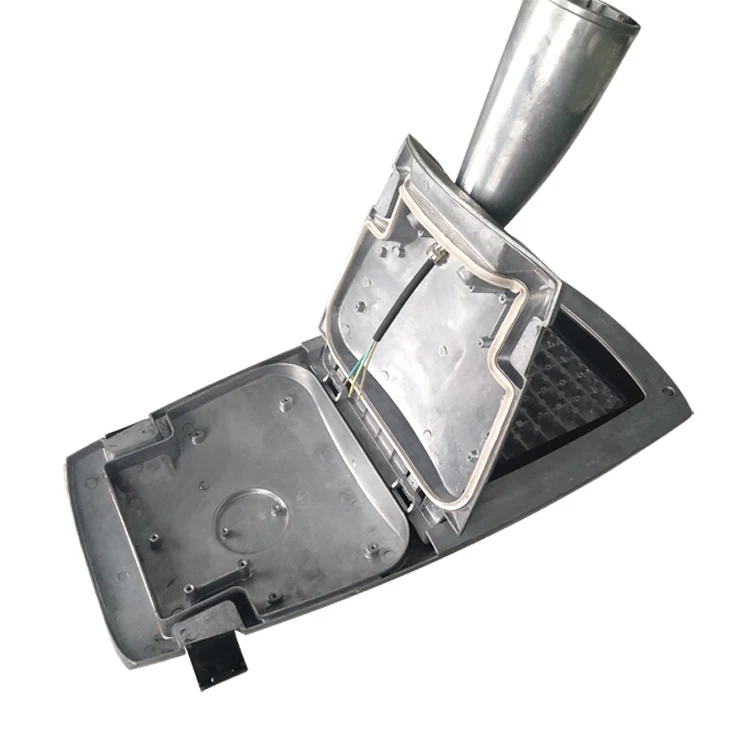

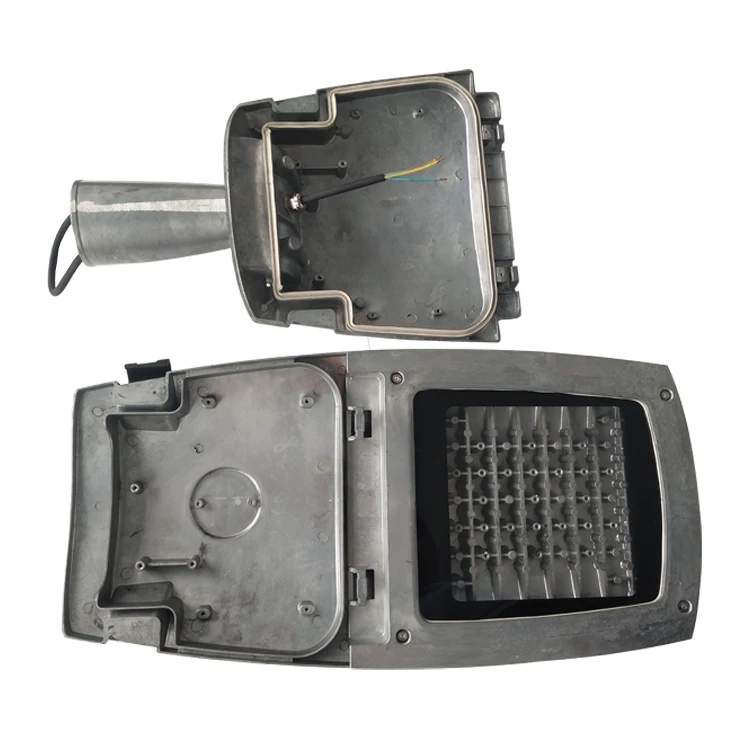

2. the light body could be opened and inspected by hand without tool.
3. integrated housing design increades heat dissipation during working condition.
Body Material:

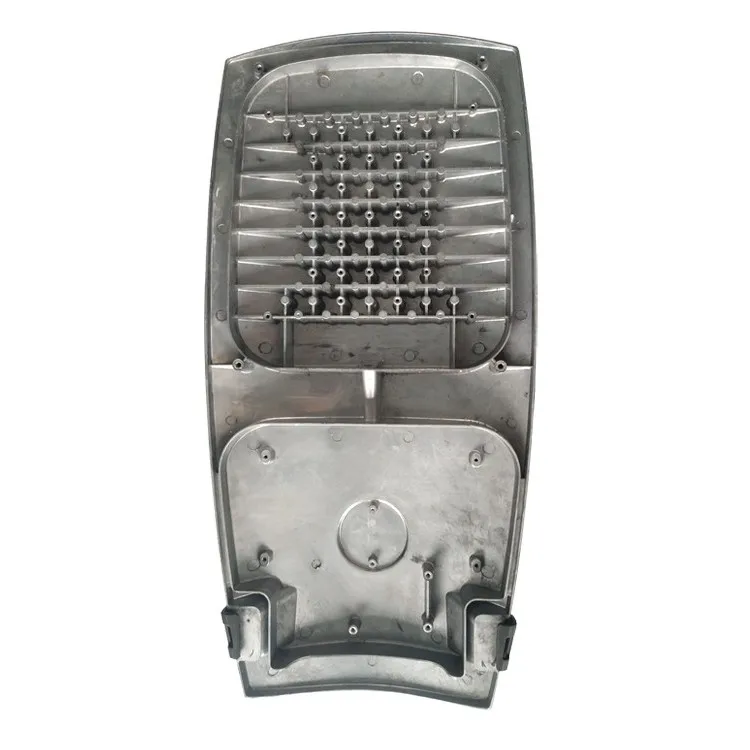

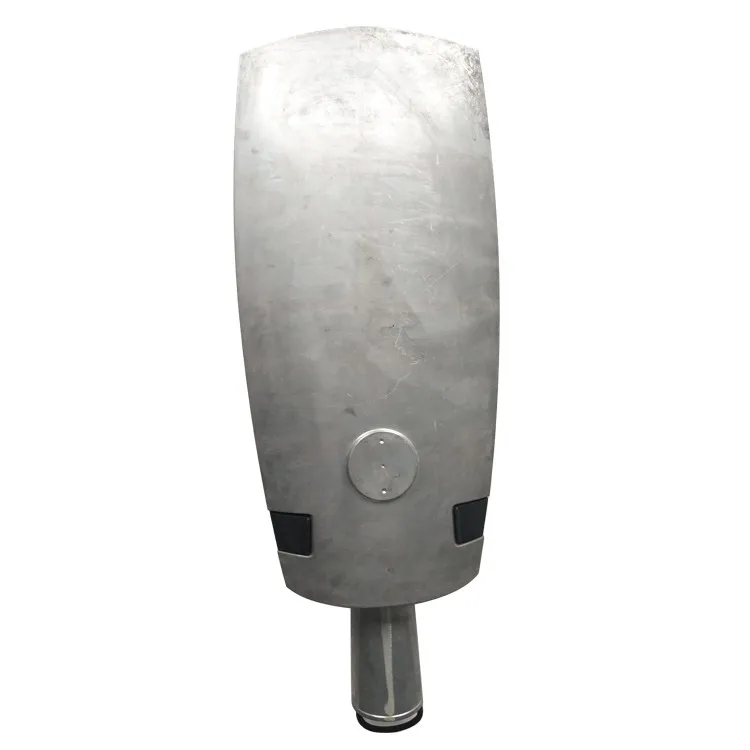

body made from die-casting aluminum, coated with UV and corrosion resistance coataing, suitable for pole top mounting with symmetrical light beam. All exposed metal parts (e.g. screws) are with corrosion resistance.
Company Profile
About Us

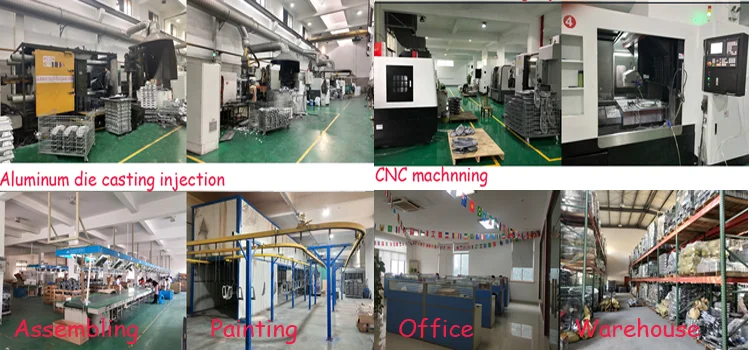

.Ningbo Die casting Man Technology Co., Ltd has rich experience in street lighting and die casting manufacturing, and is a production service factory integrated in design, production and sales. The supporting production equipment includes die casting injection machines, CNC , powder coating workshop, assembling line and testing equipment. The company supports processing, customization, OEM&ODM, assemgling, testing etc. At the same time, it has a complete product research and development team, a mature production process and a scientific quality management system.
Main product range: street light, die casting injection OEM&ODM.
Product scope of application: lighting industrial and Die casting injection industrial
The company has always adhered to the "Never stand still on products and service" purposes, with high-quality products, good reputation, product sales all over the world. We will wholeheartedly conduct win-win cooperation with domestic and foreign merchants to develop together and create brilliance.
Product scope of application: lighting industrial and Die casting injection industrial
The company has always adhered to the "Never stand still on products and service" purposes, with high-quality products, good reputation, product sales all over the world. We will wholeheartedly conduct win-win cooperation with domestic and foreign merchants to develop together and create brilliance.
