Product Overview
Description

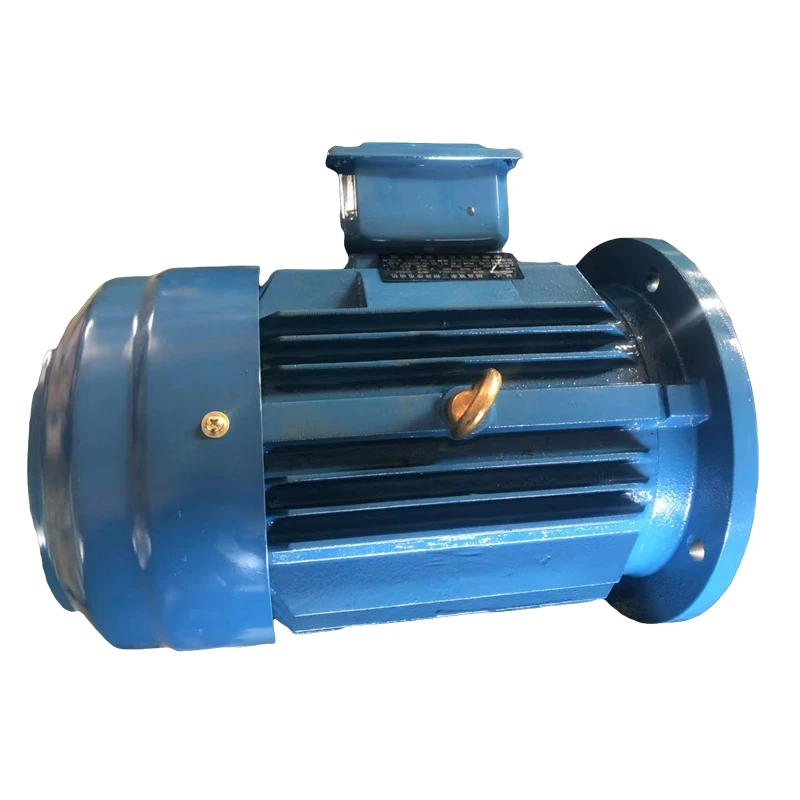

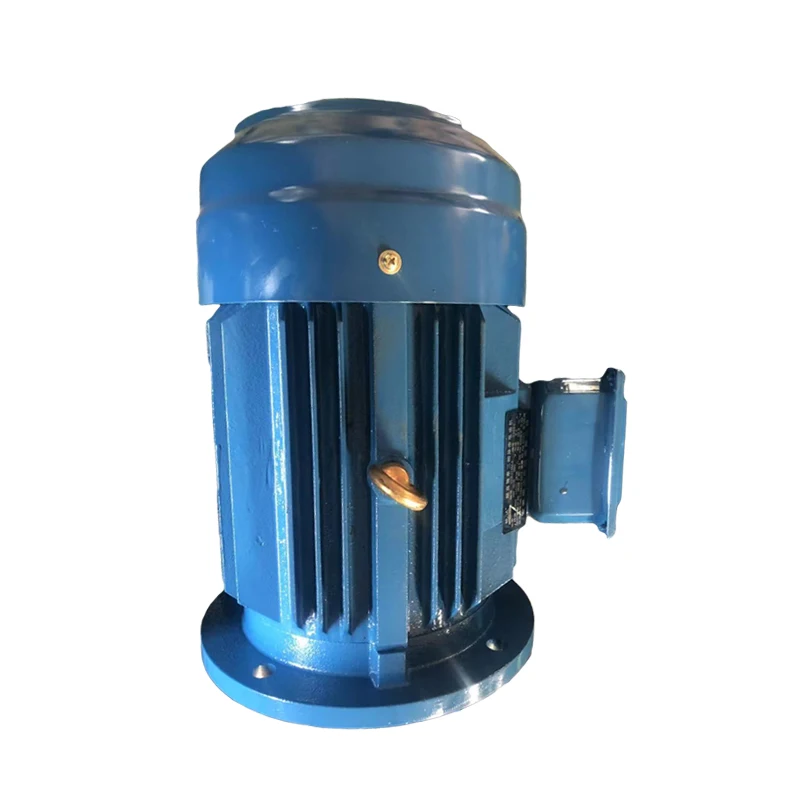

Products Description
Due To Different Customized Specifications And Models, The Price Will Change Accordingly contact us
1.Perfect structure
2.Attractive appearance
3.Little vibration
4.Low noise
5.Heat resistance
6.high protection class
Technical Data of YE3 Series 1P (2p/3p/4p/5p) | ||||||||||||||||
TYPE | Rated power | Curren | Speed | Efficiency | Power factor | Rated current | Rated torque | db(A) | ||||||||
YE3-80M1-2 | 0.75 | 1.7 | 2870 | 80.7 | 0.83 | 7 | 2.3 | 62 | ||||||||
YE3-80M2-2 | 1.1 | 2.4 | 2875 | 82.7 | 0.83 | 7.3 | 2.3 | 62 | ||||||||
YE3-90S-2 | 1.5 | 3.2 | 2880 | 84.2 | 0.84 | 7.6 | 2.3 | 62 | ||||||||
YE3-90L-2 | 2.2 | 4.6 | 2880 | 85.9 | 0.85 | 7.6 | 2.3 | 67 | ||||||||
YE3-100L-2 | 3 | 6.0 | 2880 | 87.1 | 0.87 | 7.8 | 2.3 | 74 | ||||||||
YE3-112M-2 | 4 | 7.8 | 2915 | 88.1 | 0.88 | 8.3 | 2.3 | 77 | ||||||||
YE3-132S1-2 | 5.5 | 10.6 | 2930 | 89.2 | 0.88 | 8.3 | 2.3 | 79 | ||||||||
YE3-132S2-2 | 7.5 | 14.4 | 2930 | 90.1 | 0.88 | 7.9 | 2.3 | 79 | ||||||||
YE3-160M1-2 | 11 | 20.6 | 2945 | 91.2 | 0.89 | 8.1 | 2.3 | 81 | ||||||||
YE3-160M2-2 | 15 | 27.9 | 2945 | 91.9 | 0.89 | 8.1 | 2.3 | 81 | ||||||||
YE3-160L-2 | 18.5 | 34.2 | 2945 | 92.4 | 0.89 | 8.2 | 2.3 | 81 | ||||||||
YE3-180M-2 | 22 | 40.5 | 2950 | 92.7 | 0.89 | 8.2 | 2.3 | 83 | ||||||||
YE3-200L1-2 | 30 | 54.9 | 2965 | 93.3 | 0.89 | 7.6 | 2.3 | 84 | ||||||||
YE3-200L2-2 | 37 | 67.4 | 2965 | 93.7 | 0.89 | 7.6 | 2.3 | 84 | ||||||||
YE3-225M-2 | 45 | 80.8 | 2965 | 94 | 0.90 | 7.7 | 2.3 | 86 | ||||||||
YE3-250M-2 | 55 | 98.5 | 2975 | 94.3 | 0.90 | 7.7 | 2.3 | 89 | ||||||||
YE3-280S-2 | 75 | 134 | 2975 | 94.7 | 0.90 | 7.1 | 2.3 | 91 | ||||||||
YE3-280M-2 | 90 | 160 | 2975 | 95 | 0.90 | 7.1 | 2.3 | 91 | ||||||||
YE3-315S-2 | 110 | 195 | 2985 | 95.2 | 0.90 | 7.1 | 2.3 | 92 | ||||||||
YE3-315M-2 | 132 | 234 | 2985 | 95.4 | 0.90 | 7.1 | 2.3 | 92 | ||||||||
YE3-315L1-2 | 160 | 279 | 2985 | 95.6 | 0.91 | 7.2 | 2.3 | 92 | ||||||||
YE3-315L2-2 | 200 | 349 | 2985 | 95.8 | 0.91 | 7.2 | 2.3 | 92 | ||||||||
YE3-355M2-2 | 250 | 435 | 2980 | 95.8 | 0.91 | 7.2 | 2.2 | |||||||||
YE3-355L-2 | 315 | 548 | 2980 | 95.8 | 0.91 | 7.2 | 2.2 | |||||||||
All can be customized | ||||||||||||||||
Pre-sale services | 1. Multiple models to choose |
2. Customized products according to your requests | |
3. Professional technicians at your side any time | |
Services during the sale | 1. Pre-check and safeguard products before delivery |
2. Provide solutions for any possible problems occured | |
After-sale services | 1. warranty:12 months (not including wearing parts) after delivery |
2. Provide installation files, technical data and related videos etc |
