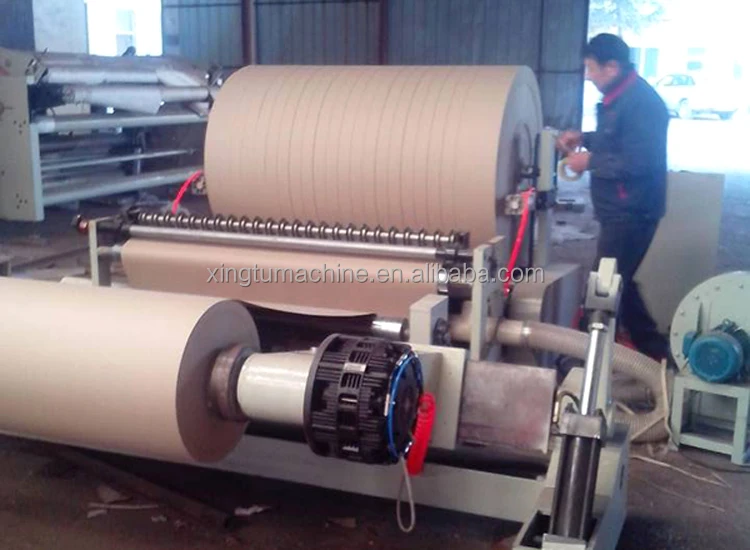

High Speed Automatic Slitter Jumbo Cardboard Kraft Paper Roll Slitting and Rewinding Machine
- Category: >>>
- Supplier: Henan Xing Tu Machinery Equipment Co. Ltd.
Share on (1600273386136):
Product Overview
Description
High Speed Automatic Slitter Jumbo Cardboard Kraft Paper Roll Slitting and Rewinding Machine
Product Description
Brief Introduction Of Paper Slitting Rewinding Machine:

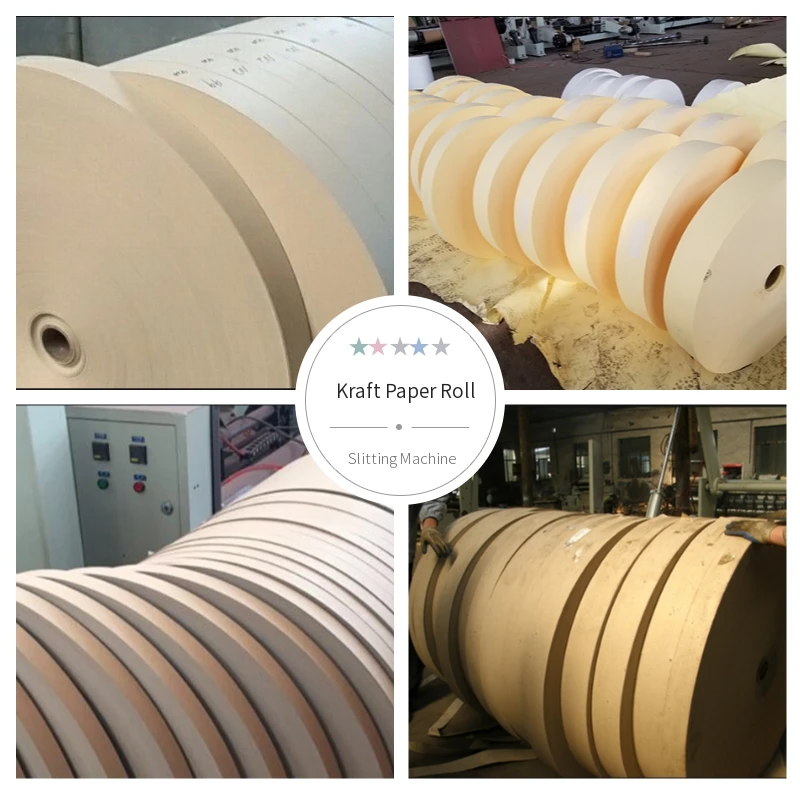

This slitting and rewinding machine is used for processing heavy gsm paper products such as bobbin paper, coated paper,
cardboard paper, white cardboard, coated paper, etc. It is a upgraded model of the simple type kraft paper slitting machine, which mainly used in paper core production line.
cardboard paper, white cardboard, coated paper, etc. It is a upgraded model of the simple type kraft paper slitting machine, which mainly used in paper core production line.
Features:
1 The maximum diameter of raw material can reach 1500mm.

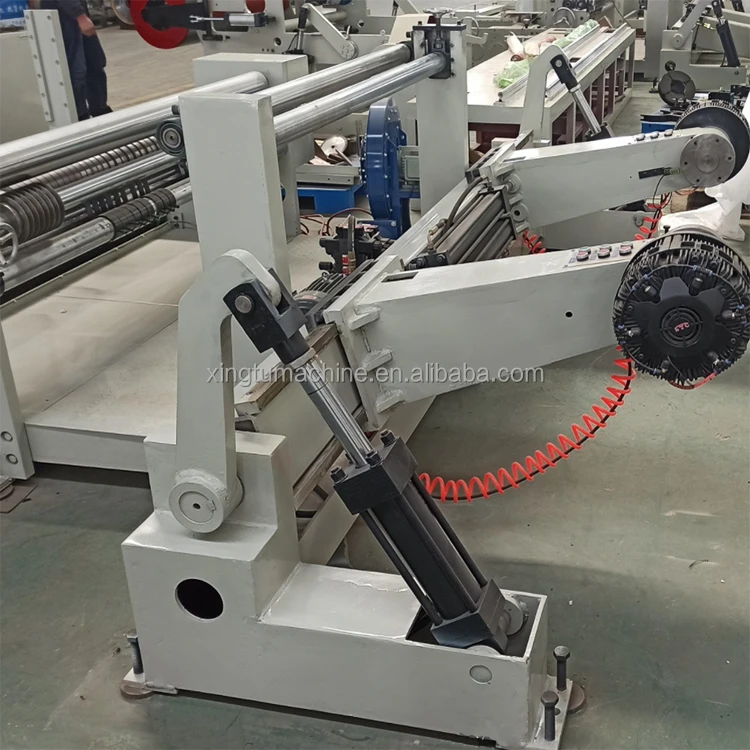

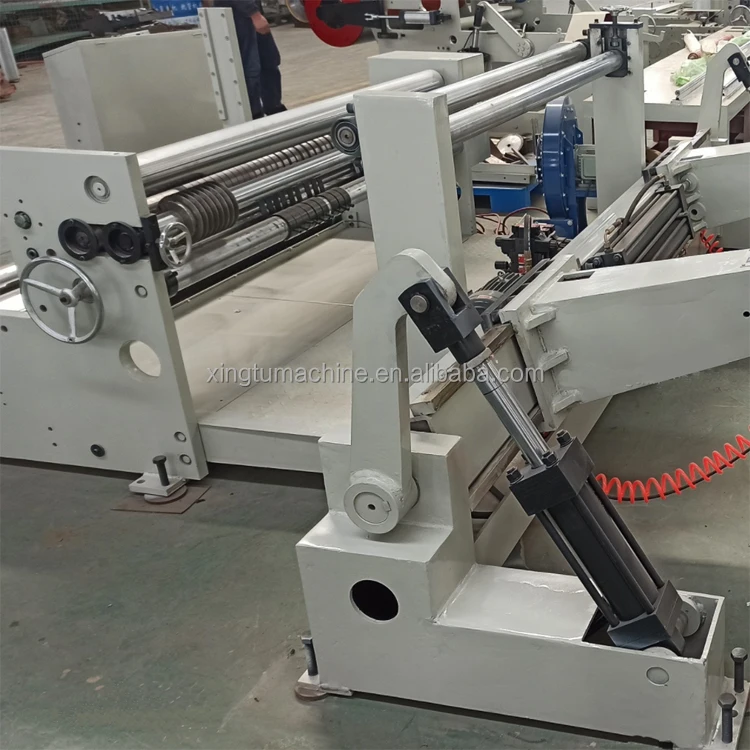

2 The machine adopts hydraulic shaftless paper loading system, which is suitable for paper cores of 3 inches, 6 inches, 12 inches and other specifications.
3 Paper unloading mode: hydraulically rotating paper unload. Safe and reliable.
4 Automatic constant tension control, easy to operate.

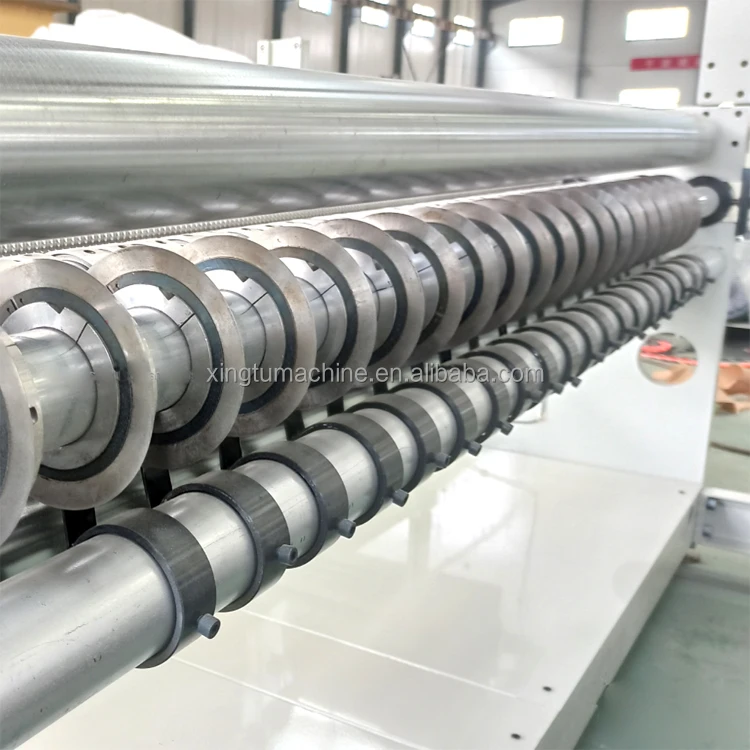

5 Automatic cutting blade correction, labor saving and high precision.
2 The machine adopts hydraulic shaftless paper loading system, which is suitable for paper cores of 3 inches, 6 inches, 12 inches and other specifications.
3 Paper unloading mode: hydraulically rotating paper unload. Safe and reliable.
4 Automatic constant tension control, easy to operate.
5 Automatic cutting blade correction, labor saving and high precision.
Specification
Model | XT-1300 | XT-1600 | XT-1800 | ||
Width of Raw Material | 1300mm | 1600mm | 1800mm | ||
Diameter of Raw Material | Max1350mm | ||||
Inner Diameter of Raw Material | 76.2mm 152mm | ||||
Diameter of Finished Paper Roll | Max1350mm | ||||
Width of Finished Paper Roll | 30-1300mm | 30-1600mm | 30-1800mm | ||
Inner Diameter of Finished Paper Roll | 76.2mm | ||||
GSM of Raw Material Paper | 100-510g/m² | ||||
Slitting Blade | 20 sets | ||||
Size of Upper Blade | 140*90*1.5mm | ||||
Size of Bottom Blade | 108*80*30mm | ||||
Winding Roller | Air shaft | ||||
Speed | 0-200m/min | ||||
Speed Adjustment | AC frequency conversion speed regulation | ||||
Tension Control | Automatic | ||||
Power | 7.5KW | 11KW | 15KW | ||
Machine Weight | 3.2T | 3.5T | 3.8T | ||
Machine Size | 3200*2600*1500mm | 3500*2800*1500mm | 3800*3000*1500mm | ||
Company Profile

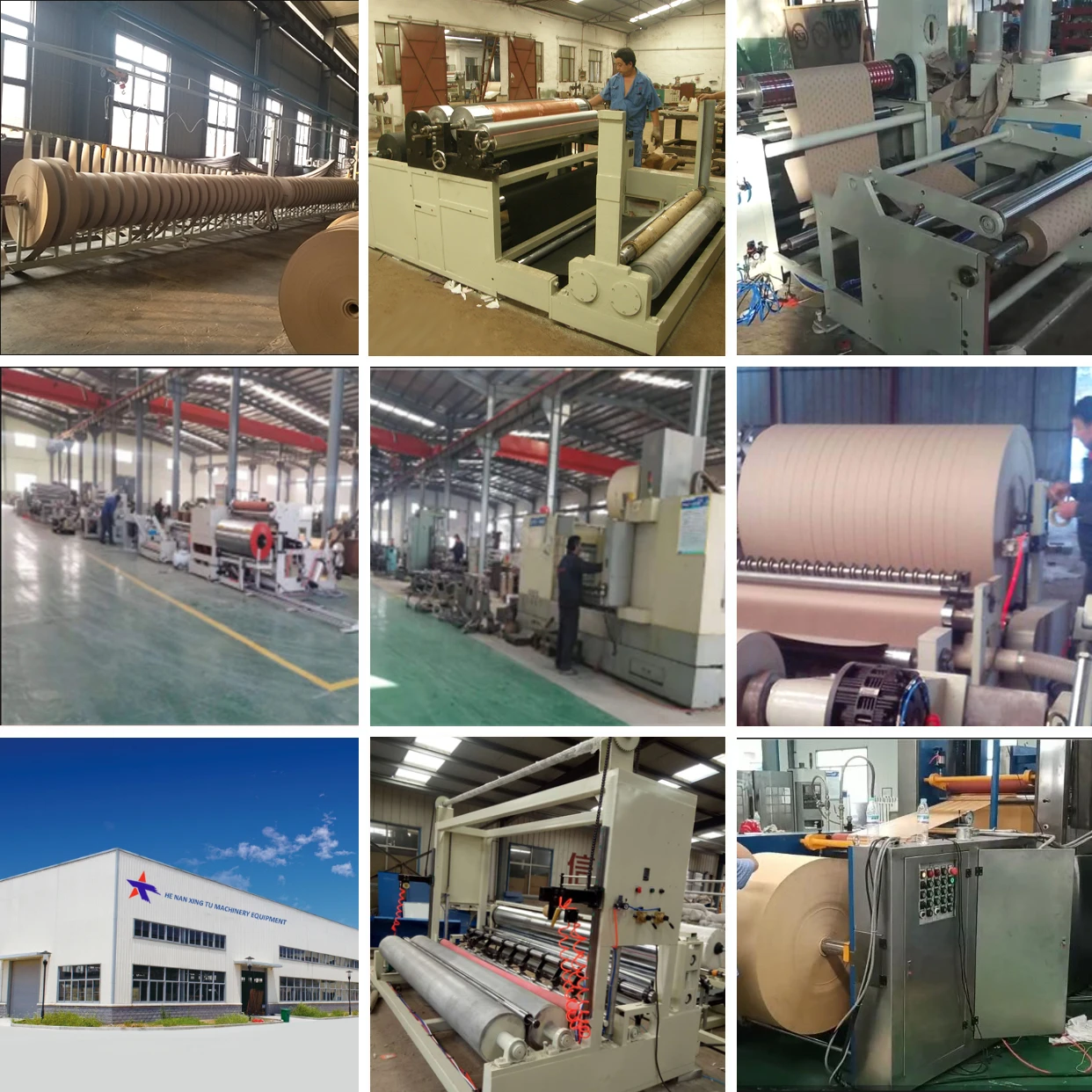

HENAN XINGTU MACHINERY EQUIPMENT CO., LTD, located in Zhengzhou city, Henan province, China, is a leading professional and reliable machine manufacturer and whole solution supplier. We mainly supply various kinds of paper product making machine, like toilet tissue paper machine, paper cup making machine, paper straw making machine, paper tube core making machine etc. In the process of production, we always put the quality of products in the top position. High quality machinery and professional services also helped us win high praise from our customers domestic and overseas. Our machinery equipments have been sold to many cities in china and also exporting to many countries around the world, such as Europe, Africa, Australia, Nigeria, Ghana, Egypt, Saudi Arabia, Russia, Brazil, Pakistan, India and so on. We also establish good strategic cooperation with local distributors and agents.
Please send your requirements to us by email or phone calls and we will reply you immediately.
Please send your requirements to us by email or phone calls and we will reply you immediately.
Service:
1. All customers’questions will be answered within 24 hours. You can ask for the detailed quotation, machine pictures or vedios by chatting online with us or sending us inquiry.
2. As a one-stop paper product making machine supplier, we can provide you all the equipments necessary for your paper cup factory. We can also assist you to purchase the raw material.
3. After you received the paper cup making machine, we will send you the installation vedios of each part and provide online installation guide service. Engineers overseas service is also available.
4. All machines have one year guarantee except the quick-wear part. We promise free lifelong technical support.
1. All customers’questions will be answered within 24 hours. You can ask for the detailed quotation, machine pictures or vedios by chatting online with us or sending us inquiry.
2. As a one-stop paper product making machine supplier, we can provide you all the equipments necessary for your paper cup factory. We can also assist you to purchase the raw material.
3. After you received the paper cup making machine, we will send you the installation vedios of each part and provide online installation guide service. Engineers overseas service is also available.
4. All machines have one year guarantee except the quick-wear part. We promise free lifelong technical support.
Packing & Delivery
1. The paper slitting rewinding machine will be packed with waterproof film and wooden box. The standard export package will ensure secure delivery of the machine.
2. The paper slitting rewinding machine can be delivered by sea, by truck or by rail.
3. The normal delivery time is 35 days after we received advanced payment. It also depends on your order quantity.
2. The paper slitting rewinding machine can be delivered by sea, by truck or by rail.
3. The normal delivery time is 35 days after we received advanced payment. It also depends on your order quantity.
FAQ
1. What kind of machine do you supply?
We mainly supply The following machines:
We mainly supply The following machines:
(1) Toilet paper rewinding machine
(2) Toilet paper cutting machine
(3) Toilet paper packing machine
(4) Napkin paper folding machine
(5) Facial tissue paper folding machine
(6) Napkin facial tissue paper packing machine
(7) Toilet tissue paper slitting machine
(8) Kraft paper slitting rewinding machine
(9) Paper core tube making machine
2. Can You Help Us with The Installation？Can Your Engineers Teach and Train Our Employees？
Yes. First, We will send you the installation and operation videos. Then, our sales managers will help you solve problems online. Finally, if you need further assistance, we will send engineers to your factory. But you should pay them.
3. Delivery time:
30 days after we received your initial payment.
4. Do you accept L/C?
Yes. You can choose to pay by cash, TT, L/C or other ways.
If you pay by TT, the advance payment will be 30%, and the rest should be paid before delivery.
(2) Toilet paper cutting machine
(3) Toilet paper packing machine
(4) Napkin paper folding machine
(5) Facial tissue paper folding machine
(6) Napkin facial tissue paper packing machine
(7) Toilet tissue paper slitting machine
(8) Kraft paper slitting rewinding machine
(9) Paper core tube making machine
Yes. First, We will send you the installation and operation videos. Then, our sales managers will help you solve problems online. Finally, if you need further assistance, we will send engineers to your factory. But you should pay them.
3. Delivery time:
30 days after we received your initial payment.
4. Do you accept L/C?
Yes. You can choose to pay by cash, TT, L/C or other ways.
If you pay by TT, the advance payment will be 30%, and the rest should be paid before delivery.
If You Are Interested In Paper Cup Machine, Please Send Us Inquiry Below!
