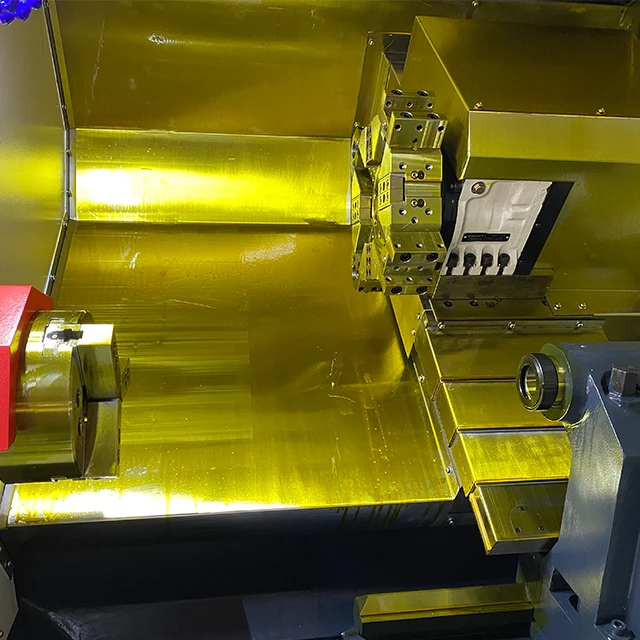

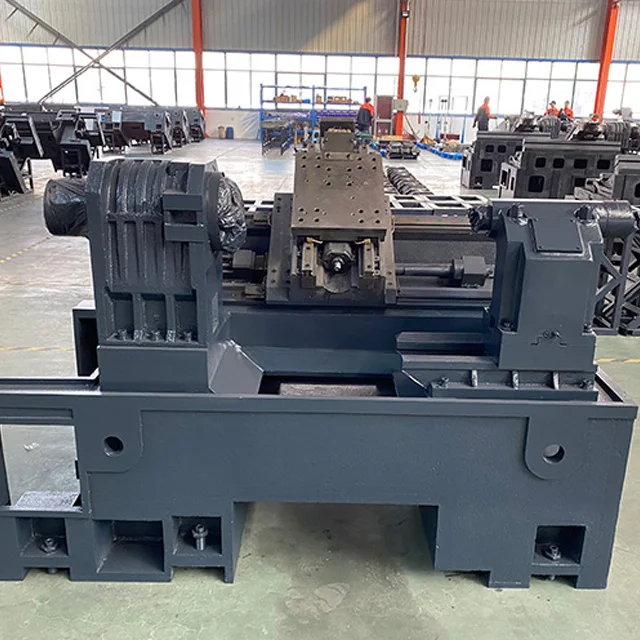

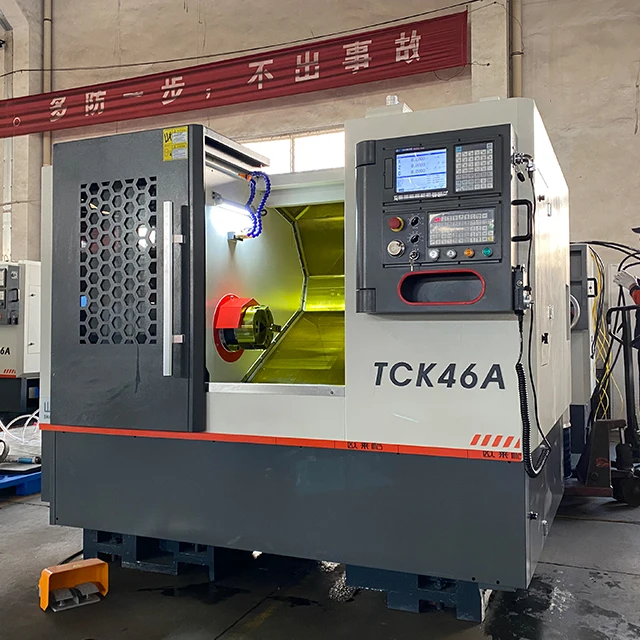

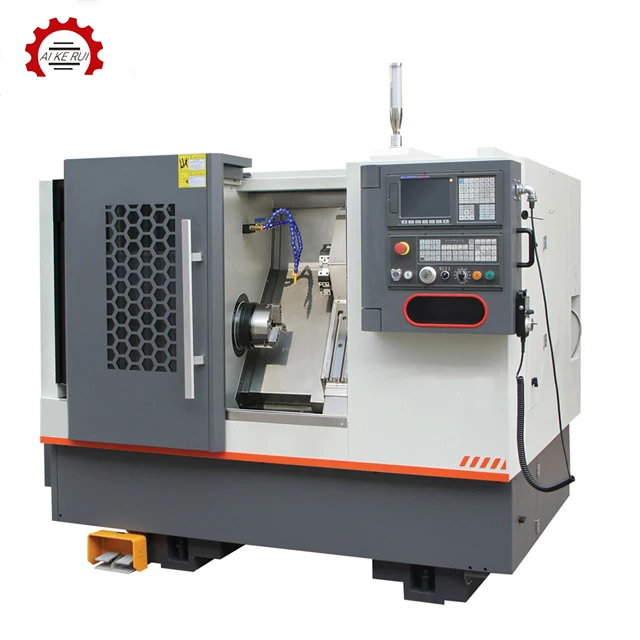

Professional Manufacture Lathe Cnc TCK46A High Precision Cnc Lathe for Alloy Wheels
- Category: >>>
- Supplier: Shandong ACR Machine Tool Co. Ltd.
Share on (1600273528343):
Product Overview
Description
Specifications | Units | TCK46A |
Swing over bed | mm | 460 |
Swing over cross slide | mm | 260 |
Guide width | mm | - |
Max.Work piece Length | mm | 400/320 |
Spindle bore | mm | 48/56 |
Spindle bore taper | A2-5 | |
Spindle speed steps | - | Stepless |
Spindle speed range | rpm | 3500 |

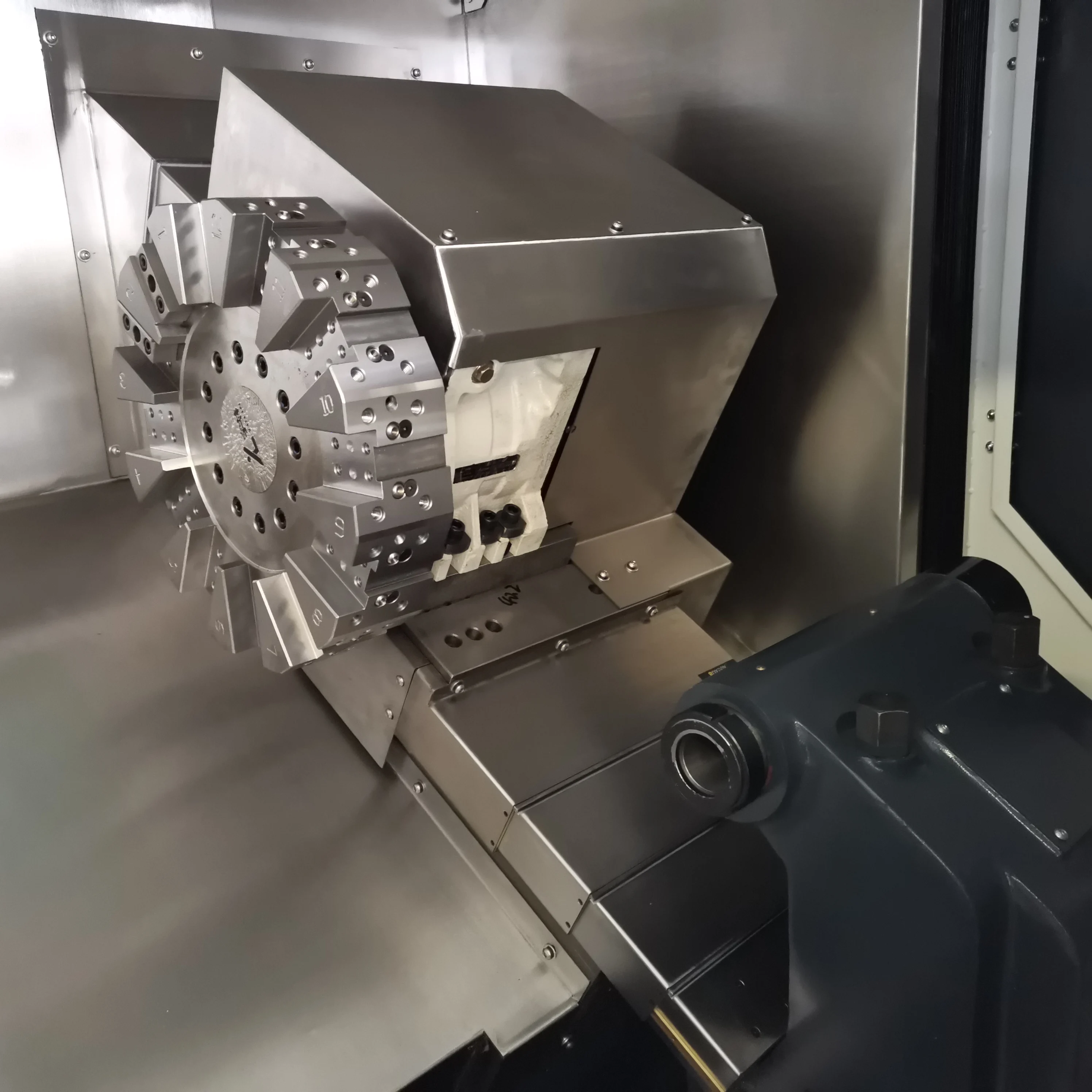

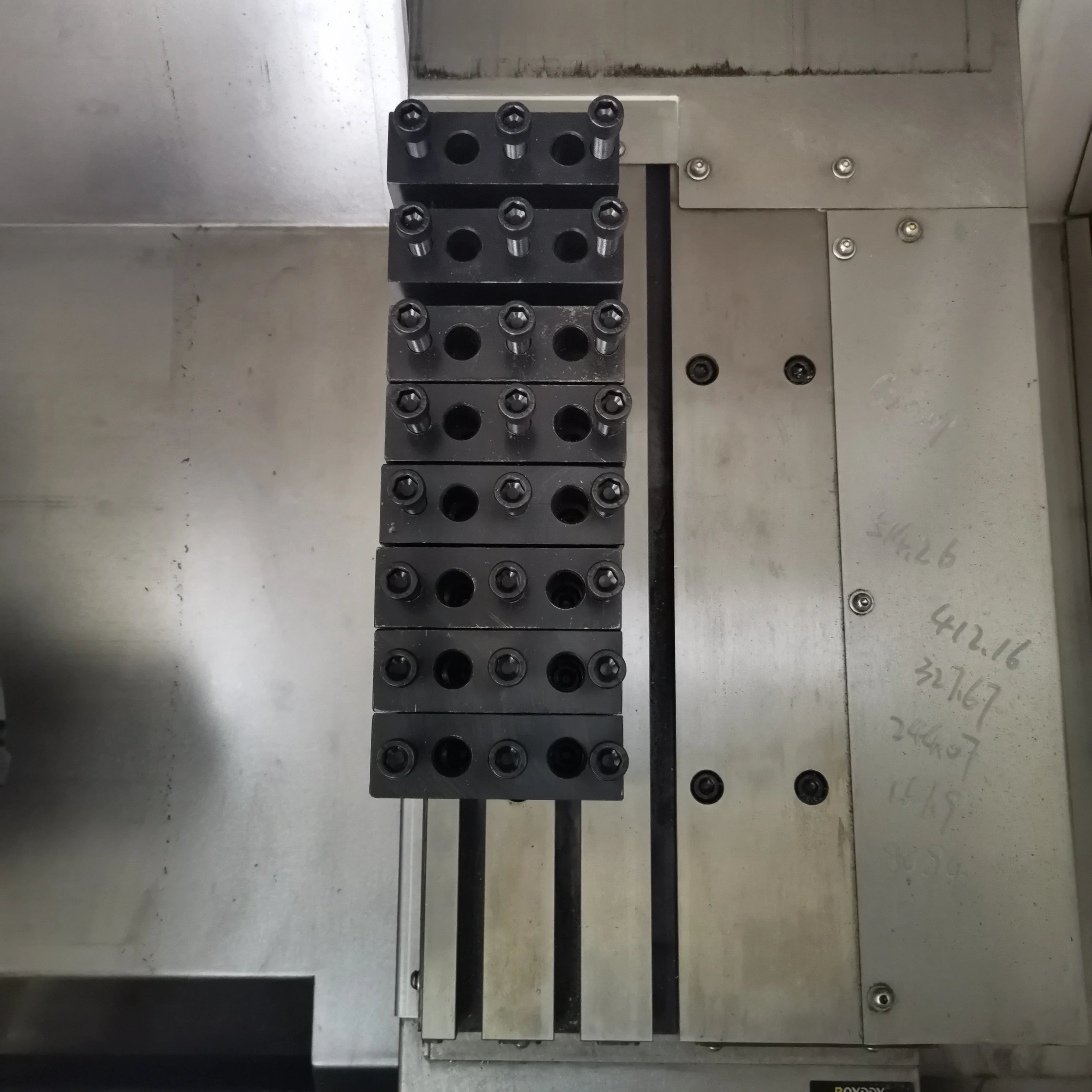

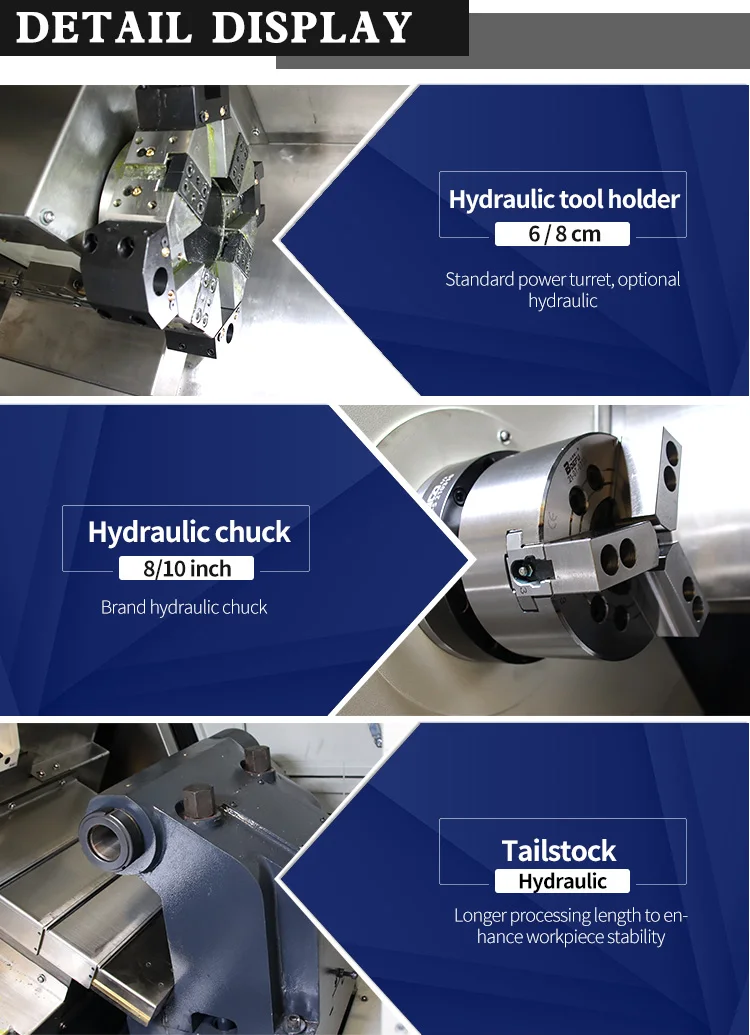

Turret/tool post | - | Hydraulic 8/12 position |
Tool size | mm | 25*25 |
X axis travel | mm | 240 |
Z axis travel | mm | 400 |
X axis rapid traverse | mm/min | 24000 |
Z axis rapid traverse | mm/min | 24000 |
Tailstock quill diameter | mm | 70 |
Tailstock quill taper | - | MT5 |
Tailstock quill travel | mm | 80 |
Main spindle motor | kw | 7.5 |
Weight | kg | 3000 |
Dimension | mm | 2500*1700*1890 |
FAQ
Title goes here.
1:How can I choose the most suitable machines?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
