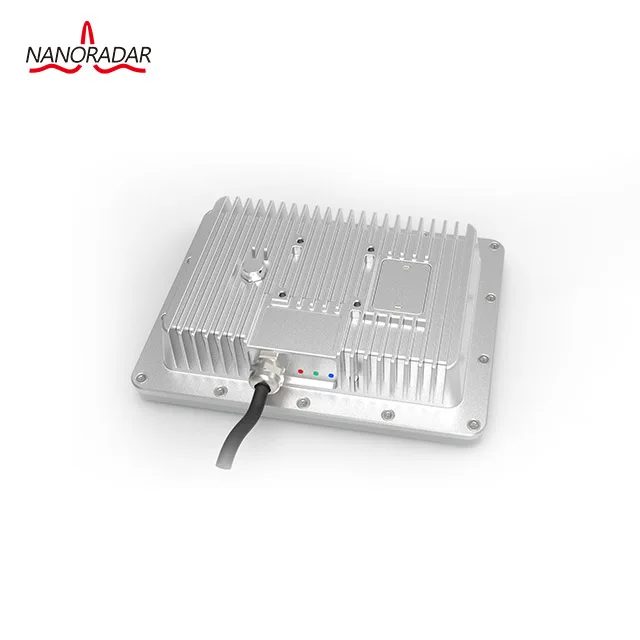

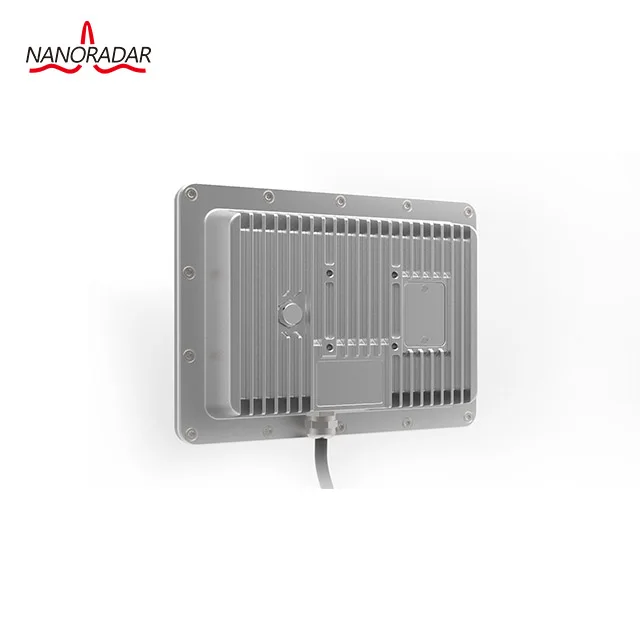

200m Cross Walk Detection Radar, Perimeter Surveillance Radar
- Category: >>>
- Supplier: Hunan Nanoradar Science And Technology Co. Ltd.
Share on (1600273594865):
Product Overview
Description
300m Perimeter Protection Radar with MAX 200m Across Detection

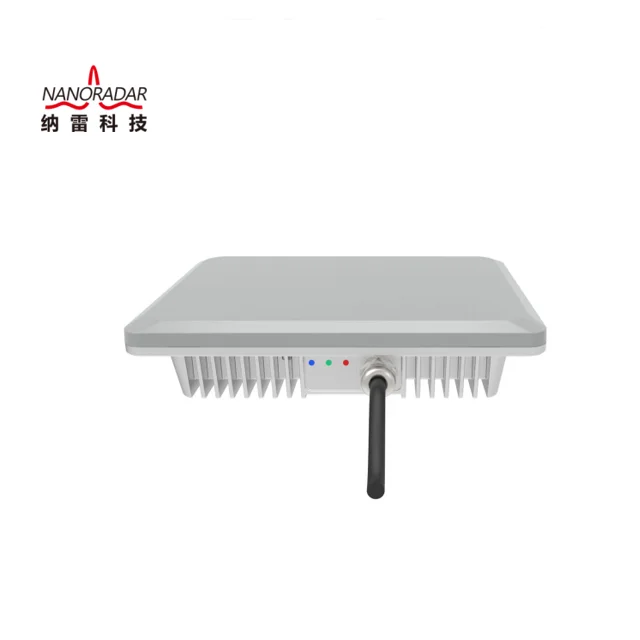

Nanoradar NSR200 is an intelligent perimeter security radar that can cross up to 200m.

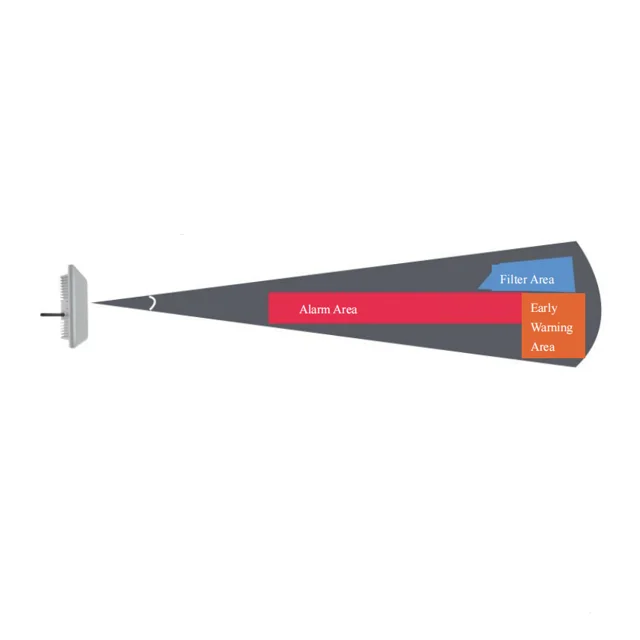

When the target enters the defense zone, it can carry out detection and early warning. At the same time, the accurate position of the target can be judged by the distance, angle and speed of the target, video analysis technology can be fused to check the target, and artificial intelligence (AI) algorithm can be used to judge whether it is the target to be alarmed.
The product can detect the distance and angle information of extremely low-speed moving targets with high precision, effectively filter out false targets such as trees, and has the characteristics of high sensitivity, accurate detection, easy integration, strong environmental adaptability, stable performance, high cost performance, etc.

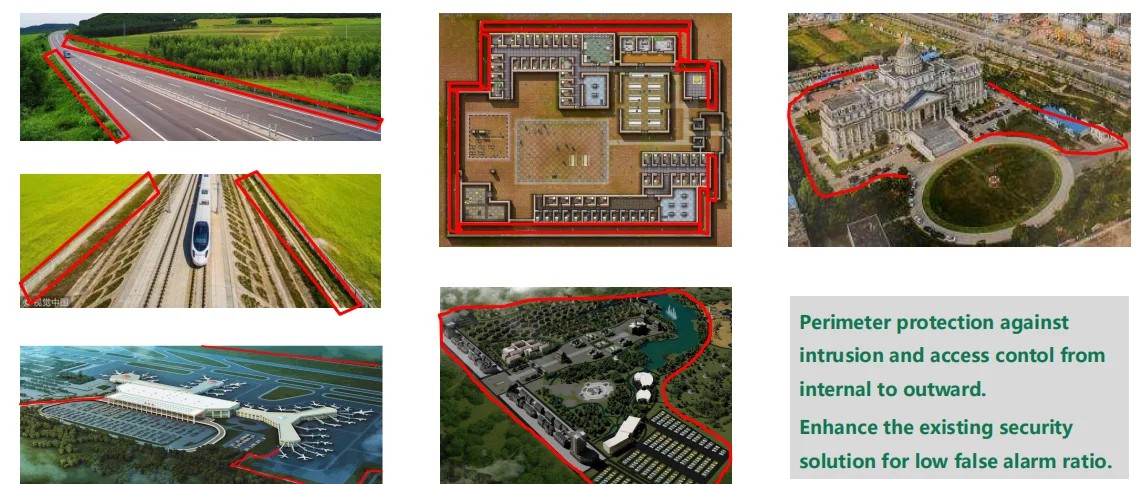

This product can be widely used in prisons, camps, squares, airports, ports, oil fields, oil depots and other important perimeter security areas.
Product Description
Specification
Operating temperature | -40℃~75℃ | Radar sensor | FMCW (frequency modulated continuous wave) |
Detection range | Minimum: 1m, maximum: 300m | Radar target data | Distance, direction, angle, speed, type, SNR |
Range resolution | 1.5 m | Transmission frequency | 24.05 ~ 24.15 GHz (approved by China, USA and Europe) |
Coverage | Maximum: 70000 m², minimum: 0.5 m² | Power consumption of the whole machine | 8W （20dBm） |
Radar size | size 235*175*54mm | Angular accuracy | ±1° |
Detection rate | 99% (RCS 0.5 m² human, minimum detection speed 0.03 m/s) | Update rate | 8Hz |
False alarm | ≤ 1 time/24 hours/road (light and shadow, bad weather, small animals) | Distance accuracy | ±0.75m |
Small target filtering | > 85% (small target below 0.05 m²) | Ranging range [walkers] | 1 ~ 300m (@ human 0°) 1 ~ 200m (@ human, walking/running across) 1 ~ 150m (@ human, climbing/squatting across) |

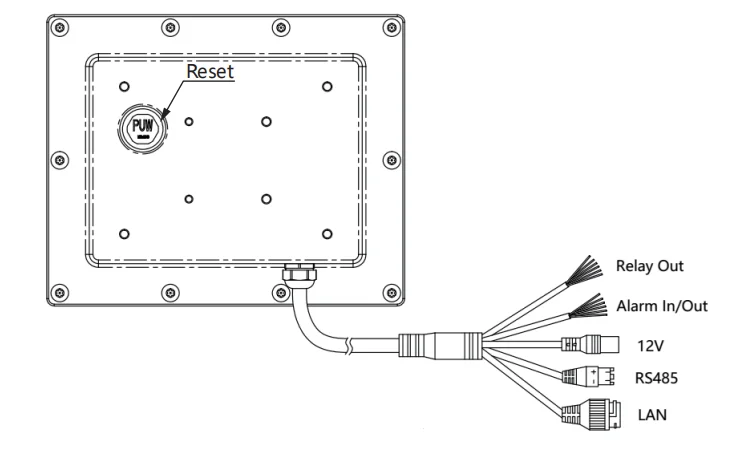

Power supply | 12V DC | External interface | RJ45、RS485、Relay_out*2、IO_out*2、IO_in、 LED |
Horizontal angle | 20° | Elevation | 13° |
All-weather and All-day Protection
*All-weather: 7 × 24 hours all-weather real-time protection, which can adapt to various bad weather such as rain, snow, fog, haze, dust, etc., and eliminate missing reports and false positives to the maximum extent;
*High protection level: Radar IP66 protection, high waterproof, dust proof level, earthquake resistance and fall resistance;
*High accuracy: It uses 2FFT, target clustering tracking and other advanced digital signal processing technologies, with a minimum detection speed of 0.03 m/s. No matter what posture or position the target enters the defense zone, it can be quickly located.
*MTBF: Military-grade equipment and components. The average trouble-free time is more than 50000 hours;
*High protection level: Radar IP66 protection, high waterproof, dust proof level, earthquake resistance and fall resistance;
*High accuracy: It uses 2FFT, target clustering tracking and other advanced digital signal processing technologies, with a minimum detection speed of 0.03 m/s. No matter what posture or position the target enters the defense zone, it can be quickly located.

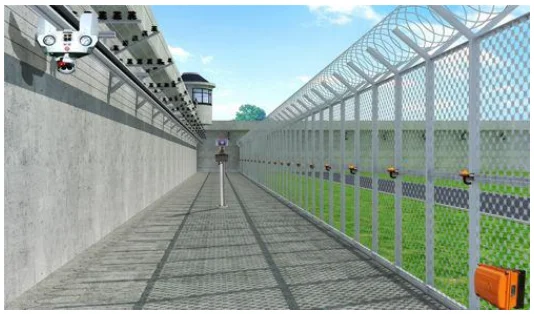

Installation application

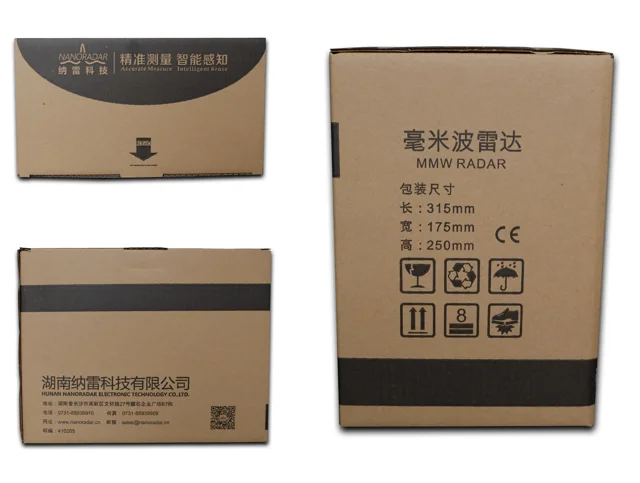

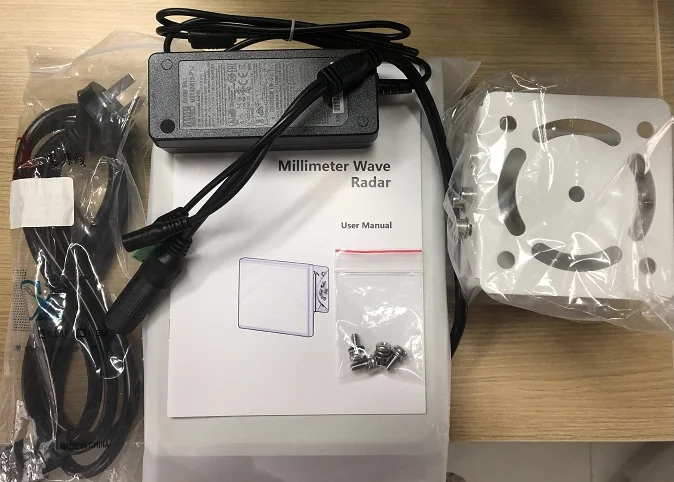

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Major millimeter wave radar provider in China
About Nanoradar:
Nanoradar, established in 2012, is specialized in developing, producing and selling millimeter wave radar for security, UAV,
automotive, smart traffic and other industrial application. Our products covers 24GHz, 77GHz, 79GHz frequency band. We have successfully developed 10+ models MMW radar products. Nanoradar’s radar detection range covers 30-450 meters. The accuracy is up to 85% for security radar to identify pedestrians. As a leading MMW radar manufacture in China, Nanoradar products also well accepted in overseas market like US, Korea, UK, and France etc.
Nanoradar is providing 24GHz / 77GHz Radar Sensors and Systems.
1. NRA24---24GHz 50~200 meters UAV Altimeter Radar.
2. MR72---77GHz 40-80 meters UAV collision avoidance radar
3. SR73F---Vehicle BSD/LCA radar Heavy-duty vehicle collision avoidance radar.
4. MR76---77GHz 170 meters Automotive ADAS radar ( ACC/AEB)
5. NSR60W/NSR100W/NSR300W/NSR200---Security perimeter intrusion detection
Nanoradar, established in 2012, is specialized in developing, producing and selling millimeter wave radar for security, UAV,
automotive, smart traffic and other industrial application. Our products covers 24GHz, 77GHz, 79GHz frequency band. We have successfully developed 10+ models MMW radar products. Nanoradar’s radar detection range covers 30-450 meters. The accuracy is up to 85% for security radar to identify pedestrians. As a leading MMW radar manufacture in China, Nanoradar products also well accepted in overseas market like US, Korea, UK, and France etc.
Nanoradar is providing 24GHz / 77GHz Radar Sensors and Systems.
1. NRA24---24GHz 50~200 meters UAV Altimeter Radar.
2. MR72---77GHz 40-80 meters UAV collision avoidance radar
3. SR73F---Vehicle BSD/LCA radar Heavy-duty vehicle collision avoidance radar.
4. MR76---77GHz 170 meters Automotive ADAS radar ( ACC/AEB)
5. NSR60W/NSR100W/NSR300W/NSR200---Security perimeter intrusion detection
FAQ
Q: What is the MOQ ?
A: 1PC sample order is acceptable, customized product will be negotiated.
Q: What is the payment terms?
A: T/T, L/C at sight
Q: What is the warranty time?
A: 12 months
Q: What is the lead time?
A: 3~7 days for sample order, bulk order will be 15~30 days around.
Q: What is the type of shipping?
A: By express, by air and by sea (FEDEX, DHL, TNT, UPS)
A: 1PC sample order is acceptable, customized product will be negotiated.
Q: What is the payment terms?
A: T/T, L/C at sight
Q: What is the warranty time?
A: 12 months
Q: What is the lead time?
A: 3~7 days for sample order, bulk order will be 15~30 days around.
Q: What is the type of shipping?
A: By express, by air and by sea (FEDEX, DHL, TNT, UPS)
