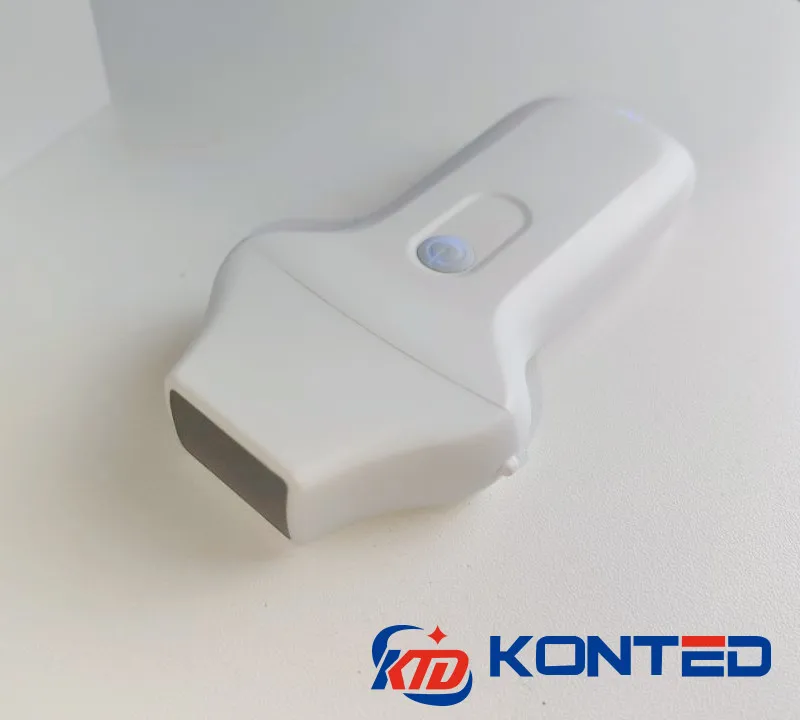

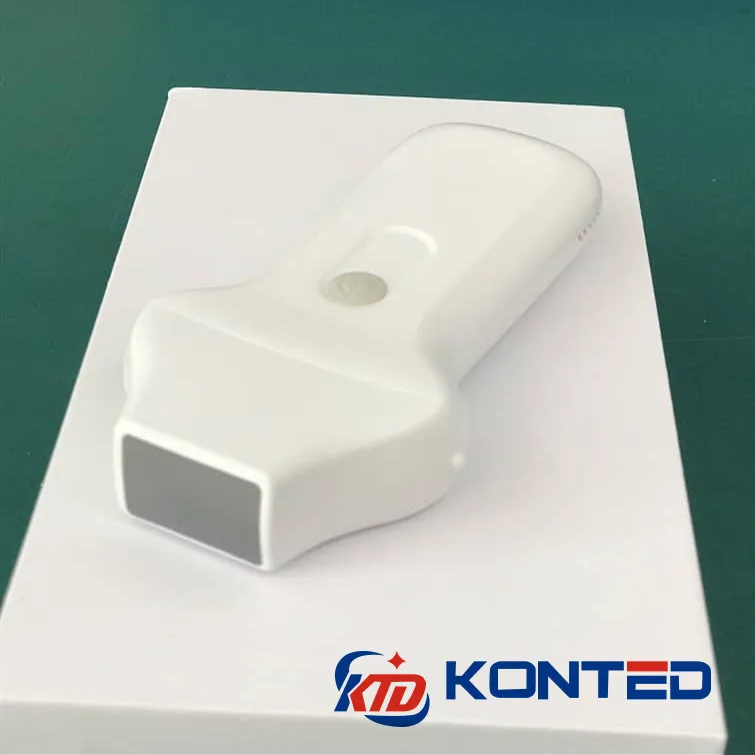

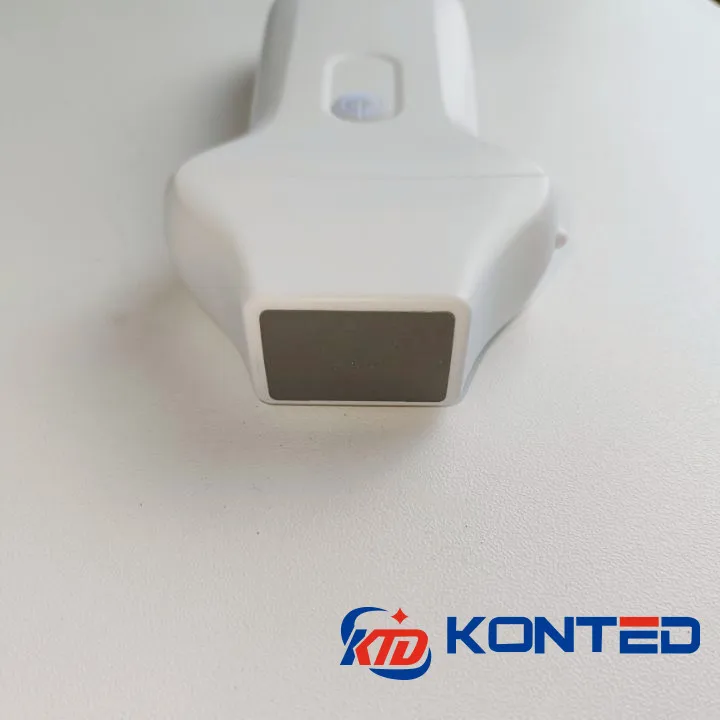

Konted newest portable examination cardiac wireless ultrasound color doppler probe C10UC
Konted newest portable examination cardiac wireless ultrasound color doppler probe C10UC
Konted newest portable examination cardiac wireless ultrasound color doppler probe C10UC
Konted newest portable examination cardiac wireless ultrasound color doppler probe C10UC
Konted newest portable examination cardiac wireless ultrasound color doppler probe C10UC
Konted newest portable examination cardiac wireless ultrasound color doppler probe C10UC
Konted newest portable examination cardiac wireless ultrasound color doppler probe C10UC

Konted newest portable examination cardiac wireless ultrasound color doppler probe C10UC

Share on (1600273640870):


Price:

Quantity:


Product Overview

Description



Product Description









Konted newest portable  examination cardiac wireless ultrasound color doppler probe C10UC


UC2











Specification

Specification






128 Elements Phased Array 2.2/3.6 MHz Wireless Phased Ultrasound Probe For Cardiac




































































































































Item


Specification


Place of Origin


China, Guangdong


Applications


Length, Area, Velocity, HR, S/D, Auto Blood Vessel Measurement


Brand Name


Suresult


Power Source


Electricity


After-sale Service


Return and Replacement


Material


Metal, Plastic


Instrument classification


Class II


Safety standard


EN ISO13485


Display mode


B, B/M, Color Doppler, PW, Power Doppler


Frequency


2.2/3.6 MHz


System


IOS iPad / iPhone, Android, Windows


Depth


90/130/160/190mm


Size


127x61x21mm


Image Frame Rate


24 Frames / Second


Net Weight


116g


Array


Phased (Cardiac)


Radius / Footprint


30mm


Software Language


English, Italian, Spanish, Portuguese, Russian, Chinese


Application


Cardiac, Abdomen


Measure


B: Length, Area/Circumference, Angle, Trace, Distance B/M: Heart Rate, Time, Distance, LVIDd, LVIDs, SV, EF B/PM: Velocity, Heart
Rate (2), S/D, Depth


Power Consumption


4W (probe run) / 1.5W (probe stop)


Battery Capacity


Lithium Battery 2800mAh, Working time ≥3h, Standby time: ≥5h, supporting working while charging


Image Format


JPG, AVI, MP4, DICOM


Image Enhancement


0.1.2.3.4


Focus


0.1.2.3


Elements


128


TGC


8


Charge


USB Cable or wireless charge, 2h


Software Controls


GN (gain), D (depth), ENH (enhancement), DR (dynamic range), F(frequency), PRF, WF, Focus, Mode B, B/M, Color Doppler, PW, Power
Doppler, Biopsy, Page Left/Right, Up/Down, 8TGC







Product Description

Product Description

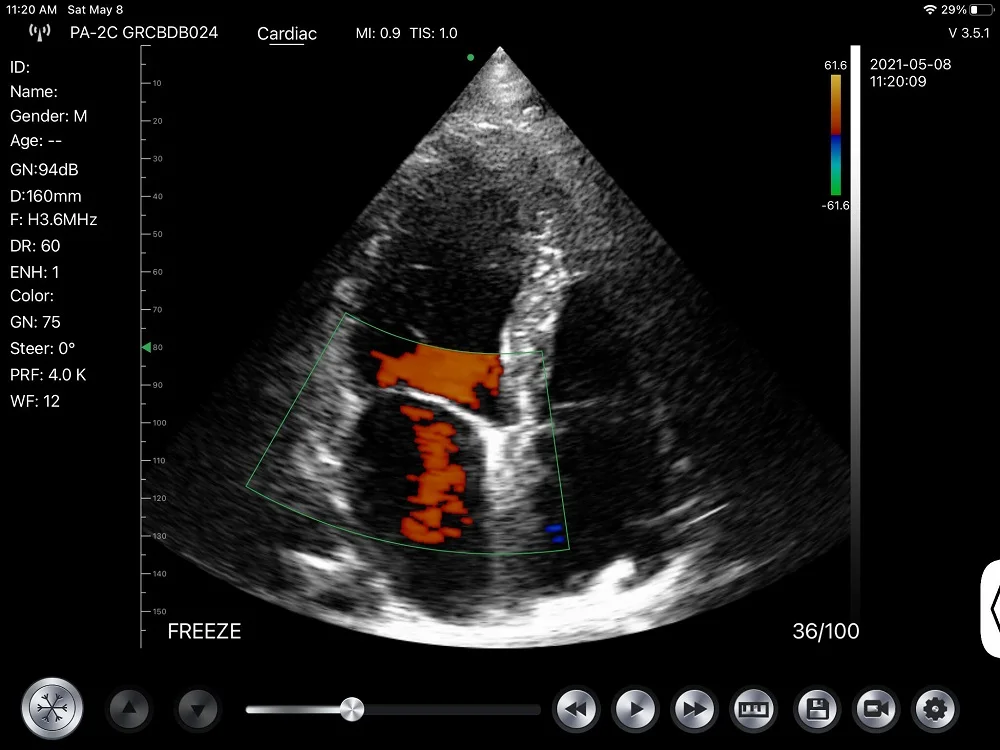

C10UC Imges 2

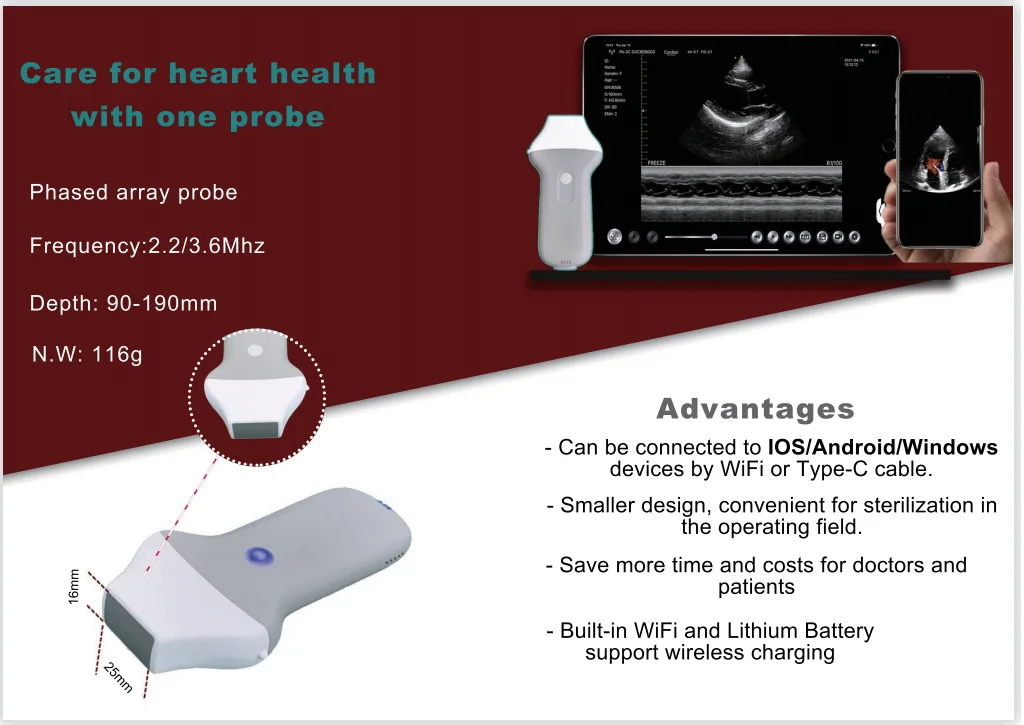

UC1





color doppler ultrasound (2)









This probe scanner can connect to the Apple Device, Android Device or Windows Device that after installed ultrasound software, then realize the functions of a ultrasound scanner. It is small and smart, convenient for carry and operation.

Ultrasound proved to play an important role in daily checking.

Features: Compatible with USB and wireless ports, making option diversify. It does not affect the use when charging and also can be charged by wireless charging. Only about 110 grams, it is lighter and smaller than ordinary probes. Open the SDK outward, support ODM&OEM for distributors. More cost-effective with high quality imaging.



Software Updates:

1. Now the latest software can support: English, German, Russian, Italian, Spanish,Portuguese
2. Add new angle measurement parameters and trace measurement parameters, and also add EFW parameters to measure fetal
weight.
3.Patient information

Add save report function: report contains image + diagnosis result.










Package & Shipping

Package & Shipping

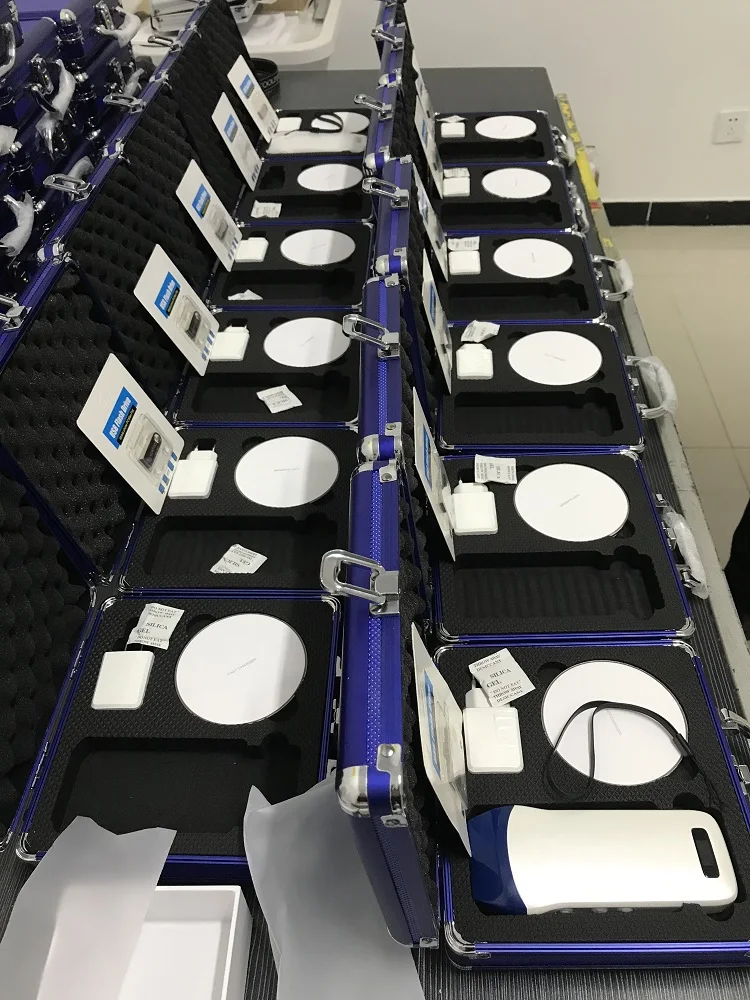

PACKING









Our Services





1.  We offer 18 month warranty period ,24 hours calling service.


2. Return Policy Allowed.


3. There is OEM&ODM service for distributor.


4.  After you get the machine, there is user manual, maintain manual, training  video guide you to operate the machine.


5. 100% Calibration before Shipment.


6. All products will be shipped within 1-3 working days upon payment .
