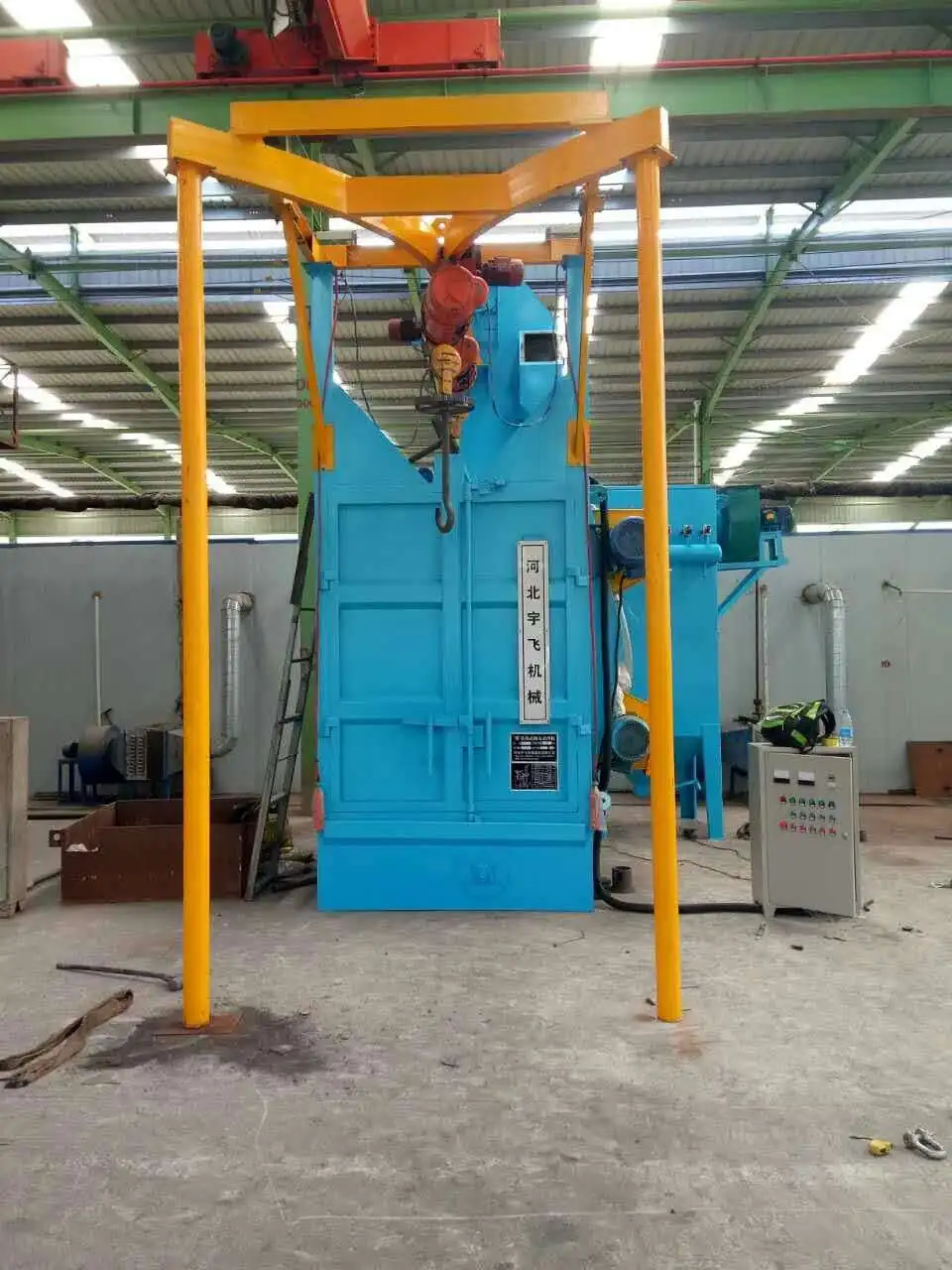

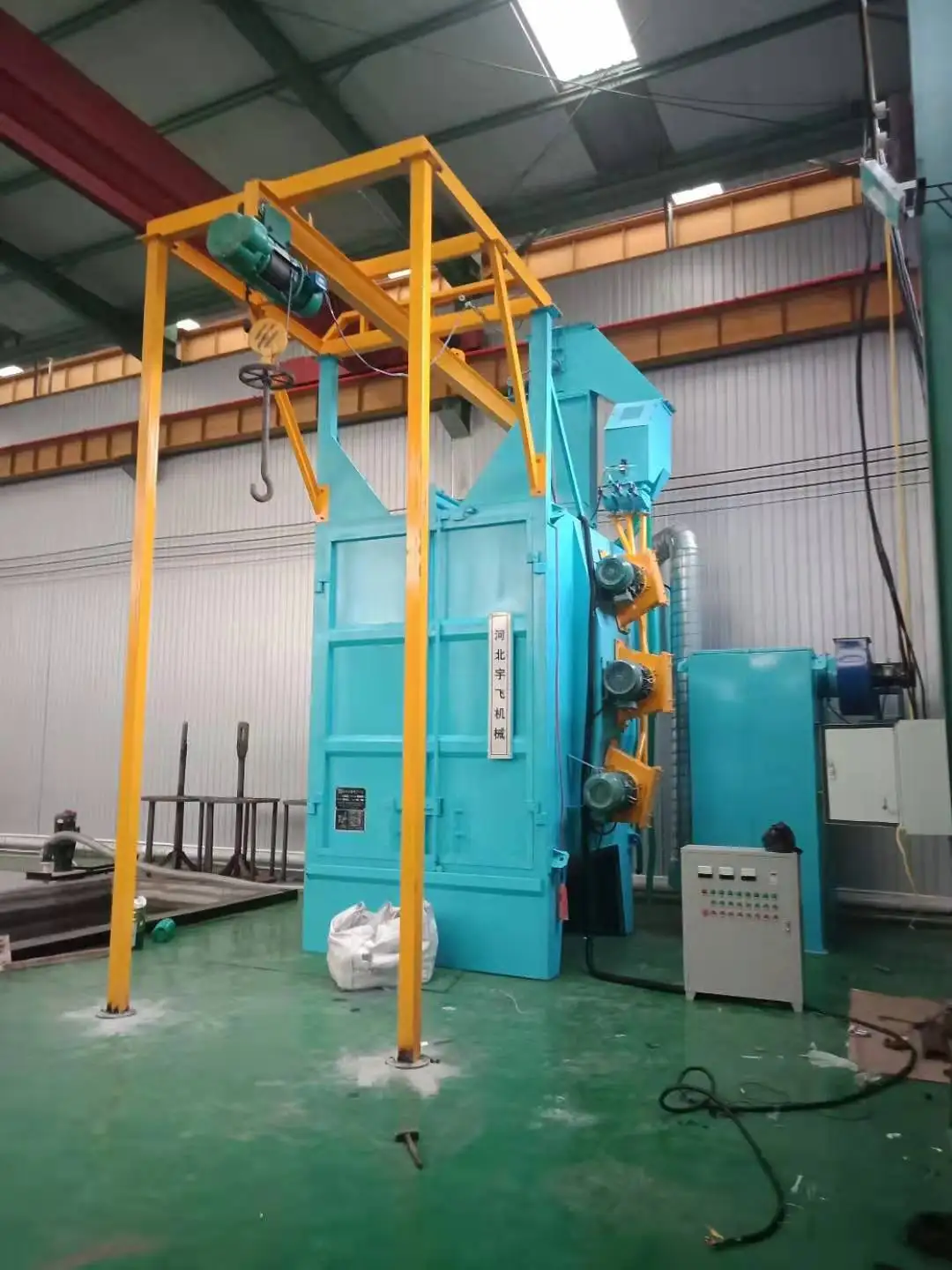

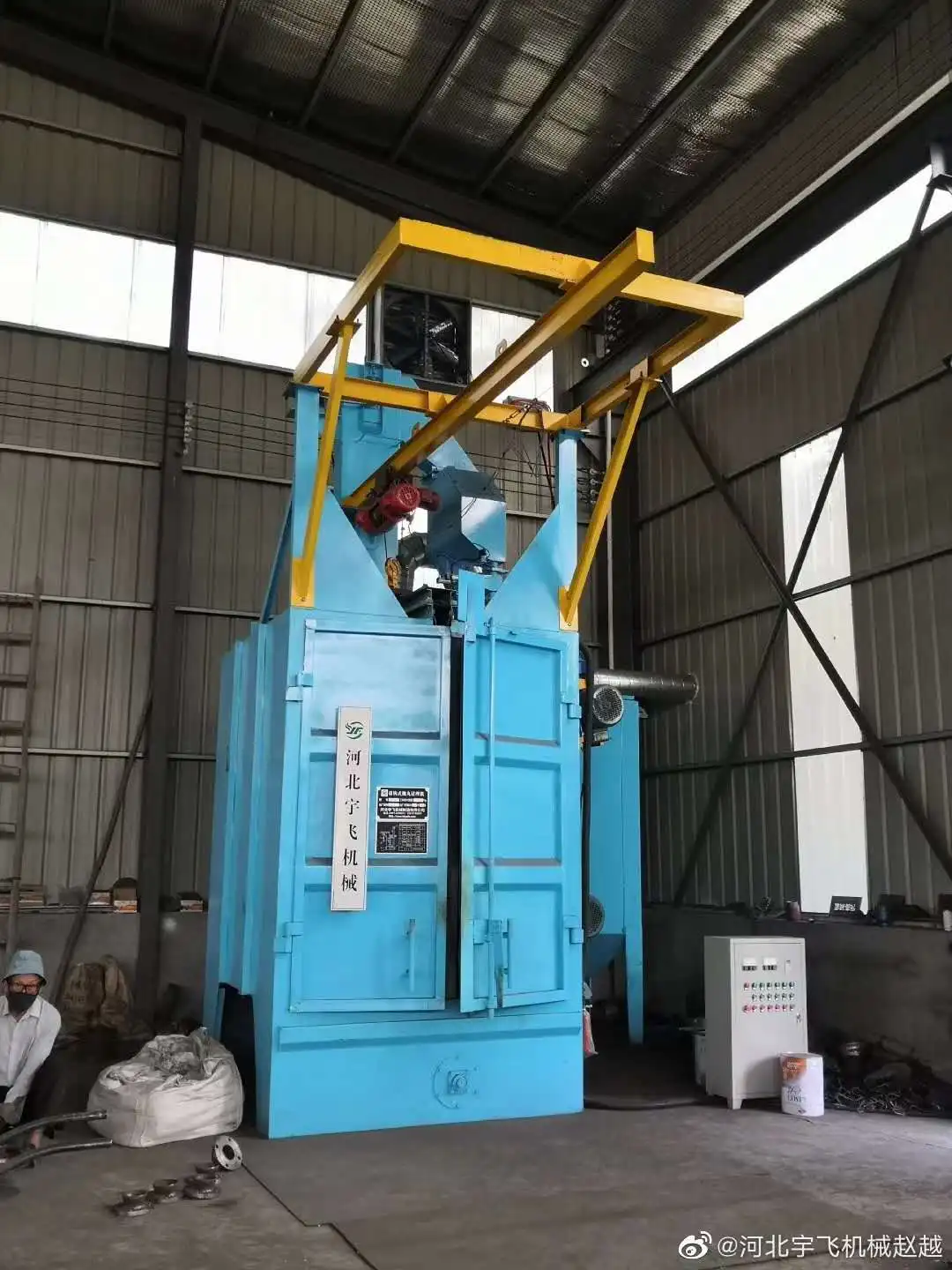

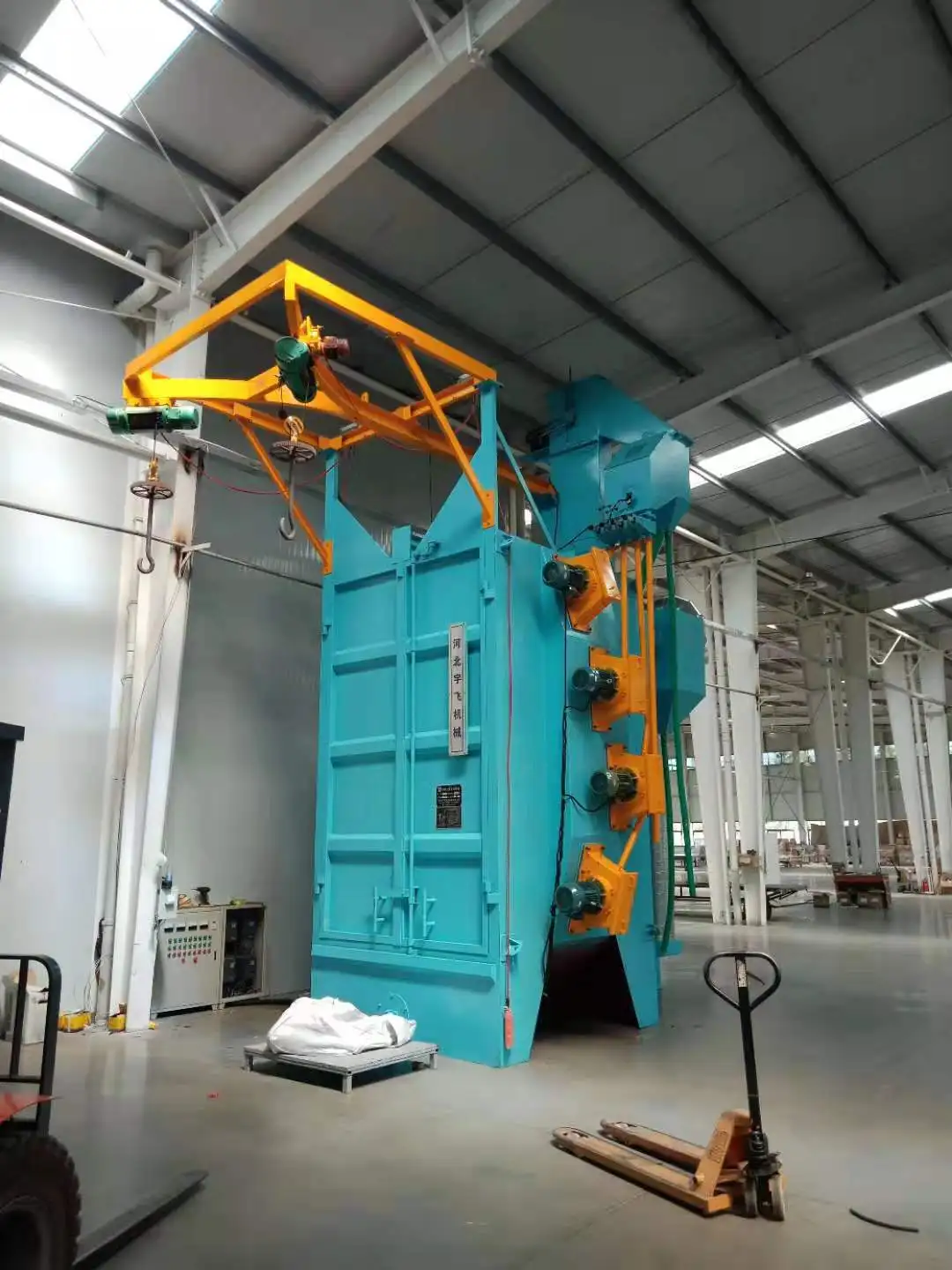

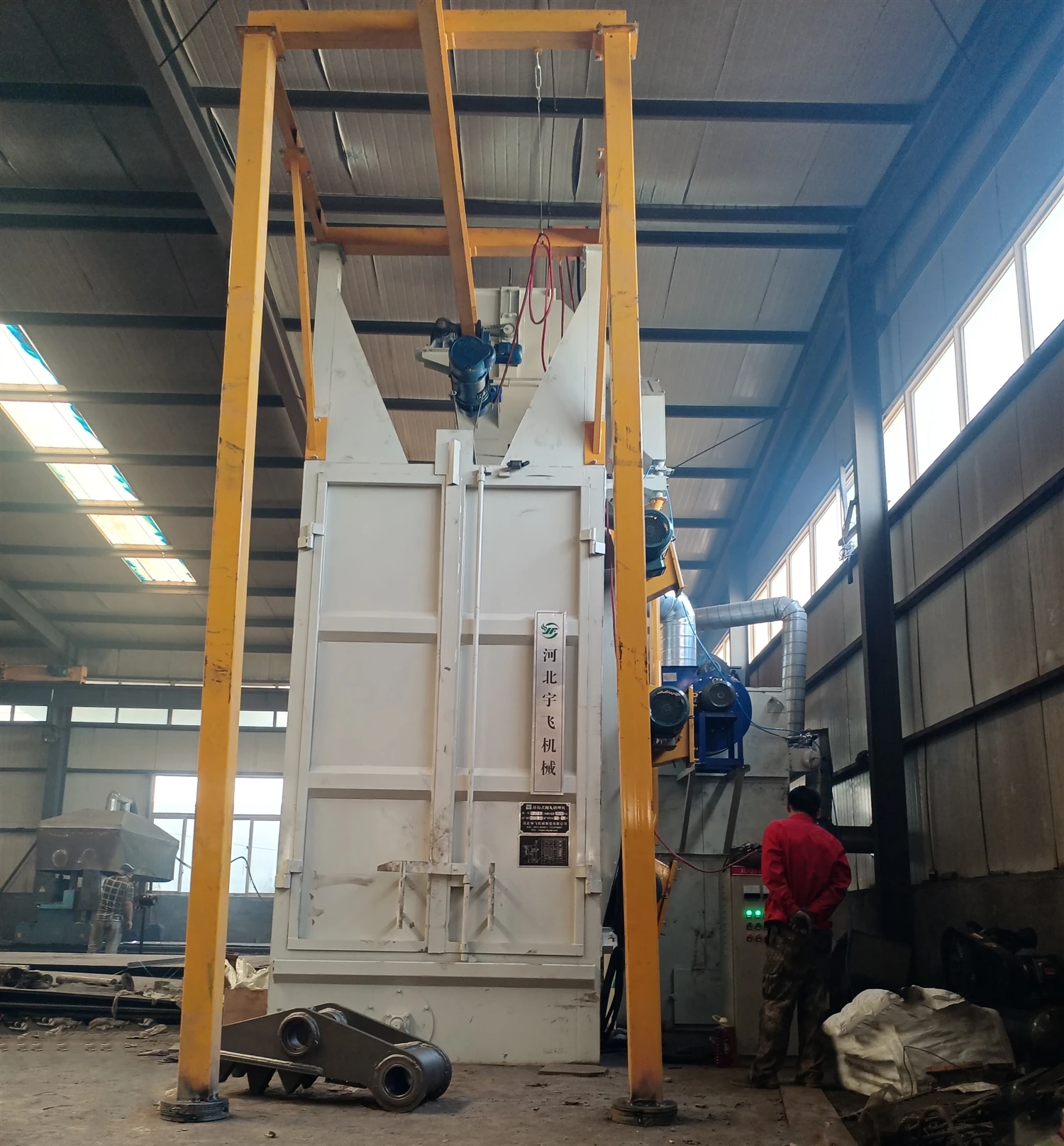

Hook type shot blasting cleaning machine is suitable for surface cleaning or strengthening treatment of medium and small castings and forgings in casting, construction, chemical industry, motor, machine tool industry, etc.It is especially suitable for surface cleaning and shot blasting of many kinds and small batches of castings, forgings, aluminum alloy castings and steel structural parts, so as to remove a small amount of sand, sand core and oxide scale from the surface of the workpiece.Also suitable for surface cleaning and strengthening of heat-treated parts;It is especially suitable for the cleaning of slender and thin - walled parts not suitable for collision.
Our Advantages
Hook type shot blasting machine has the following advantages:
1. The international advanced cantilever centrifugal shot blasting machine with large shot blasting volume and high projectile velocity can significantly improve the cleaning rate and obtain satisfactory cleaning quality.
2. All the simulated projectiles and drawings of shot blasting machine are completely drawn by computer-aided design (CAD). The selection and arrangement of shot blasting machine are more reasonable.

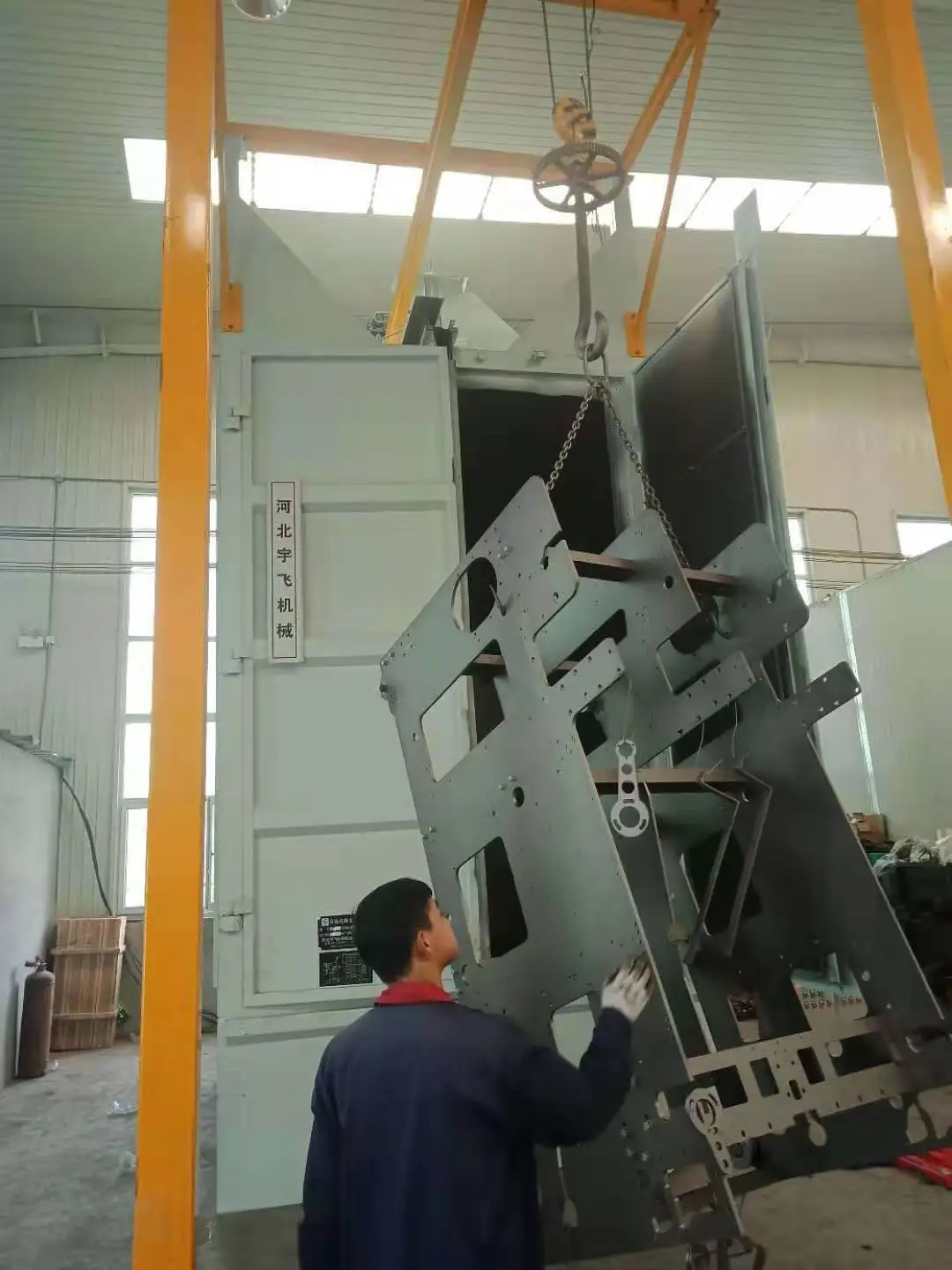

3. Adopting the popular form of landless pit structure, which not only saves the construction cost and time of the pit foundation, but also solves the problem of sand rusting and caking in the hoist caused by water storage in the pit.The hook has the function of lifting, running and indoor rotation.
4. Indoor cleaning with high chromium plate protection, greatly improve the service life, beautiful appearance, easy to replace.
Specification
Name
Hook type shot blasting machine
吊钩式抛丸机Hook type shot blasting machine
Model
Q376
Q378
Q3710
Q3720
Q3730
Q3740
Q3750
Clean the workpiece dimensions（mm）
Φ1000mm H800mm
Φ1200mm H1000mm
Φ1400mm H1400mm
Φ1800mm H2000mm
Φ2200mm H2200mm
Φ2200mm H3000mm
Φ2500mm H4000mm
The weight of the first steel shot added （t）
0.25
0.35
0.4
0.45
0.55
0.8
1.0
Shot blasting type
Q036
Q036
Q036
Q036
Q036
Q036
Q036
impeller head power(KW)
7.5KW
7.5KW
7.5KW
11KW
11KW
15KW
15KW
Number of shot blasting machines
2
2
2
3
3
4
5
Shot blasting amount（kg/min）
125
125
125
185
185
250
250
Maximum lifting weight（kg）
750
750
1000
1000
1000
2000
5000
Lifting quantity （t/h）
25t/h
25t/h
30t/h
30t/h
30t/h
60t/h
60t/h
Hoist power（kw）
2.2KW
2.2KW
3.0KW
3.0KW
3.0KW
5.5KW
5.5KW
Separation amount（t/h）
25t/h
25t/h
30t/h
30t/h
30t/h
60t/h
60t/h
Transportation amount t/h
25t/h
25t/h
30t/h
30t/h
30t/h
60t/h
60t/h
Screw conveyor power（kw）
1.5KW
1.5KW
2.2KW
2.2KW
2.2KW
3.0KW
3.0KW
Ventilation amount （m³/h）
4000
5000
7000
7500
8000
11000
15000
Total Power（kw）
23
23
33
34.5
34.5
53
74
Machine size (length × width × height)（mm）
4429×2850×3443
4560×2900×5009
5047×3850×5156
5844×3742×5716
6110×3800×8650
7150×4600×8650
7150×4600×9500
