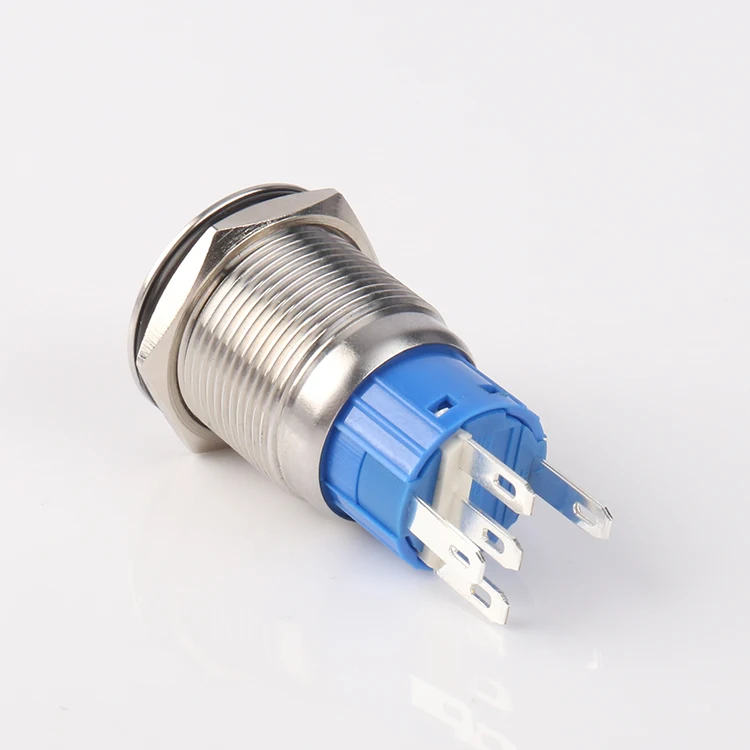

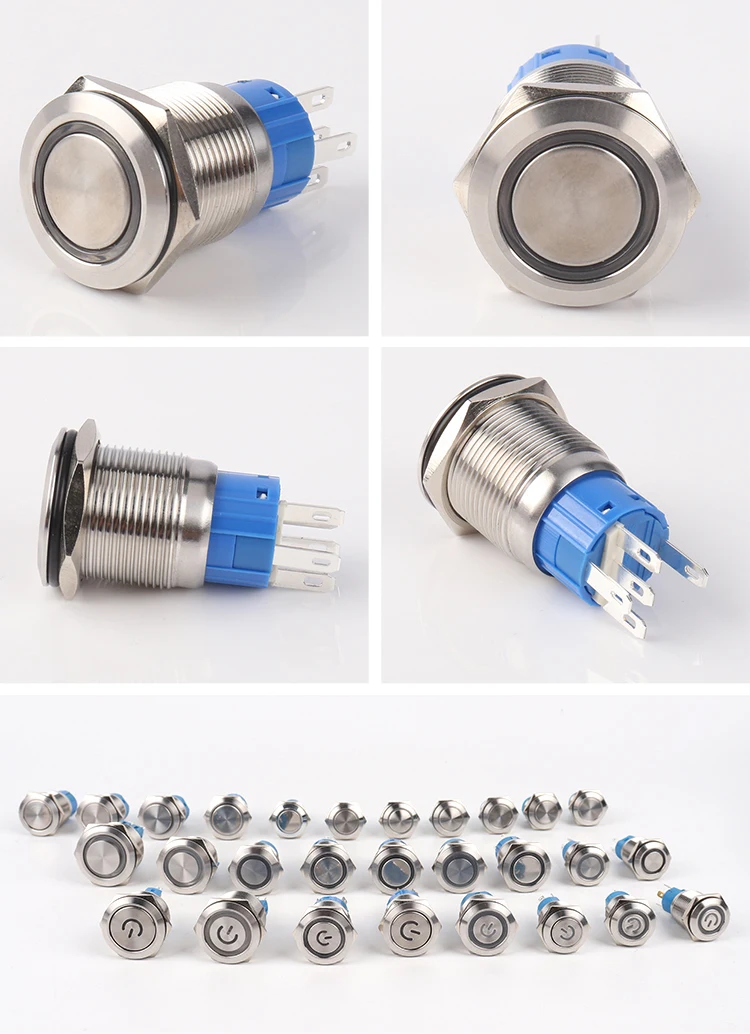

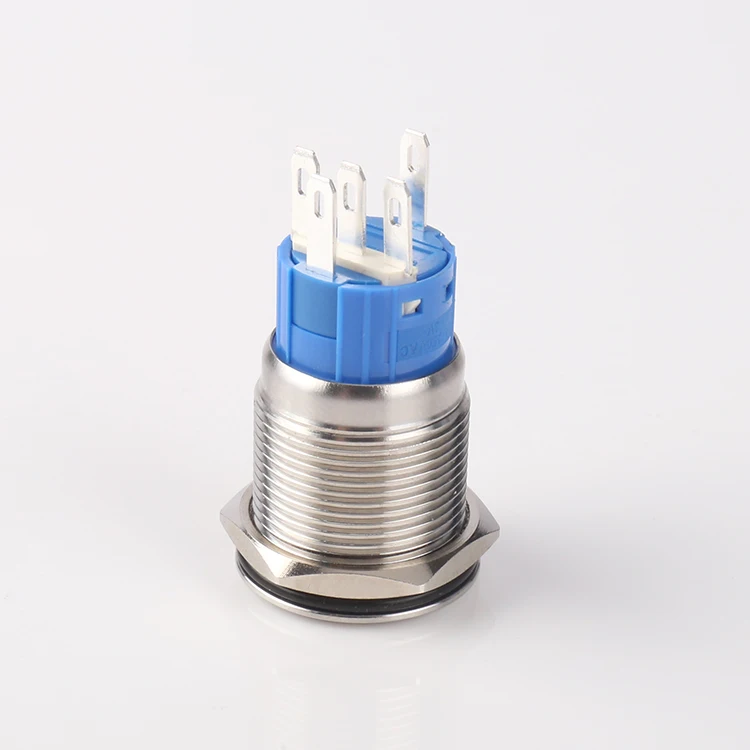

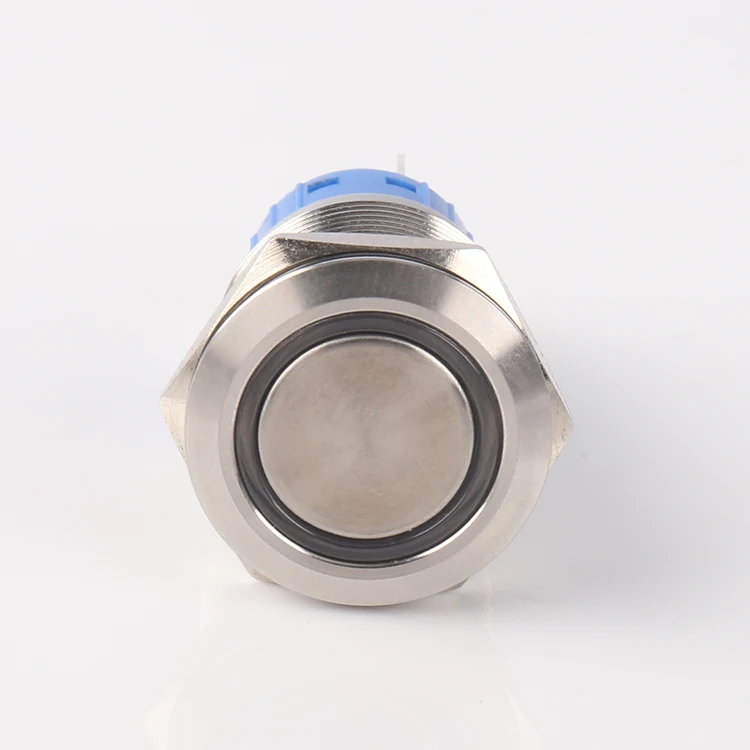

19mm Flat round Button Spdt Push Button Switch Led Waterproof 220v
- Category: >>>
- Supplier: Wenzhou Baijin Electronic Co. Ltd.
Share on (1600273810793):
Product Overview
Description
welcome
Honest marketing
1. Professional production of metal button switch, supporting connectors, indicator lights, emergency stop switch.
2. independent development, design team and processing workshop.
3. Management system certification:ISO9001.
4. Product Safety Certification:CE,CQQ,IP67,ROHS.
5. Source enterprises, direct sales of manufacturers.
Product Description
| 1. Product name | Metal push button switch | |||
| 2. Product model | Q19C single pole | |||
| 3. Electrical parameters | 5A /250VAC | |||
| 4. Operating temperature range | -20℃~+55℃ | |||
| 5. Level of protection | IP67 ,IK10,IP40 | |||
| 6. Switch combination | 1N01NC | |||
| 7. Type of operation | self-locking | |||
| 8. LED VDC | 3V-220V | |||
| 9. Life of lamp bead | 40000H | |||
| 10.Performance | ||||
| mechanical property | project | experimental condition | specification | |
| Operation Force | Load the beginning slowly in the vertical direction | 2~4N | ||
| mechanical life | At a speed of 30 times per minute without loading | The number of operation cycles reached 500,000 times | ||
| weldability | Soldering temperature 230±5℃ immersion time 3±0.5S | The tin area is more than 90% of the impregnation circle | ||
| heat resistance | Soldering temperature 260±5℃ immersion time 5±1S | No abnormal electrical and mechanical properties | ||
| behaviour of electricity | contact resistance | 6V.DC | ≤ 50mΩ | |
| insulation resistance | 500V.DC for 1min | ≥1000mΩ | ||
| technical requirements | ||||
| AC Withstand Voltage Tester | test condition | Requirement | ||
| Micro disconnect | 1000Vac/50Hz,for 1min | No flashover and no breakdown | ||
| basic insulation | 1000Vac/50Hz,for 1min | |||
| Durability Test | overload test | 5A/250VAC,6-10times/min,a total of 50 times | Function should be OK | |
| durability test | 5A/250VAC,6-10times/min,a total of10000 times | |||
| Temperature Test | 5A/250V, power on continuously for 1h until temperature rise is stable, connection wire size: 18AWG | Terminal temperature ≤30K | ||
Related Products
Company Information
certificate
Packaging & Shipping
FAQ
Q1: Are you a factory or trading company
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.
Q3: When can I get the price?
A3:Usually we quote within 24 hours after we get your inquiry.
Q4: How could I get a sample?
A4: if you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples.
Q5: What is the price of shipping?
A5: Depending upon the port of delivery, prices varies.
