2.4 inch ips display 240*320 Resolution 10pin SPI Interface ST7789V driver IC lcd display
- Category: >>>
- Supplier: Shenzhen Chance Technology Co. Ltd.
Share on (1600273888676):
Product Overview
Description
Product Description

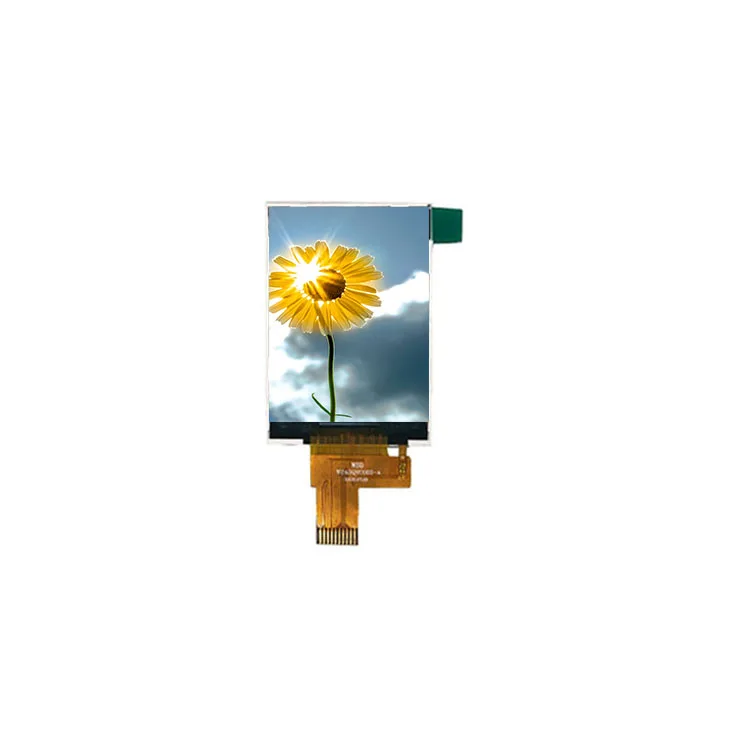

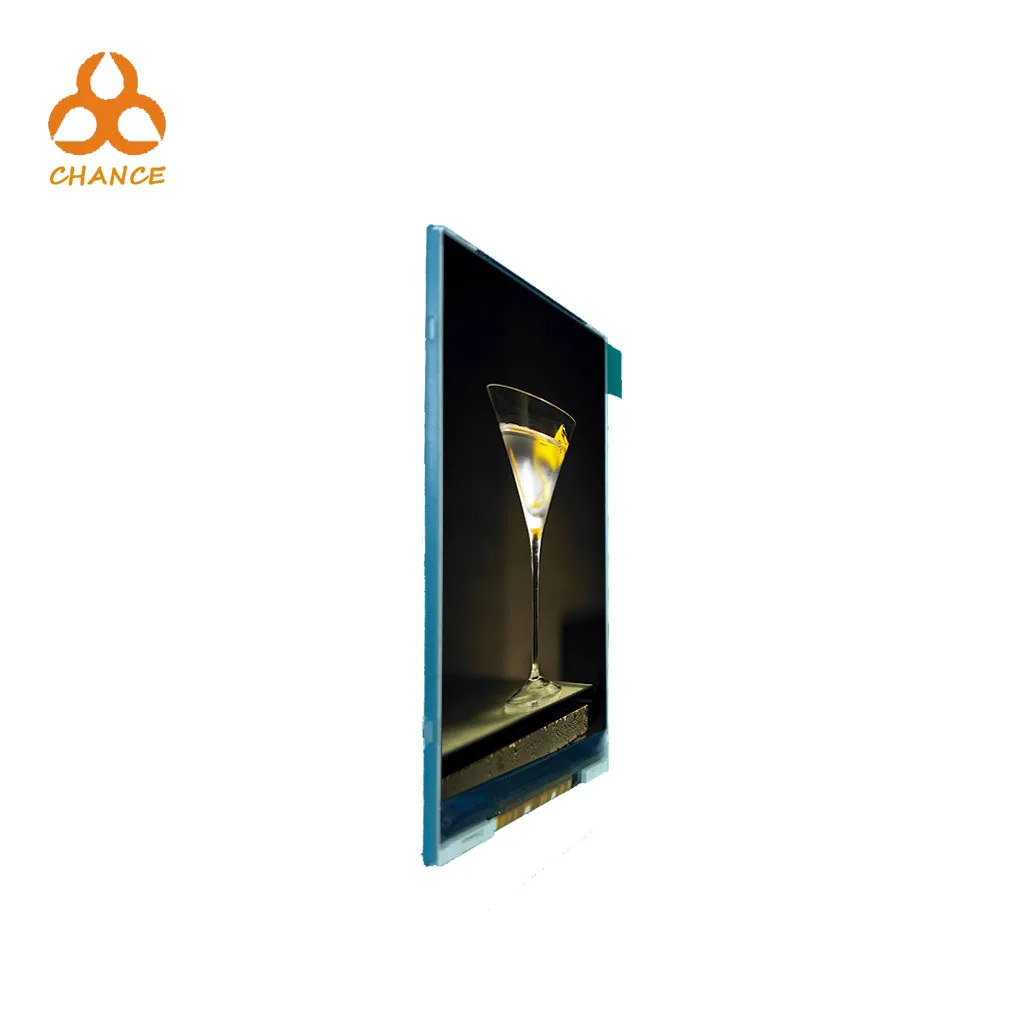

2.4 inch ips display 240*320 Resolution 10pin SPI Interface ST7789V driver IC lcd screen
Parameters
| Item | Specification |
| Display Mode | Normally BLACK,Transmissive |
| Display Technology | α-Si TFT active matrix |
| Outline Dimension | 42.72(H) X 60.26(V) X 2.20(T) mm |
| Active Area | 36.72 (H) X 48.96 (V) mm |
| Resolution | 240X(RGB)X320 dots |
| Pixel Pitch | 0.153X0.153 mm |
| Pixel Configuration | RGB Stripe |
| Backlight | White LED |
| Luminance | (300)(Min.) cd/m2 |
| Surface Treatment | Anti-Glare |
| Driver IC | ST7789V |
| Viewing Direction | All |

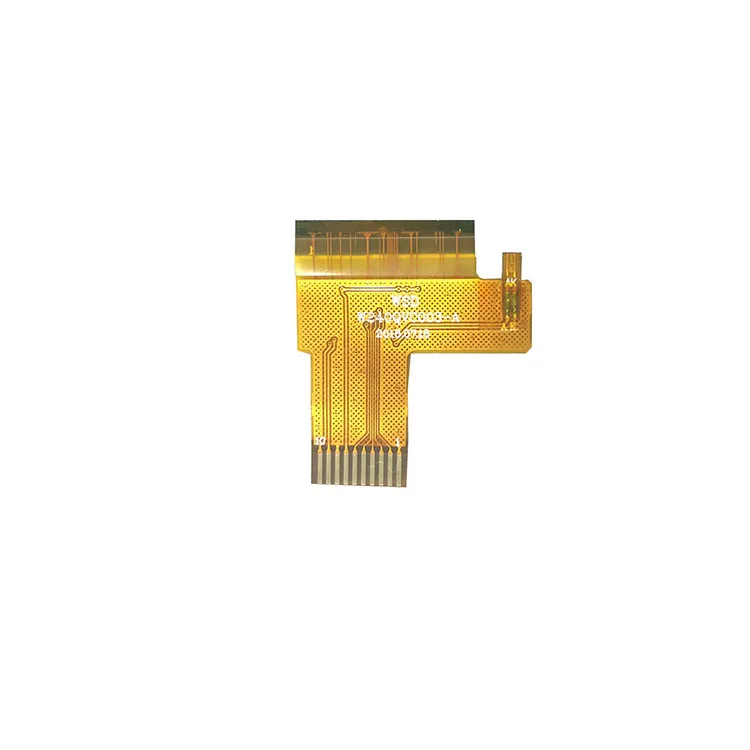

Pin
| Interface NO. | Symbol | I/O or connect to | Description | When not in use |
| 1 | GND | PWR SUPPLY | POWER GROUND | - |
| 2 | SCL | I/O | This pin is used to be serial interface clock | GND |
| 3 | DATA | PWR SUPPLY | Spi interface input/output pin | GND |
| 4 | RS | PWR SUPPLY | Display data/command selection pin in 4-line serial interface | GND |
| 5 | CS | PWR SUPPLY | Chip select signal | GND |
| 6 | RESET | I/O | Rest pin. | - |
| 7 | VDD | I/O | Analog power supply 2.5V-3.3V. | - |
| 8 | VSS | I/O | POWER GROUND | - |
| 9 | LEDA | I/O | Backlight anode | - |
| 10 | LEDK | I/O | backlight cathode | - |
