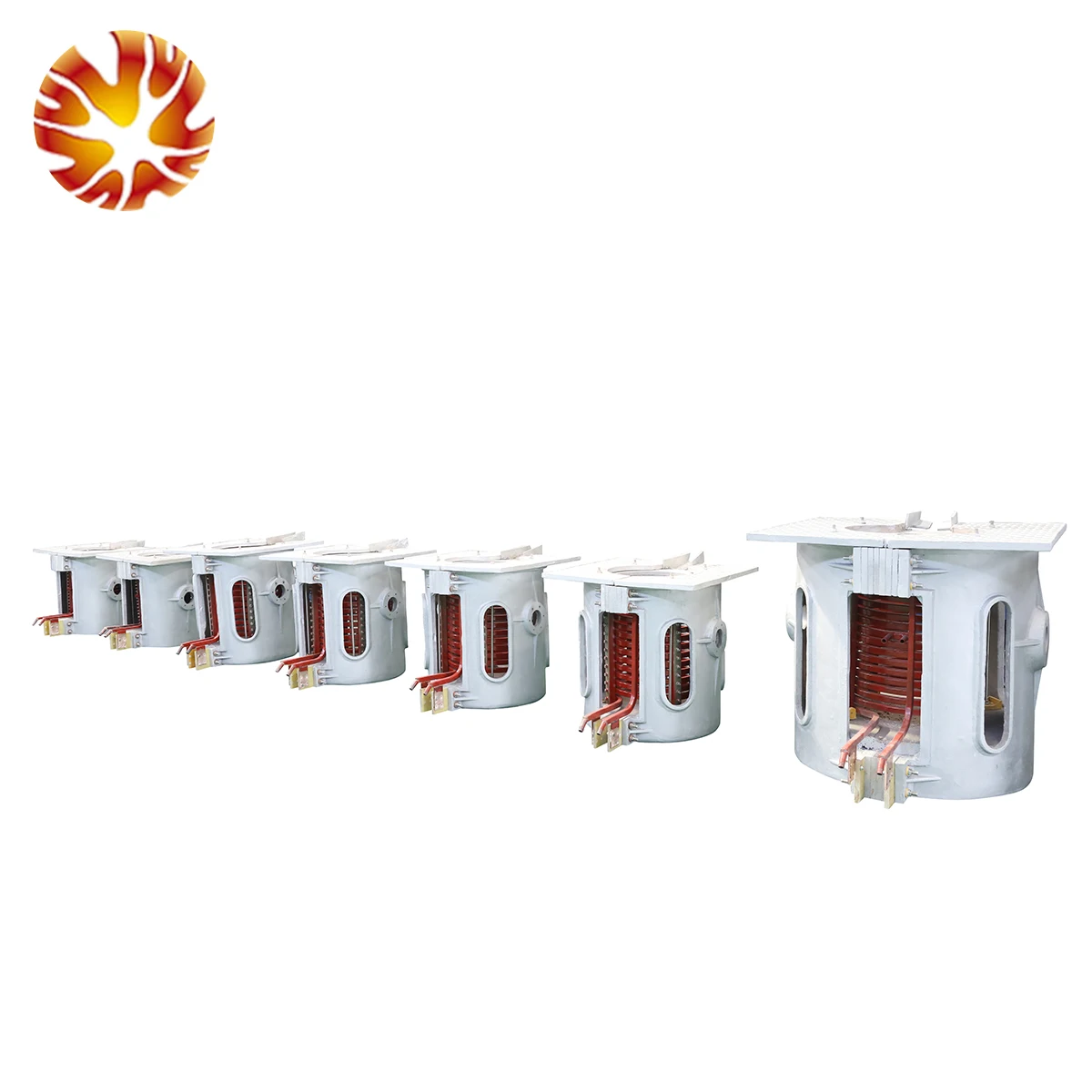

100кг 250кг 500кг 1тонн 2тонны индукционная тиристорная печь цена

Product Overview

Description

Product Description

Melting furnace high frequency mainly плавит and рафинирует steel, iron and other metals. The equipment is mainly composed of power supply intermediate frequency and shell melting furnace, and accessories include the transformer, closed градирню etc. D. Equipment is widely used on сталеплавильных factories. The foundry manufacturing and other industries of heavy industry, has such advantages as high production efficiency, high adaptability, flexible use, good effect of electromagnetic stirring and comfortable work at startup.

Process Technology

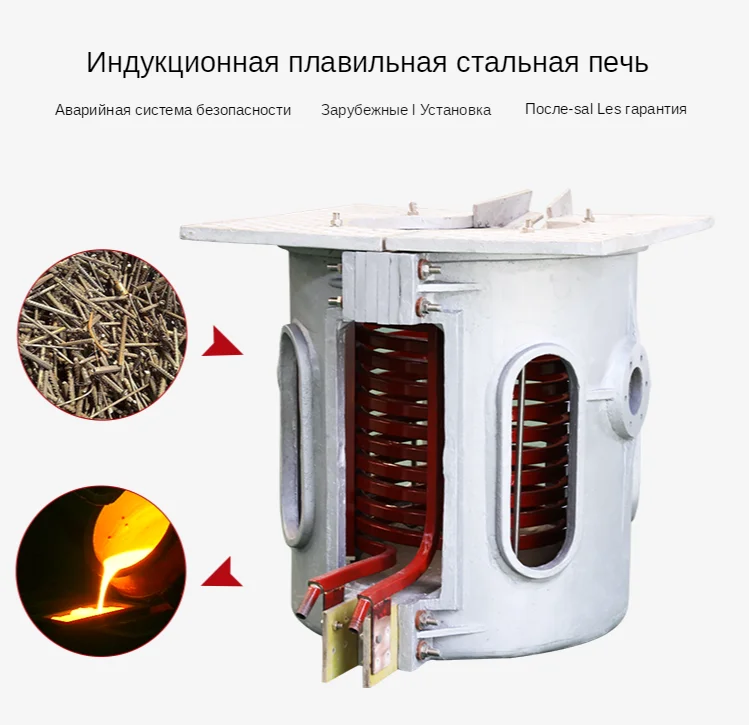

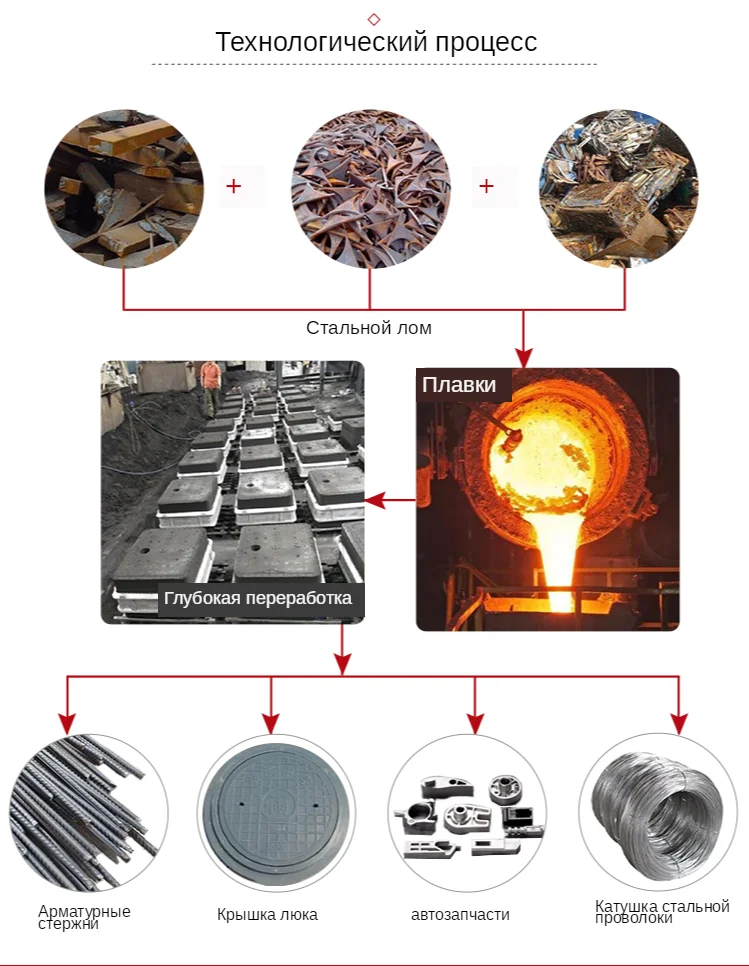

Induction тиристорная furnace is mainly used for melting and degumming various scrap, iron, stainless steel, copper, aluminum. This melting furnace can плавить iron scrap scrap auto parts, steel scrap, old screw, remnants of the iron and etc. D.

Tell us your сырьё

Product Features

1, speed melting, 40-60 Minutes/oven.

2, modern control system: Device go with self test in real-time detection of water temperature, water pressure, over-current, over-voltage protection, also present system inform about the fault.

3, the present system alert протекании furnace control плавкой, PLC control, optimal design of the Furnace, also easy to operate.

4, modular line installation and электрошкофа are made according to the standard production car lines, which is easy to maintain and has less изнаваемых parts.

5, water pipe made of безуглеродных hoses, and all водоотделители and clips are made of stainless steel 304.

6, беспрерывной swimming trunks within 24 hours. Energy saving and environmental protection and cost reduction Labor.

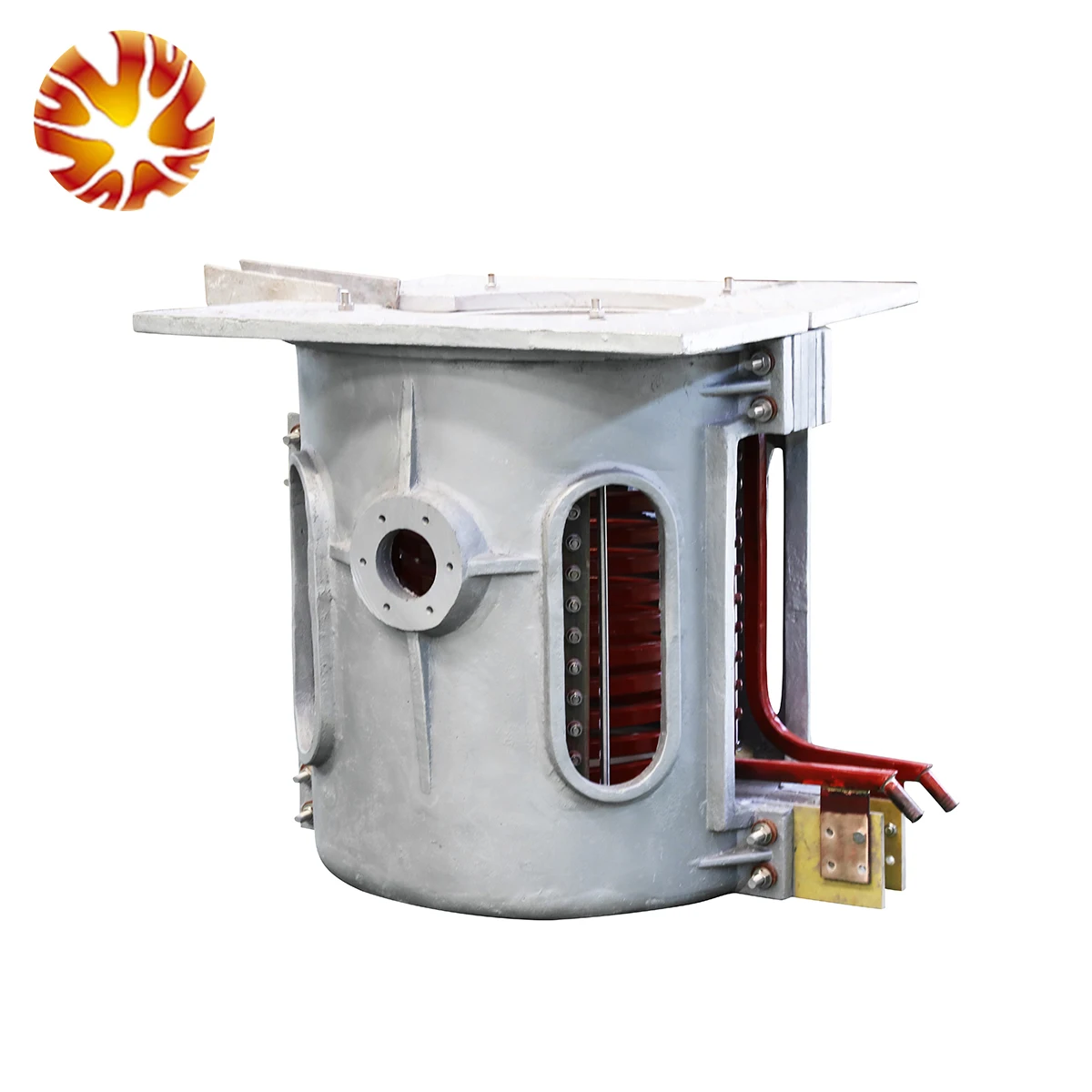

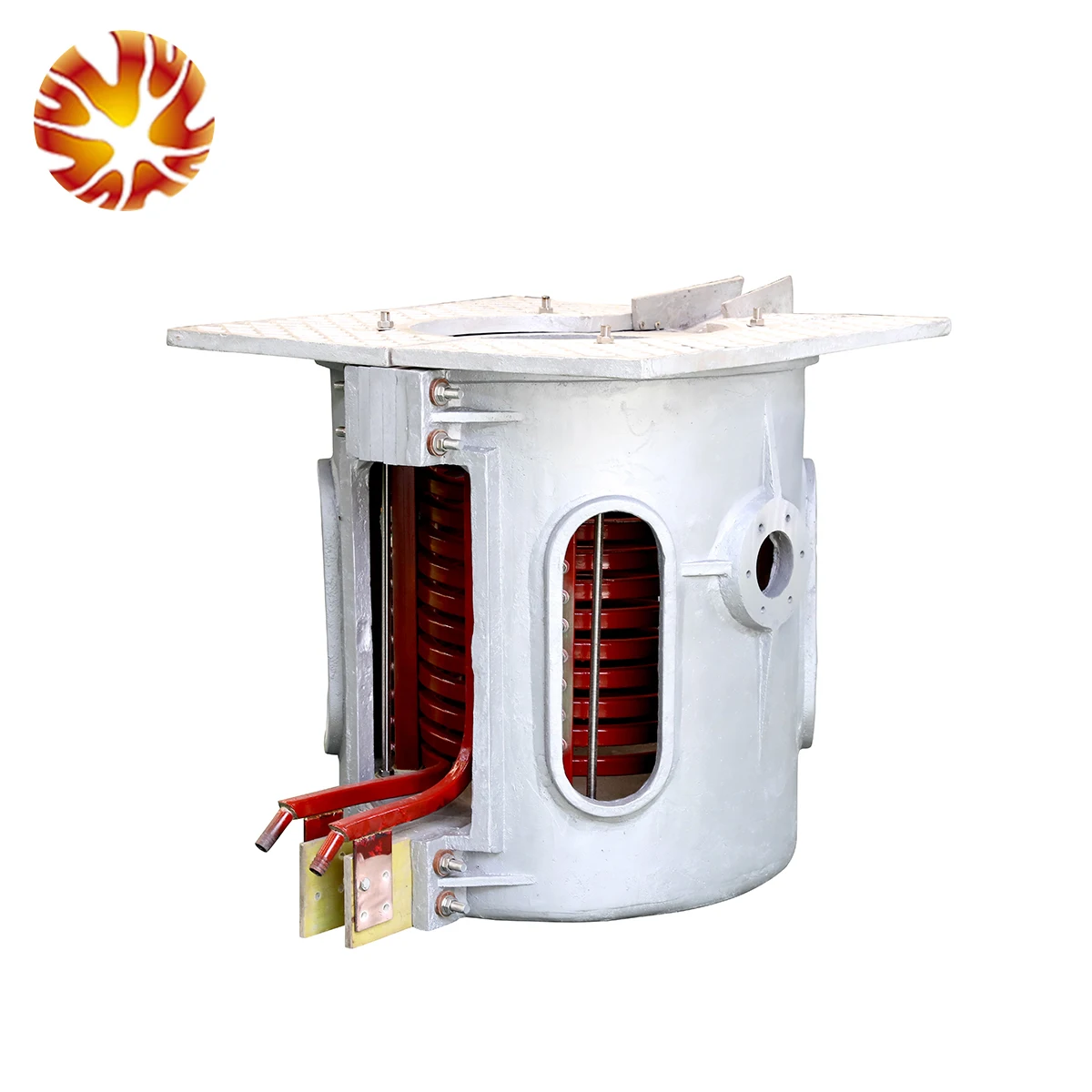

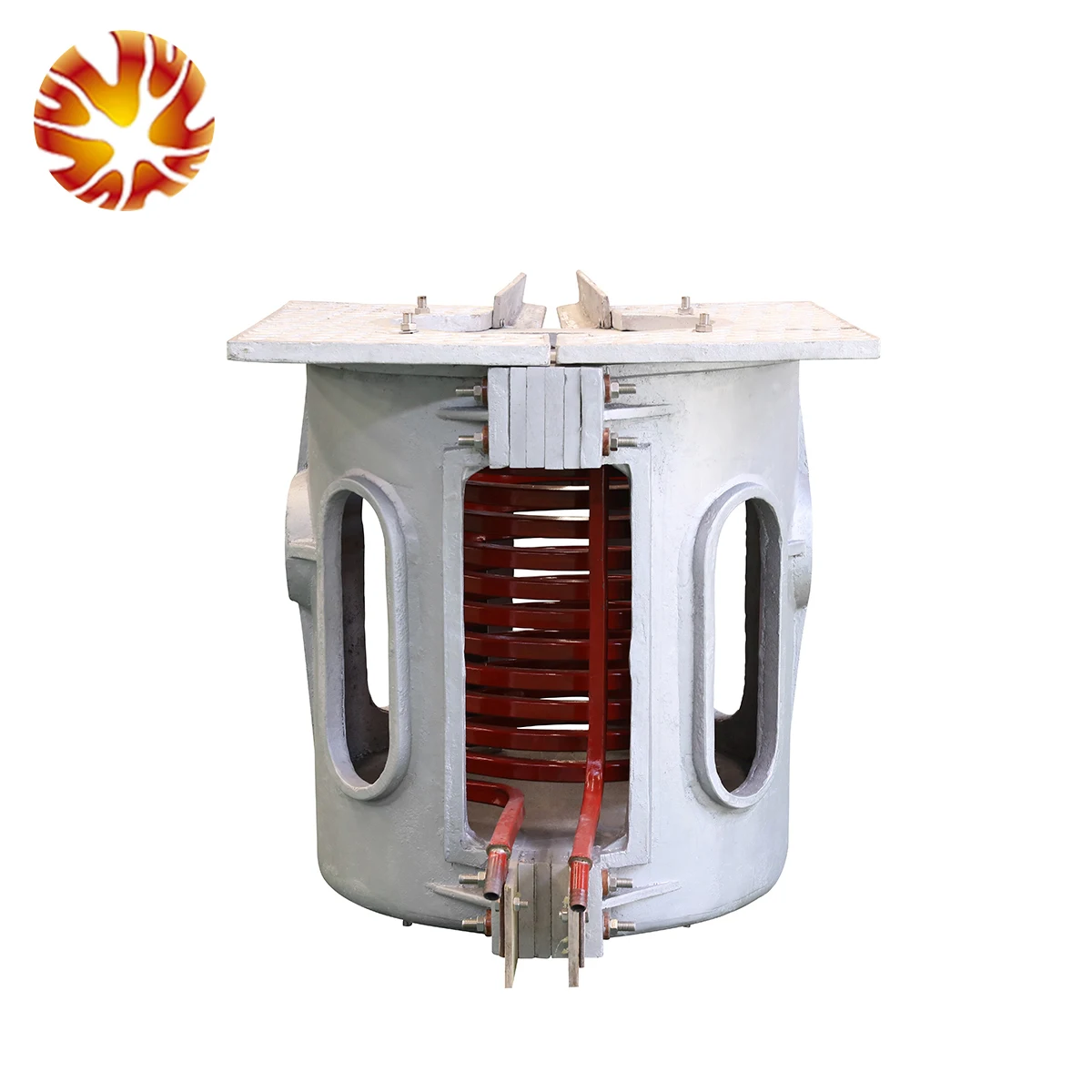

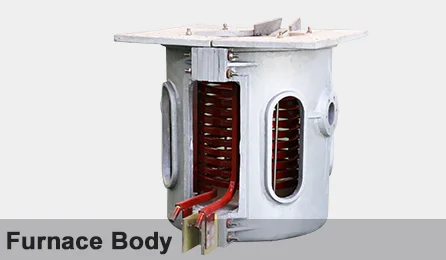

7, body furnace integrally molded aluminum alloy, a pivot mechanism uses gear rotation, which has the advantages of low price, simple structure, easy maintenance.

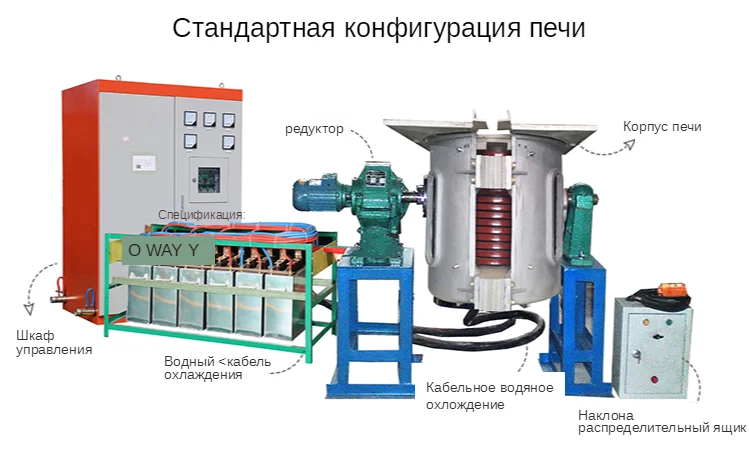

Case oven is made of thick aluminum alloy case for reduce magnetic leakage and ensure the strength of the case oven.
As an induction coil used thick standard copper трубкаt2.

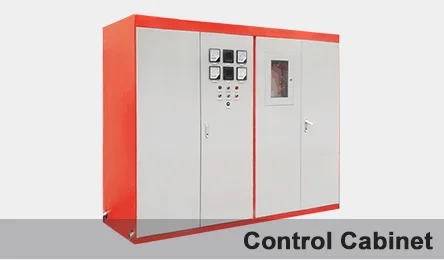

Main control panel is микрокомпьютерное control.
Separate инсоляционная design meter pressure water can make the user convenient and intuitive to control the water pressure.

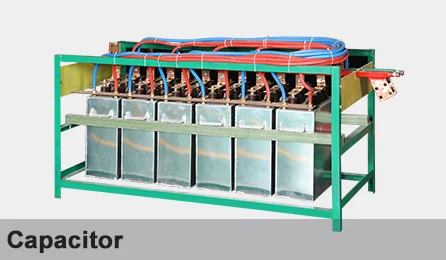

For isolation capacitor used bilayer слюдяная insulation.
Even if the water casual попадет the capacitor, strength insulation cabinet can be provided.

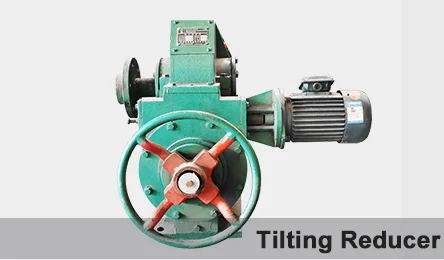

Gear is used for control the rotation of the body furnace.
Gear motor is equipped with трехступенчатой turbine frequency rotation. With good самоблокирующейся and stable swivel characteristic.

Model furnace	Power	Voltage	Среднечастотное voltage	Frequency
100 kg	100 kW	3*380 V	750In	2500Hz
250Kg	250KW	3*380 V	750In	1500HZ
350Kg	350KW	3*380 V	750In	1500HZ
500Kg	400KW	3*380 V	1500In	1000HZ
750Kg	600KW	3*380 V	1500In	1000HZ
1 ton	800KW	3*660In	2400In	1000HZ
1,5 tons	1000KW	3*660 V	2500In	800HZ
2 tons	1500KW	3*660 V	2500In	500HZ
