Natural Fruit Production Plant PET Bottled Fresh Orange Juice Processing Line
- Category: >>>
- Supplier: Shanghai,Nancheng,Machinery,Co.,Ltd.
Share on:
Product Overview
Description

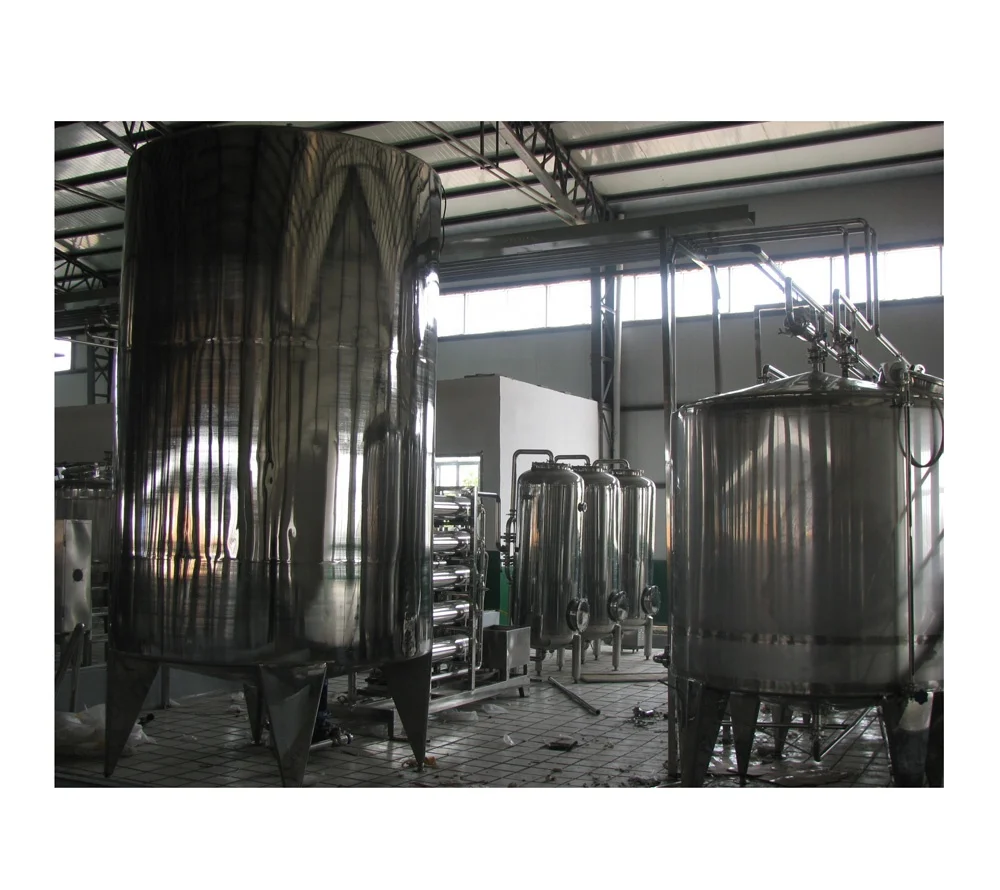

PET Bottled Fresh Orange Juice Processing Line
Fully Production Line
Provide installation and commission service
Capacity from 500L to 20,000L per hour
Bottles,sachet package for customer choose
Complete fruit juice production line
Product Specifications /Features
Fruit juice production line:
PLC/PID control
Turn-key project
CE&ISO
Configuration of this juice production line(adjust according to actual requirement):
1. Bottle Preform Injection machine
2. Bottle blow moulding machine(Hot filling type)
3. Bottle unscrambler machine
4. Water treatment system
5. Fruit beverage processing system(Can be mixed juice or fresh fruit)
6. Air conveyor;
7. Filling machine with rinsing, filling and capping
8. Lamp inspection;
9. Bottle drier;
10. Ink jet printer;
11. Labeling machine;
12. Shrinking machine;
13. Conveying system;
14. Cooling tunnel and botle dryer
Technical parameters:
Raw material | Fresh fruit and fruit pulp |
End product | Various kinds of fruit juice |
Capacity | 2000 – 1000,000 liters per day |
End product package | Pre-pak soft pouch, Tetra Brick, Gable Top box, plastic bottle, plastic cup, glass bottle,plastic pouch etc |
Complete fruit juice processing machinery procedure:
1.Water treatment system
Raw water -> raw water tank -> raw water high pressure pump->multi- medium filter (Quartz sand filter) -> active carbon filter-> sodium ion exchanger-> water pump-> precision filter -> RO device ->ozone device ->pure water tank
Remark: Supply water for juice blending tank and washing-filling-capping units
2.Juice preparation making treatment system
Sugar melting tank -> sugar filter -> Juice blending tank ->juice homogenizer ->vacuum De-aerater -> storage tank->UHT ultrahigh temperature instant Sterilizer-> heating and cooling tank
Sugar melting tank -> sugar filter -> Juice blending tank ->juice homogenizer ->vacuum De-aerater -> storage tank->UHT ultrahigh temperature instant Sterilizer-> heating and cooling tank
3.Filling and packing line
Bottle mould blowing machine -> bottle unscrambler-> air conveyor -> auto washing-bottling -capping units ( monobloc 3-in-1 machine) -> inverted bottle sterilizer->bottle cooling machine ->jet printer-> auto hot shrink labeling machine -> hot shrink label tunnel-> bottles plastic shrink packing machine bottle dryer->jet printer-> auto hot shrink labeling machine -> hot shrink label tunnel->auto film shrink wrapping packager-> stacker by worker
Bottle mould blowing machine -> bottle unscrambler-> air conveyor -> auto washing-bottling -capping units ( monobloc 3-in-1 machine) -> inverted bottle sterilizer->bottle cooling machine ->jet printer-> auto hot shrink labeling machine -> hot shrink label tunnel-> bottles plastic shrink packing machine bottle dryer->jet printer-> auto hot shrink labeling machine -> hot shrink label tunnel->auto film shrink wrapping packager-> stacker by worker
Main Parts
Our supplier
FAQ
Q: Are you a manufacturer?
Yes,we're a genuine manufactuer
Q: Where's your factory located?
We're near Shanghai Pudong International Airport,about about twenty minutes
Q:Can I see the machine first and then confirm the order?
The answer is definately yes,seeing is believing,we suggest all customer see the machine quality before confirm order
Q: Our country power use is different with your country? is it customized?
Normally,we confirm the clients before starting the machine,like the voltage/herz/phase
Q: Which kind of payment do you accept?
We accept T/T, L/C, Money Gram,Western Union,Cash
Our company has rich experience to help customers to establish the different production lines for different use, for example. we can arrange technical staff to help customer set up whole production line for mineral water, pure water,cola, milk, juice and vinegar,oil, we are profession for making it. If anyone who is interested in such field wants to buy the whole equipments and machines, pls contact us freely.
We warmly welcome customer to visit our factory at any time,you will see the machine working and running conditon in our factory!
