LVDS Connector 40 Pin 30 Pine LVDS Cable FFC for LCD TV Main Board
- Category: >>>
- Supplier: Shenzhen KOAR Electrical Co. Ltd.
Share on (1600274886533):
Product Overview
Description
Product Highlight

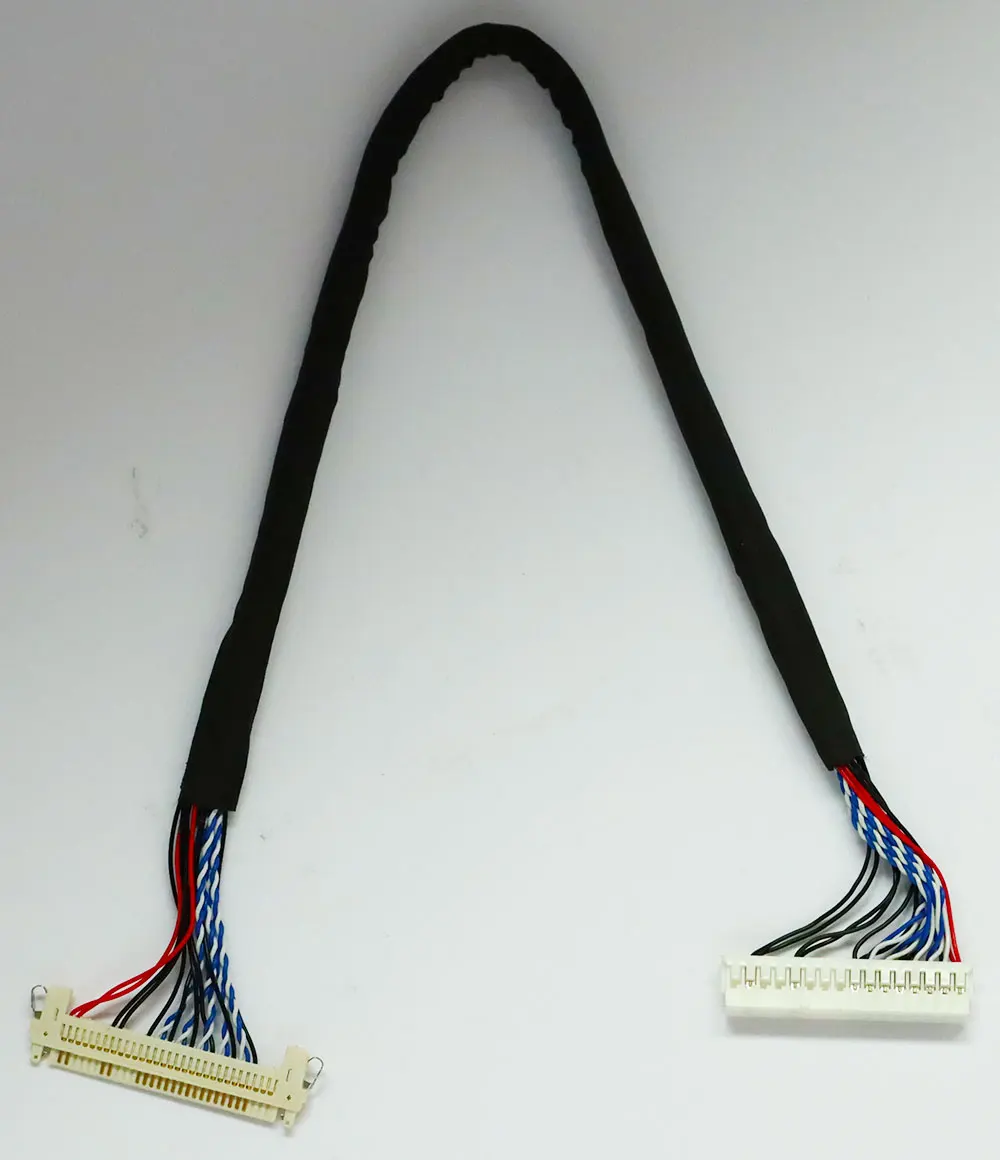

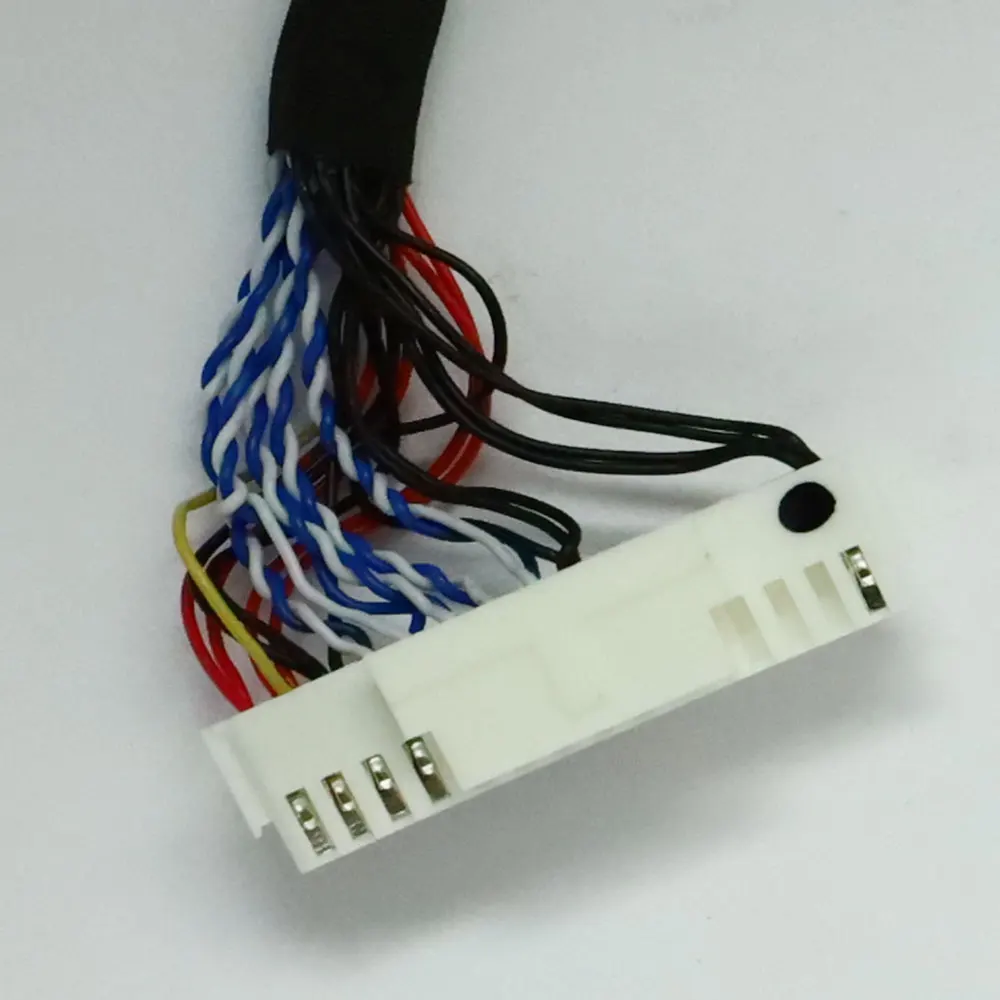

Our LVDS cable, the material is sufficient, including 2μ gold plated terminals, with a total of 30 pins. We use UL1571/4C for stranded wires, arranged in white, blue, black, red order. Our LVDS cable has high frequency and stability, which can reach 60~144Hz. In addition, LVDS cable processes strong heat resistance, cold resistance, and resistance to soldering heat, etc.
Whole Attributes

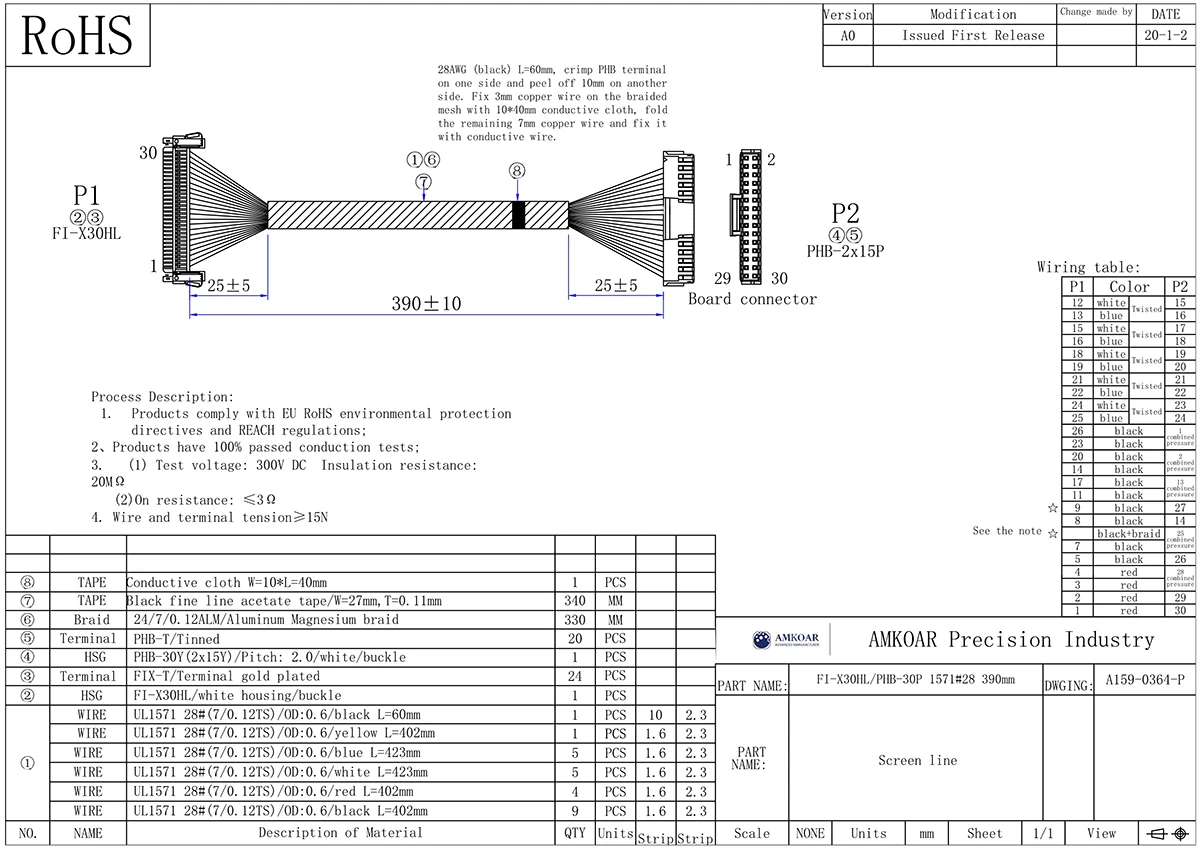

| LVDS Cable's Attributes & Parameters | ||||
| Item | Basic Attribute | Parameter | ||
| ID | Model No. | A159-0364-P | ||
| Connector | Connector Attribute | Screen Connector Parameter | Board Connector Parameter | |
| Terminal | PHB-T | FIX-T | ||
| Housing | PHB-30Y | FI-X30HL | ||
| Pin number | 30 | 30 | ||
| Pin pitch | 2.0mm | / | ||
| Wire | Wire type | UL1571 | ||
| Wire gauge & wire number | 28AWG | |||
| Length | 390 mm | |||
| Twisted pair or others | Twisted pair | |||
| Shielding layer | Drain wire | 24/7/0.12 ALM braid | ||
| Insulation layer | Acetate cloth | W=27mm,T=0.11mm, BLACK | ||
| EVA tube | / | |||
| Item | Important Attribute | Parameter | ||
| Mechanical performance | Insertion force | MAX: (2*n)N (N represents the pin number) | MAX: (2*n+12)N (N represents the pin number) | |
| Withdrawal force | MIN: (0.3*n+50)N (N represents the pin number) | MIN: (0.5*n)N (N represents the pin number) | ||
| Crimping pull out force | ≥15N/Pin | ≥15N/Pin | ||
| Terminal/housing retention force | ≥5N/Pin | ≥10N/Pin | ||
| Repeated insertion/withdrawal | Withdraws and inserts 50times, contact resistance≤80mΩ | Withdraws and inserts 50times, contact resistance≤80mΩ | ||
| Electrical performance | Dielectric strength | DC 300V | ||
| On resistance | <1Ω | |||
| Contact resistance | Initial contact resistance≤40mΩ | |||
| Insulation resistance | ≥100MΩ Min | |||
| Applicated environment parameters | Storage environment | Storage temperature 5~35℃, Relative humidity 80%~95% | ||
| Shelf life | 6 month | |||
| Heat resistance | 85±2℃ 4H | |||
| Cold resistance | -25±2℃ 4H | |||
| Temperature cycling | -25±2~85±2℃, 2 hours test in extreme temperature test, standing at room temperature for 1 hour, continuously testing for 5 rounds (-25±2~85±2℃) | |||
| Salt spray | The (5±0.1)% concentration of sodium chloride solution is continuously sprayed for 16H without obvious oxidation | |||
| Humidity | Temperature 40±2℃,Relative humidity90%~95%,test for 96H | |||
| Vibration | 10~500Hz, amplitude 0.35mm, Frequency sweep per axis 2H | |||
| Solderability | 260±5℃,Time of Immersion tin: 2.5±0.5sec,Tin rate: 90% | |||
| Resistance to soldering heat | 260±5℃, Time of Immersion tin 5±1sec, standing at -8 to 32°C for 1 hour | |||
Application Range
Application of LVDS cable in daily life, including LCD display screen, Air conditioner, washing machine, refrigerator, game console, TV notebook computer, tablet computers, etc.
Production Flow
We always emphasize strict production instruction. At the first beginning of production, a professional quality control team checks the quality of raw materials. The whole production flow almost achieves fully automatic production. Such as fully automatic stripping and terminal crimping. During the production, we value the check and test for each step. Normally, after 1-2 steps we require machines or labor to check the completed procedure and make sure there are no mistakes. Once the production of lvds cable is completed, we use automatic machines to test the lvds cable, including its mechanical strength and electrical performance.

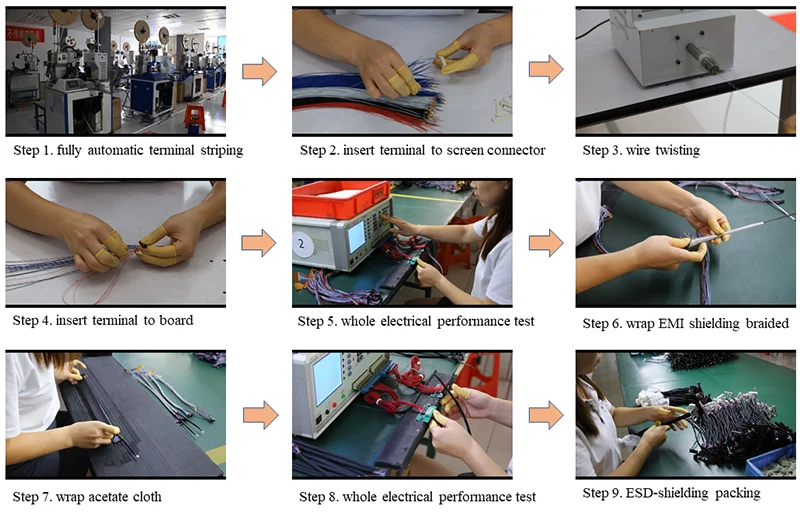

Below is the simple production flow:
Capability & Service
We willing to join your R&D team
AMKORA is a professional manufacturer of electrical technology. We produce various types of wire harness for almost every brand of screen in each model in the last 20 years. We fully comply with the ISO 9001 quality management system and achieve at least 30% higher quality levels than competitors.
We build a large database of technical specifications & manufacturing data for screens as well as the PCBA solution. We not only offer a good quality wire harness but also provide screen modules and PCB modules. So, we able to provides complete solutions plus all-around products and technical support. Samples will also be provided as a production standard before the max production. We are willing to help you in your R&D period as well as we can. Besides, we strongly welcome you to visit our factory in China and Vietnam.
In production
Our manufacturing procedure follows standardized instruction. The schedule and progress of each order will be displayed to the client via the open weblink of the ERP system. Even live-streaming of our production workshop is accessible for clients at any time. We ensure reliable and professional assistance.
After-sales
If there is any problem, please feel free to contact us. We will review & solve your issues in time and will be responsible until the end.
What's more, we always emphasize quality optimization. We will review the entire production process and analyze all production data, propose better-improved solutions, and send reports to our client for the next order. You may always receive the best product at the best price.
Certifications
