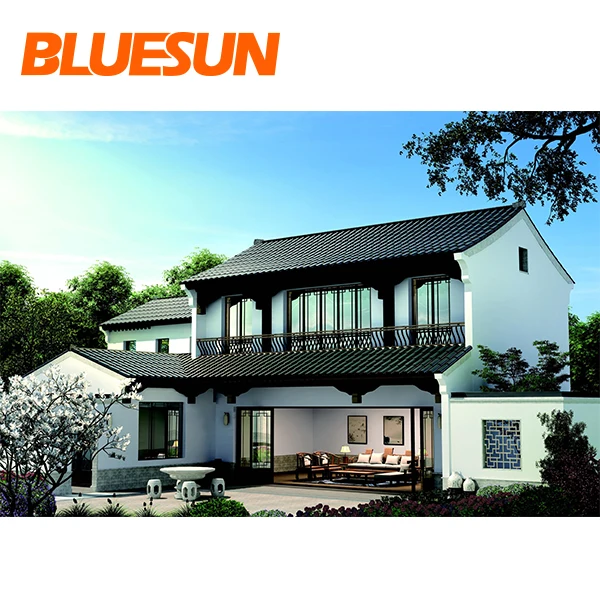

Bluesun new stylish roof tiles solar for Europe USA market residential solar system home 3kw 5kw
- Category: >>>
- Supplier: SOLAR WORLD CO. LTD
Share on (1600274990983):
Product Overview
Description
Products Description

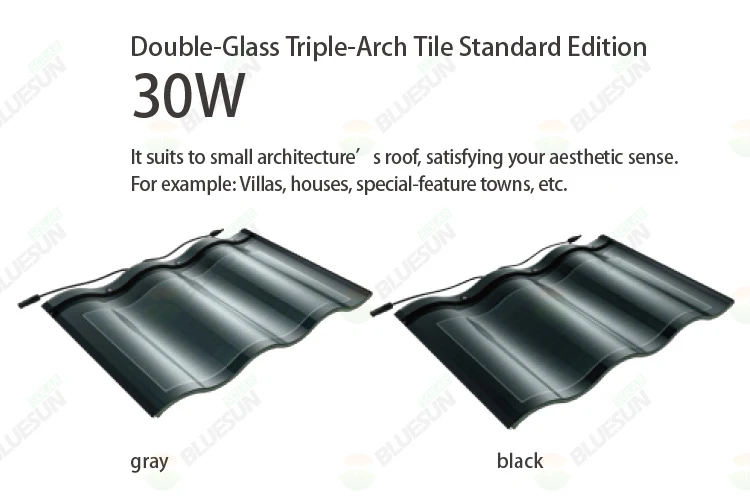

Double-Glass Roof solar tile series
It is gleaming and with graceful curve, inheriting the beauty of GLAZE. Thin-film solar core technology will lead the fashion.

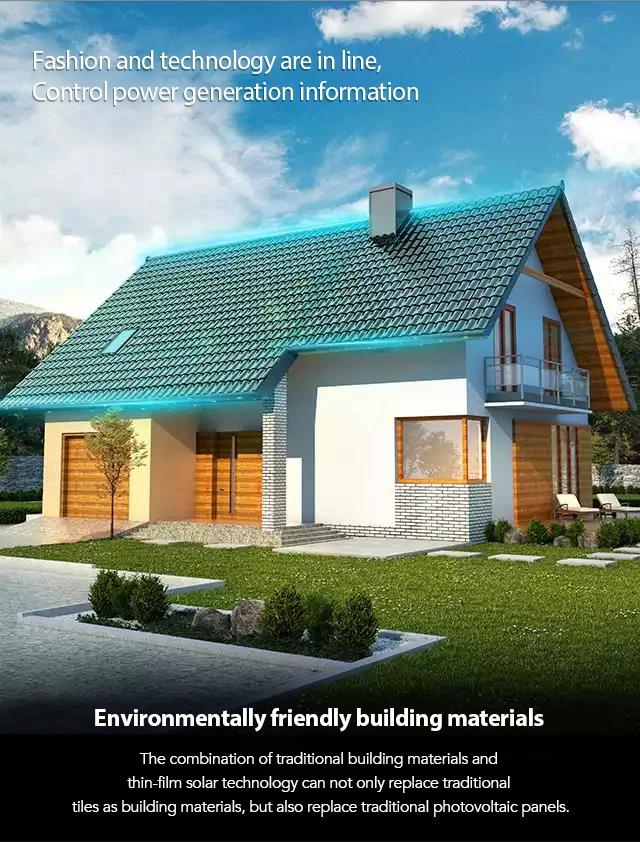

Environmentally friendly building materials
The combination of traditional building materials and thin-film solar technology can not only replace traditional tiles as
building materials, but also replace traditional photovoltaic panels.
building materials, but also replace traditional photovoltaic panels.
Technical Details
Physical parameters | ||
product model: | BSM-30D | |
length: | 500mm | |
width: | 718mm | |
arch height: | 41mm | |
weight: | 10KG | |
color: | black, gray | |
junction box: | 39*46*16.6 (mm) IP67 | |
cable type: | 2.5mm solar cable 450 (+10/-0) mm | |
cable connector: | pv connector | |
Physical parameters | ||
chip type: | CIGS | |
power: | 30W | |
short-circuit current: | 4A | |
open-circuit voltage: | 10.6V | |
current at PMPP: | 3.5A | |
voltage at PMPP: | 8.6V | |
Electrical parameters | ||
loading grade: | 2400Pa | |
waterproof grade: | IP67 | |
fire-proof grade: | A | |
hail-proof grade: | level 4 (ANSI FM 4473) | |
working temperature: | -40°C to +85°C | |

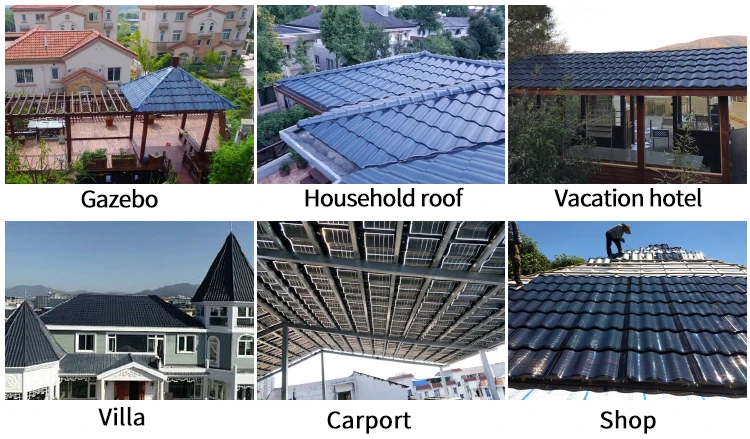

Applications
By Sea | Delivery from Shanghai or Ningbo seaport | ||||
By Air | Departure from Shanghai Pudong Airport | ||||
By Express | By TNT/DHL | ||||

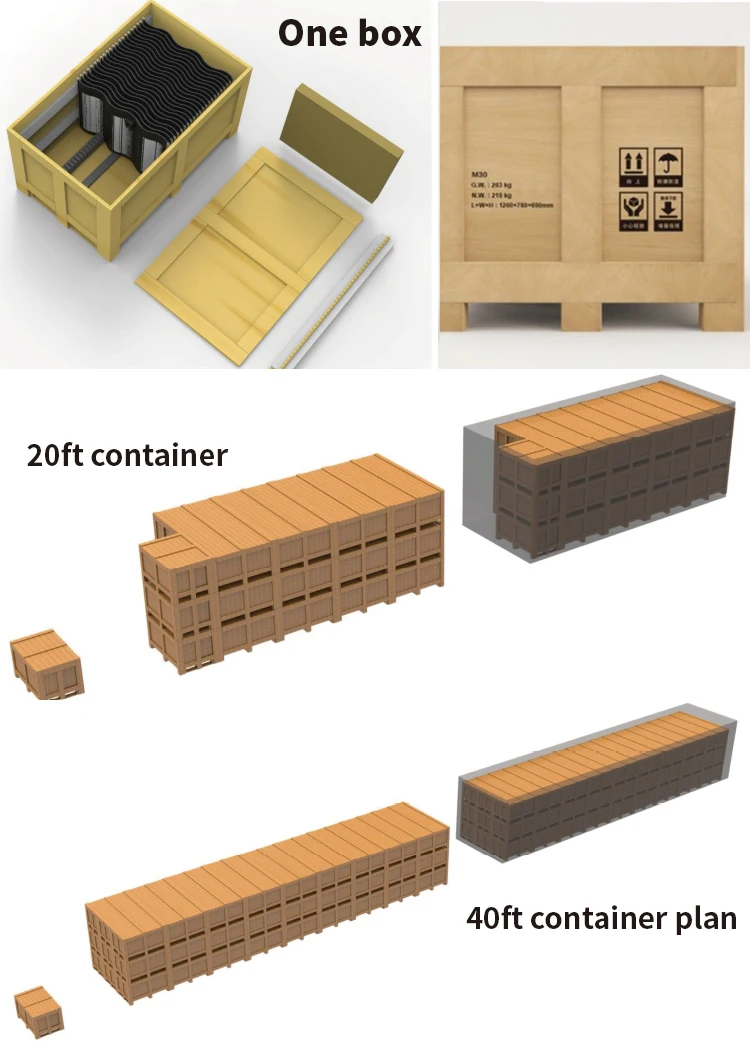

Packing & Delivery
One Box | Packing Specification (mm) | Gross Weight | Net Weight | Number per carton (pcs) |
1260*780*690 | 263 | 210 | 40 |
Loading Quantity (CTN) | Loading Quantity (PCS) | Total Weight (T) | Volumn (m3) | |
20ft Container | 39 | 1560 | 10.3 | 27.6 |
40ft Container | 81 | 3240 | 21.5 | 54 |
