6 inch handheld Data Collector Mobile Device Barcode Scanner reader rugged medical device pdas (1600275358670)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Product Description



1.Support Android 10 passed GMS EUR Version;
2.Support Docking charging;
3.Support NXP NFC(13.56M);
4.Support GPS navigation;
5.Support 1D/2D barcode Scan(Optional);
6.Rugged IP65 protection level;
7.Support high strength Glass Touch Panel;
8.Support Handheld Strap


























































Hardware



CPU


MT6762V/WD,OCTA Core, Four 2.0GHz+Four 1.5GHz


GPU

  IMG GE8320 600MHz

RAM


4GB/ LPDDR4


Internal Memory


64GB


OS


Android 10 passed GMS EUR Version


External Memory


Micro SD card ( T-FLASH card), max 128GB


Camera


Front 13.0MP,Rear 16.0MP,with flash and auto-focus


Battery


3.8V/5000mAH, 6hrs(default50%volumn,default 200lumens brightness,play720PHD video)


Display


5.7 inch IPS (720*1440P, 18:9)  430Nits


Touch Panel


5points Capacitive,G+FF(GT917S)


Optionals


2D Barcode(Honeywell 6703), Docking Station, Scanner Triggers.














































































Networking & Appearance & Navigation & Others



4G LTE


GSM 2/3/5/8
WCDMA 1/2/4/5/8
TDD B38/B40/B41
FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B19/B20/B28A/B28B/B18/B25/B26/B66


WI-FI


Dual-band (2.4GHz/5.8Ghz), 802.11 b/g/n/ac


NFC


Support  ST21NFCDXBGARA7


Bluetooth


Bluetooth 5.0 (BLE)


Size


159.4*77.7*13.7mm


Weight


Bare Weight 275g


GPS


GPS+GLONASS+Beidou+Galileo


Sensor


G-sensor,Evironmental light sensor,Proximity sensor,E-compass sensor, led indicate,


Port


Type-c  x1,TYPE-C earphone  x1,2*nano card,(4pin downside of unit)charging function  x1,TF-Card x1.


Button Key


Power on/off,Volumn up/down,Scan(left and right) x2,


Drop Height


1.5m composite wood floors, in operation status


Operate Temperature


-10 °C to 50 °C


Store Temperature


-20 °C to 60 °C


Humidity


95% Non-Condensing


Certificate System



IP65 Report: Water resistance:IP-X5,Dust resistance:IP-6X.
a.Inner Nozzle diameter:6.3mm;


b. water speed:12.5±0.625L/min;
c. Water Pressure:adjust according to water volumn;
d.Central part of water volumn:diameter of 40mm, distance from nozzle:  2.5M
e.Spray time in surface of panel:about 1min


f.test time:at least 3min;
g.distance between nozzle and panel surface:2.5~3m.
After test,there is no water leakage in sample.




Package



USB cable/  5V 2A  Charger/ Hand Straps/ Packing box

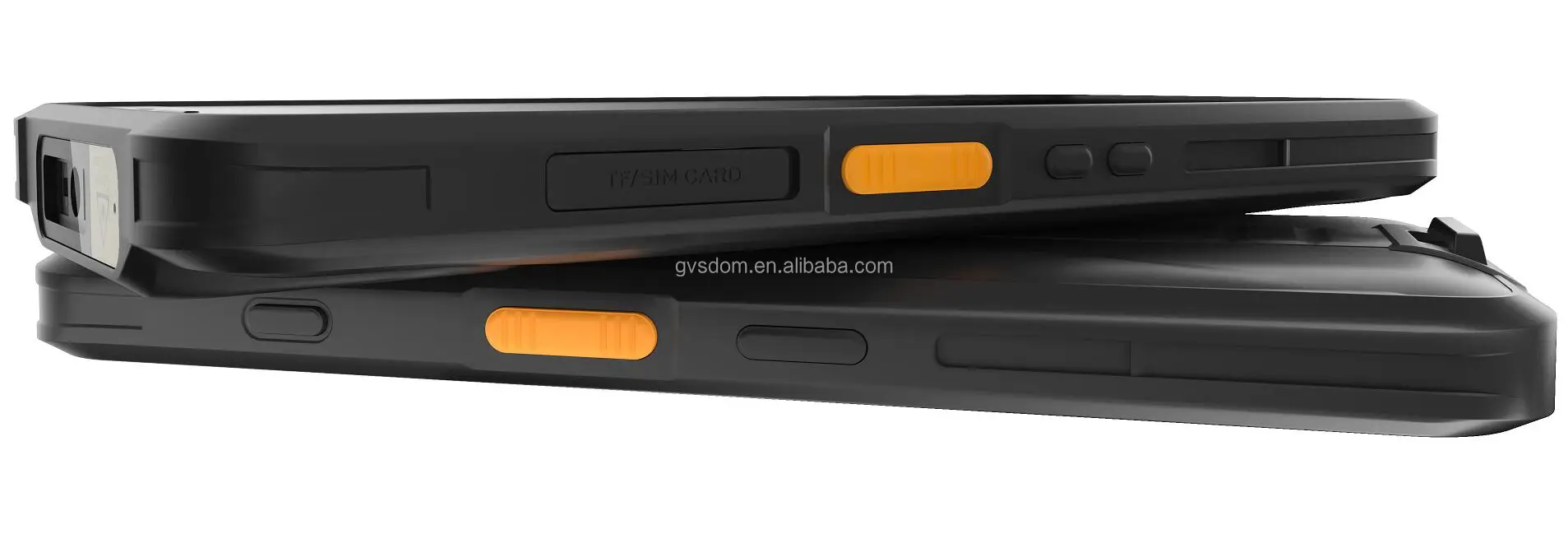

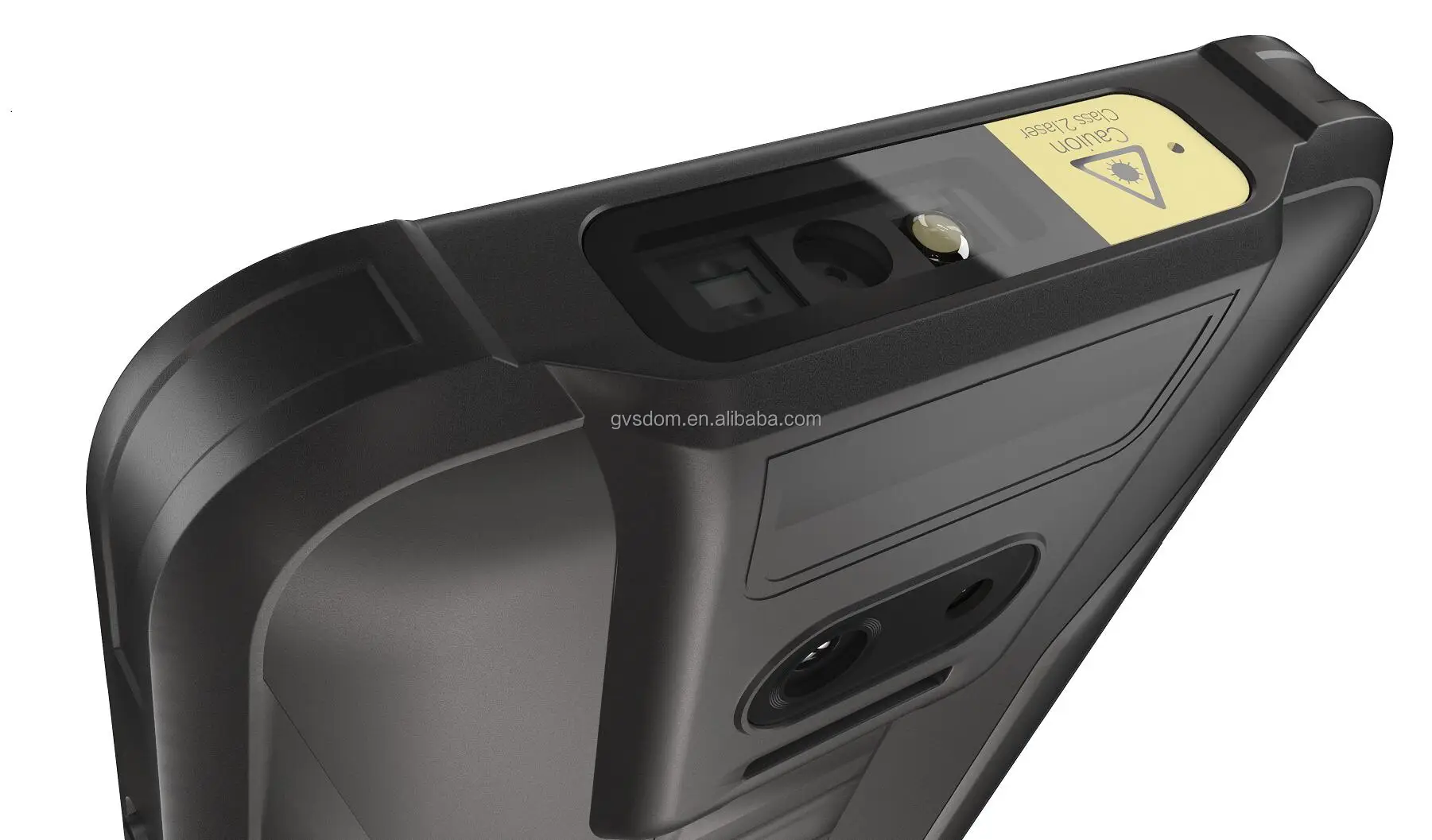

Product Pictures


T60-1T60-4T60-6T60-2T60 (1)T60 (2)T60-5T60-3(1)_12(1)_10(1)_11(1)_14(1)_13


FAQ


1.Q: Are you a factory or trading company?
    A: We are factory.


2.Q: Would you provide SDK for me?

    A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.

3.Q: What is the minimum order(MOQ)?

   A: We accept one unit for standard products.

4.Q: Can we get the free sample?

   A: Sorry,we would not provide the free sample.

5.Q: What's Your Products Warranty?

   A: We Offer 14 Months Warranty after shipment sent.

6.Q:How to repair the device if any problem ?

   A: We will provide technical support online to solve problem; If for the hardware problem , we couldsend the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.
