New Product High Quality Gear Setting Blade Holder 195mm Max Cutting Width Screen Protector Film Cutting Machine
- Category: >>>
- Supplier: Shenzhen Jingweixian Technology Co. Ltd.
Share on (1600275789871):
Product Overview
Description

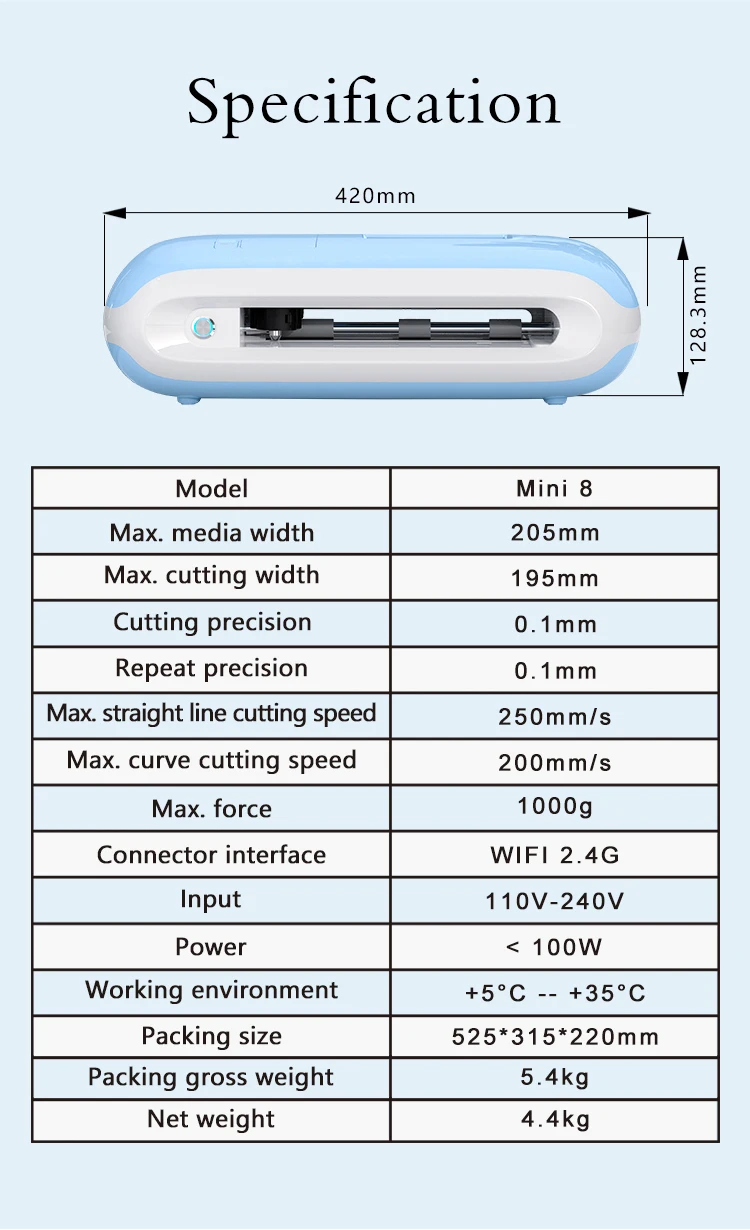

Products Description
Model | Mini 8-6 |
Maximum media width | 200mm |
Maximum cutting width | 195mm |
Cutting accuracy | 0.1mm |
Repeat accuracy | 0.1 mm |
Maximum straight cutting speed | 250mm/S |
Maximum curve cutting speed | 200mm/S |
Maximum force | 1000g |
Data transmission method | WIFI |
Input voltage | 100V-240v |
Machine power | < 100W |
Working temperature | +5°C ---- +35°C |
Package size | 520*320*240mm |
Package gross weight | 6kg |
Machine net weight | 4.2kg |
10000+ cloud data, real-time update.
Mini8-6 smart cloud film cutting machine, the drainage artifact of mobile phone stores! It can not only cut the front and back films of nearly ten thousand mobile phones, but also cut the front films of various brands of tablets, watches, and game consoles. The background system data is updated in real time, so there is no need to worry about the issue of new models on the market.
Mini8-6 smart cloud film cutting machine, the drainage artifact of mobile phone stores! It can not only cut the front and back films of nearly ten thousand mobile phones, but also cut the front films of various brands of tablets, watches, and game consoles. The background system data is updated in real time, so there is no need to worry about the issue of new models on the market.
Precise cutting, the second original screen of the phone.
Mini8-6 supports Bluetooth and WIFI wireless connection, operating data connection is more convenient, equipped with high-precision cutter head, the device supports cutting accuracy of 0.1mm, repeat accuracy of 0.1mm, the fastest linear cutting speed 250mm/s, the fastest curve cutting speed 250mm/s, The maximum cutting pressure is 1000g, which is specially designed for cutting to meet higher precision requirements.
Mini8-6 supports Bluetooth and WIFI wireless connection, operating data connection is more convenient, equipped with high-precision cutter head, the device supports cutting accuracy of 0.1mm, repeat accuracy of 0.1mm, the fastest linear cutting speed 250mm/s, the fastest curve cutting speed 250mm/s, The maximum cutting pressure is 1000g, which is specially designed for cutting to meet higher precision requirements.
Intimate design of details.
Mini8-6 concentrates the power button, Mini-B USB interface, and RJ45 interface on the back of the machine. The body is more concise, and the diversified interface design can better meet the needs of users. The front built-in accessories box design is more intimate.

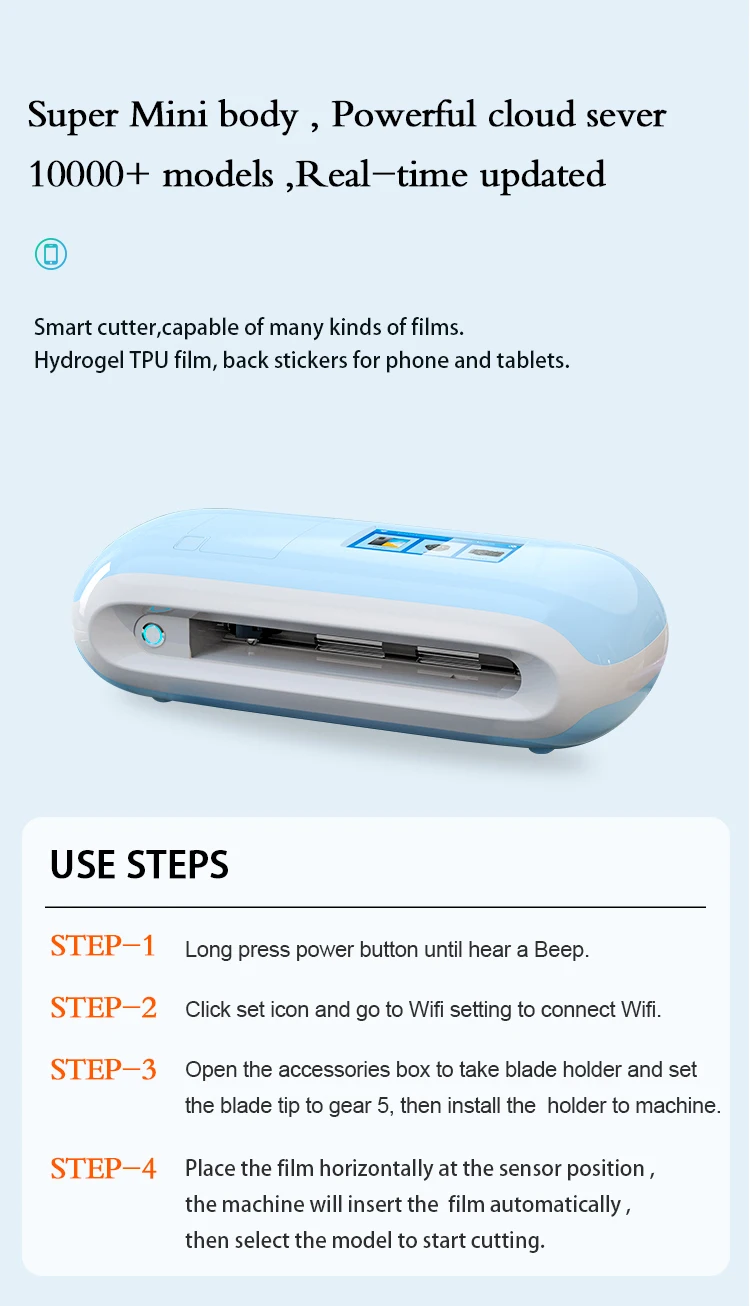

USE STEPS
STEP--1 Long press power button until hear a Beep.
STEP--2 Click set icon and go to Wifi setting to connect Wifi.
STEP--3 Open the accessories box to take blade holder and set the blade tip to gear 5, then install the holder to machine.
STEP--4 Place the film horizontally at the sensor position ,the machine will insert the film automatically，then select the model to start cutting.
STEP--2 Click set icon and go to Wifi setting to connect Wifi.
STEP--3 Open the accessories box to take blade holder and set the blade tip to gear 5, then install the holder to machine.
STEP--4 Place the film horizontally at the sensor position ,the machine will insert the film automatically，then select the model to start cutting.

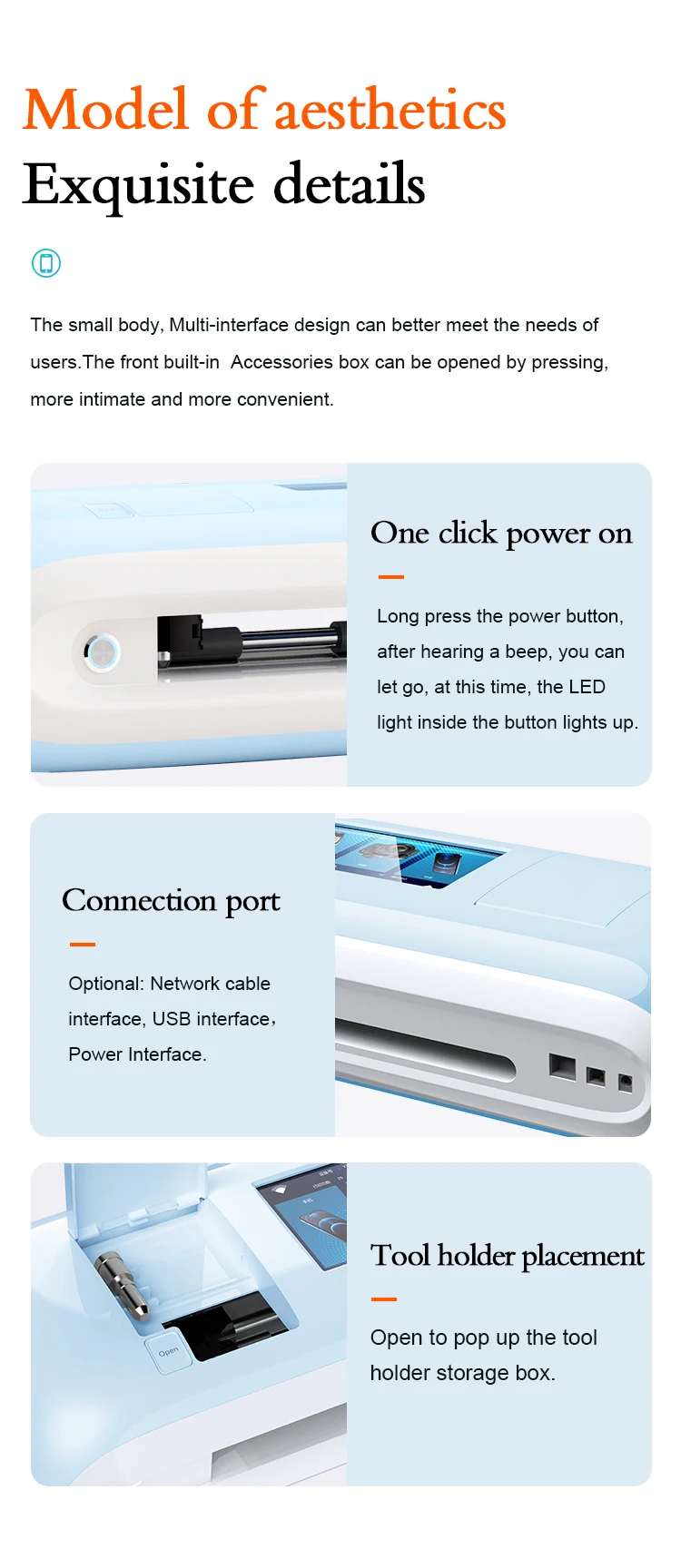

Exquisite Details
Model of aesthetics
The small body, Multi-interface design can better meet the needs of users.The front built-in Accessories box can be opened by pressing "Open", more intimate and more convenient.
One click power on
Long press the power button until hear a Beep, the LED light inside the button lights up.
Connection port
Optional: Network cable interface, USB interface, Power Interface.
Tool holder placement
Press "Open" to pop up the tool holder storage box.
Application
Company Profile
Why Choose Us
Shippment & Payment
FAQ
1. Is it safe on the payment for me as we are the first cooperation?
We can do the trade assurance on Alibaba, which will guarantee your products receiving, we also accept other safe payment way as you want.
2. What is your warranty Policy?
Usually there is 1 year warranty time, and if there is any faulty in warranty time, free spare parts and train how to replace will be offered. If over 1 year, charged spare parts and free train how to replace will be offered.
3. Can you do OEM/ODM order?
Yes,we can support OEM boot interface/software/label/machine appearance/waranty card/Quality card/printing logo/carton ODM.
4. What is the shipping way to do for the machine?
We will send it by air for small order; will send it by sea if it is a large quantity.
5. Can you do a sample for me?
Yes, we can make you a sample for your approval, but there is a sample charge, which will be returned after it reaches a certain quantity.
We can do the trade assurance on Alibaba, which will guarantee your products receiving, we also accept other safe payment way as you want.
2. What is your warranty Policy?
Usually there is 1 year warranty time, and if there is any faulty in warranty time, free spare parts and train how to replace will be offered. If over 1 year, charged spare parts and free train how to replace will be offered.
3. Can you do OEM/ODM order?
Yes,we can support OEM boot interface/software/label/machine appearance/waranty card/Quality card/printing logo/carton ODM.
4. What is the shipping way to do for the machine?
We will send it by air for small order; will send it by sea if it is a large quantity.
5. Can you do a sample for me?
Yes, we can make you a sample for your approval, but there is a sample charge, which will be returned after it reaches a certain quantity.
