DHS 2L Blow Molding Machine 3 Dieheads Single Work Station
- Category: >>>
- Supplier: Ding Hao (changxing) Trading Co. Ltd.
Share on (1600275849714):
Product Overview
Description
Product Overview

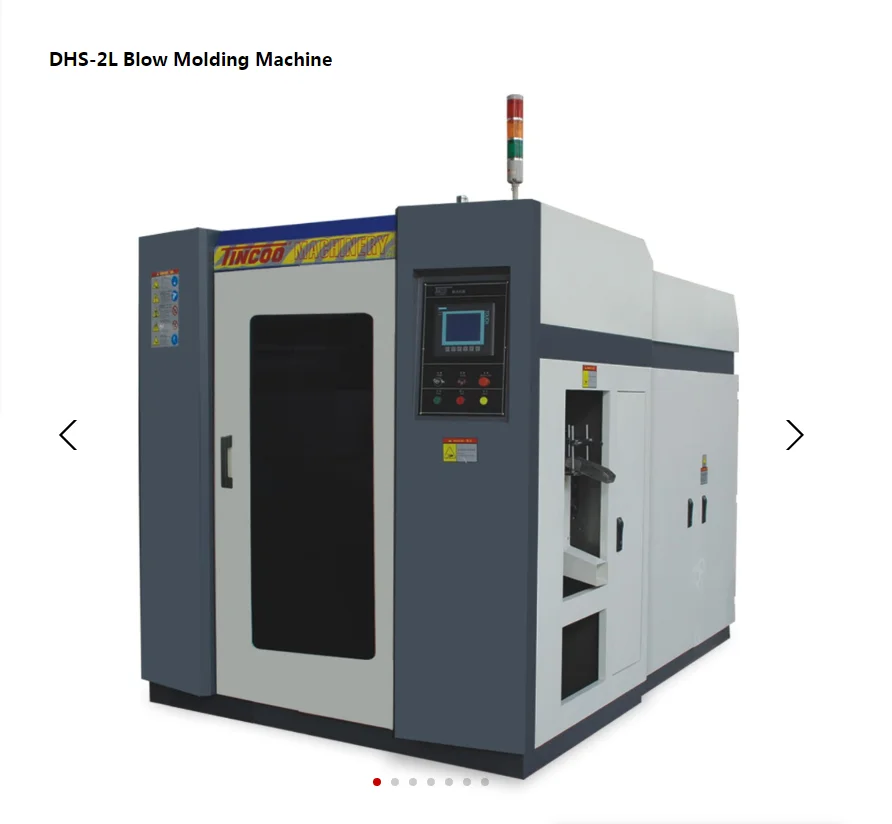

DHS-2L Blow Molding Machine General Introduction

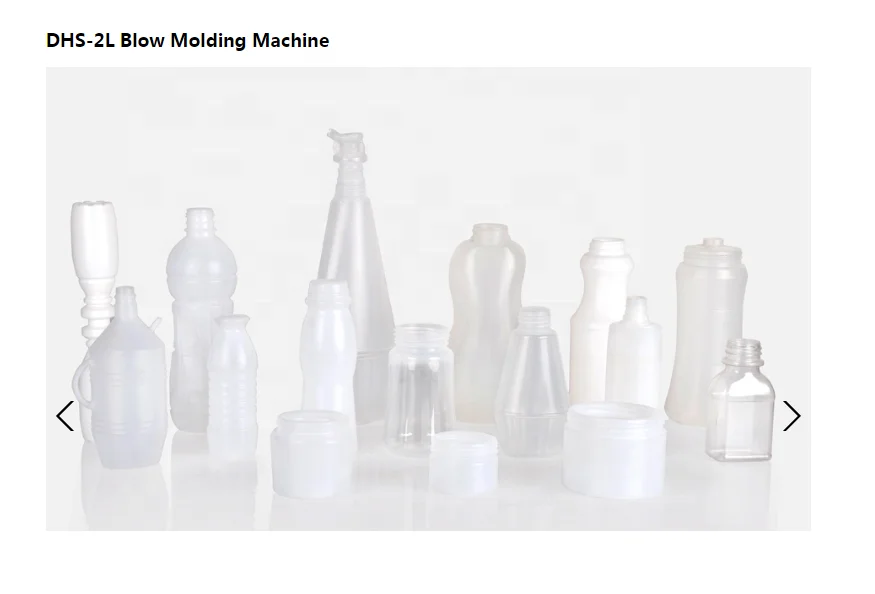

1. DHS-2L blow molding machine is a single station machine, and suitable for producing high quality container with medium output with from one to six fold die head, for use in the packaging of petroleum, cosmetics, chemicals, pharmaceuticals, food, toys and auto-parts.
2. The clamping system is a high-precision single-station linear guide, extrusion system using a hard gear reducer and inverter imported from Japan.
3. The die head system adopts central-incoming extrusion die made of special steel, imported hydraulic valve and seal parts with proportional control valve.
4. The control system consists of PLC and Human-machine interface imported from Japan, an automatic temperature control module and imported electrical part.
DHS-2L Blow Molding Machine Basic Components
1. Die: Vertical first-in first-out structure
2. Extruder unit: Imported automatic temperature control module, with the screw driven by converter electrical machine and hard gear surface reducer to achieve infinite speed variation.
3. Clamping unit: Hydraulic fixed bi-directional clamping system with good stability.
4. Hydraulic system: Imported hydraulic unit and proportional control.
5. Electrical system: Siemens PLC, world brand, electrical components
1. DHS-2L blow molding machine is a single station machine, and suitable for producing high quality container with medium output with from one to six fold die head, for use in the packaging of petroleum, cosmetics, chemicals, pharmaceuticals, food, toys and auto-parts.
2. The clamping system is a high-precision single-station linear guide, extrusion system using a hard gear reducer and inverter imported from Japan.
3. The die head system adopts central-incoming extrusion die made of special steel, imported hydraulic valve and seal parts with proportional control valve.
4. The control system consists of PLC and Human-machine interface imported from Japan, an automatic temperature control module and imported electrical part.
DHS-2L Blow Molding Machine Basic Components
1. Die: Vertical first-in first-out structure
2. Extruder unit: Imported automatic temperature control module, with the screw driven by converter electrical machine and hard gear surface reducer to achieve infinite speed variation.
3. Clamping unit: Hydraulic fixed bi-directional clamping system with good stability.
4. Hydraulic system: Imported hydraulic unit and proportional control.
5. Electrical system: Siemens PLC, world brand, electrical components
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
SPECIFICATIONS | UNIT | DHS-2L |
Material | — | PE、PP… |
Max container capacity | L | 2 |
Number of die | set | 1、2、3、4 |
Total weight | ton | 4 |
Machine dimension(L×W×H) | m | 2.5X1.6X2.4 |
ACCUMULATOR HEAD | ||
Number of die heating | zone | 3 |
Power of die heating | KW | 4.2 |
Max die-pin diamenter | mm | 60 |
Center distance of twin-die | mm | 130 |
Center distance of tri-die | mm | 85 |
Center distance of four-die | mm | 65 |
Center distance of five-die | mm | — |
Center distance of six-die | mm | |
CLAMPING UNIT | ||
Clamping force | KN | 40 |
Platen opening stroke | mm | 158-410 |
Platen size | mm | 290X320 |
Max mould size(W×H) | mm | 320X320 |
Mould thickness | mm | 160-240 |
EXTRUDER UNIT | ||
Screw diameter | mm | 50 |
Screw L/D | L/D | 25:1 |
Extruding volume | Kg/hr | 40-50 |
Number of heating zone | zone | 3 |
Extruder heating power | KW | 3-4.4 |
Extruder driving power | KW | 11-15 |
POWER | ||
Oil pump driving power | KW | 5.5 |
Fan power for screw | KW | 0.25 |
Servo driving power | KW | — |
Total power | KW | 22 |
Air pressure | Mpa | 0.6 |
Air consumption | m³/min | 0.4 |
Average energy consumption | KW | 12 |
Cooling water consumption | m³/min | — |
