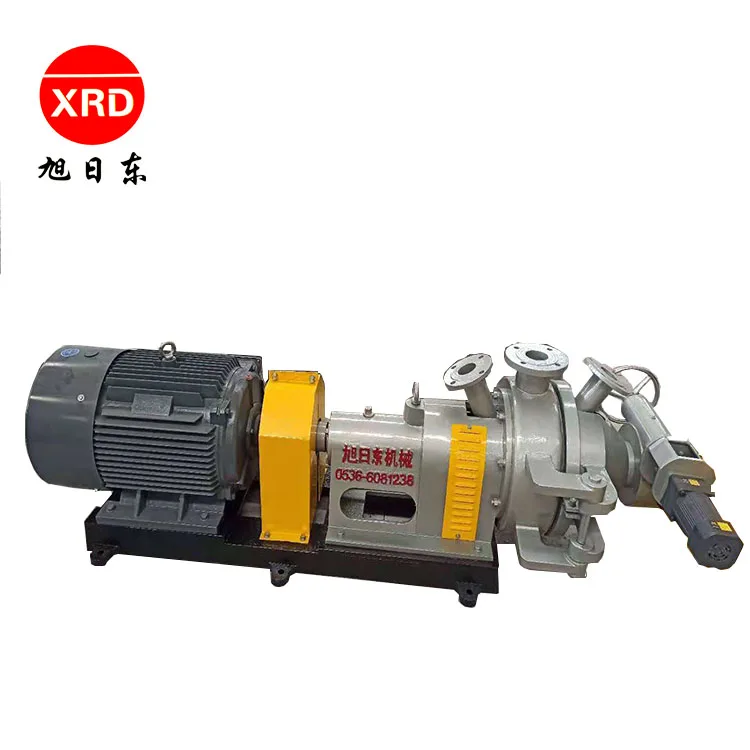

Paper pulp making / Pulp molding double disc refiner

Double disc refiner （called low consistency refiner）is used for paper pulp processing for paper making mill, and tableware mill, egg tray, pulp molding mill. By grinding raw material, to increase the breaking pulp degree to get best pulp fiber. The working consistency is 2-5%.
When running, two units or three units in series to get best effect.
The control way is by manual, or electrical way, or full automatically.




Features and Application


Features
01. Working consistency: 3-5%
02. Raw material: wood pulp sheet, waste paper
03. Increase beating pulp degree to get better pulp
04. National patent no.: 200730017297.3
05. Refiner plate:380-600mm
06. Production: 20/40/60/120 T/D
07. Be used as both coarse refiner and fine refiner in pulp making system.

Application
01. Paper making mill
02. Tableware making mill
03. Pulp molding making mill
04. Egg tray making mill
05. Fruit tray making mill



Detailed Images






There are two inlets, and one outlet. There are four refining plates in pulping chamber.

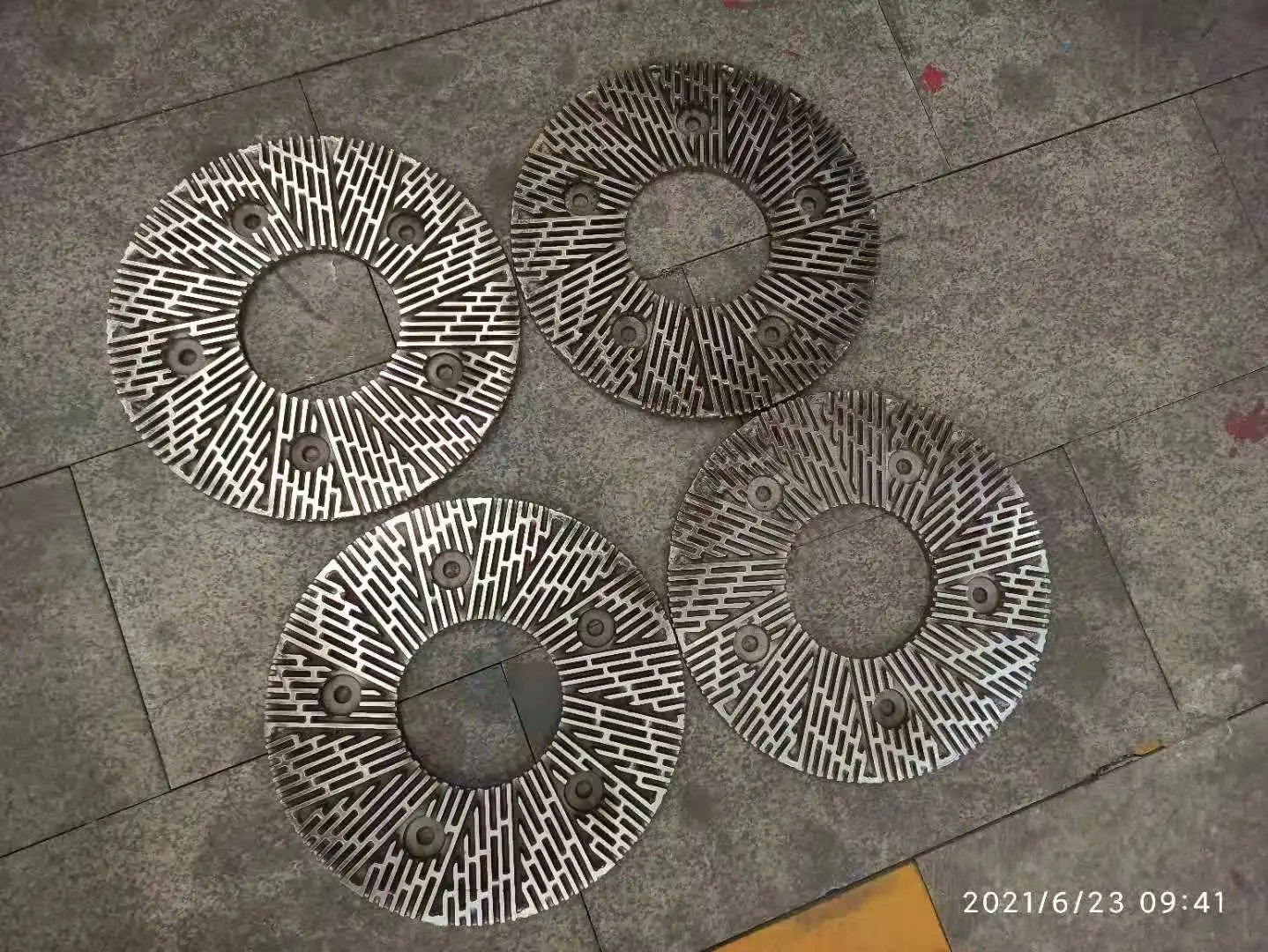

The chest body is made of cast iron or stainless steel 304, and there are two units of grinding plates, one unit is stable plate, and one unit is movable plate. The plates are made of wear resistance alloy and chrome plated.
The motor is from Chinese famous or Siemense or user-specified brand.




Technical parameter


Model
XSP380
XSP450
XSP550
XSP600
Refiner plate disc (mm)
Φ380
Φ450
Φ550
Φ600
Capacity (tpd)
6-20
8-40
25-80
40-120
Working consistency (%)
2-5
Feeding pressure (Mpa)
0.1-0.3
Power of motor (Kw)
380v 50hz 3ph 37kw
380v 50hz 3ph 75-110kw
380v 50hz 3ph 132-160kw
380v 50hz 3ph
 160-250kw






Company Introduction


Shandong Xuridong Machinery Co.Ltd, since 2001, produces wonderful waste water treatment equipment and solutions, pulp and paper making machines and solutions as well as tissue paper converting machinery and solutions, that are technologically advanced, highly efficient and of superior quality. We produce these products in great volume at our main manufacturing facility which spans nearly 30,000m2. Our prime location is in the “dinosaur capital” – Zhucheng City, Shandong Province. This location provides us with a plethora of logistics advantages, including: easy and cost effective transport by both air and sea. Also, we are in very close proximity to a very famous port city – Qingdao in northern China.








Our Services & Strength
Product design and development is a prime concern at Xuridong Machinery. Our technology department is composed of 12 talented designers, including 2 highly-skilled senior engineers. With their wealth of comprehensive experience and impressive expertise, we have achieved a total of 32 patents over the past few years. These accomplishments have been a powerful driving force enabling our company to continue to focus heavily upon innovation and efficiency while supplying new and upgraded products, in response to dynamic and ever-changing market demands.
Our machining workshop has been equipped with only the most advanced and finest quality production machinery available. This machinery includes: flame and plasma cutting machines, floor-type large lathes, horizontal milling machines, horizontal boring mills, vertical knee-and-column mills, wire-cut EDM machines and so forth. In addition we utilize a fully-computerized dynamic balancing machine that is very suitable for high-precision balancing tasks. It takes only 10 seconds for this machine to provide required measurements. Last but not least, our electronic components are all purchased from Siemens, Schneider and other world-renowned brands. This accompanied by our in-house developed control cabinets enables us to provide a powerful guarantee on the quality of all electrical control systems.

We have established a state-of-the-art production workshop to create all components required by our diversified papermaking machines and environmentally-friendly products， especially waste water treatment machines. Once the processing has been finished, these components will be sent to a 12,000m2 assembly workshop where we can complete assembly, quality control procedures and other manufacturing processes. Each year the output value of our products can reach up to 150 million RMB.

CONTACT WITH US
Mr. Bertram Young
Position: Trade manage and Engineer
Shandong Xuridong Machinery Co.,Ltd.

Wechat: Y15253622917
Tel/Whatsapp: +8615253622917
Skype: Mr.young8899
Mob: 0086 13563631266； 0086 15253622917
E-mail: [email protected] [email protected]
Website: www.xuridong-en.com
Add: No.68, Tieyuan Road, Zhucheng City, Shandong Province, China------262200


Customer Photos










Packing&Shipping




It can be packaged by container, or by wood case, or by plastic bags.


After Sales Service


1. We are responsible for correctly guiding the installation, commissioning and trial production of equipment for free, to ensure that we reach the design capacity within the planned time.
2. We are responsible for the technical training of the buyer. The training content includes equipment structure and maintenance, equipment control and operation.
3. After receiving the service call, the supplier will respond within 8 hours and provide 24-hour service to solve any problems raised by the buyer at any time.
4. Cooperate with the maintenance service at any time and provide accessories in time. Provide accessories.
5. Commitment to lifetime service only charge for parts and materials, not any manual travel.


FAQ


01. How to buy your idea products?
A: You can provide us your water sources, water quality, flow rate and ground area (connect us for more details).
02. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
03. What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.
04. How to pack the products?
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by
customers.
05. How to keep your equipment from corrosion?
A: We use the world-famous paint, like SigmaCoatings, PainBow, etc. What's more, we paint strictly according to the standard
process.
06. How do you manufacture your equipment ?
A: Our machining technology includes laser/plasma cutting, automatic welding, CNC cutting and bending.
07. How to install after the equipment arriving destination?
A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa
fee, air tickets, accommodation, wages will be paid by buyers.
