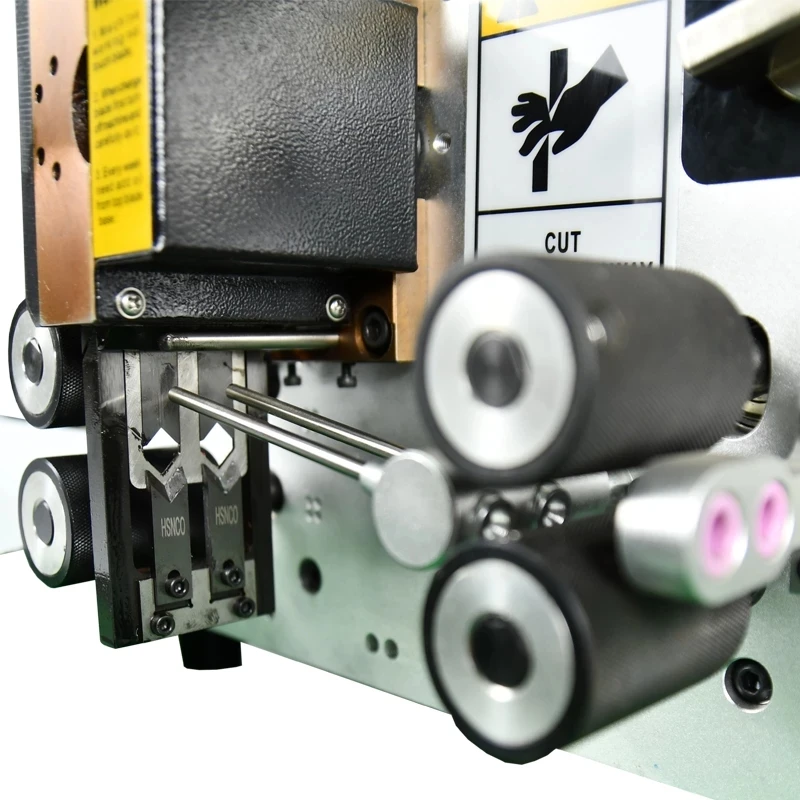

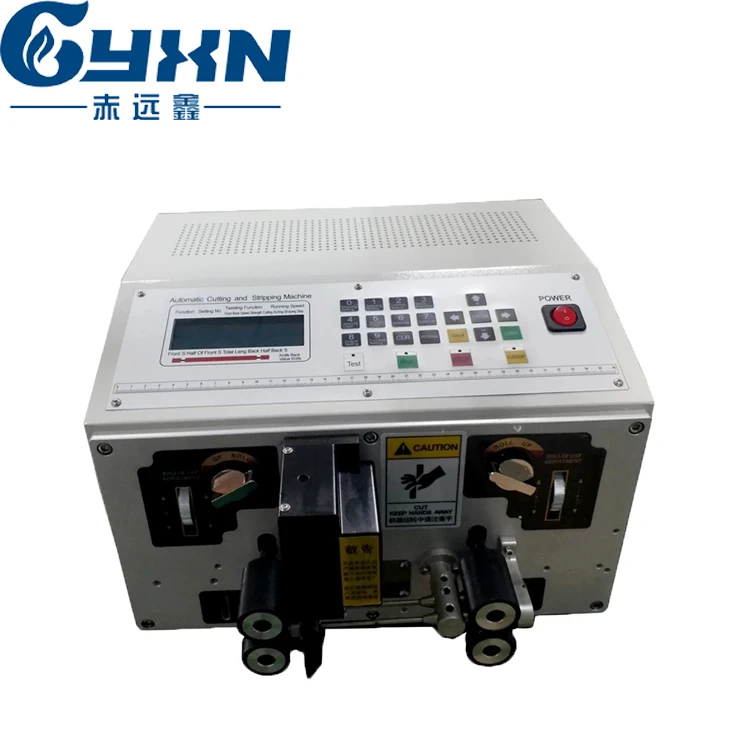

Automatic single/dual core flat cable wire cutting stripper machine
Automatic single/dual core flat cable wire cutting stripper machine
Automatic single/dual core flat cable wire cutting stripper machine
Automatic single/dual core flat cable wire cutting stripper machine
Automatic single/dual core flat cable wire cutting stripper machine
Automatic single/dual core flat cable wire cutting stripper machine
Automatic single/dual core flat cable wire cutting stripper machine

Automatic single/dual core flat cable wire cutting stripper machine

Share on (1600276366391):


Price:

Quantity:


Product Overview

Description



Product Description


Multicore wire electric pneumatic heat vertical wire stripping stripper machine\t\t\t\t\t\t\t\t\t\t\t\t\t\t

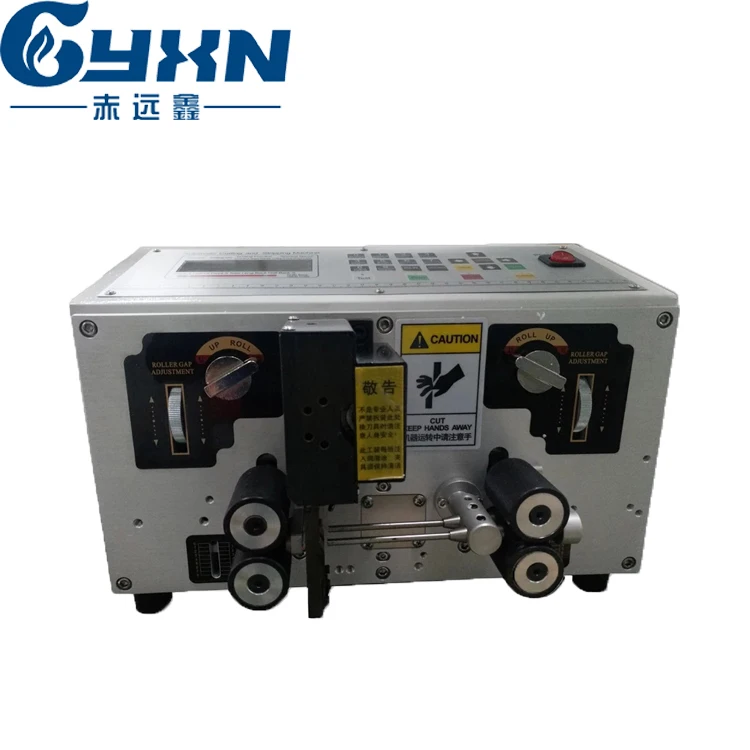

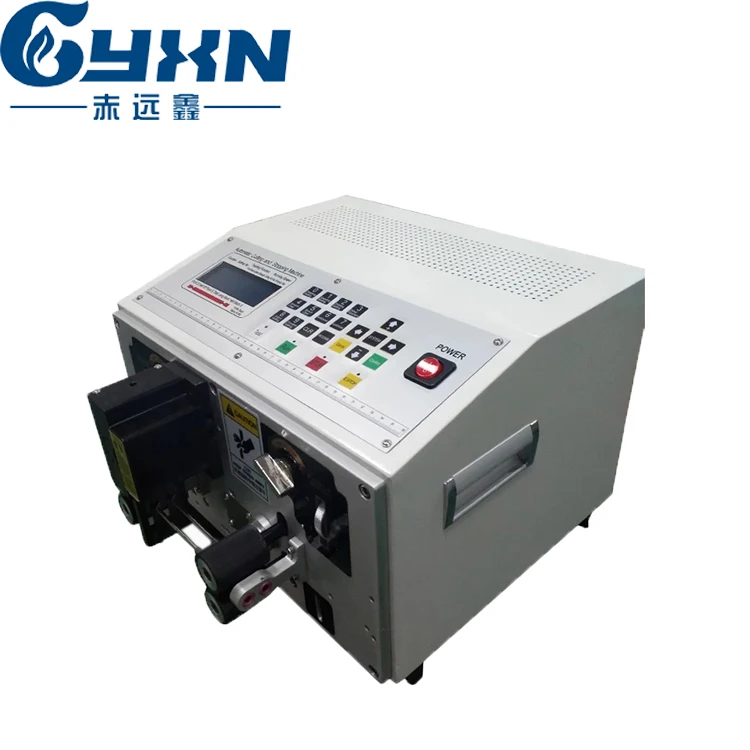

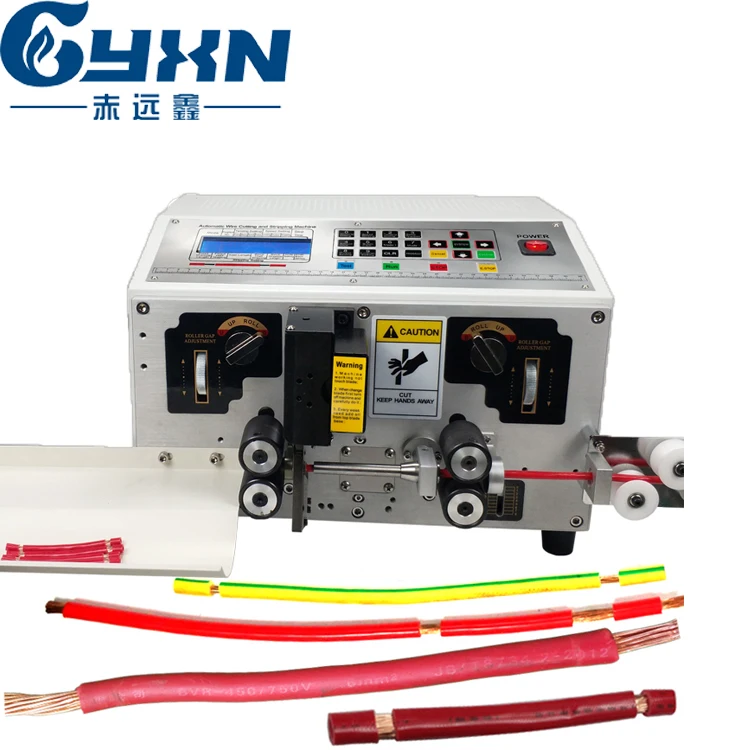

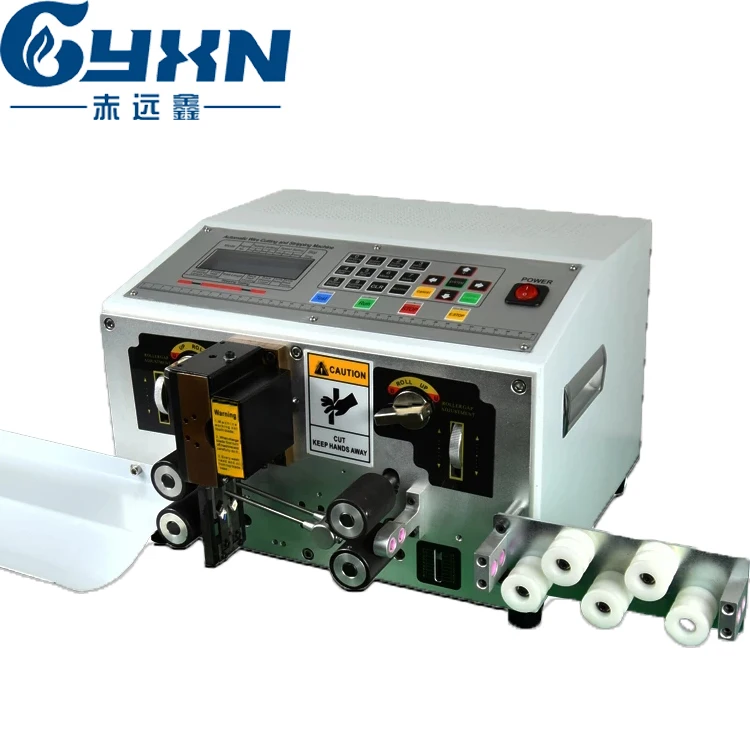

Automatic wire cutting and stripping machine
Specification can be customized
Model
CH-60N
Voltage
AC220V 50/60HZ
Size
L420*W400*H285
Operating power
350w
Cutting length
8mm-9999mm

stripping length
Front end 30mm
Inner diameter of label roll
Tail end 80mm
Applicable wire diameter
0.1 mm² ~10 mm²
Processing wire mumber
Single/double


This is a fully automatic coaxial cable cutting and stripping machine . Our machine Collection and integration,the microcomputer automatic computer for the strip line machine is a kind of introduced in Japan, Taiwan, and other advanced automation technology of all of the numerical control equipment.

Advantage:

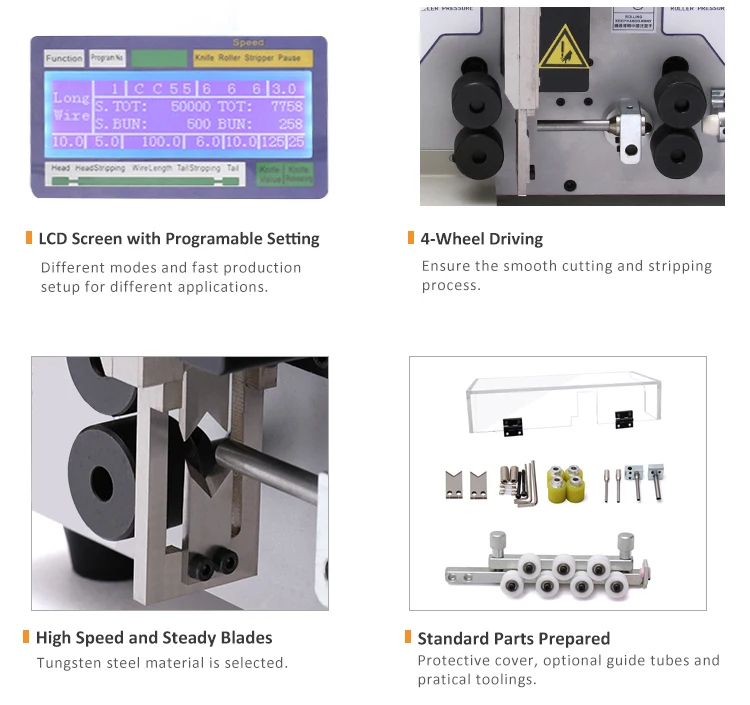

1 All machine with English LCD screen display with fashion appearance
2 simple operation, convenient maintenance, stable performance, speed, precision higher
3 Wire length can setarbitrary, thrum and the line end parameters
4 can also according to the customer request to change, different degree of finish stripping wires
5 also has the high tension line of line, casing of the shear etc. Function.




Above machine specification only for your reference.
If you can't find the specification of you need. please refer to the all model.
If you have any question please click here.


Model
CH-4.5A
CH-4.5B
CH-3#
CH-8*
CH7F
power supply
AC220V 50/60HZ
AC220V 50/60HZ
AC220V 50/60HZ
AC220V 50/60HZ
AC220V 50/60HZ
size
L420*W400*H285
L420*W400*H285
L420*W400*H285
L420*W400*H285
L420*W400*H285
operating power
350w
350w
350w
350w
350w
cutting length

8mm-9999mm

8mm-9999mm

8mm-9999mm

8mm-9999mm

8mm-9999mm
stripping length
front end 30mm
tail end 80mm
front end 30mm
tail end 80mm
front end 30mm
tail end 30mm
front end 30mm
tail end 30mm
front end 30mm
tail end 80mm
twisting length
3-10mm
wire seperation length
60mm-80mm
applicable wire diameter
4.5mm² / 4mm
2mm² / 2.5mm-3mm
28#-14#
28#-14#
0.25mm²-6mm²
processing wire mumber
single
single/double
single/double
single
single
Blade
V-shaped knife
V-shaped knife
V-shaped knife
flat knife
V-shaped knife



Details Images

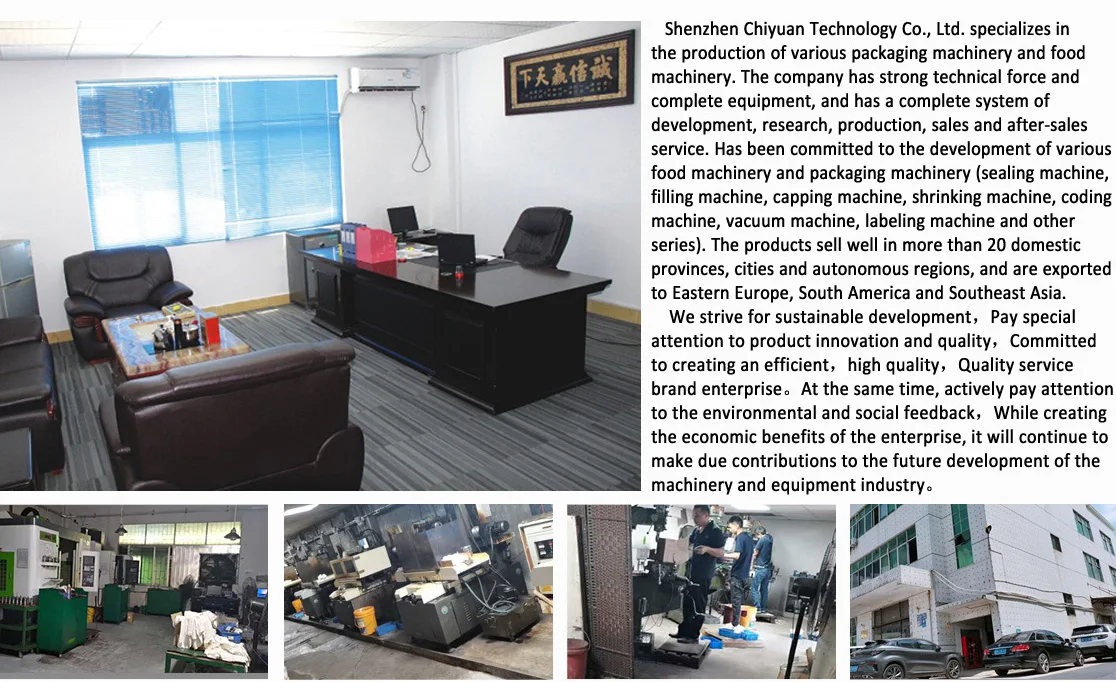

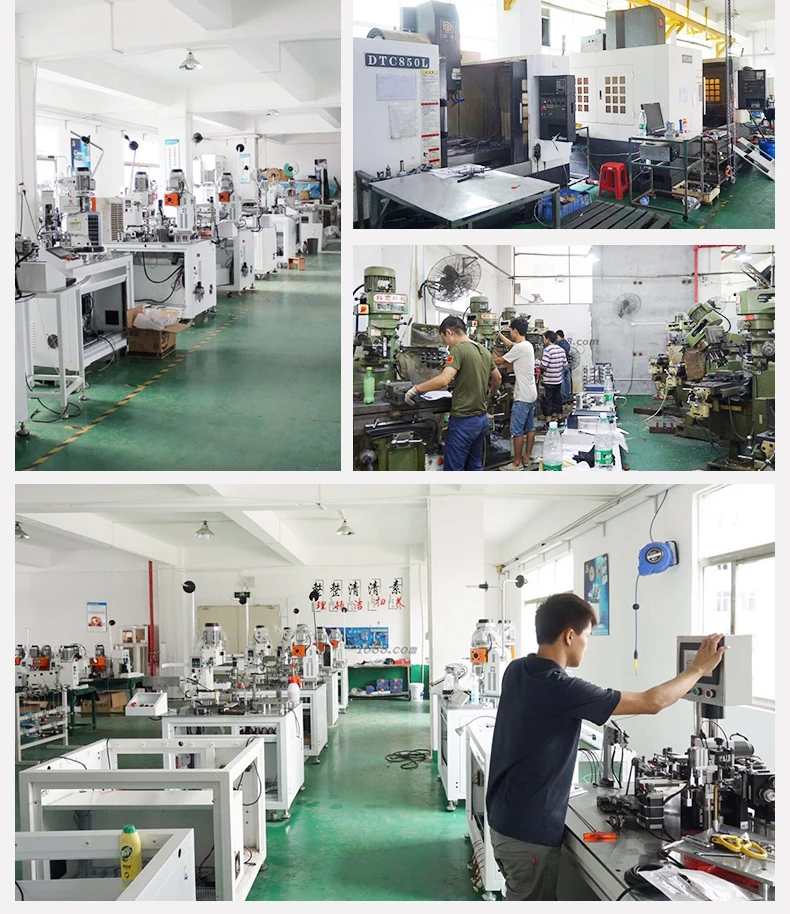

Company Profile






Packing & Delivery






FAQ


1.Are you factory?
A: Yes, We are factory and manufacture

2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery

3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.
Video for you to make samples

4. How to operate the equipment?
My friend, don't worry about it, we have made video for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication.

5. When the machine can't work well,What should I do?
The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.

6.What service will you provide when I come to China?
A:We will pick up you to our factory and help you to book the hotel.

7.How can you guarantee we receive a good quality?
A: We have a serious group of quality control from component to finish product.and we also have mature assemble lines and operation instruction.


8.What type of payment supporting?
A:100% T/T deposit before the shipment.

9. How long is the delivery time?
A: About 3-7 working days.
