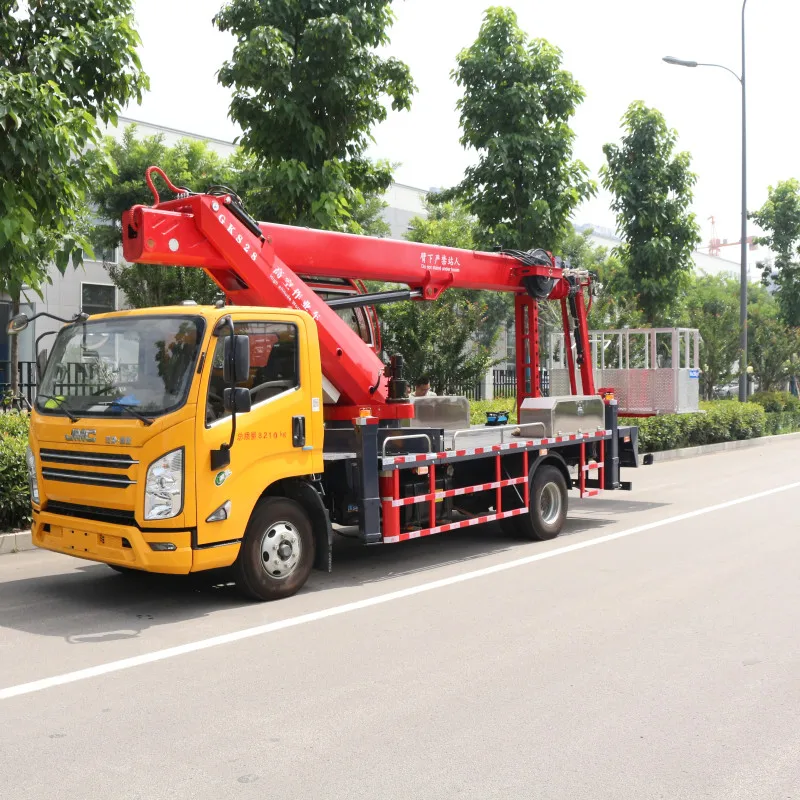

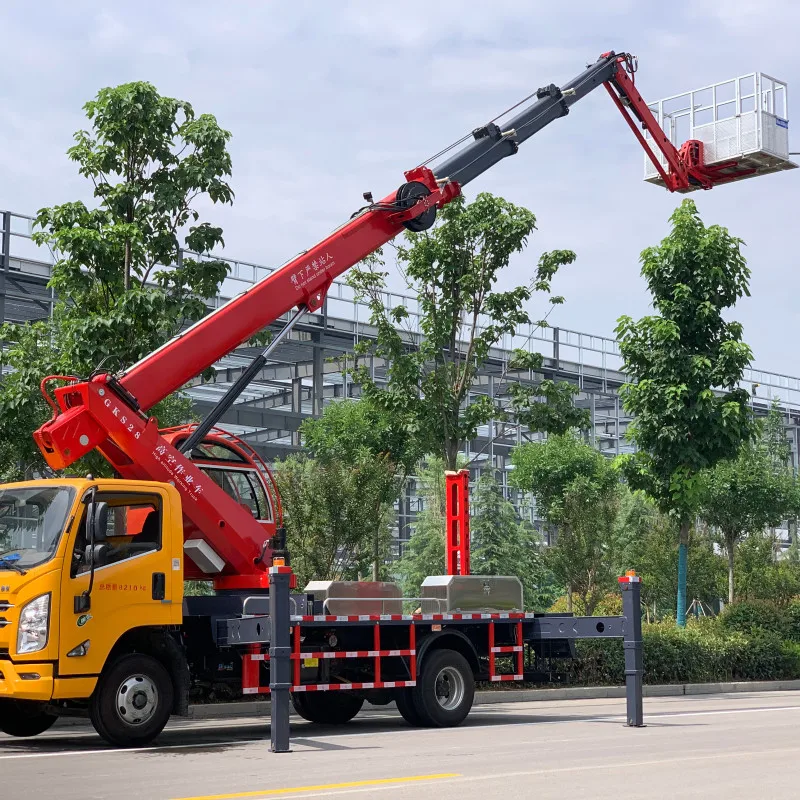

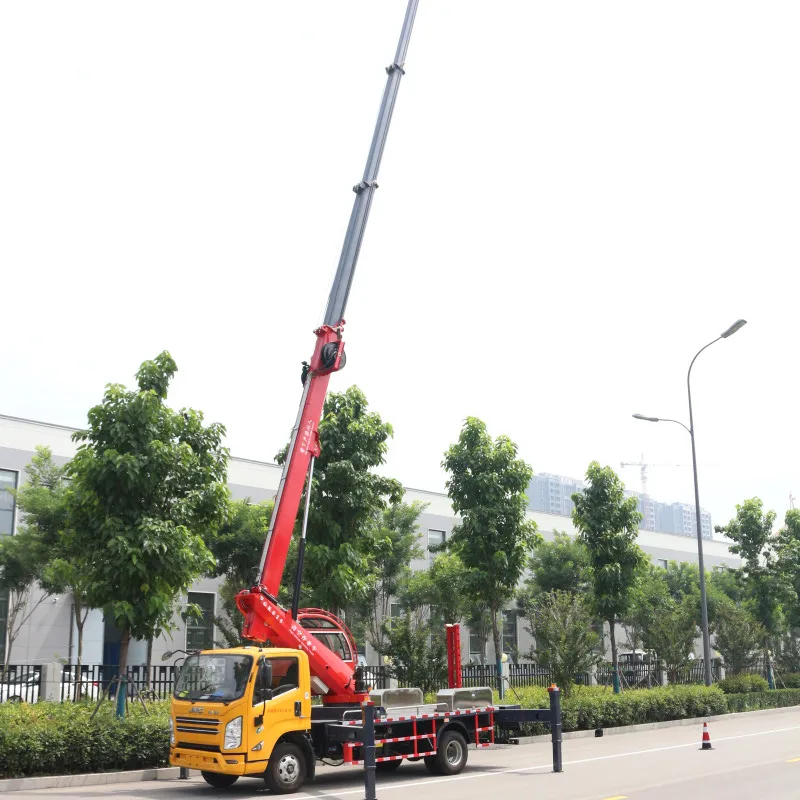

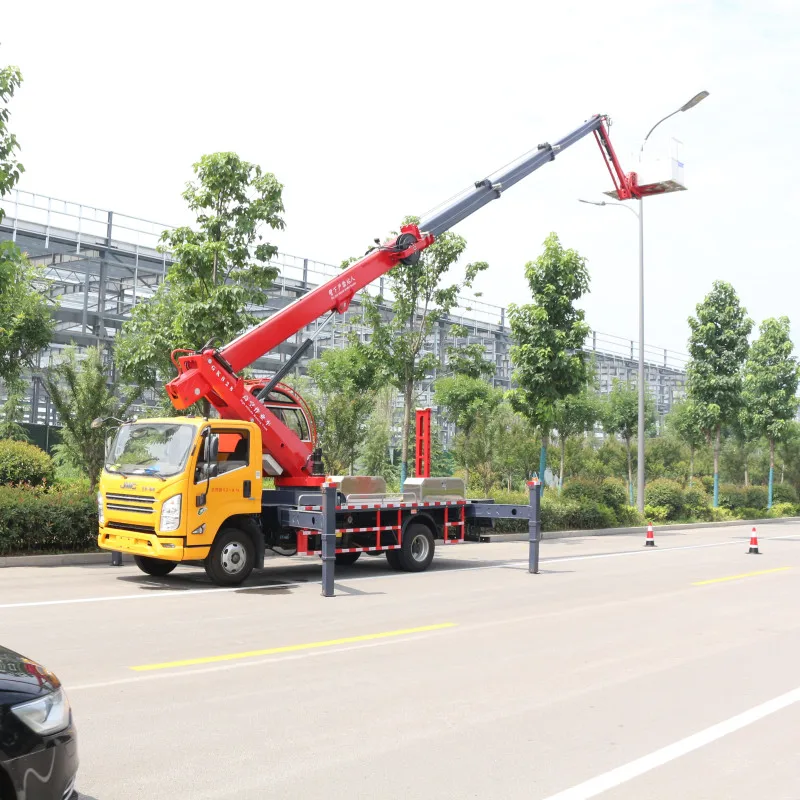

28 meters truck boom lifts articulated truck boom lift lifting machine
28 meters truck boom lifts articulated truck boom lift lifting machine
28 meters truck boom lifts articulated truck boom lift lifting machine
28 meters truck boom lifts articulated truck boom lift lifting machine
28 meters truck boom lifts articulated truck boom lift lifting machine
28 meters truck boom lifts articulated truck boom lift lifting machine
28 meters truck boom lifts articulated truck boom lift lifting machine

28 meters truck boom lifts articulated truck boom lift lifting machine

Share on (1600276541518):


Price:32 047,37 $

Quantity:


Product Overview

Description



Products Description


Aerial operating vehicles are widely used in engineering construction, plant maintenance, plant construction, municipal administration, electricity, street lights, communications, gardens, transportation, mining, industrial installation, equipment maintenance, three-dimensional warehouses, billboard installation, film and television advertising shooting, high-altitude pipelines Laying, laying of various pipelines, maintenance of various venues, construction and painting of expensive bridges, etc.


The Blue Brand Straight Boom Aerial Operating Vehicle is mainly designed to solve the new lightweight aerial operating vehicle with large outrigger span, large area, and poor passability (inability to enter the small alleys of the old city).
Aerial operating vehicles are widely used in engineering construction, plant maintenance, plant construction, municipal administration, electricity, street lights, communications, gardens, transportation, mining, industrial installation, equipment maintenance, three-dimensional warehouses, billboard installation, film and television advertising shooting, high-altitude pipelines Laying, laying of various pipelines, maintenance of various venues, construction and painting of expensive bridges, etc.




The main technical parameters


project
Unit
data
★Total length
mm
8350
★Total width
mm
2230
★Total height
mm
3250
Number of passengers (including driver)
人
3
★Total mass
kg
7600
★Rated load of working platform
kg
260
★Maximum working height
m
28
★Operating range at maximum operating height
m
5
★Maximum operating range
m
16
★Operating height at maximum operating range
m
23
★Outrigger span horizontal
mm
5010
★Outrigger span longitudinal
mm
4845
★Front overhang
mm
1155
★Back suspension
mm
2260
★Wheelbase
mm
3815
Maximum travel speed
Km/h
115
Approach angle
°
20
Departure angle
°
10


Configuration instructions


Part Name
brief introduction
Chassis
Jiangling
engine
The maximum power of the Isuzu engine is 211KW, 156 horsepower, and the national sixth emission
Cab
Single row seat, can seat 3 people
Steering assist
Power steering
Temperature adjustment
Air conditioning
Hoarding and walking platform
Aluminum alloy fence and non-slip walking platform
Power take-off system
Mechanical operation
Work platform
High-strength foldable aluminum alloy telescopic frame size: 2400X850X1200
Boom form
★Four-section hexagonal working arm, synchronously telescopic
Slewing device
360 degree continuous rotation
Outrigger
★Front V and rear H type, individually adjustable (control)
operating
★Electric control operation, equipped with electric emergency operation
Control System
CAN bus control system, equipped with wireless remote control, to achieve stepless speed regulation
Leveling system
Hydrostatic automatic leveling


Basic functions and safety configuration


The basic functional safety configuration of CLW5043JGKJ5 aerial operating vehicle: The operating vehicle can achieve a platform load of 260KG, the maximum operating height is 20 meters, and the maximum operating range is 11 meters.
name
brief introduction
Automatic interlocking device for getting on and off
★Used for interlocking on and off vehicles to prevent the danger of misoperation
Manual emergency pump
★When the engine and main pump fail, the staff can be sent back to the ground through the emergency system and the vehicle can be
recovered to the driving state
Emergency stop device for working platform
★Used for emergency stop operation and limit boom operation
Automatically limit the working range
★When the working range reaches the specified value, it will automatically limit the work in the dangerous direction.
Unrealistic support restricts work
★When the outriggers do not support the ground in real time (soft legs), the boom will limit the work in dangerous directions.
Night safety warning device
★There are engineering strobe lights and LED lights on the vehicle
Engine ignition and flameout
★The controller can control the ignition and flameout of the engine
Anti-leakage protector
★When the mains 220V is externally supplied, it is equipped with a leakage protector to ensure the safety of the power supply of
the whole vehicle and the use of electric tools
Forced operation function
★When you are restricted from working, you can expand your work through the "forced" function


Main features and advantages
1. Blue-brand C-license driving is worry-free, with good passability, suitable for small space operations; exemption of vehicle models, no purchase tax.
2. The maximum operating height can reach 28 meters (17 meters, 21 meters and 23 meters are also available).
3. The super large working platform can carry 260KG (up to 3 people), and the working platform can be rotated 360°.
4. The steel structure of the whole vehicle is made of high-strength materials, with light weight, high strength, high toughness and high reliability.
5. The imported electro-hydraulic proportional valve group cooperates with the advanced CAN bus control system and is equipped with a wireless remote control, which makes the operation safer and more convenient.
6. Get off the car with a 5-inch LCD display, which can display the detection arm length, elevation angle, platform height, working height, etc. in real time;
7. The boom adopts the domestic leading 3-section full-steel rope telescopic structure with a built-in broken chain protector, which makes the work safer and more stable.

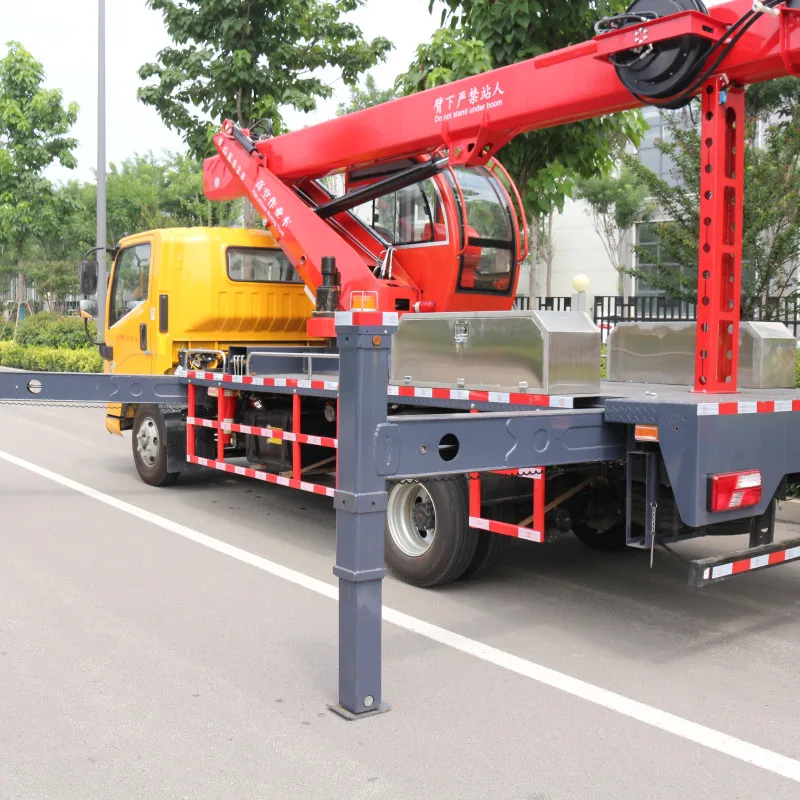

8. The front V and rear H-shaped outriggers have good stability and are equipped with a "soft leg" protection function, which can be operated simultaneously or individually to adapt to a variety of working conditions.
9. The main supporting hydraulic and electrical components: imported load-sensitive proportional valves, balance valves, CAN bus control systems, etc. are all produced by well-known domestic and foreign manufacturers.
10. The chassis adopts Jiangling Shunda National V chassis, equipped with air conditioning, and the steering wheel is hydraulically assisted.
11. The hanging basket is made of high-strength aluminum alloy, and the hanging basket is not easy to be damaged, rusted, and the lightweight structure is designed to carry more weight.
12. Hexagonal working arm, synchronous expansion and contraction, compact structure, high working efficiency and large working range. Built-in telescopic cylinder and double-chain telescopic mechanism make it easier to observe the fault points and facilitate maintenance.
13. The electrical appliances of the whole vehicle adopt CAN bus control system, and the wiring is neat and simple. The whole vehicle has two operations: wireless remote control operation, (optional) can also be operated in the hanging basket, safe and reliable, and high work efficiency.
14. The working platform is matched with 220V mains power interface, and daily electric tools can be used, which is not affected by the power consumption of the working environment.
