SJK SMD 380C Tuning Fork crystal Series 6LC 32.768khz (1600276834041)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description

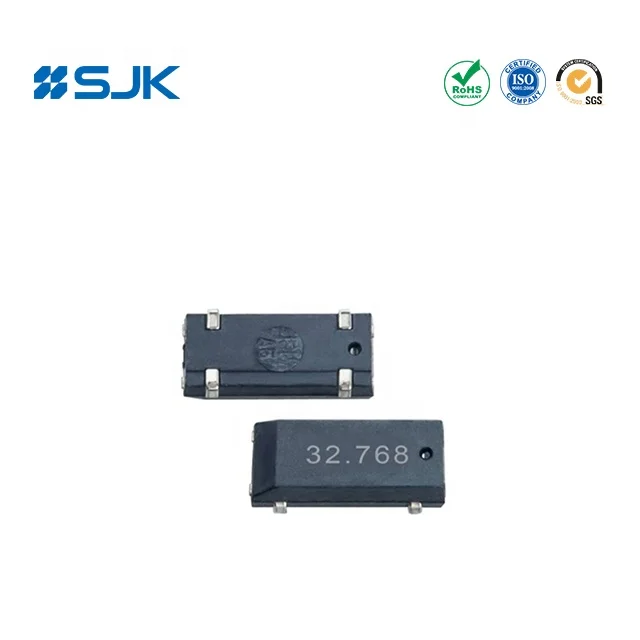

308C 32.768 kHz SMD Crystal


Model: 6LC Series (308C 32.768kHz SMD Crystal Unit) Frequency range: 32.768kHz Frequency tolerance: ±20ppm Size: 3.8×8.0×2.4mm Load capacitance: 12.5pF, or specify Applications: Smart meters, IoT,Consumer products, PC, etc












Specifications and Dimensions



Features of 6LC Series 308C 32.768kHz SMD Crystal Unit:


Plastic molded 32.768 kHz SMD crystal unit of heat resistance


High precision and tight reliability


Small size with 3.8×8.0×2.4 mm


High reliable environmental performance


Automatic mounting and reflow soldering


Application for Smart communication device, Clock, microcomputer, etc


RoHS Compliant





Electronic Specifications of 6LC Series 308C 32.768kHz SMD Crystal Unit:






















































Item/Type



6LC Series (308C 32.768kHz SMD Crystal Unit)



Frequency Range



32.768kHz



Frequency Tolerance



±20ppm, or specify



Load Capacitance



6.0~12.5pF, or specify



Operating Temperature



-40~+85℃, or specify



Storage Temperature



-55~+125℃



Drive Level



1.0μW Max.



Turnover Temperature



±25℃±5℃



Parabolic Coefficient



(-0.034±0.005)×10-6/℃



Shunt Capacitance



1.5pF Typ.



Aging (at25℃)



±3ppm/Year Max.

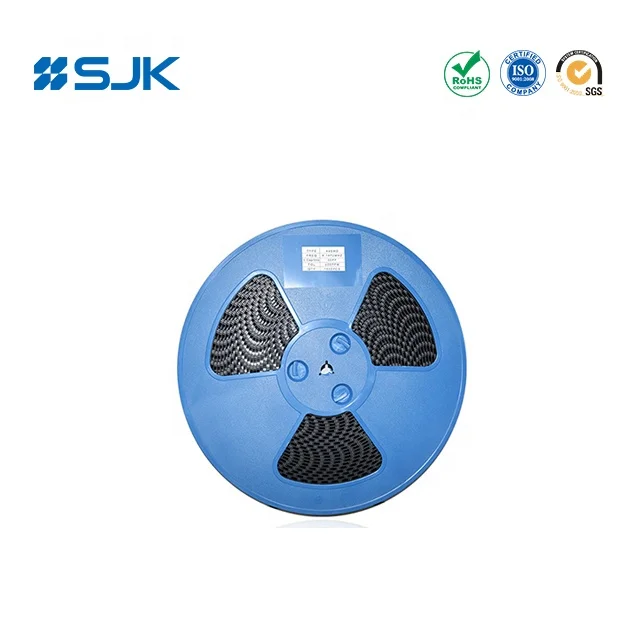

Packing Unit



3000pcs.

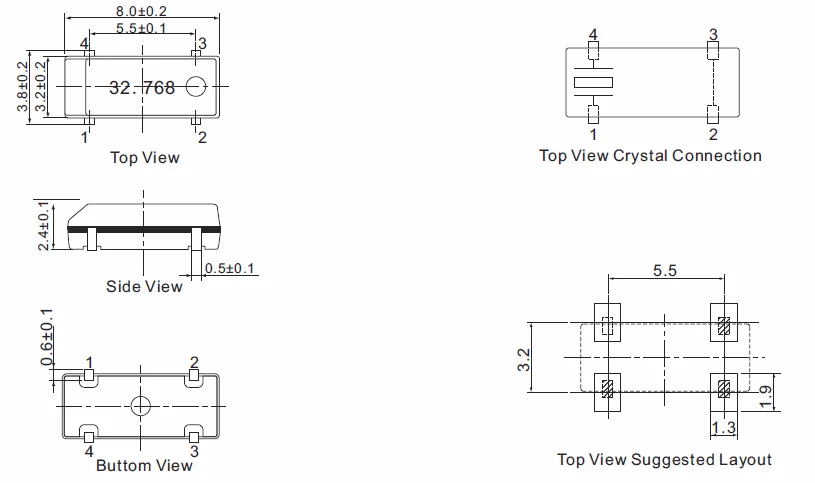

Dimensions [mm]







REMARK:SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER FOR PDF FILE.
