PP badminton court floor vinyl flooring football soccer floor indoor court tiles outdoor hockey tiles
Product name | Linghan interlocking sports floor tile |
Model | LHDT-2502 |
Material | 100% new Polypropylene (pp) |
Color | Black, white, grey, blue, green, yellow, orange, red….. |
Size | 250*250*13mm |
Weight | 220g±5g/piece. |
Package | 8sqms/carton. (16pcs/sqms) |
Carton size | 51*51*42cm. 128pcs/carton, 30kg/carton. |
Temperature Range | -40℃ - 70℃ |
Feature | Environmental Friendly |
Function | Waterproof, Soundproof, Anti-Static, Thermal Insulation |
Service Life | 10 years |
Warranty | 5-8 years |

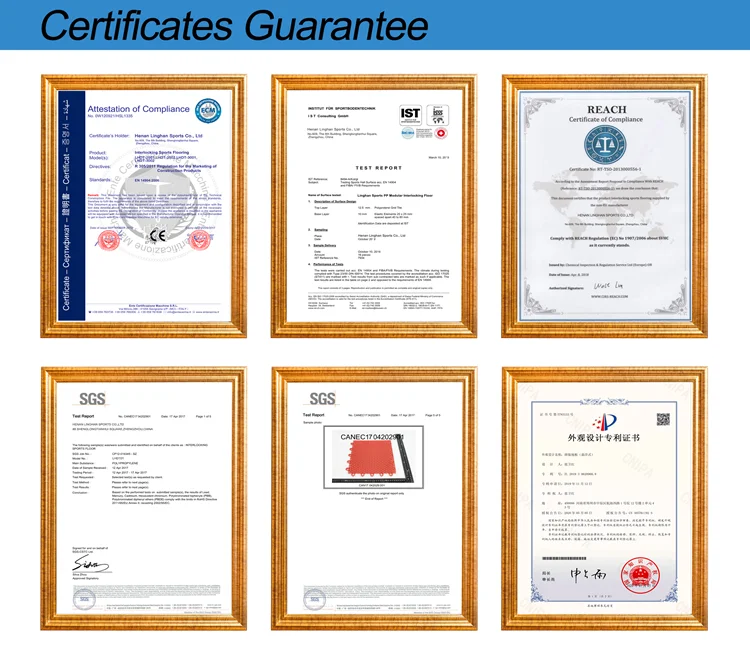

Certificate | ISO9001, ISO14001, CE, SGS, RoHS, REACH, BWF, FIBA… |
Application | Indoor and Outdoor Basketball, Futsal, Tennis, Volleyball, Badminton, Handball, Inline Hockey, Roller Skating, Kindergarten, Backyard, Clue, Multi-use, Etc… |
Delivery time | Within 7 working days |
Test Item | Test Method | Requirement | Result |
Shock Absorption | EN14808 | ≥25%<35% | 27% |
Vertical Deformation (StVv) | EN14809 | ≤2.3mm | 2.1mm |
Ball Rebound (BR) | EN12235 | ≥90% | 97% |
Friction (GV) | EN13036-4 | 80-110 | 95 |
0.4-0.6 | 0.45 | ||
Rolling Load (VRL) | EN1569 | 1500N | √ |

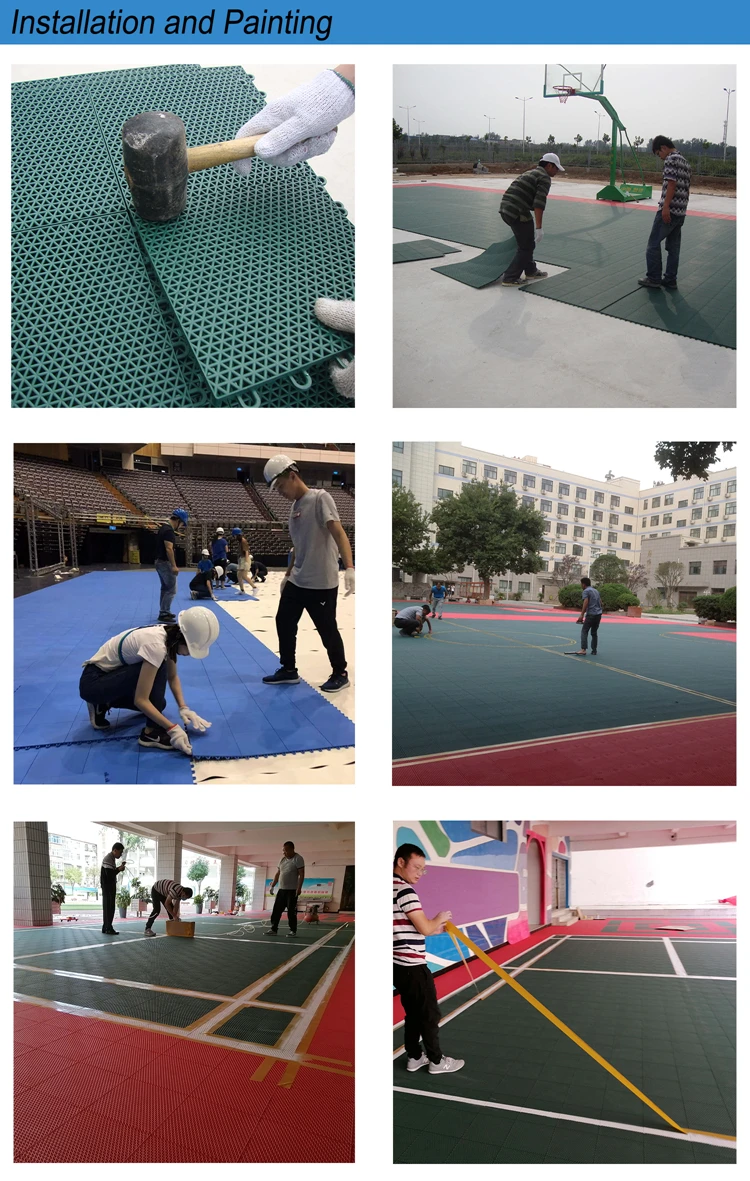

Installation Conditions:
1, The General Contractor shall furnish and install the concrete subfloors.
2, The slab shall be broom finished to a tolerance of 3mm in any 3m radius. Floor Flatness and Floor Levelness numbers are not
recognized. High sports shall be ground level and low sports filled with approved leveling compound.
3, Installation shall not start until all other finishes and overhead mechanical jobs have been completed in the sports area.
4, Subfloor shall be clean, dry and free from dirt, dust, oil, grease, paint, old adhesive residue, or other foreign materials.
5, The installation area shall be closed to all traffic and activity for a period to be set by the Contractor.
1, The General Contractor shall furnish and install the concrete subfloors.
2, The slab shall be broom finished to a tolerance of 3mm in any 3m radius. Floor Flatness and Floor Levelness numbers are not
recognized. High sports shall be ground level and low sports filled with approved leveling compound.
3, Installation shall not start until all other finishes and overhead mechanical jobs have been completed in the sports area.
4, Subfloor shall be clean, dry and free from dirt, dust, oil, grease, paint, old adhesive residue, or other foreign materials.
5, The installation area shall be closed to all traffic and activity for a period to be set by the Contractor.
Related Products
Best service in Linghan Sports
-Sample is available.
-All colors are the same price.
-3% spare parts for free.
-Strong carton, Pallet Packing, protect floor very well.
-Some of the sample fee will by pay back when container order.
-You can order the size for some of our products
-If you want to build a basketball court, tennis court, volleyball court, badminton court, interlocking sports floor for your
choice
-More important thing, various colours are available to you.
-Quality is our culture, about MOQ, choose more, cheaper more.
-Please leave your questions and give us a chance to know each other.
Send your inquiry to us, you can get the BEST! FAST! LOWER!
Why Us:
1. Eco-friendly: 100% recyclable Polypropylene
2. Safe and Comfort: excellent shock absorption performance,
3. Durable: long lasting outdoor/indoor application with 10 years of guarantee
4. Weather-proof: Anti-aging ,anti UV, anti corrosion, anti-fade,
5. Budget Saver: low purchase cost and zero maintenance fees
6. Multi Functional: sports courts, rooftop application, backyards, kindergarten, garage…
7. Portable: easy to install and dismantle. One-man team operation.
8. More color options
-Sample is available.
-All colors are the same price.
-3% spare parts for free.
-Strong carton, Pallet Packing, protect floor very well.
-Some of the sample fee will by pay back when container order.
-You can order the size for some of our products
-If you want to build a basketball court, tennis court, volleyball court, badminton court, interlocking sports floor for your
choice
-More important thing, various colours are available to you.
-Quality is our culture, about MOQ, choose more, cheaper more.
-Please leave your questions and give us a chance to know each other.
Send your inquiry to us, you can get the BEST! FAST! LOWER!
Why Us:
1. Eco-friendly: 100% recyclable Polypropylene
2. Safe and Comfort: excellent shock absorption performance,
3. Durable: long lasting outdoor/indoor application with 10 years of guarantee
4. Weather-proof: Anti-aging ,anti UV, anti corrosion, anti-fade,
5. Budget Saver: low purchase cost and zero maintenance fees
6. Multi Functional: sports courts, rooftop application, backyards, kindergarten, garage…
7. Portable: easy to install and dismantle. One-man team operation.
8. More color options
FAQ
1. Are you a trading company or a factory ?
Factory + trade ( have one factory and 2 trading companies ), Welcome to visit our factory at anytime.
2. Can you produce according to the samples or drawings ?
Yes, OEM / ODM service. We can produce by your samples or technical drawings. We can build the molds and fixtures,
3. What is your terms of payment ?
Usually we accept T/T For regular orders. Terms of payment 30% deposit,full payment before delivery the goods.
4. What is the lead time ?
It’s usually takes 5 to 7 days after sample confirmation and receiving your advance payment. The specific delivery time depends on
the items and the quantity of your order.
5. What is your terms of packing ?
Generally, 8sqms/carton with 5 layer brown carton ,16 cartons/pallet.
6. What is your terms of delivery ?
We accept EXW, FOB, CIF…etc. You can choose the one which is the most convenient or cost effective for you.
7. How to solve the quality problems after sales ?
Take photos of the problems and send to us. We will make a satisfied solution for you within 24 hours after we confirm the
problems.
8. Do you have any MOQ limit for order ?
Low MOQ, 1pc for sample checking is available.
9. Is it OK to print my logo on product ?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Factory + trade ( have one factory and 2 trading companies ), Welcome to visit our factory at anytime.
2. Can you produce according to the samples or drawings ?
Yes, OEM / ODM service. We can produce by your samples or technical drawings. We can build the molds and fixtures,
3. What is your terms of payment ?
Usually we accept T/T For regular orders. Terms of payment 30% deposit,full payment before delivery the goods.
4. What is the lead time ?
It’s usually takes 5 to 7 days after sample confirmation and receiving your advance payment. The specific delivery time depends on
the items and the quantity of your order.
5. What is your terms of packing ?
Generally, 8sqms/carton with 5 layer brown carton ,16 cartons/pallet.
6. What is your terms of delivery ?
We accept EXW, FOB, CIF…etc. You can choose the one which is the most convenient or cost effective for you.
7. How to solve the quality problems after sales ?
Take photos of the problems and send to us. We will make a satisfied solution for you within 24 hours after we confirm the
problems.
8. Do you have any MOQ limit for order ?
Low MOQ, 1pc for sample checking is available.
9. Is it OK to print my logo on product ?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
