Product Overview
Description
Product Description

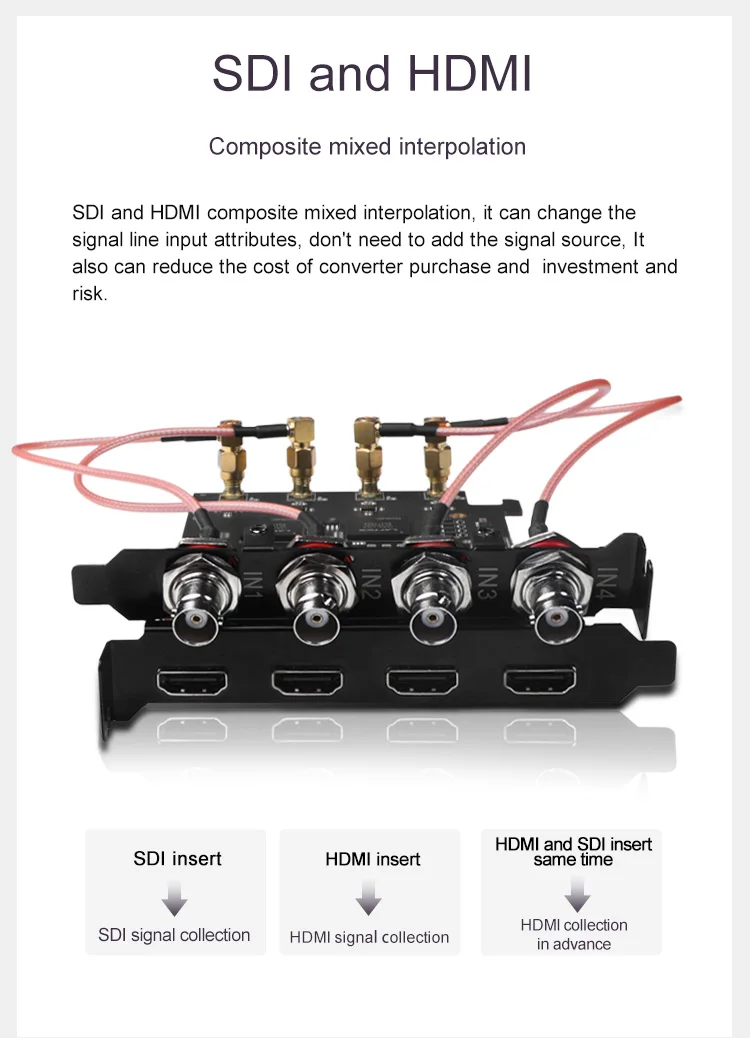

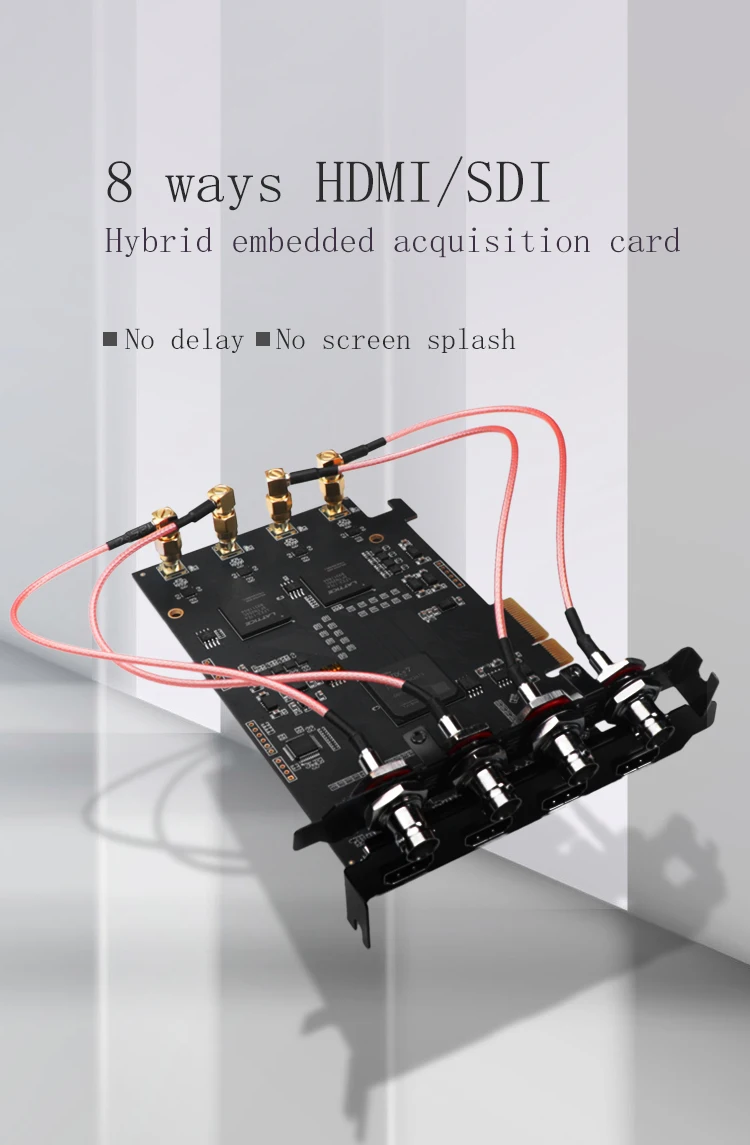

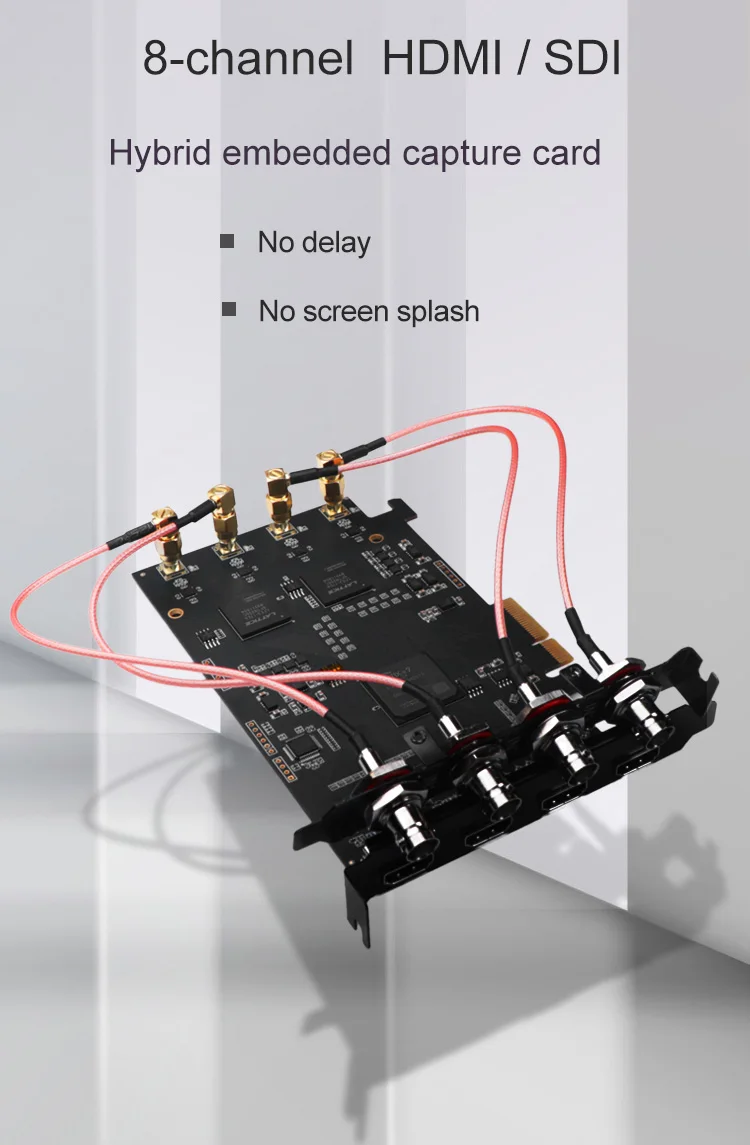

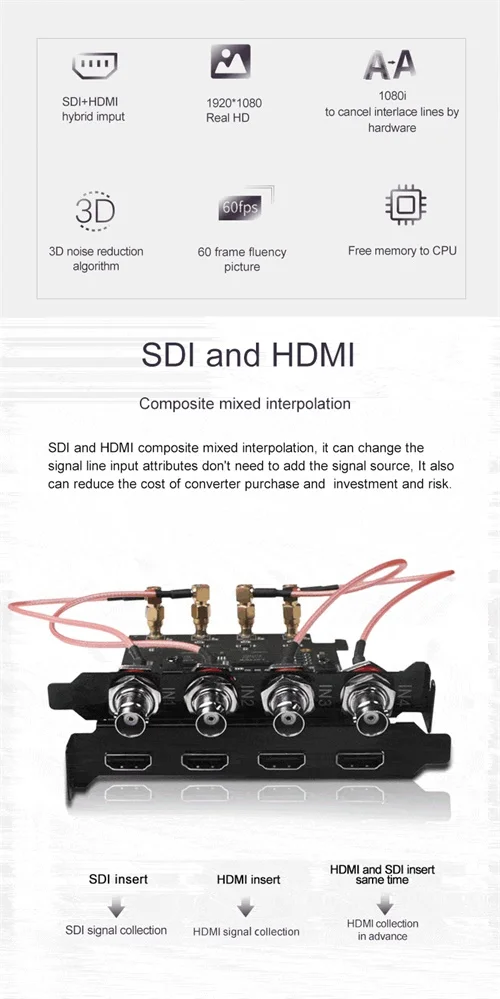

A brief introduction : 4-channel HD capture card, supports 4-channel SDI/4-channel HDMI HD video input, adopts dual independent chips, pure hardware compression design, supports 1920x1080 P/I up to 60fps full format, 1280X720 P/I up to 60fps full format. The capture card uses H.264 encoding pure hardware compression, supports HDMI and SDI mixed plug input, HDMI and SDI use independent chip processing, plug HDMI to capture HDMI, SDI and HDMI plug at the same time, priority to capture HDMI, unplug HDMI to capture SDI. | TYSTVideo 24 inch single screen broadcast gradecast teleprompter | |

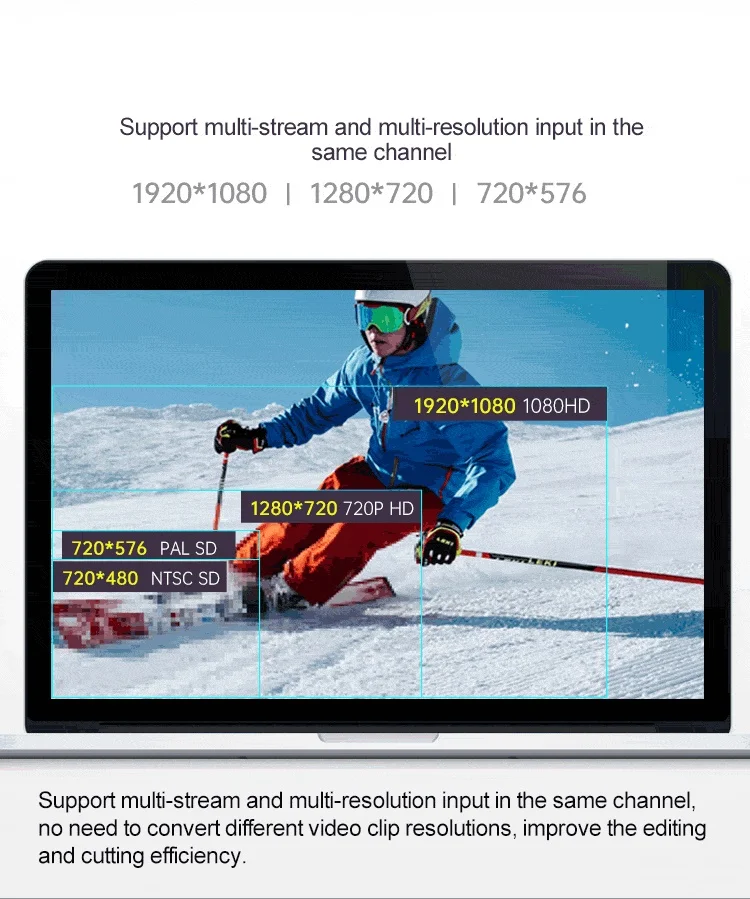

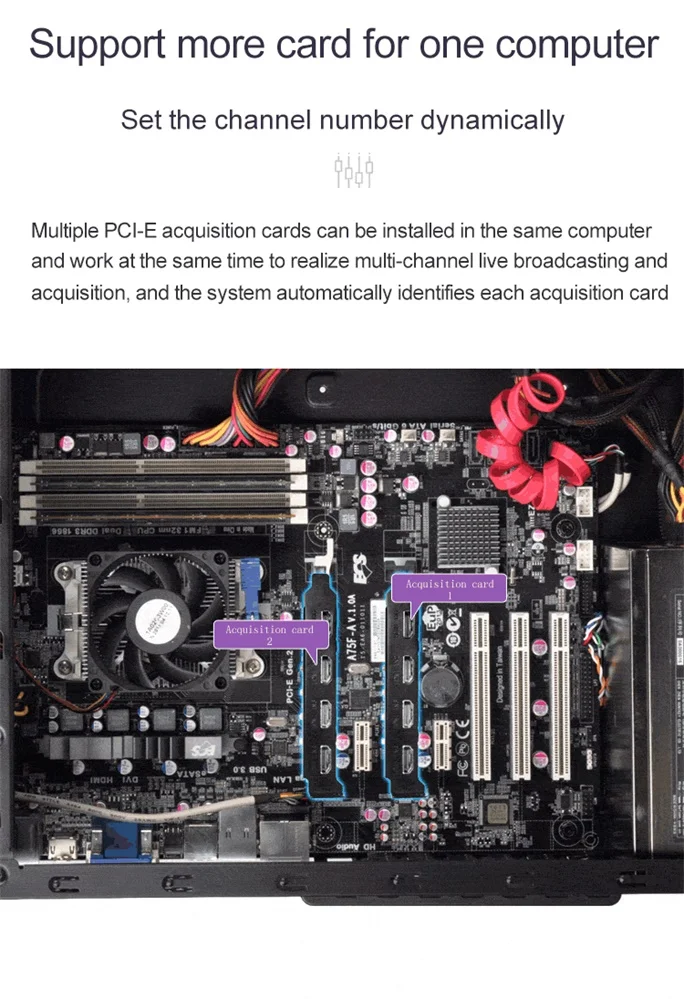

Features: 1. 4 HDMI/4-channel SDI video mixed signal input 2. Input video signal: any resolution within 1080P/720P 3. DirectShow compatible video capture, YUV422 video output 4. DirectSound compatible audio capture, PCM 48K stereo 5. Windows7/8/10 32/64bit operating system 6. PCIE 2.0 X4 20Gb/s transmission bandwidth 7. Video frame rate: 1 to 60fps 8. The video processing is completed by the capture card and does not occupy the host CPU 9. Support HDCP protocol 10. Automatically determine the input video format. 11. Support one machine with multiple cards, and set the channel number dynamically. 12. Support the same channel multi-stream multi-resolution input. 13. The driver has a support exit mechanism, which can be used in the Thunderbolt 3 program | Aluminum frame * Medical grade Import coated spectroscopic glass | |
Product name | 4-channel HDMI / SDI Video Capture Card | ||||||
Model | TY-80HD | ||||||
Maximum input | 1920x1080 P/I up to 60fps full format, 1280X720 P/I up to 60fps full format. | ||||||
Geometric size | 157×98 (mm) full height card | ||||||
Recording mode | Hard compression, real-time | ||||||
Host interface | PCIe ×4, 20Gb/s transmission bandwidth | ||||||
Input interface | HDMIx4/3G SDI x4; SDI and HDMI mixed input, HDMI has priority over SDI | ||||||
HDMI protocol | HDMI 1.4 | ||||||
HDCP protocol | Embedded HDCP2.2 version | ||||||
Output image format | YUV422 | ||||||
Compression mode | H.264 (hard compression) | ||||||
Input resolution | HDMI/SDI 720p50、720p59.94、720p60、1080p23.98、1080p24、1080p25、1080p29.97、1080p30、1080p50、1080p59、1080p59.94、1080p60 1080PsF23.98、1080PsF24、1080PsF25、1080PsF29.97、 1080PsF30 1080i50、1080i59.94、1080i60/p> | ||||||
Audio input | 4 channels HDMI embedded audio capture or 4 channels SDI embedded audio capture | ||||||
audio format | Stereo / 16-bit / 32000 ~ 48000Hz | ||||||
One machine with multiple cards | Supported | ||||||
Applicable software | Windows Media Encoder, Adobe Flash Media Live Encoder, Real Producer Plus, VLC, Wirecast vMix...obs, Core Image, Mshow, and other commonly used conference system non-designated SDK software. | ||||||
Supported operating system | Win7, Win8, Win10 32/64 bit | ||||||
Compatible development interface | DirectShow (Windows) standard interface | ||||||
range of working temperature | 0-85℃ | ||||||
Storage temperature range | -20-70℃ | ||||||
Storage humidity range | 5%-90% | ||||||
Power consumption | ≤ 2.0 W | ||||||
Weight | 400 g | ||||||
Warranty | 1 year | ||||||
Application scenarios | live broadcast, program recording, face recognition, artificial intelligence, medical imaging, etc. | ||||||
\t\t\t\t\t\t\t\t\tProduct details \t\t\t\t\t\t\t

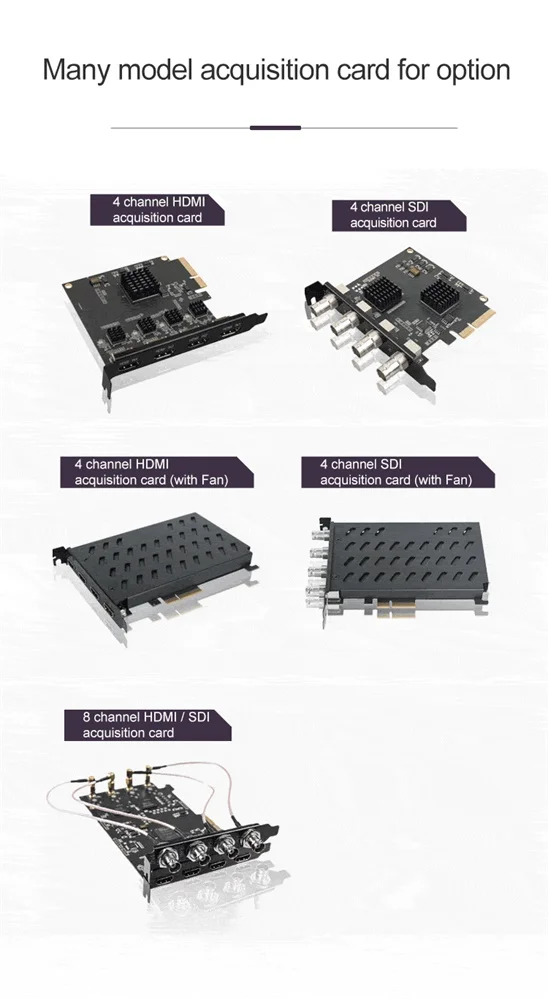

Related products
TY-4HDMI
TY-4HDMIPlus
TY-4SDI
TY-4SDIPlus
TY4000-HDMI
TY4000-SDI
TY-TP4HD
TY-TP4SD
TY-U3HDH
TY-U3SDH
TY-VS2583 4K
TY-VS2584
FAQ
1. MOQ * Neutral product : 1 set * Package design: 50 sets * Logo printed on product: 50 sets 2. Guarantee * We promise 100% check one by one before shipping. * Warranty: 12 months. * If any problem because of quality , please send us the picture and video, we will send you replacement during the quality guarantee period. 3. Production time * Sample: within 3 days * Regular order: 3-7 days * Bulk order: 7-10 days 4. Payment term *We prefer to Bank account，Alibaba Trade Assurance, T/T. 5. OEM time * New designed sample of package and logo: about 3-7 days * Production time: 3-7 days. * Other structure design: depends on the design 6. Can we get rebate for long term cooperation? *Of course, we have an advanced incentive system that gives rebates or discounts each year based on the total order amount at the end of the year. | ||||||||
