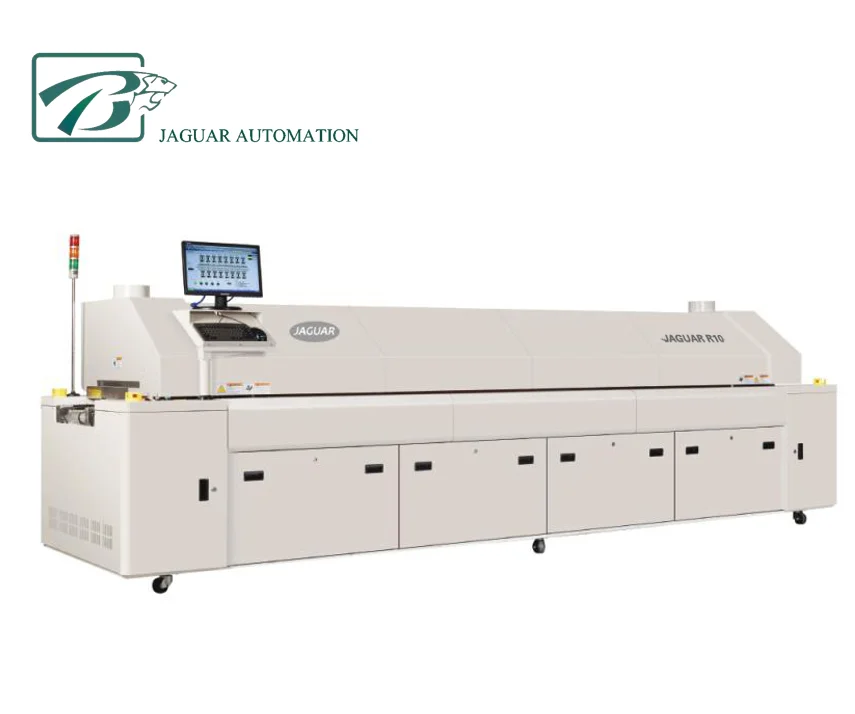

R10 Jaguar Soldering Oven 10 Zones Hot Air Lead Free Reflow Oven Soldering

Product Overview

Description



Introduction:

1. Windows XP platform, user friendly interface and easily swap between bilingual of English & Chinese.

2. Digital control system adopted with PLC and Modular circuit. Achieving high stability and repeatibility.

3. Intelligent diagnostic system (IDS) provides trouble remind, fault alert, list-out and SPC data record features.

4. Zone temperature and blower speed can be controlled Independently, to meet the high-precision requirements.

5. Effective heating zone length with uniform heat distribution.

6. Forced air cooling system with efficient cooling speed suits most kinds of lead-free soldering application.

7. PLC and PID closed loop control to achieve high precision temperature control.

8. Standard 10 couples of top and bottom zones with patented air management structure, more efficient hot air convection and faster thermal compensation.

9. The rail track is dealt with hardening process to make it more reliable.

10. Manual adjusted process track width whereas providing option of automatic by SPG gear motor.

11. Computerized controlled rail chain lubrication structure.

12. Powerful software system can save all settings and data printout capability.





Specification:

Model	JAGUAR R10
Heating System	Number of Heating Zone	Top 10/Bottom 10
	Number of Cooling Zone	Up 3 Bottom 3
	Heating Passage	3870mm
	Heating Style	Hot Air
	Cooling Style	Air Oven: Forced Cooling Air(Optional Nitrogen Oven: Water Chiller)
	Exhaust Volume	10m³/min * 2 Exhaust
Conveyor System	Max. Width of PCB	420mm
	Mesh Belt Width	500mm
	Conveyor Direction	L→R(or R→L)
	Process Height	900±20mm
	Conveyor Style	Mesh and Chain
	Conveyor Speed	0-2000mm/min
	Auto Lubrication	Standard
	Fixed Track	Front Track Fixed(Option: Rear Track Fixed)
	PCB Clearance	Top 30and Bottom 25mm
Control System	Power Supply	5 cables 3 phase 380V 50/60Hz
	Total Consumption	70kw
	Startup Consumption	70/40kw
	Steady Consumption	8-12KW
	Ramp Up Time	About 25 mins
	Temp. Set-point range	Room Temperature-300℃
	Temp. Control Method	PID Close Loop Control & SSR Driving
	Temp. Control Precision	±1℃
	Data Storage	Process Data and Status Storage(80GB)
	Nozzle Plate	Aluminum Alloy Plate
	Abnormal Alarm	Abnormal Temp. (Overtemp/Low temp.)
	Board Dropped Alarm	Standard
	Tricolor Light Tower	Amber-warming, Green-normal, Red-abnormal
General	Dimension(L*W*H)	6580×1380×1520mm
	Weight	2950KG
	Color	Computer grey
