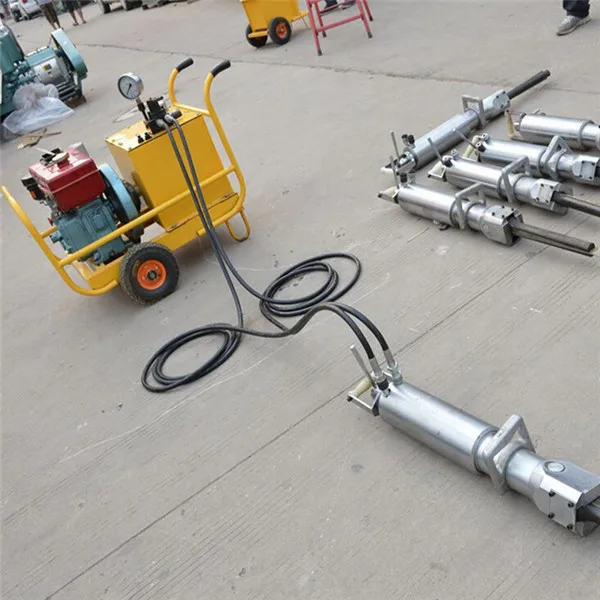

The hydraulic rock & concrete splitter is the most suitable tool for demolition. It has many advantages:
1) Powerful( Max:1000T ), it can split the stone or concrete easily.
2) High Efficiency, it can split the stone in 5-10 seconds.;
3) Long-life, the wedges stands wear and tear;
4) Easy to operate and maintain;

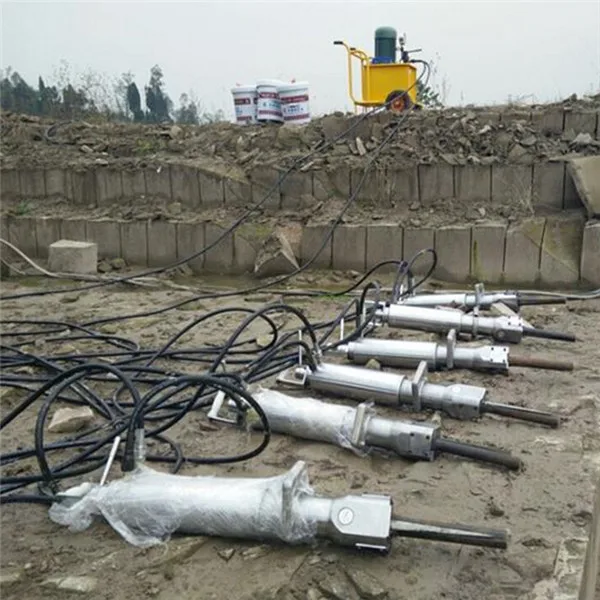

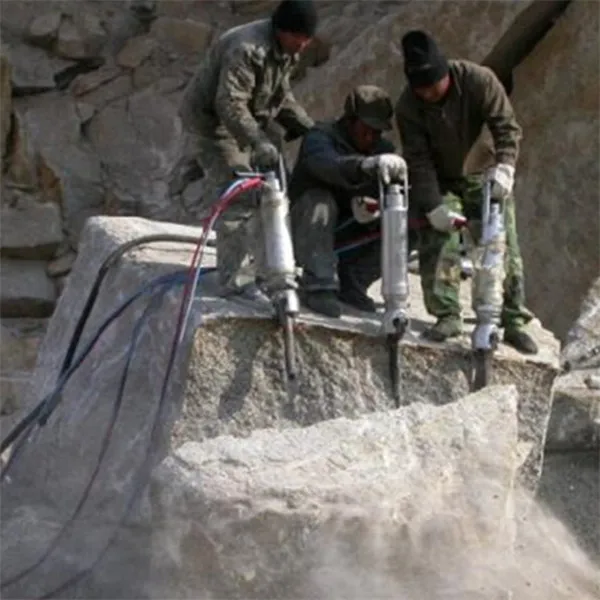

5) Now it is widely used in mineral mining(cave mining) , civil engineering construction and demolition. It is also an indispensable tool in construction, river dredging, salvation etc.
Splitting cylinders parameters | ||||||||||||
model | HW80-250 | HW80-350 | HW80-450 | HW90-250 | HW90-350 | HW90-450 | ||||||
piston diameter | 80mm | 80mm | 80mm | 90mm | 90mm | 90mm | ||||||
drilling diameter | Φ42mm | Φ45mm | Φ50mm | Φ42mm | Φ45mm | Φ50mm | ||||||
drilling depth | ≧500mm | ≧550mm | ≧600mm | ≧500mm | ≧550mm | ≧600mm | ||||||
wedge block length | 250mm | 350mm | 450mm | 250mm | 350mm | 450mm | ||||||
crack width | 10~40mm | 10~40mm | 10~40mm | 10~40mm | 10~40mm | 10~40mm | ||||||
splitting time | 5~15s | 5~15s | 5~15s | 5~15s | 5~15s | 5~15s | ||||||
Theory of separatist force | 600T | 600T | 600T | 800T | 800T | 800T | ||||||
The actul split force | 480T | 480T | 480T | 480T | 480T | 480T | ||||||
weight | 28Kg | 29Kg | 30Kg | 31Kg | 32Kg | 33Kg | ||||||
