Hydraulic Rock Splitter C12 with Hydraulic Pump

Share on (1600277239258):


Price:

Quantity:


Product Overview

Description



Product Description




Rock Splitter Stone Splitting Wedge Darda Hydraulic Rock Breaker Chisel

The hydraulic rock & concrete splitter is the most suitable tool for demolition. It has many advantages:

1) Powerful( Max:1000T ), it can split the stone or concrete easily.

2) High Efficiency, it can split the stone in 5-10 seconds.;

3) Long-life, the wedges stands wear and tear;

4) Easy to operate and maintain;

5) Now it is widely used in mineral mining(cave mining) , civil engineering construction and demolition. It is also an indispensable tool in construction, river dredging, salvation etc.



Splitting cylinders parameters
model
HW80-250
HW80-350
HW80-450
HW90-250
HW90-350
HW90-450
piston diameter
80mm
80mm
80mm
90mm
90mm
90mm
drilling diameter
Φ42mm
Φ45mm
Φ50mm
Φ42mm
Φ45mm
Φ50mm
drilling depth
≧500mm
≧550mm
≧600mm
≧500mm
≧550mm
≧600mm
wedge block length
250mm
350mm
450mm
250mm
350mm
450mm
crack width
10~40mm
10~40mm
10~40mm
10~40mm
10~40mm
10~40mm
splitting time
5~15s
5~15s
5~15s
5~15s
5~15s
5~15s
Theory of separatist force
600T
600T
600T
800T
800T
800T
The actul split force
480T
480T
480T
480T
480T
480T
weight
28Kg
29Kg
30Kg
31Kg
32Kg
33Kg

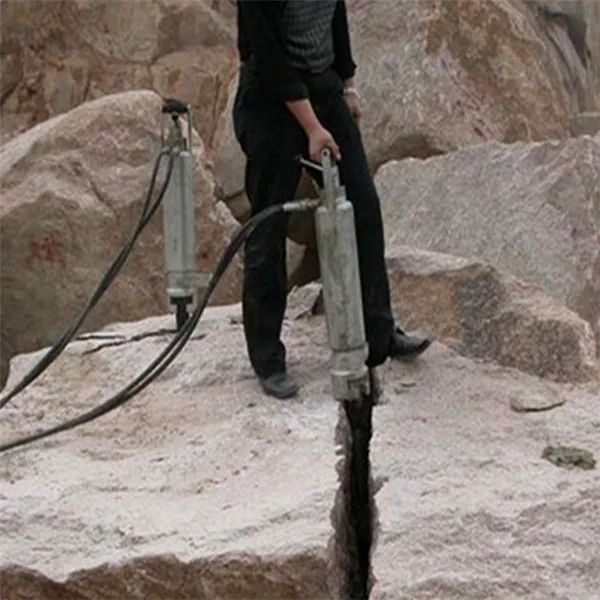

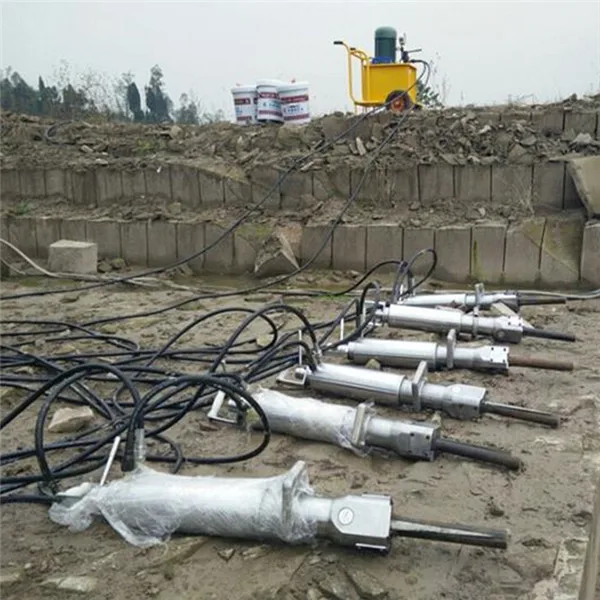

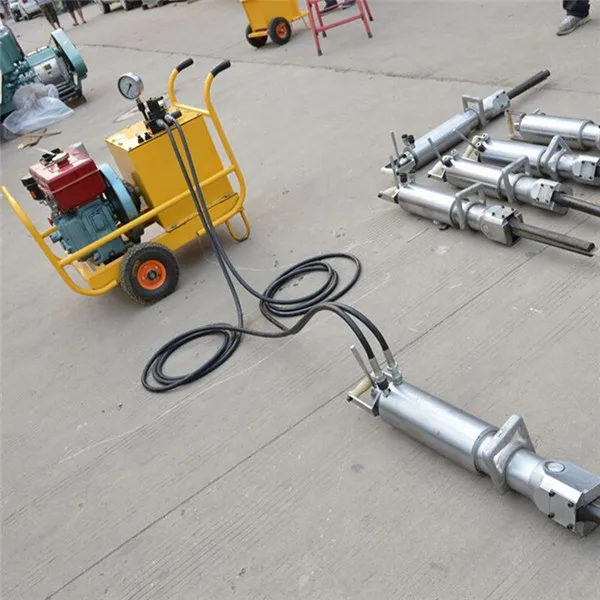

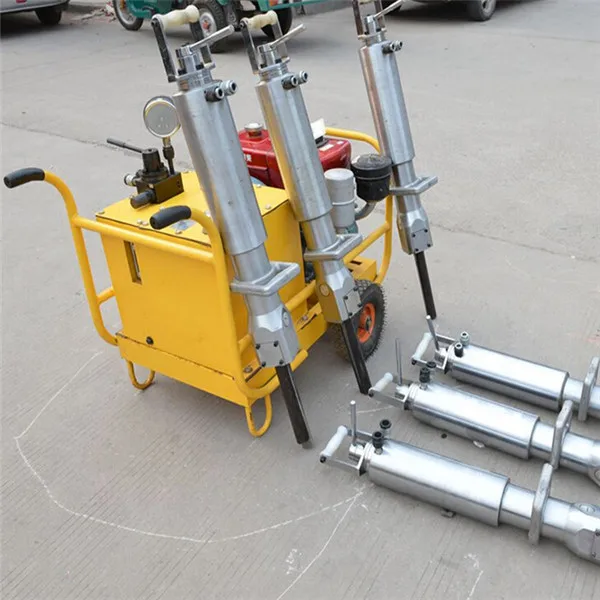

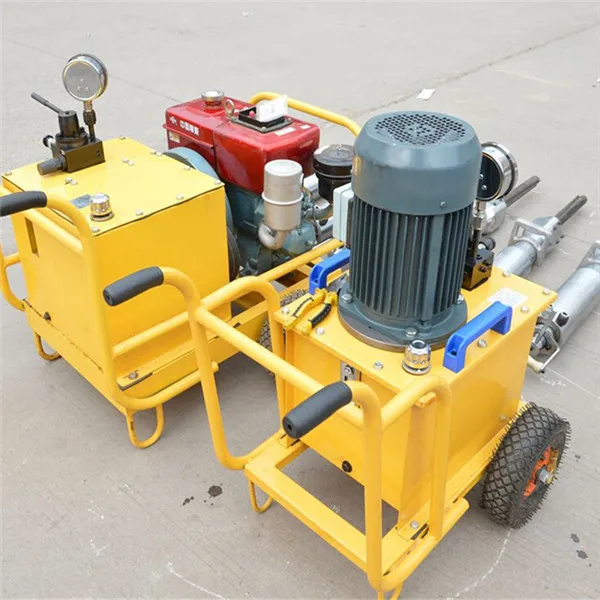

Detailed Images










Application
