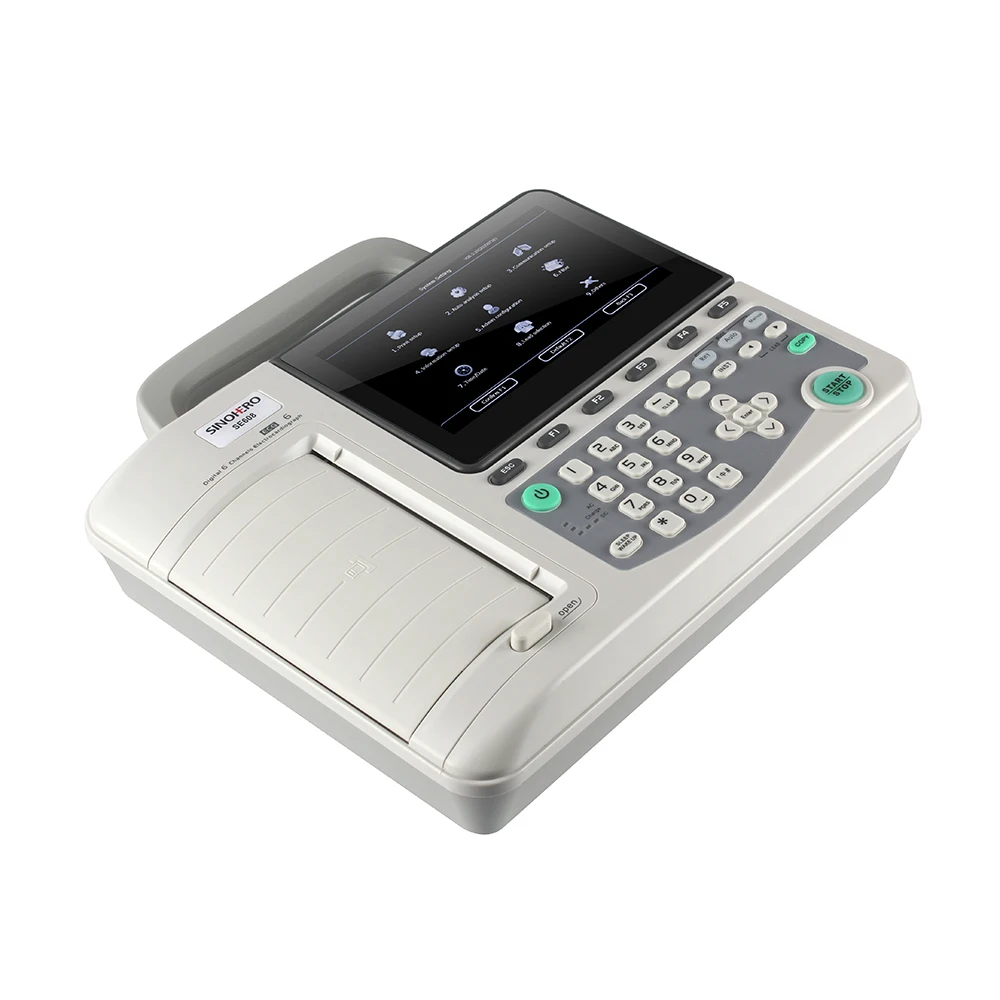

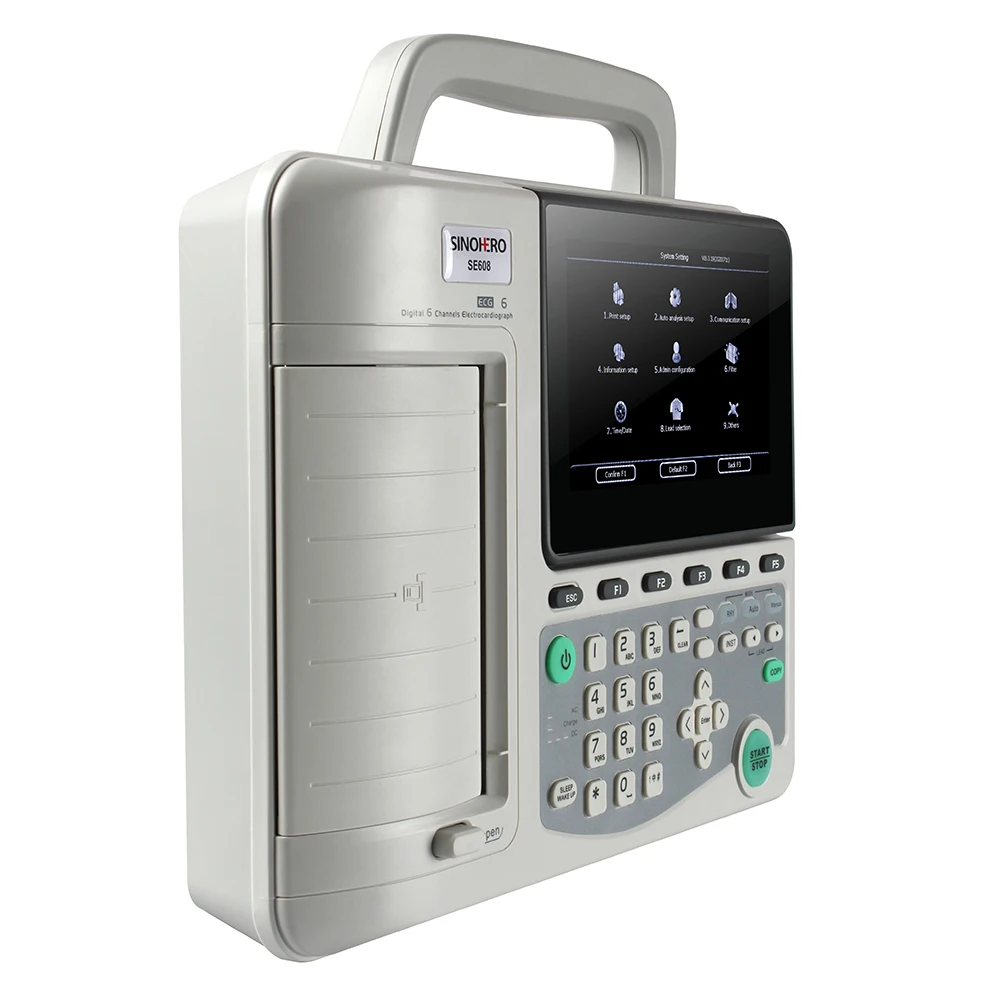

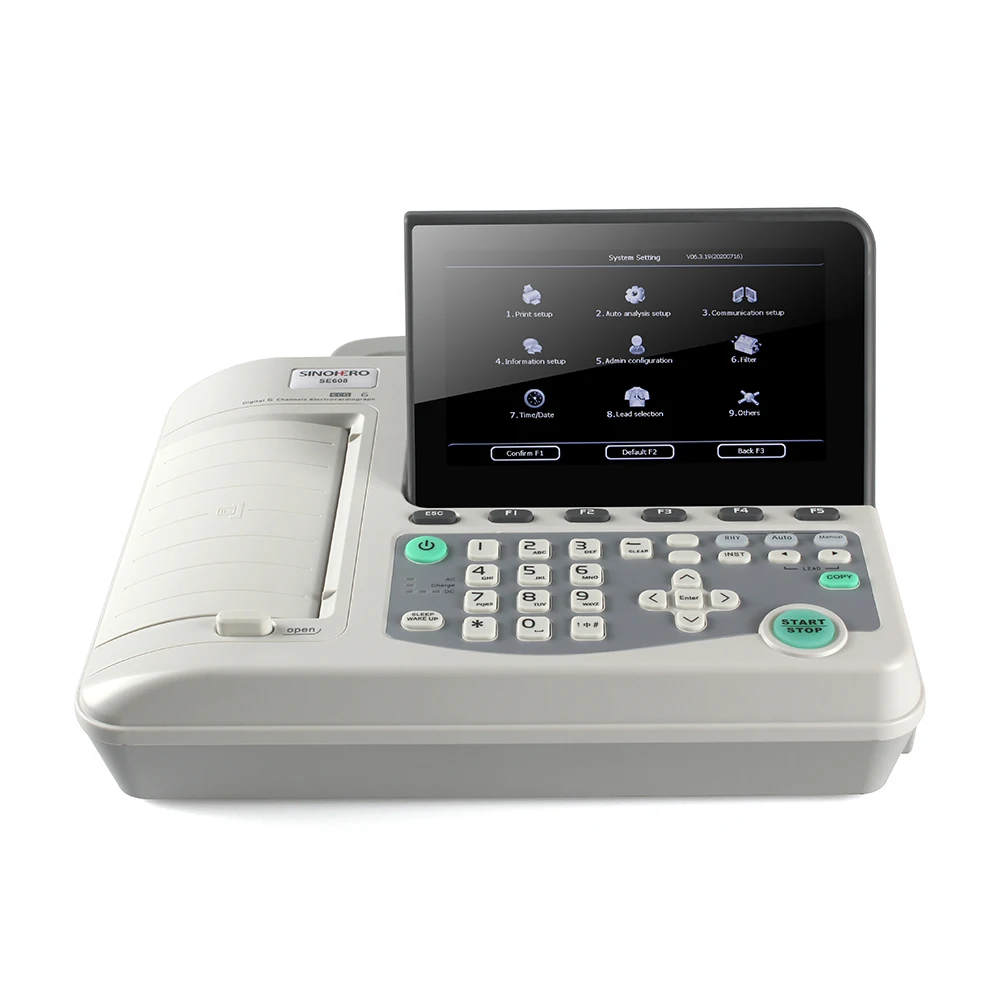

SINOHERO SE608 CE portable ecg machine Manufacturers 6 channel 12 lead electrocardiograph ekg machine
- Category: >>>
- Supplier: Sinohero Changsha Meditech Co. Ltd.
Share on (1600277366019):
Product Overview
Description
Product Description
SINOHERO SE608 Medical Portable Digital ECG Machine For Hospital 6 channel Electrocardiograph ekg monitor
●Performance :
Display: 800x480 pixel TFT LCD
Sample Rate:Normal:1000spslchannel
Pacemaker: 10,000spslchannel
lnput Circuit: Built-in defibrillator protection
lnput lmpedance: 250MQ
lnput Circuit Current: <0.05uA
Lead: Standard 12 leads
Acquisition Mode: Simultaneous 12 leads acquisition
Measurement Range: t5mVpp
Time Constant: z3.2s
Frequency Response: 0.05Hz-150Hz(-3dB)
Sensitivity: 2.5.5.10.20 mmimv
Noise Level: <15uVp-p
Anti Baseline Drift: Automatic
Patient Current Leakage: <10uA(220V-240V)
EMG Filter: 25 Hz 30 Hz /40Hz
DFT Filter: 0.05 Hz/0.15 Hz /0.25 Hz 0.32 Hz/0.5 Hz
/0.67HziADS
AC Filter 50 / 6OHz
Low Pass Filter: 75 Hz /100 Hz /150Hz
CMRR:100dB
Recording Mode: Automatic: 3CH，1CH+1R
Manual: 3CH,1CH+1R,1CH
Rhythm: Any lead selectable
Safety Standard: lEc ICF
Pacemaker Detection: ≥t2 mV 2± 0.1 ms
lnterface: Network interface, uSB MasterrSlave,sD card

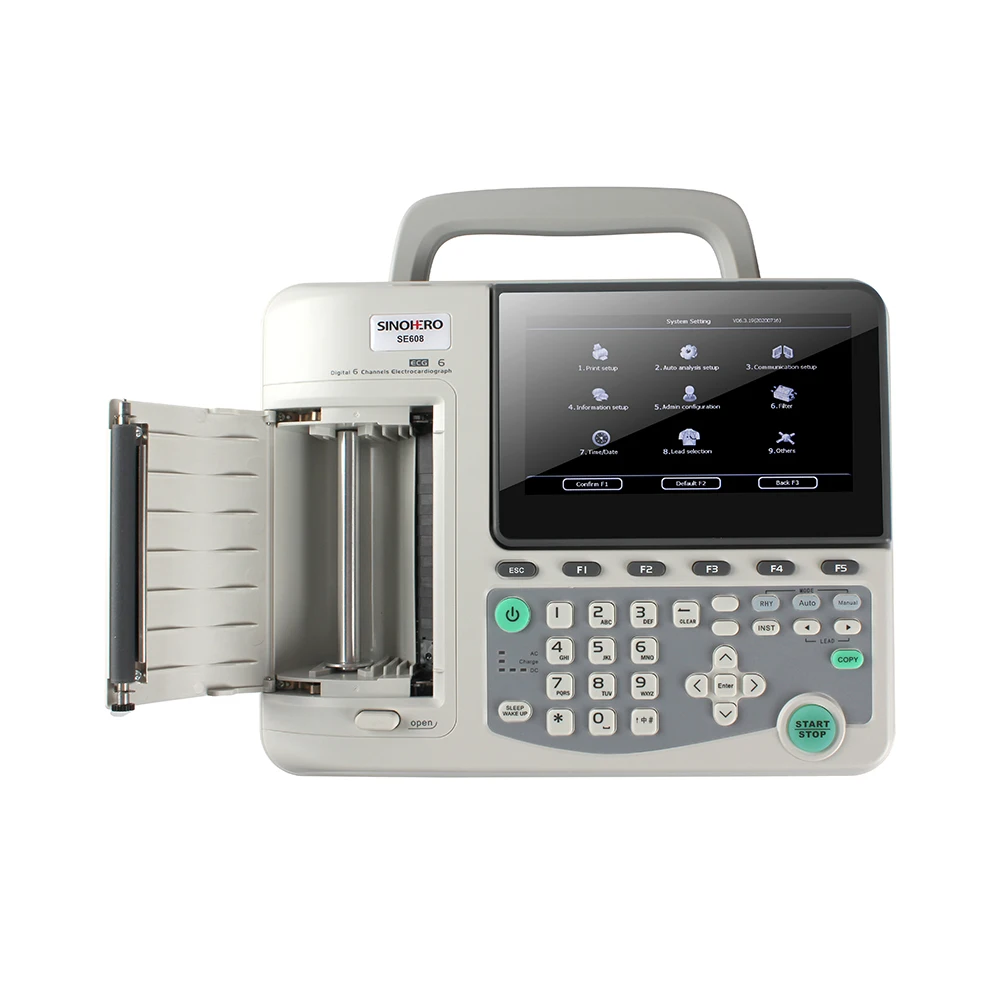

Recording System: Thermal matrix printing
Recording Paper: RolI: 110mmx20m
Paper Speed: 5 mm/s,6.25mmls,10 mms,12.5 mmis,25
mmls, 50mmvs
Power Supply:AC:100-240V,50/6OHz,30VA-100VA
DC:14.8V/2200mAh, built-in lithium battery
The SE608 is Multifunctional design equipped with a 10 inch folding true-color LCD screen, allowing you to view from multiple angles. Multi-language option, compatible with paper of various sizes Information solutions for paperless reporting and remote diagnosis.
SE608 Six channel ECG is such a kind of electrocardiograph,which samples 12 leads ECG signals simultaneously and prints out the ECG waveforms with thermal printing system. Its functions are as follows: Recording and displaying ECG waveforms in auto/manual mode; Auto-measuring and auto-diagnosing the ECG wave parameters; Prompting the state of lead off and paper lack; Switching several kinds of interface languages; Managing the case database.
Application：Hospital&Family Electrocardiograph Measure ECG Recorder
●Features:
Sharp 7" color TFT with Alpha-numeric keyboard
Large Foldable LCD Display, Clear and Intuitive:7 inch TFT color display with 800×480 resolution, Background with grid, 12 leads ECG can be displayed on the same screen
Ergonomic Design:Alpha-numeric keyboard with shortcut keys, efficient in operation, Portable handle, easy to carry
Built-in Lithium battery, Large Storage Capacity:Built-in rechargeable Lithium high capacity battery, Support SD Card to extend memory
Peripherals and Communications
Support peripherals* : SD Card/ Mouse/ Keyboard/ Barcode Scanner/ USB Printer, Built-in high resolution thermal printer, Supports external USB Printer* via USB Port
2 leads of ECG Simultaneous acquisition and presentation
Simultaneous 6 leads of ECG printing with 110mm thermal paper
Multiple USB port for connecting PC-ECG software and external printer
Built-in rechargeable lithium battery (to print up to 1080 ECG reports)
Built-in 4G SD memory card to store up to 10,000 ECG event reports in XML /PDF/ BMP format, and convenient for Software upgrading automatically
Excellent ECG auto-interpretation program and Pacemaker detection
Reliable and fast Network connectivity and data transmission
Simple and convenient operation, User friendly design, to bring more comfortable operating experience to medical staff
Seamless Connectivity:
Multiple format reports export: PDF, JPG, BMP, XML, SCP*, DICOM, FDA-XML
ECG data can be transfered to the ECG management software* through SD Card or LAN Port
Data access with HIS/ PACS/ EMR system based on FTP/ DICOM* /HL7* standard protocol
Patient information can be retrieved from the worklist*
Powerful functions:
Simultaneous 12 leads ECG acquisition and display
Automatic ECG measurements and interpretation
Support pacemaker detection
Comprehensive file management system to query, delete and edit patient data
Supports Auto, manual and rhythm mode
Lead off alarm
SE608 Six channel ECG is such a kind of electrocardiograph,which samples 12 leads ECG signals simultaneously and prints out the ECG waveforms with thermal printing system. Its functions are as follows: Recording and displaying ECG waveforms in auto/manual mode; Auto-measuring and auto-diagnosing the ECG wave parameters; Prompting the state of lead off and paper lack; Switching several kinds of interface languages; Managing the case database.
Application：Hospital&Family Electrocardiograph Measure ECG Recorder
●Features:
Sharp 7" color TFT with Alpha-numeric keyboard
Large Foldable LCD Display, Clear and Intuitive:7 inch TFT color display with 800×480 resolution, Background with grid, 12 leads ECG can be displayed on the same screen
Ergonomic Design:Alpha-numeric keyboard with shortcut keys, efficient in operation, Portable handle, easy to carry
Built-in Lithium battery, Large Storage Capacity:Built-in rechargeable Lithium high capacity battery, Support SD Card to extend memory
Peripherals and Communications
Support peripherals* : SD Card/ Mouse/ Keyboard/ Barcode Scanner/ USB Printer, Built-in high resolution thermal printer, Supports external USB Printer* via USB Port
2 leads of ECG Simultaneous acquisition and presentation
Simultaneous 6 leads of ECG printing with 110mm thermal paper
Multiple USB port for connecting PC-ECG software and external printer
Built-in rechargeable lithium battery (to print up to 1080 ECG reports)
Built-in 4G SD memory card to store up to 10,000 ECG event reports in XML /PDF/ BMP format, and convenient for Software upgrading automatically
Excellent ECG auto-interpretation program and Pacemaker detection
Reliable and fast Network connectivity and data transmission
Simple and convenient operation, User friendly design, to bring more comfortable operating experience to medical staff
Seamless Connectivity:
Multiple format reports export: PDF, JPG, BMP, XML, SCP*, DICOM, FDA-XML
ECG data can be transfered to the ECG management software* through SD Card or LAN Port
Data access with HIS/ PACS/ EMR system based on FTP/ DICOM* /HL7* standard protocol
Patient information can be retrieved from the worklist*
Powerful functions:
Simultaneous 12 leads ECG acquisition and display
Automatic ECG measurements and interpretation
Support pacemaker detection
Comprehensive file management system to query, delete and edit patient data
Supports Auto, manual and rhythm mode
Lead off alarm
●Performance :
Display: 800x480 pixel TFT LCD
Sample Rate:Normal:1000spslchannel
Pacemaker: 10,000spslchannel
lnput Circuit: Built-in defibrillator protection
lnput lmpedance: 250MQ
lnput Circuit Current: <0.05uA
Lead: Standard 12 leads
Acquisition Mode: Simultaneous 12 leads acquisition
Measurement Range: t5mVpp
Time Constant: z3.2s
Frequency Response: 0.05Hz-150Hz(-3dB)
Sensitivity: 2.5.5.10.20 mmimv
Noise Level: <15uVp-p
Anti Baseline Drift: Automatic
Patient Current Leakage: <10uA(220V-240V)
EMG Filter: 25 Hz 30 Hz /40Hz
DFT Filter: 0.05 Hz/0.15 Hz /0.25 Hz 0.32 Hz/0.5 Hz
/0.67HziADS
AC Filter 50 / 6OHz
Low Pass Filter: 75 Hz /100 Hz /150Hz
CMRR:100dB
Recording Mode: Automatic: 3CH，1CH+1R
Manual: 3CH,1CH+1R,1CH
Rhythm: Any lead selectable
Safety Standard: lEc ICF
Pacemaker Detection: ≥t2 mV 2± 0.1 ms
lnterface: Network interface, uSB MasterrSlave,sD card
Recording System: Thermal matrix printing
Recording Paper: RolI: 110mmx20m
Paper Speed: 5 mm/s,6.25mmls,10 mms,12.5 mmis,25
mmls, 50mmvs
Power Supply:AC:100-240V,50/6OHz,30VA-100VA
DC:14.8V/2200mAh, built-in lithium battery
● Physical characteristic:
Working environment
Temperature: 5℃~40℃
Relative humidity: 25%~95%(non-condensing)
Atmospheric pressure: 700hPa~1060hPa
Transport and storage environment
Temperature: -40℃~+55℃
Relative humidity: ≤95%
Atmospheric pressure: 500hPa~1060hPa
Product size: 31x25x6.5cm
Packing size: 39x20x37cm
Net weight: 4Kg ( include battery)
Gross weight: 8kg
Working environment
Temperature: 5℃~40℃
Relative humidity: 25%~95%(non-condensing)
Atmospheric pressure: 700hPa~1060hPa
Transport and storage environment
Temperature: -40℃~+55℃
Relative humidity: ≤95%
Atmospheric pressure: 500hPa~1060hPa
Product size: 31x25x6.5cm
Packing size: 39x20x37cm
Net weight: 4Kg ( include battery)
Gross weight: 8kg
Model Number: | SE608 |
Resolution: | 800×480 resolution, Background with grid, 12 leads ECG can be displayed on the same screen |
Test mode: | Auto measurement and auto diagnosis function |
lnput lmpedance: | 250MQ |
Paper Speed: | 5 mm/s, 6.25mmls, 10 mms, 12.5 mmis, 25mmls, 50mmvs |
Power Supply: | AC: 220V / 110V, 50/60Hz DC: 12V rechargeable battery |
Printing Type: | Simultaneous 6 leads of ECG printing with 110mm thermal paper |
Sensitivity: | 2.5,5,10,20 mm/mV, Error: ±5%. |
Noise Level: | <15uVp-p |
Recommend Products
ECG SE508
3-Channel ECG Machine
Sharp and clear 3.5" inch TFT screen
* 12 lead ECG simultaneously display
* Built-in database and store more than 1000 pieces of ECG data
* Auto-measurement, auto-analysis and auto interpretation functions
* Both AC and DC power supply with built-in lithium rechargeable battery
Sharp and clear 3.5" inch TFT screen
* 12 lead ECG simultaneously display
* Built-in database and store more than 1000 pieces of ECG data
* Auto-measurement, auto-analysis and auto interpretation functions
* Both AC and DC power supply with built-in lithium rechargeable battery
ECG SE1208
12-Channel Electrocardiograph
* Splendid 10” color TFT with Alpha-numeric keyboard
*Simultaneous 12 leads of ECG printing(Roll or Z-fold)
*Multiple USB port for connecting PC-ECG software and external printer
* Excellent ECG auto-interpretation program and Pacemaker detection
* Reliable and fas Network Connectivity and data transmission
* Splendid 10” color TFT with Alpha-numeric keyboard
*Simultaneous 12 leads of ECG printing(Roll or Z-fold)
*Multiple USB port for connecting PC-ECG software and external printer
* Excellent ECG auto-interpretation program and Pacemaker detection
* Reliable and fas Network Connectivity and data transmission
ECG SE509
3-Channel ECG Machine
* 4.3” Vivid color Full Touch Screen
* 12 Leads ECG simultaneous acquisition and display
* Innovative digital
filters&anti-noise technology
* Built-in high resolution thermal printer with various 3-channel report printing
* Both SD and USB memory enlarge available
Packing & Delivery

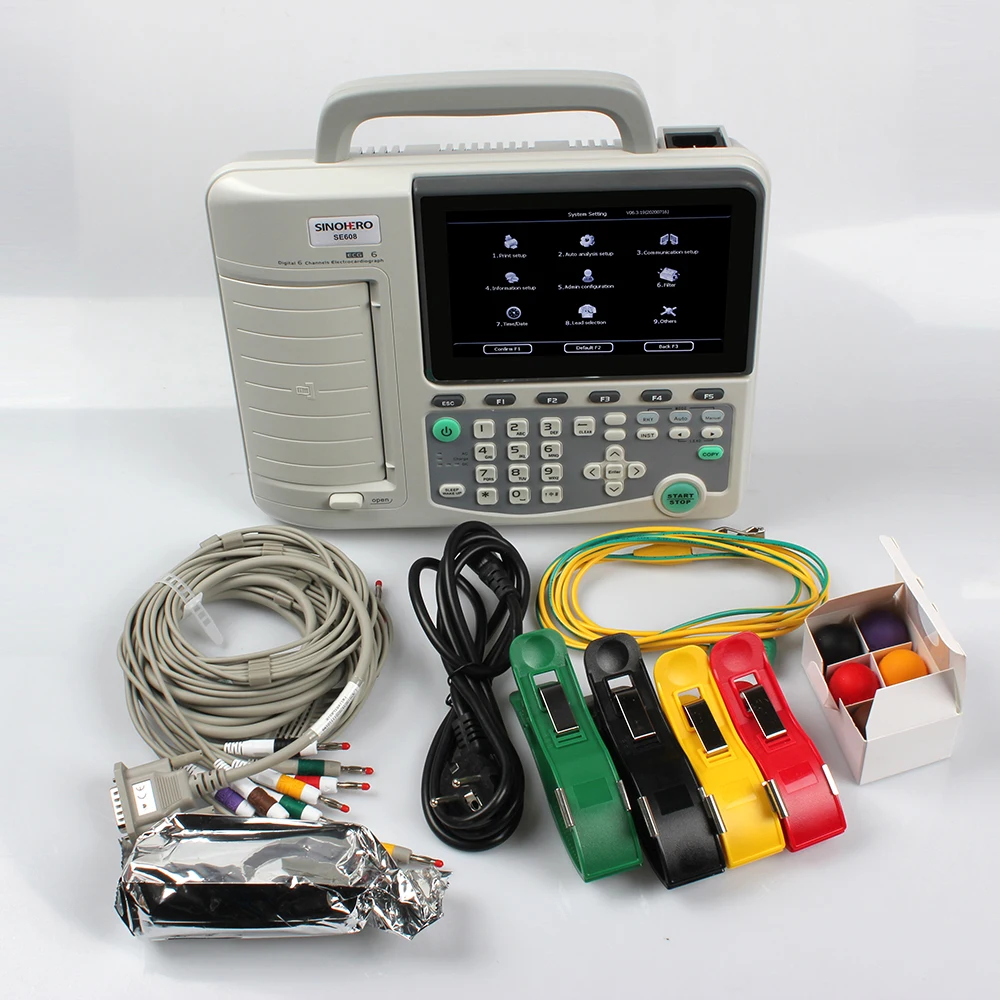

Package included:
1XSE608 ECG Machine
1XLead cable
1 setXLimb electrode(4PCS)
1 setXChest electrode(6PCS)
1XData transmission line
1XThermal recording paper
1XPower cord
1XEarth wire
1XUser manual
1XSE608 ECG Machine
1XLead cable
1 setXLimb electrode(4PCS)
1 setXChest electrode(6PCS)
1XData transmission line
1XThermal recording paper
1XPower cord
1XEarth wire
1XUser manual
Optional:
ECG-Sync software+USB cable
ECG electrode
Bag
Conductive gel
wall mount, trolley, etc...
ECG-Sync software+USB cable
ECG electrode
Bag
Conductive gel
wall mount, trolley, etc...
Company Profile
Certifications
Exhibition
FAQ
1. Who we are?Where we are from? Where we service?
We are Sino-Hero (Shenzhen) Bio-Medical Electronics Co., Ltd, founded in 2003, is one of the leading manufactures for medical
devices and medical accessories in China. We are based in Shenzhen,Guangdong, China, start from 2004, WE service more than 100
country： Northern Europe(10.00%),Western Europe(10.00%),EasternAsia(10.00%),South Asia(10.00%),Southern Europe(10.00%),Southeast
Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),North America(10.00%),Mid East(5.00%),Africa(5.00%). There are total
about 11-50 people in our office.
devices and medical accessories in China. We are based in Shenzhen,Guangdong, China, start from 2004, WE service more than 100
country： Northern Europe(10.00%),Western Europe(10.00%),EasternAsia(10.00%),South Asia(10.00%),Southern Europe(10.00%),Southeast
Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),North America(10.00%),Mid East(5.00%),Africa(5.00%). There are total
about 11-50 people in our office.
2.What we have?How can we guarantee quality?
We are professional in medical more than 16 Years,We have TUV CE a& ISO13485 Certifications for our products. All of our items
Always a pre-production sample before mass production; All items get 100% checking before in our stock; Always final Inspection
before shipment.
Always a pre-production sample before mass production; All items get 100% checking before in our stock; Always final Inspection
before shipment.
3.What items we could provide for you?
SINO-HERO business activities focus on product lines below: 1) A wide range of versatile Patient Monitors suitable for all
hospital setting, including OR, ER, Recovery Room, General Patient ward 2)Monitoring Accessories maximal compatibility for all
major brands (GE, Philips, Schiller, Collin, CSI, Critikon, Nihon Kohden, etc.): including, Reusable Spo2 Sensor & Ext-Cable, ECG
cable, EKG cable, NIBP cuff, Air-hose, Temp probe 3) ECG machine and its accessories 4) Infusion pump and Syringe Pump system 5)
Obstetrical product: Fetal Doppler, Colposcope 6) Medical Imaging Systems:Color Ultrasound Scanner, Portable Ultrasound System 7)
A wide range of compatible ultrasound probes and repairable ultrasound probes.
hospital setting, including OR, ER, Recovery Room, General Patient ward 2)Monitoring Accessories maximal compatibility for all
major brands (GE, Philips, Schiller, Collin, CSI, Critikon, Nihon Kohden, etc.): including, Reusable Spo2 Sensor & Ext-Cable, ECG
cable, EKG cable, NIBP cuff, Air-hose, Temp probe 3) ECG machine and its accessories 4) Infusion pump and Syringe Pump system 5)
Obstetrical product: Fetal Doppler, Colposcope 6) Medical Imaging Systems:Color Ultrasound Scanner, Portable Ultrasound System 7)
A wide range of compatible ultrasound probes and repairable ultrasound probes.
4. Why should you buy from us not from other suppliers?
SINHERO’s products are installed in over 50 countries, including US, UK, Germany, France, Italy, Spain, etc. and the percentage of
total sales from Europe has been growing fast.
The main competitive advantages of SINOHERO’s products:
a. quality
b. functionality
c. easy maintenance and easy to operate
d. spare parts and consumables at low cost
e. on-time delivery
f. strong after sales technical support
total sales from Europe has been growing fast.
The main competitive advantages of SINOHERO’s products:
a. quality
b. functionality
c. easy maintenance and easy to operate
d. spare parts and consumables at low cost
e. on-time delivery
f. strong after sales technical support
5. What services we Can provide for you?
We could provide items with Ready to ship,we also could do OEM,ODM orders,we also welcome you to be our Brand Sinohero Agent to
work together with us;
Accepted Delivery Terms: FOB,CIF,EXW,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,German,French,Russian
work together with us;
Accepted Delivery Terms: FOB,CIF,EXW,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,German,French,Russian
Contect us
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
