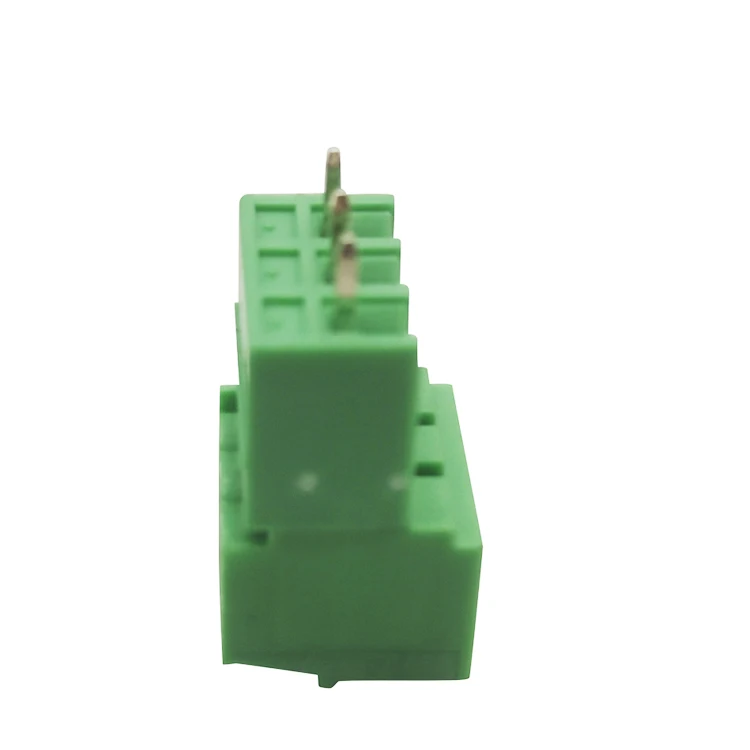

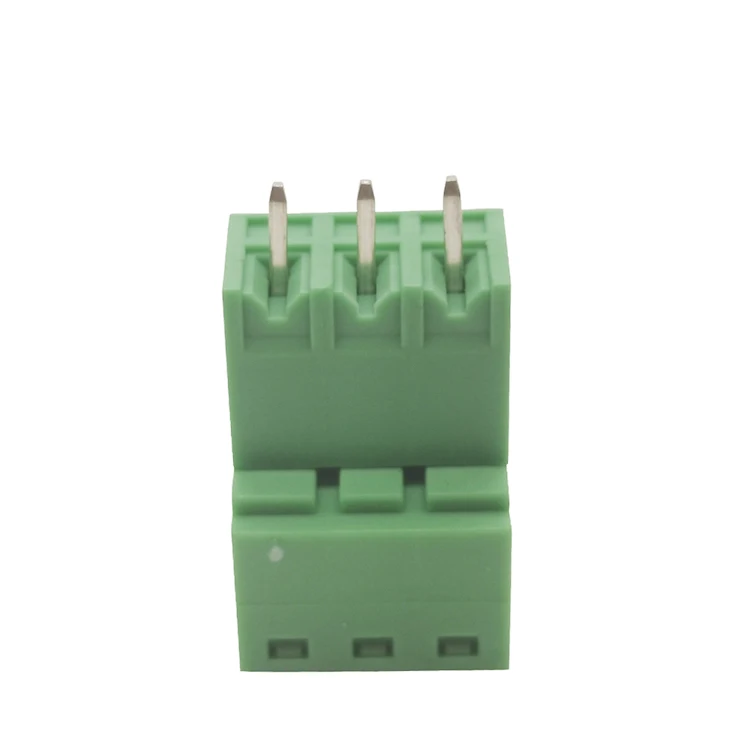

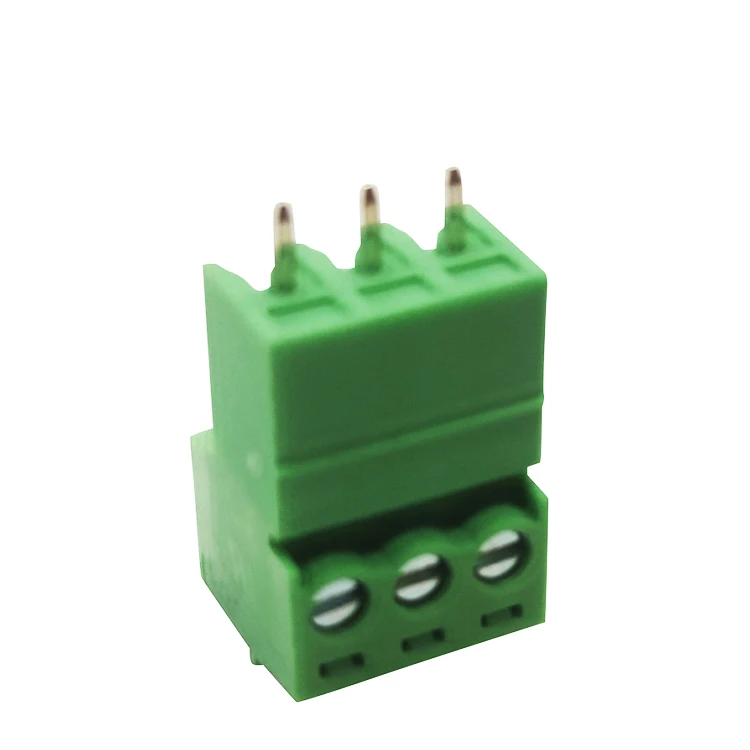

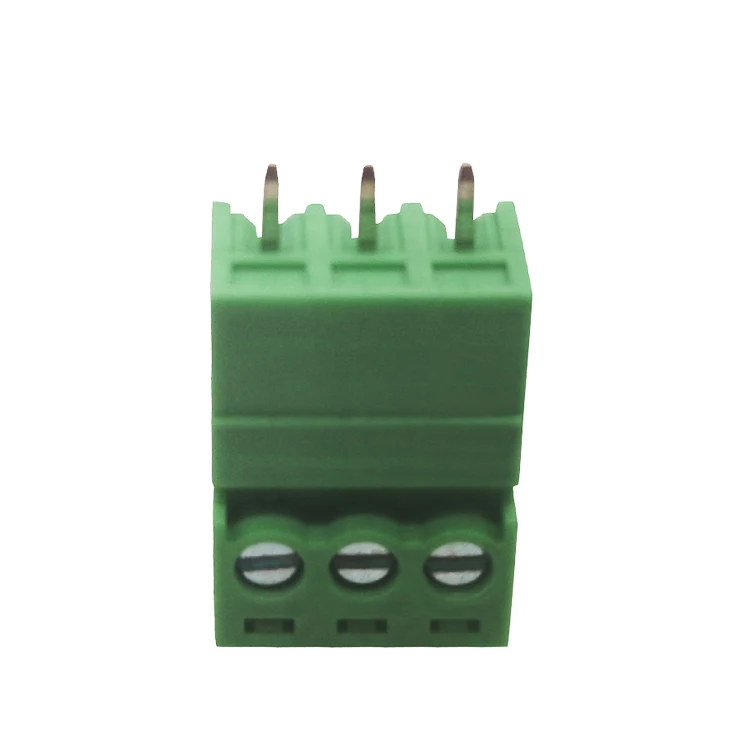

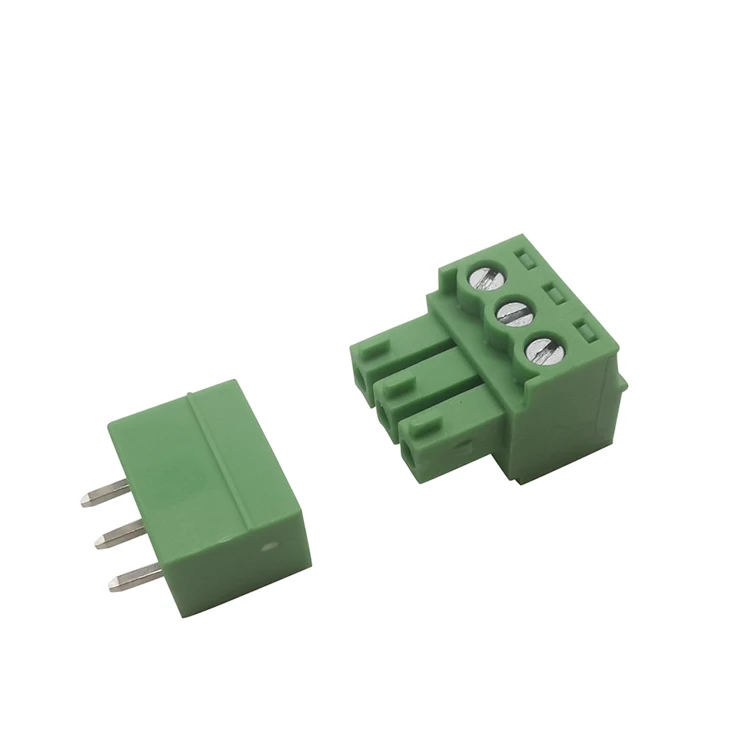

16 28AWG 3.81mm pitch 3 pole pcb Male Female connector 3pin pluggable terminal connector block
- Category: Terminal Blocks >>>
- Supplier: Ningbo Hongyi Electronic Co. Ltd.
Share on (1600277635448):
Product Overview
Description
Product Description
Material | ||
Housing | PA66, UL94V-0 | |
Clamp | Brass, Ni plated | |
Screws | M2.0 steel Zinc plated | |
Cage | Bronze, Ni plated | |
Electrical | ||
Wire range | 28-16AWG | |
Rated Voltage | 300V | |
Rated Current | 8A | |
Withstanding voltage | AC 1500V/1 Min | |
Contact resistance | 20mΩ | |
Mechanical | ||
Temp. Range | -40℃~ +105℃ | |
MAX Soldering | +250, for 5 Sec. | |
Torque | 0.2Nm(2.04lb.in) | |
Strip length | 5-6MM | |

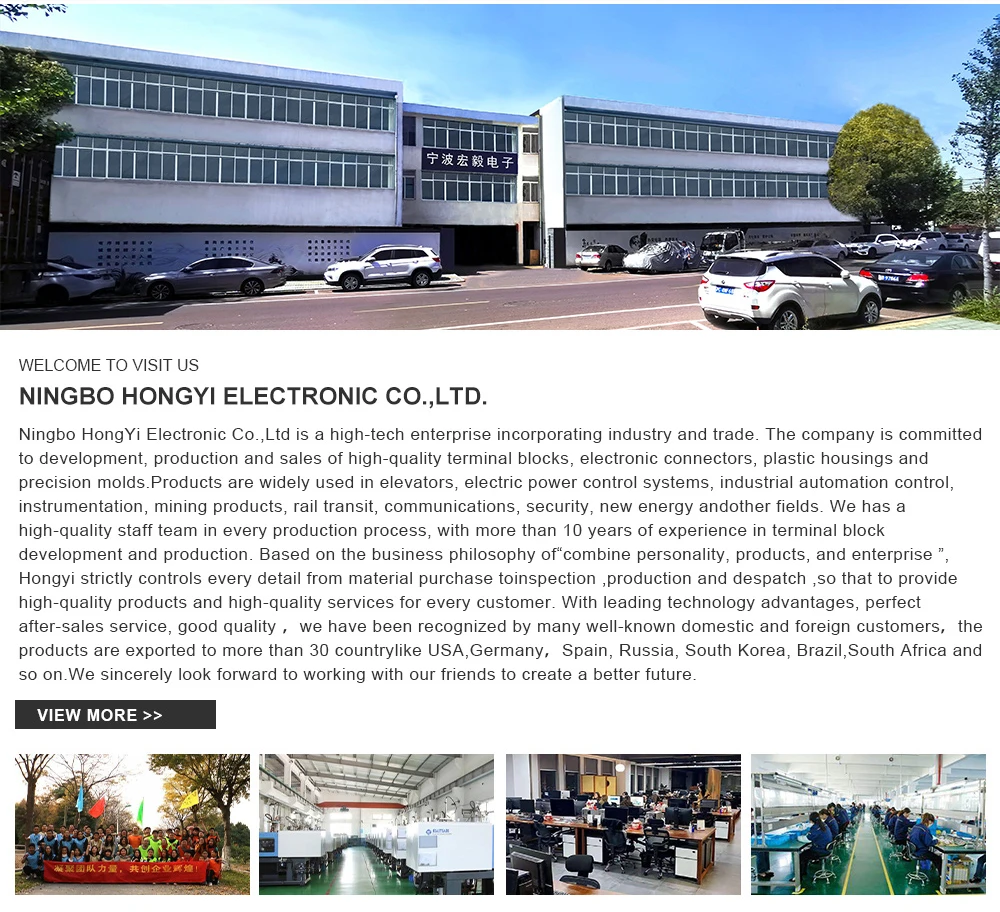

Company Profile
Production Process
1.MATERIAL
2.INJECTION
3.FORMING
4.MANUAL ASSEMBLY
5.AUTOMATIC ASSEMBLY
6.INSPECTION
Certifications
Packing & Delivery
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production
Q6. Is it OK to print number on the terminal block?
A: Yes. Please inform us formally before our production and confirm it firstly based on our sample.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production
Q6. Is it OK to print number on the terminal block?
A: Yes. Please inform us formally before our production and confirm it firstly based on our sample.
Product Description
Material | ||
Housing | PA66, UL94V-0 | |
Clamp | Brass, Ni plated | |
Screws | M2.0 steel Zinc plated | |
Cage | Bronze, Ni plated | |
Electrical | ||
Wire range | 28-16AWG | |
Rated Voltage | 300V | |
Rated Current | 8A | |
Withstanding voltage | AC 1500V/1 Min | |
Contact resistance | 20mΩ | |
Mechanical | ||
Temp. Range | -40℃~ +105℃ | |
MAX Soldering | +250, for 5 Sec. | |
Torque | 0.2Nm(2.04lb.in) | |
Strip length | 5-6MM | |
Company Profile
Production Process
1.MATERIAL
2.INJECTION
3.FORMING
4.MANUAL ASSEMBLY
5.AUTOMATIC ASSEMBLY
6.INSPECTION
Certifications
Packing & Delivery
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production
Q6. Is it OK to print number on the terminal block?
A: Yes. Please inform us formally before our production and confirm it firstly based on our sample.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production
Q6. Is it OK to print number on the terminal block?
A: Yes. Please inform us formally before our production and confirm it firstly based on our sample.
