ANENG AN998 Digital 6000 Count Professional Multimeter Electronic Auto Range AC/DC Voltmeter Temperature Ohm Hertz Detector Tool
- Category: >>>
- Supplier: Guangdong Jinyuanquan Electronic Technology Co. Ltd.
Share on (1600277756556):
Product Overview
Description

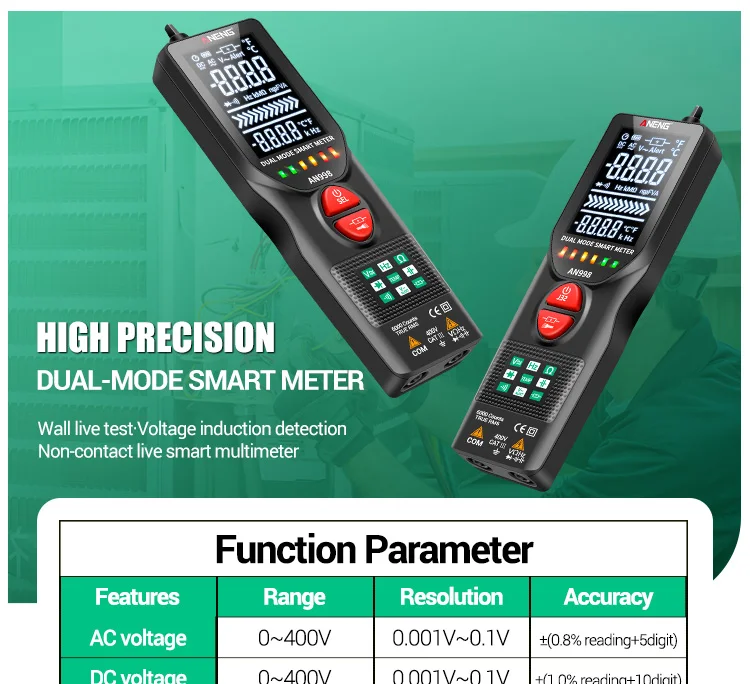

ANENG AN998
Dual-Mode True RMS Automatic Digital 6000 CountsProfessional Multimeter
a.Description:

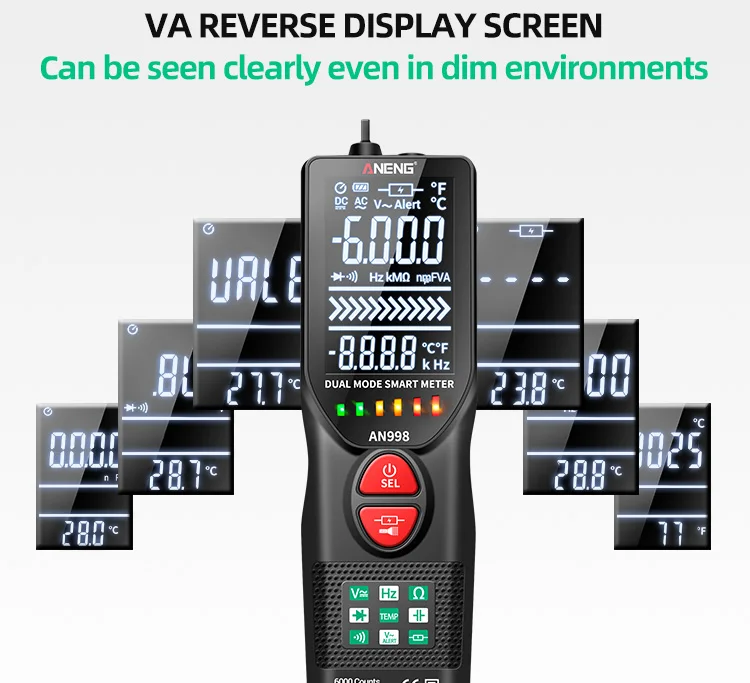

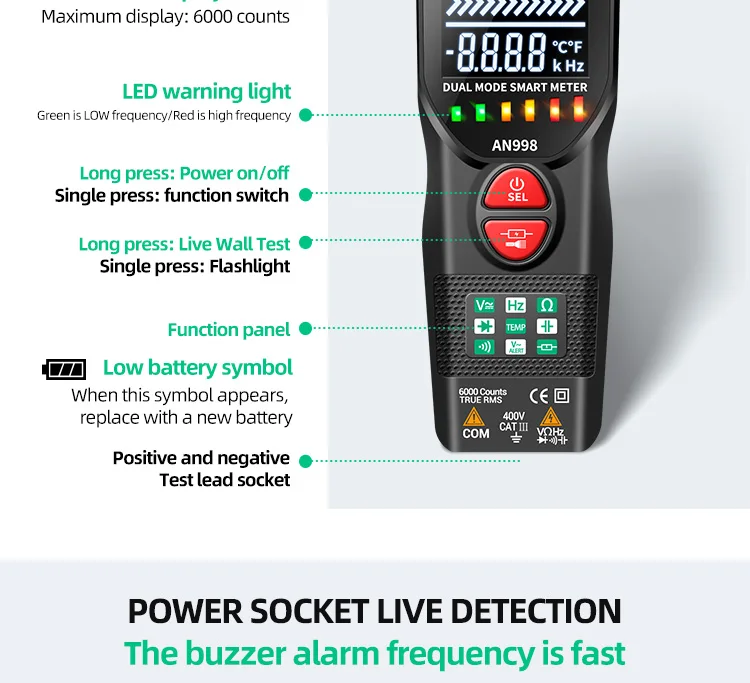

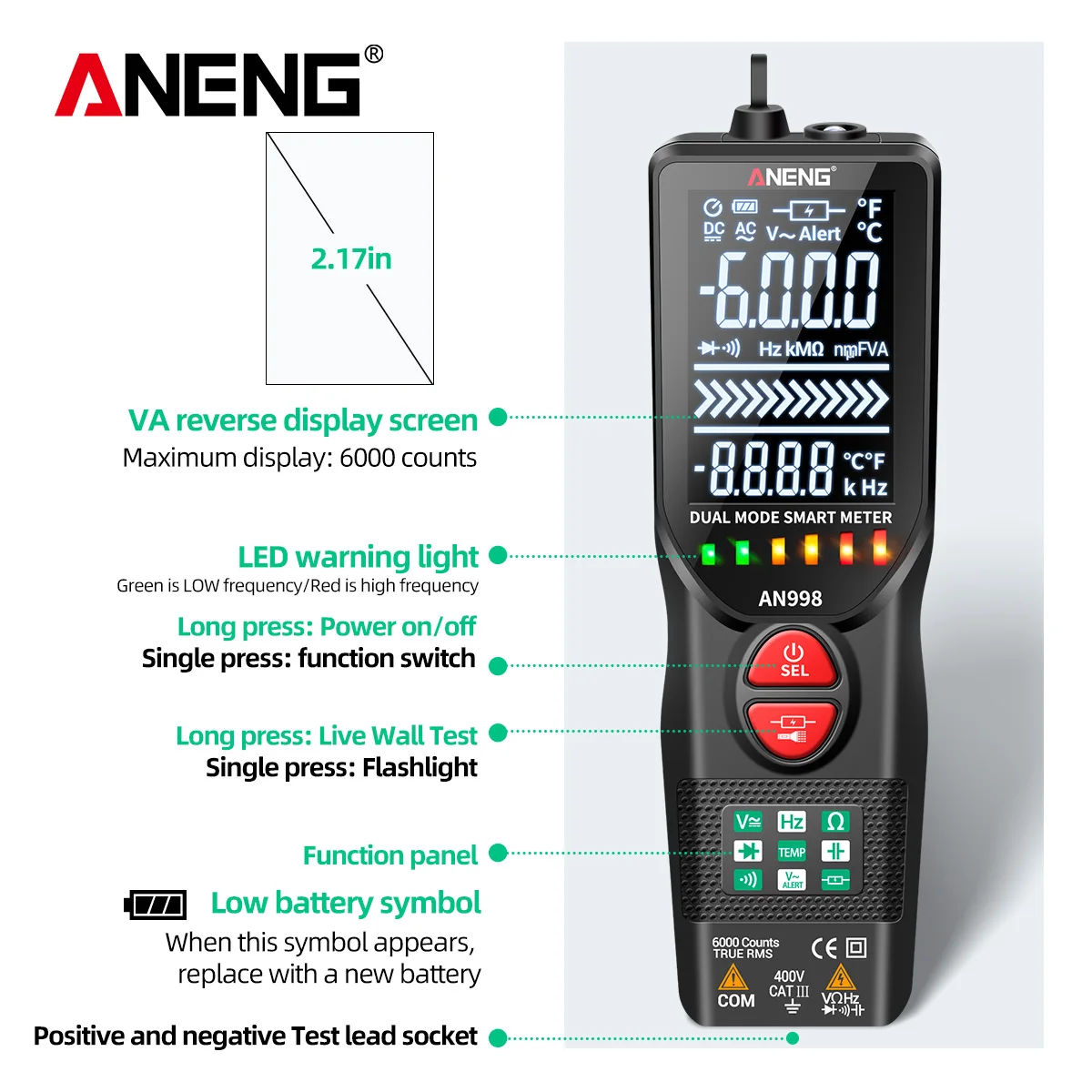

The meter is a portable,professional measuring instrument,with LCD digital display,and a backlight.Users can read the data easily.One-handed operation of the range switch facilitates measurement,with overload protection and low battery indication.Whether for the professionals,factories,schools,hobbyists and families,it is an ideal multifunction instrument.

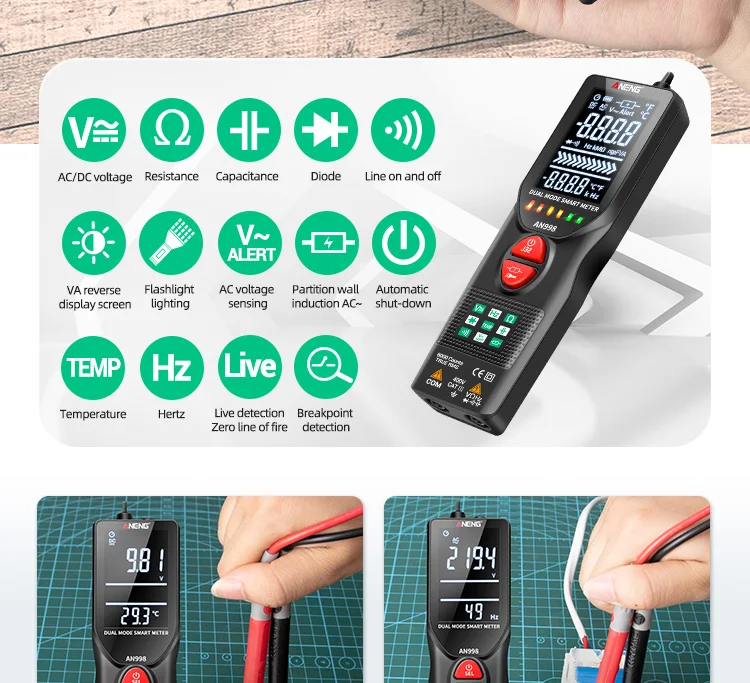

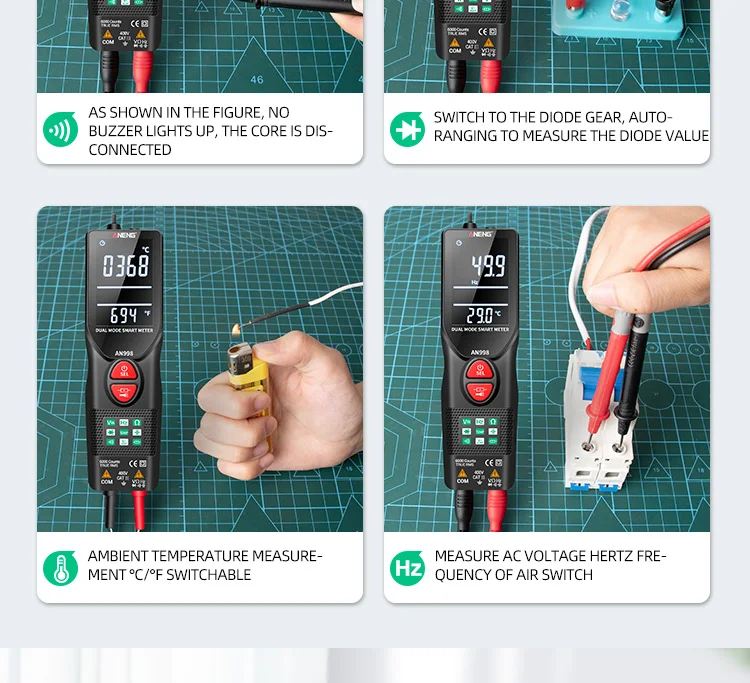

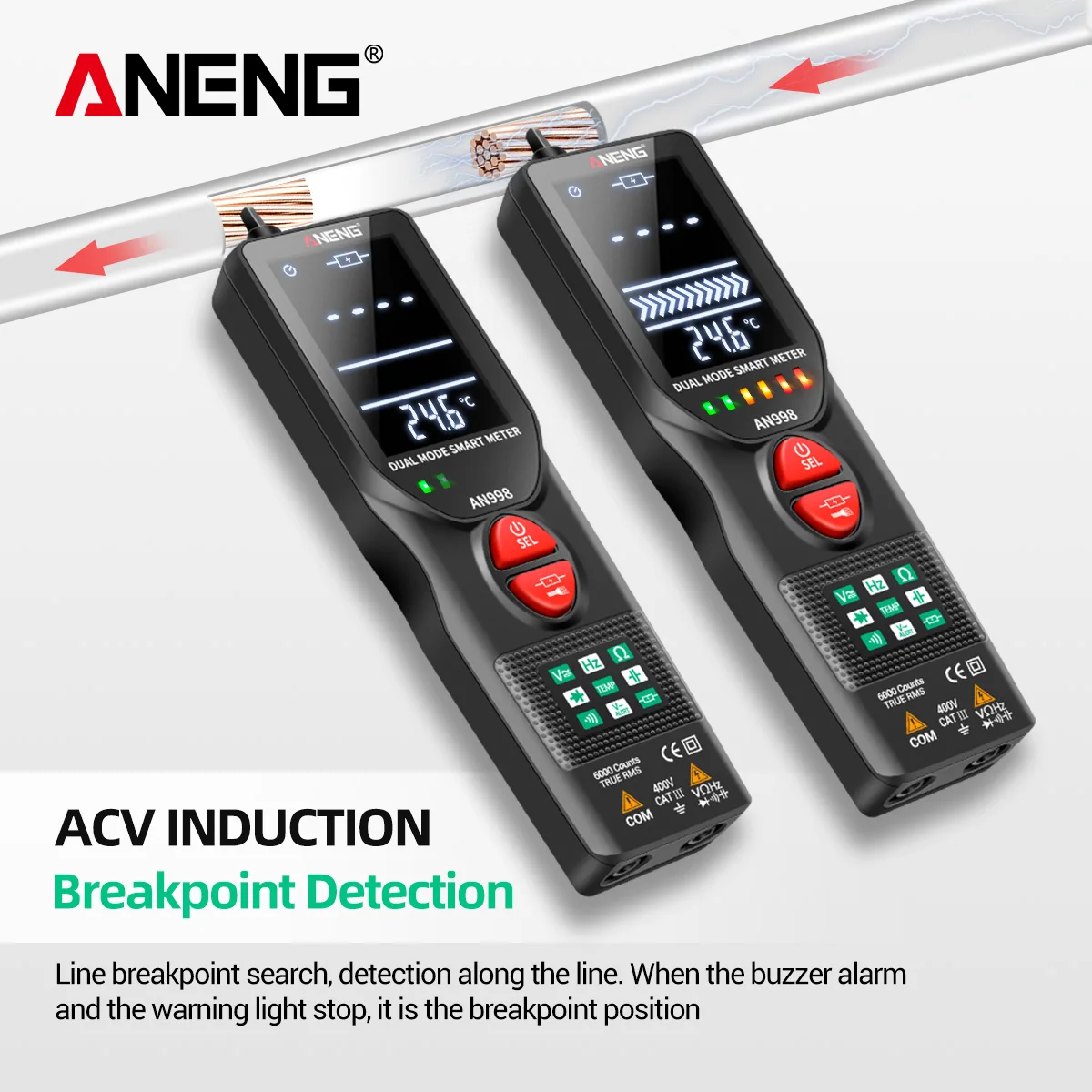

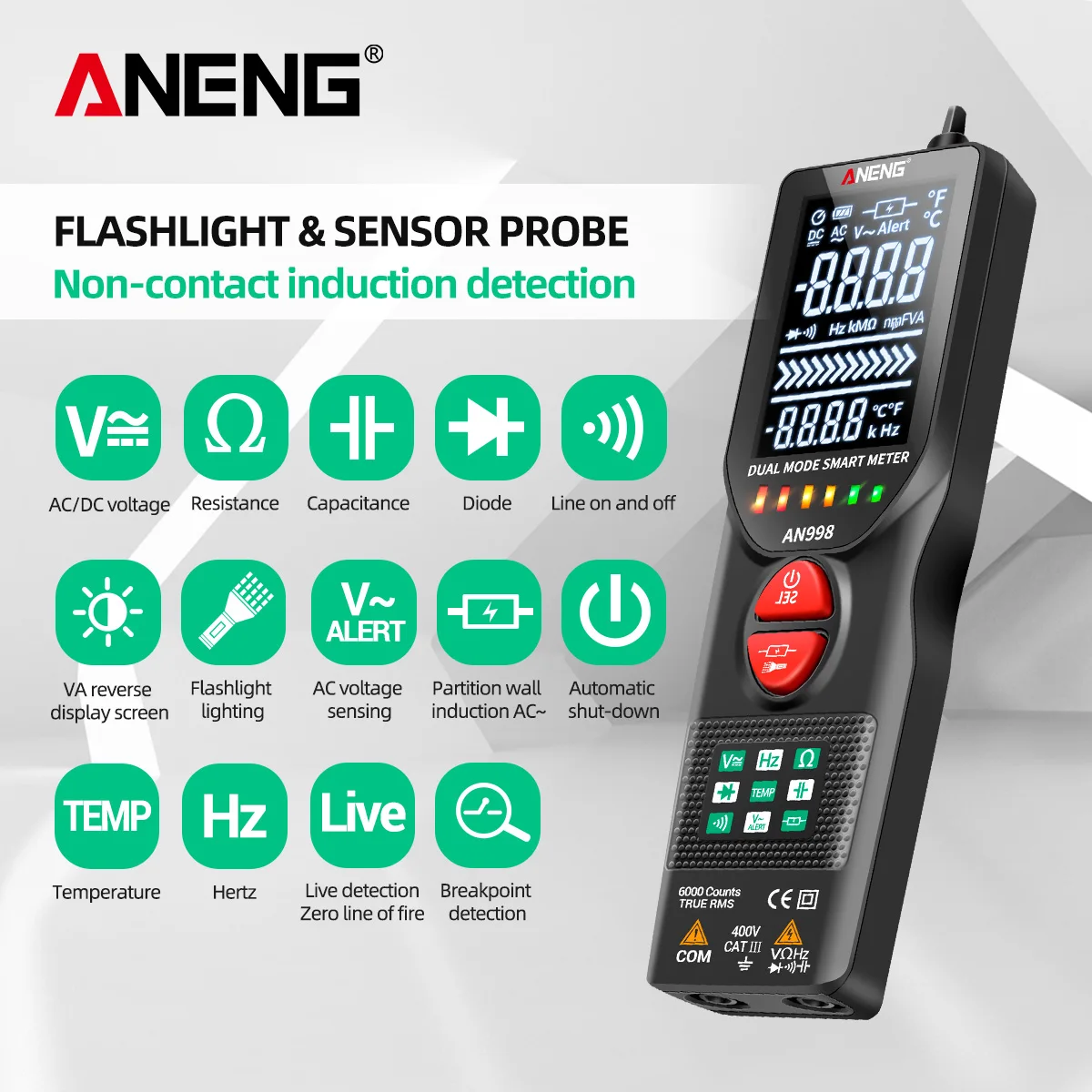

-The meter is for the AC DC Voltage,sine wave true RMS,duty cycle,resistance,capacitance,frequency ,measurement and firing line.diode test,temperature measurement.
-Meter is with automatic range function.
-Meter has a reading hold function.
-Meter with automatic shutdown function.

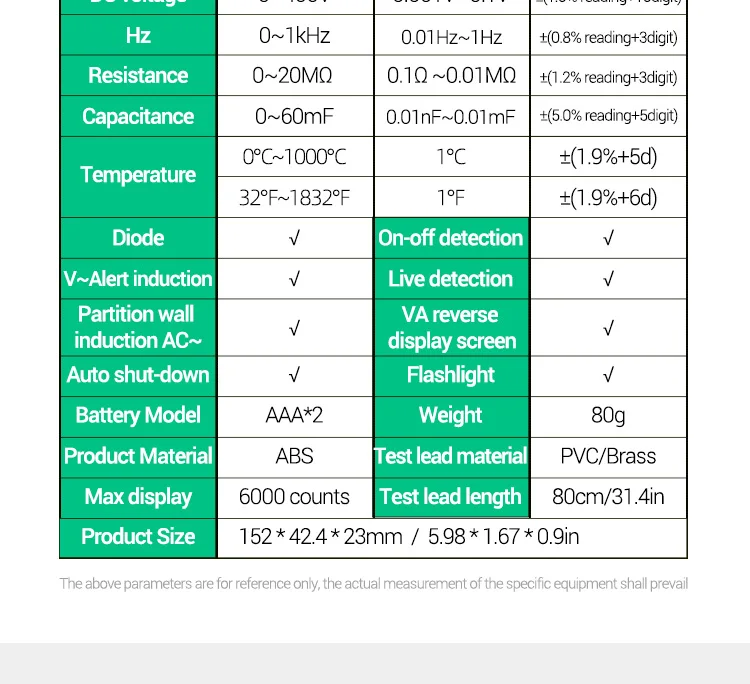

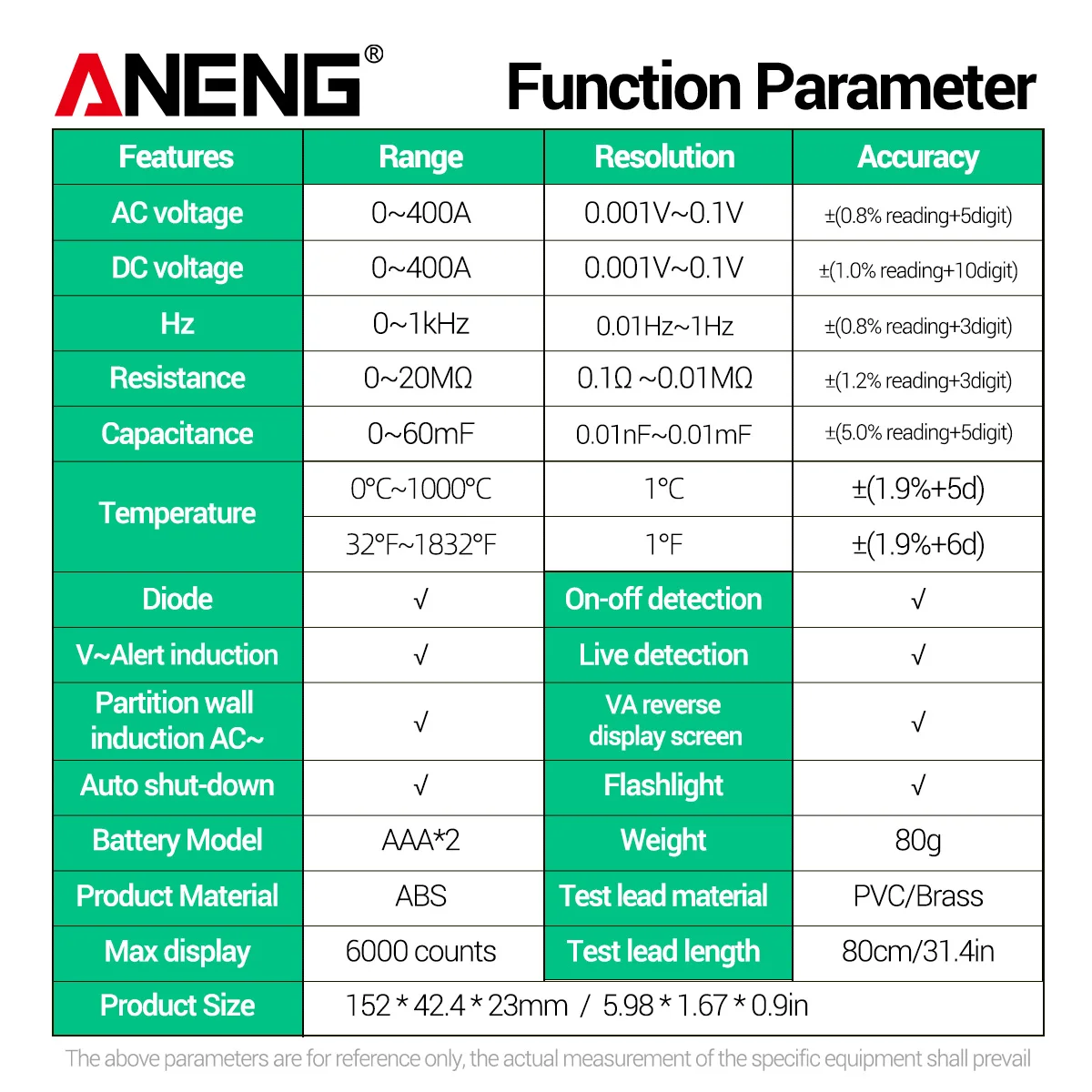

b.Technical Specification:
Function | Range | Accuracy |
DC Voltage | 6V | +-(0.5% reading+5 digit) |
| 60V | +-(0.5% reading+5 digit) |
| 400V | +-(0.8% reading+5 digit) |
AC Voltage | 6V/60V | +-(0.8% reading+3 digit) |
| 400V | +-(1.0% reading+10 digit) |

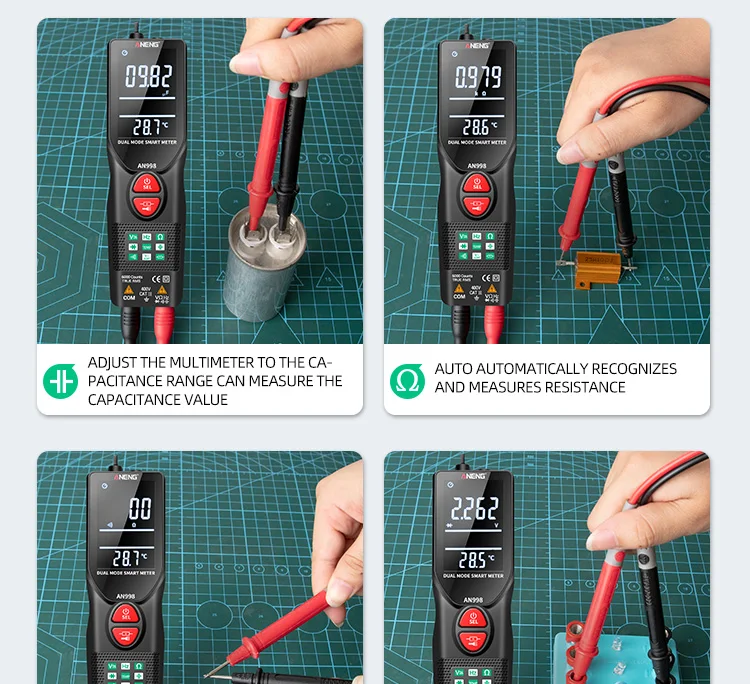

Resistance | 600Ω/6kΩ/60kΩ/600kΩ | +-(0.8% reading+3 digit) |
| 6MΩ/20MΩ | +-(1.2% reading+3 digit) |
Capacity | 60nF/600nF/6uF/60uF/600uF/6mF | +-(3.0% reading+5 digit) |
| 60mF | +-(5.0% reading+5 digit) |
Frequency | 10Hz | +-(0.8% reading+3 digit) |
| 100Hz | +-(0.8% reading+3 digit) |
| 1kHz | +-(0.8% reading+3 digit) |
Feature | Diode Test | Yes |
| Circuit on-off Test | Yes |

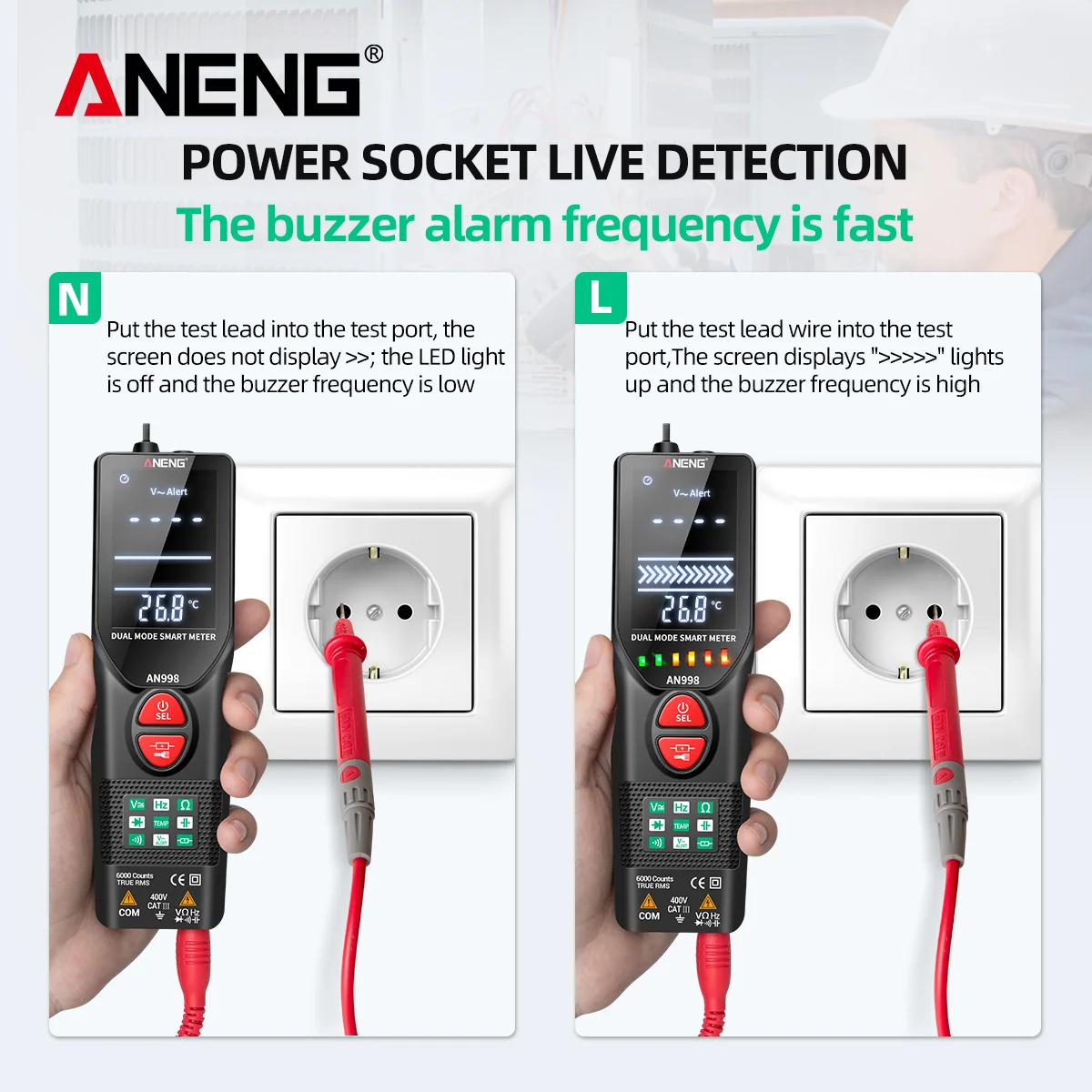

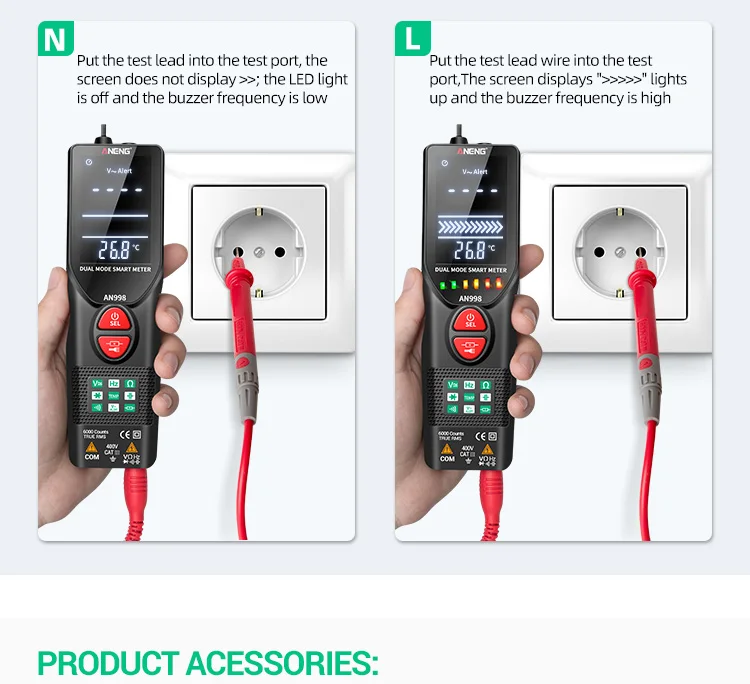

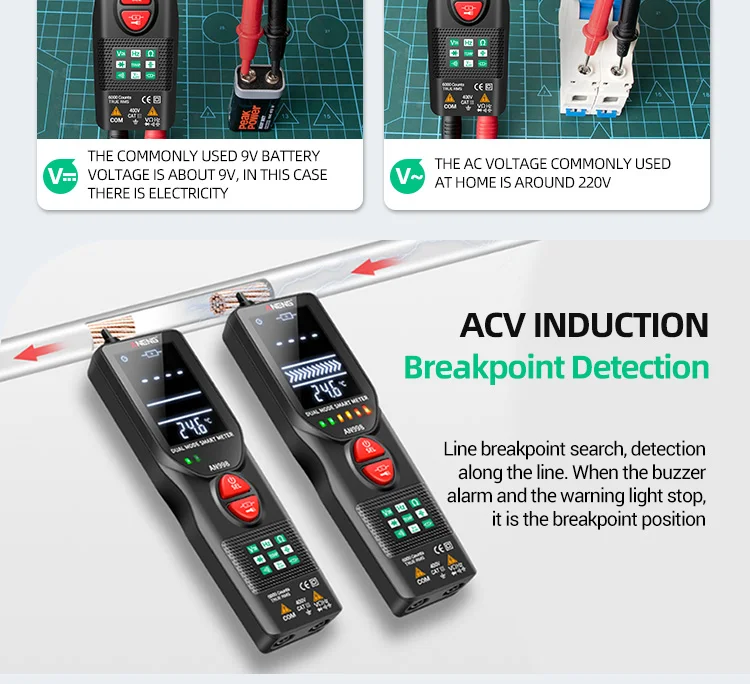

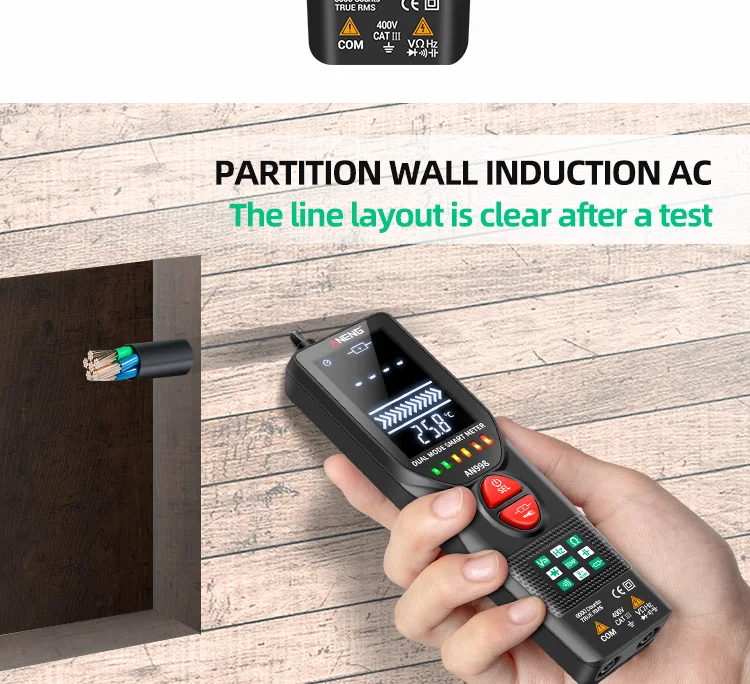

| Live Wall Measurement | Yes |
Temperature | 0℃-300℃ | +-(1.0%+4d) |
| 301℃-1000℃ | +-(1.9%+5d) |
| 32℉-600℉ | +-(1.2%+6d) |
| 601℉-1832℉ | +-(1.9%+6d) |

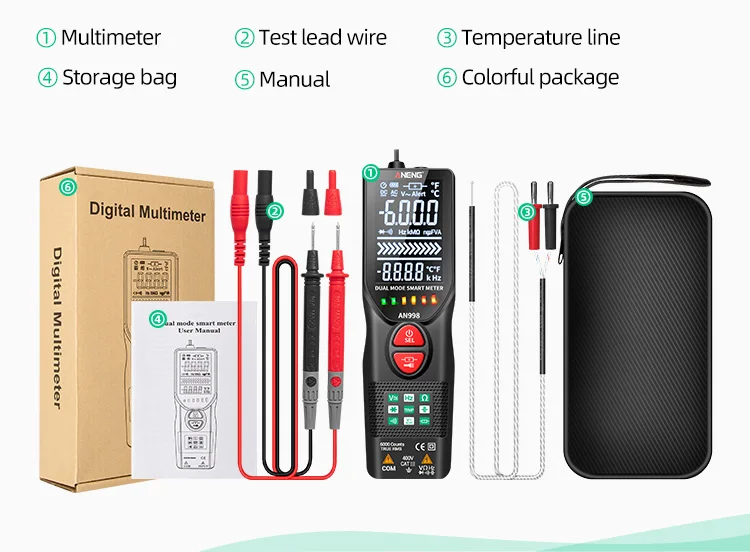

c.Package:
1*Multimeter
1*Test lead wire
1*Thermocouple
1*Manual
1*Storage bag
1*Packing box(According to the choice)
