ANENG AN8802 Digital Smart Multimetro True RMS Clamp Meters AC/DC Current Tester Electric Ampere Frequency Voltmeter 1200A Tool
- Category: >>>
- Supplier: Guangdong Jinyuanquan Electronic Technology Co. Ltd.
Share on (1600277757496):
Product Overview
Description
ANENG AN8802
Digital Smart Multimetro True RMS Clamp Meters
Digital Smart Multimetro True RMS Clamp Meters
Note: The product details are AN8801 and AN8802. If you need AN8801, please contact the customer service of ANENG store
Introduction:

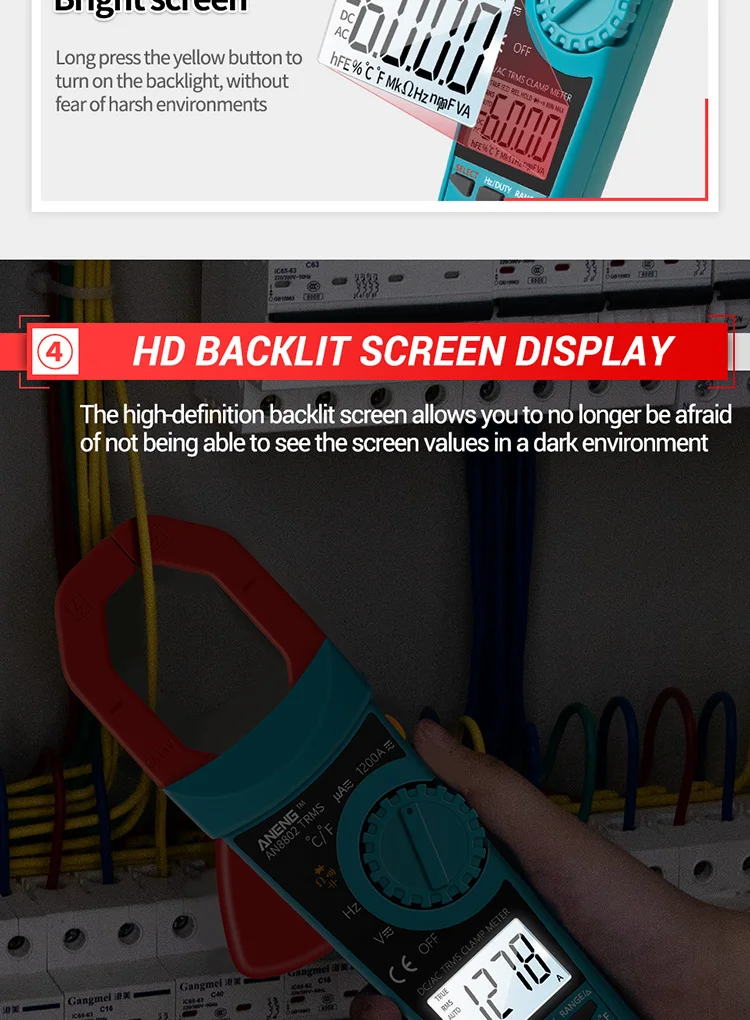

The AN8802 digital multimeter are the high reliability hand-held battery-operated clamp mete.They are using overload protection and 15s LCD backlight also involved.

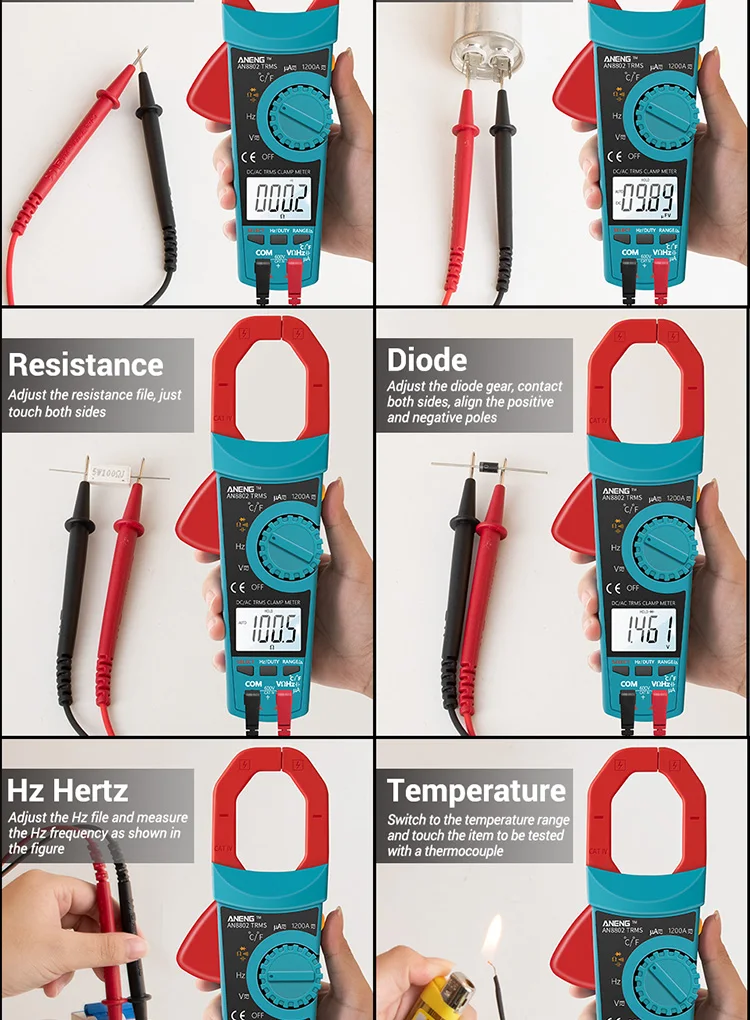

The AN8802 that measures:ACA,DCA,ACV,Resistance,transistor and diode,continuity,temperature,frequency,ect.They are ideal tools for labs,factories and radio-technology;which can be ideal tool for laboratory,factory,radio amateurs and family using.
Specification:
1-1,Display:LCD display
1-2,Max.display:6000
1-3,Power:AN8801:1.5V AA Battery / AN8802:9V Battery
1-4,Low battery display:-+"displayed
Function | AN8802 | Resolution |
DCV | 600mV~1000V | 0.1mV~1V |
ACV | 600mV~750V | 0.1uA~1A |
DCA | 0~1200A | 0.01A~1A |
ACA | 0~1200A | 0.01A~1A |
DCA(uA) | 600uA~6000uA | 0.1uA~0.001mA |
ACA(uA) | 600uA~6000uA | 0.1uA~0.001mA |
Resistance | 600Ω~60MΩ | 0.1Ω~10KΩ |
Capacitance | 6nF~600uF | 0.1pF~10nF |
Frequency | 10Hz~1/20MHz | 0.01Hz~1kHz |
Temperature | (-20~1000)℃ | 1℃ |
(0~1832)℉ | 1℉ | |
Diode | Buzzer | Yes |
Backlight Screen | Data Hold | Yes |
Max Display | True RMS | Yes |
Auto-Power Off | Continuity Test | Yes |
Color | Material | ABS |

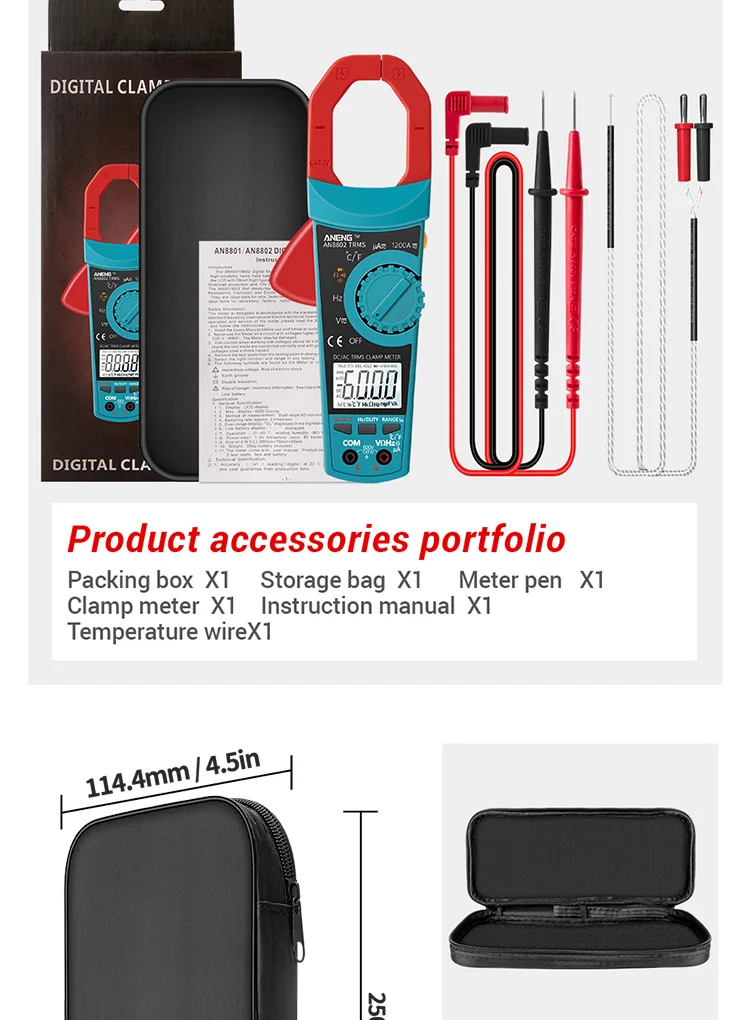

C.Package List:
1 * AN8802 Clamp Meter
1 * Temperature Wire

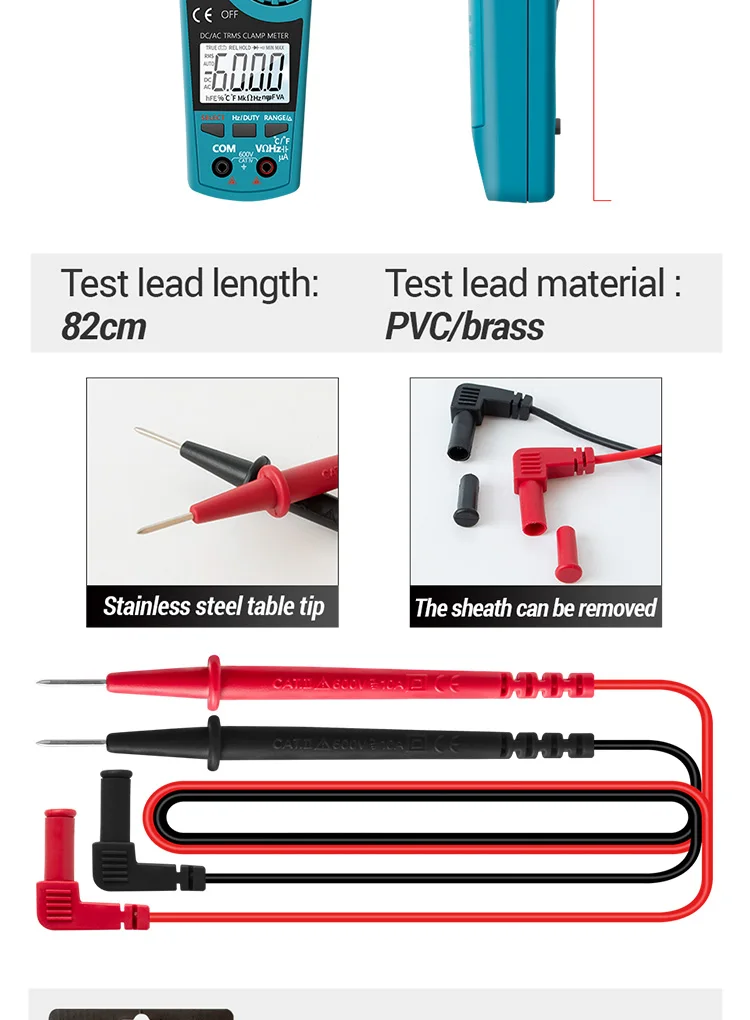

2 * Meter Pen
1 * User Manual
1 * Storage Bag
1 * OuterPacking Box
