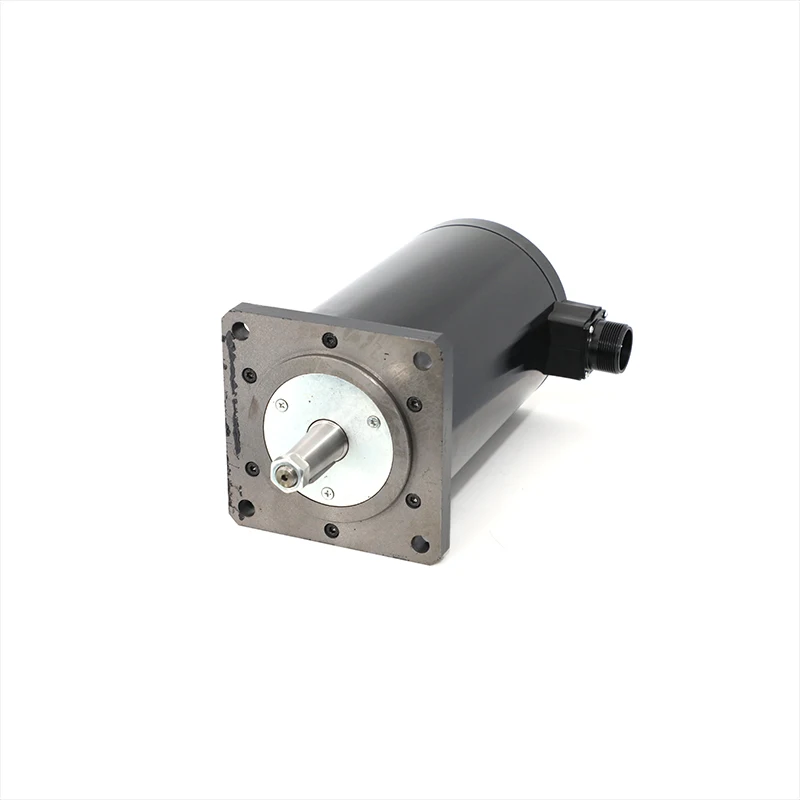

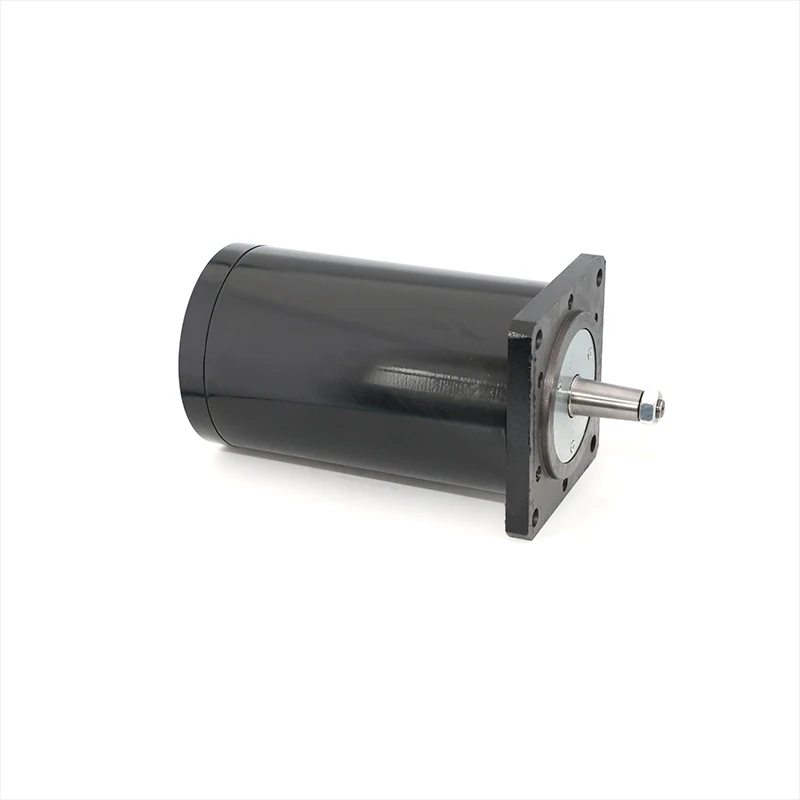

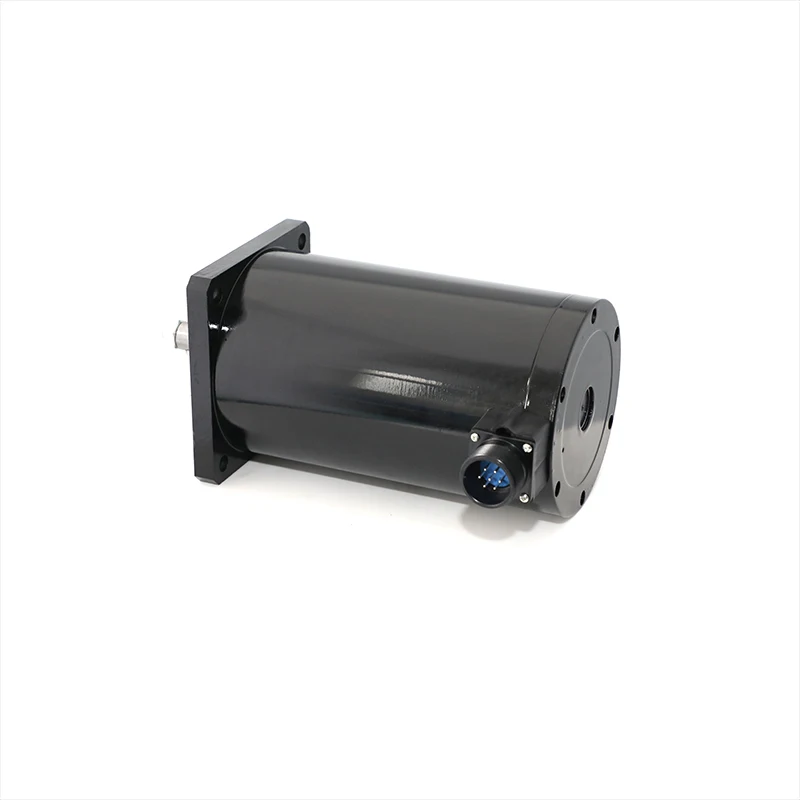

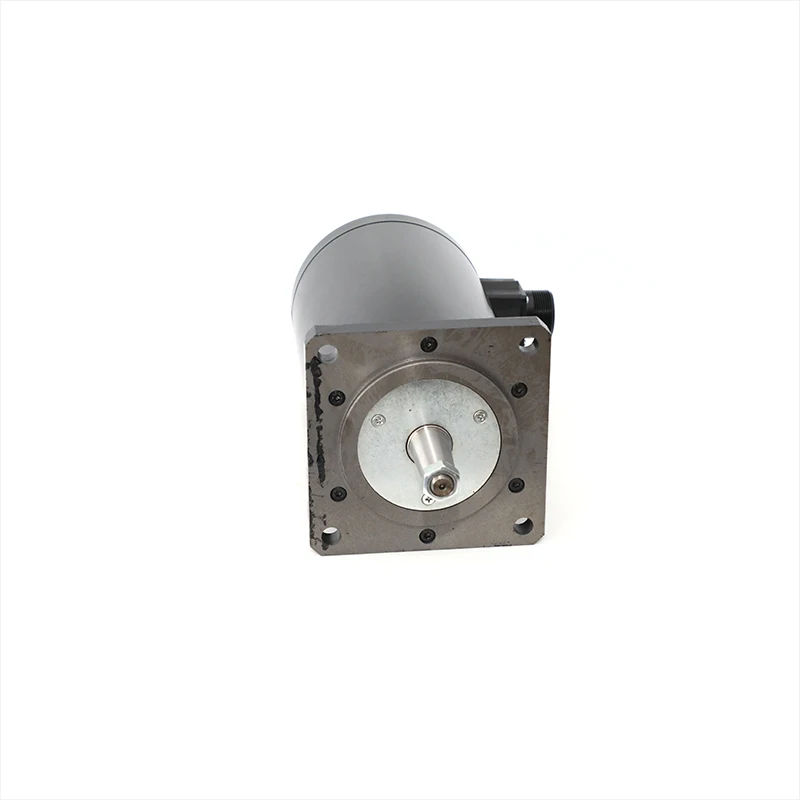

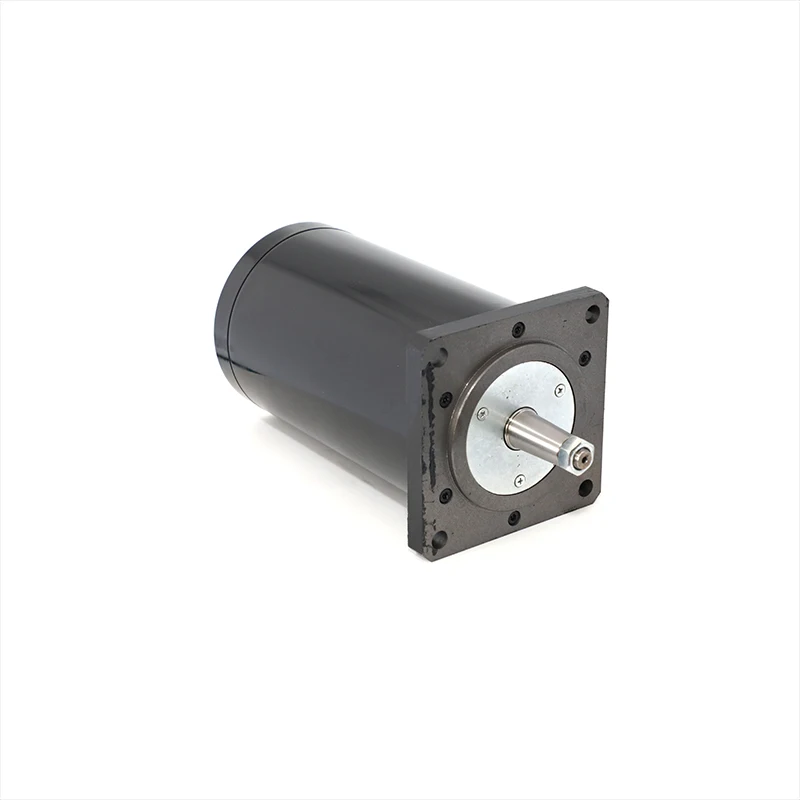

3 Phase 6.8A 27N.m 130BYG3502 Series Hybid Stepper Motor
- Category: >>>
- Supplier: Changzhou Songya Electromechanical Co. Ltd.
Share on (1600277956763):
Product Overview
Description
Product information
3 Phase 130BYG350 Round Stepper Motor
Model No. | Holding Torque (N.m) | Rated Voltage (V) | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Rotor Inertia (g. c㎡) | Weight (Kg) | Motor Length (mm) |
130BYG3501 | 23 | 220 | 6.8 | 0.72 | 10.2 | 27 | 13.3 | 173 |
130BYG3502 | 27 | 6.8 | 0.84 | 11.8 | 31.5 | 15.5 | 201 | |
130BYG3503 | 37 | 6.8 | 1.01 | 13.8 | 36 | 17.6 | 229 | |
130BYG3504 | 50 | 8.5 | 0.75 | 10.1 | 46 | 22 | 285 |
