Product Overview
Description

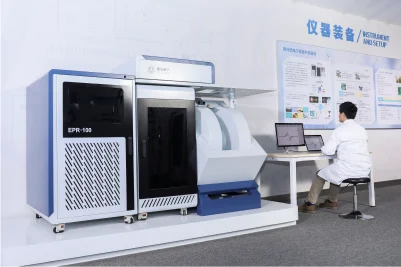

X – band Pulsed EPR spectrometer
EPR100
EPR100
EPR100 is a highly versatile instrument that allows pulsed EPR applications. With the CRS (control and readout system) developed by CIQTEK, EPR100 has high performance in pulse forming and data acquisition. General electro spin echo detection, ESEEM, 2D-HYSCORE, ELDOR, pulsed-ENDOR, and laser triggered experiment can be performed on EPR100.
Applications
Radical research
Radicals, refer to the atoms or groups with unpaired electrons formed by the covalent bond splitting of compound molecules under the external conditions such as photothermal and so on. Free radicals are very active, which are related to human aging and diseases closely. Electron paramagnetic resonance (EPR) is the only technique that can detect radicals directly.

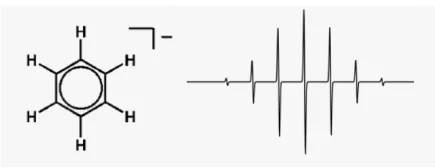

Free radical structure of benzene and its EPR spectrum
Materials
As a new type of nanomagnetic material, fullerenes with metal inside have important value in magnetic resonance imaging, single-molecule magnet research, spin quantum information research, and so on. The electron spin distribution in metal fullerenes can be obtained through EPR technology, such as understanding the hyperfine interaction between spin and metal magnetic nucleus and detecting the change of fullerenes‘ spin and magnetism in different environments.
Reference:Nanoscale 2018,10,3291

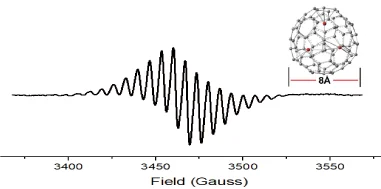

Sc3C2@C80 Molecular structure and EPR spectrum
Specifications
Indicators | Parameter |
CW-EPR performance | the same as EPR200 |
Pulse channels | Number of channels: 8 Channel 1:Microwave pulse with 0° (+X) Channel 2:Microwave pulse with 90° (+Y) Channel 3:Microwave pulse with 180° (-X) Channel 4:Microwave pulse with 270° (-Y) Channel 5: Gate of solid state power amplifier Channel 6: Protection switch of Receiver LNA Channel 7: ELDOR microwave pulse Channel 8: For extension |
Microwave pulse time resolution | 50 ps |
Output power of solid state power amplifier | Max 450 W |
Phase stability of microwave pulse | Less than 3° in 800 us |
Maximum microwave pulse length | 3 ms |
Minimum π / 2 pulse length | 8 ns |
Arbitrary waveform pulse modulation | Sampling rate 1 GSPS |
Free radical structure of benzene and its EPR spectrum
