High quality Human Motion Sensor Adjustable Light Switch Sensor
- Category: >>>
- Supplier: Shenzhen Nodav Technology Co. Ltd
Share on (1600278326328):
Product Overview
Description
Product Description

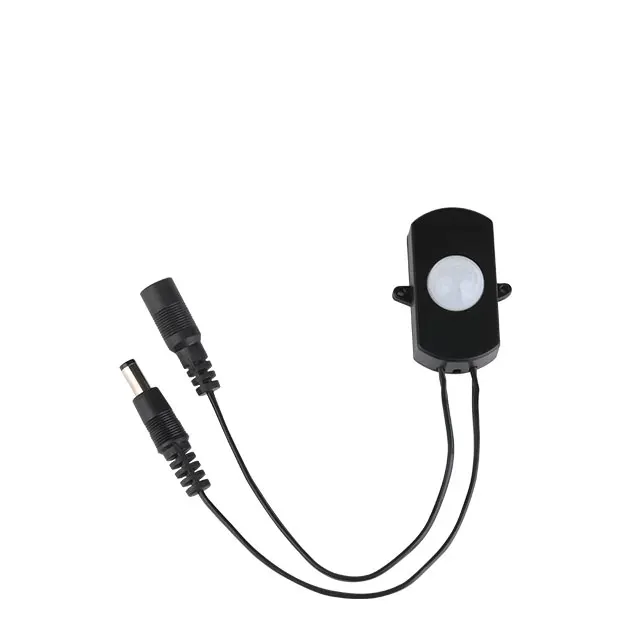

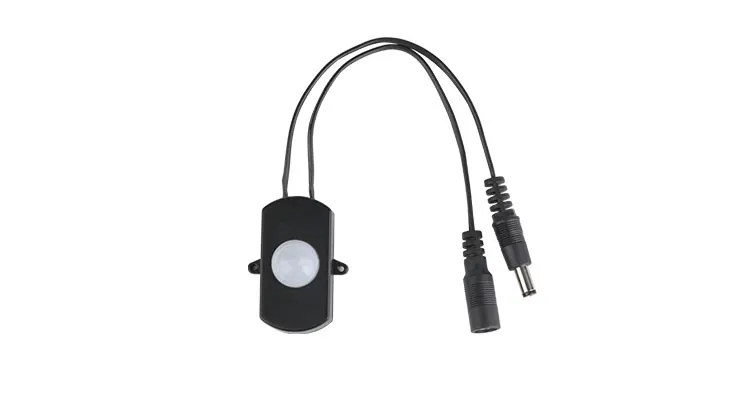

Product name | Nodav Patented product LED infrared human movement switch | ||||||
Design patent number | ZL 2015 3 0114896.1 | ||||||
Utility model patent No | ZL 2015 2 02 15454.0 | ||||||
brand | Nodav | ||||||
model | NS001 | ||||||

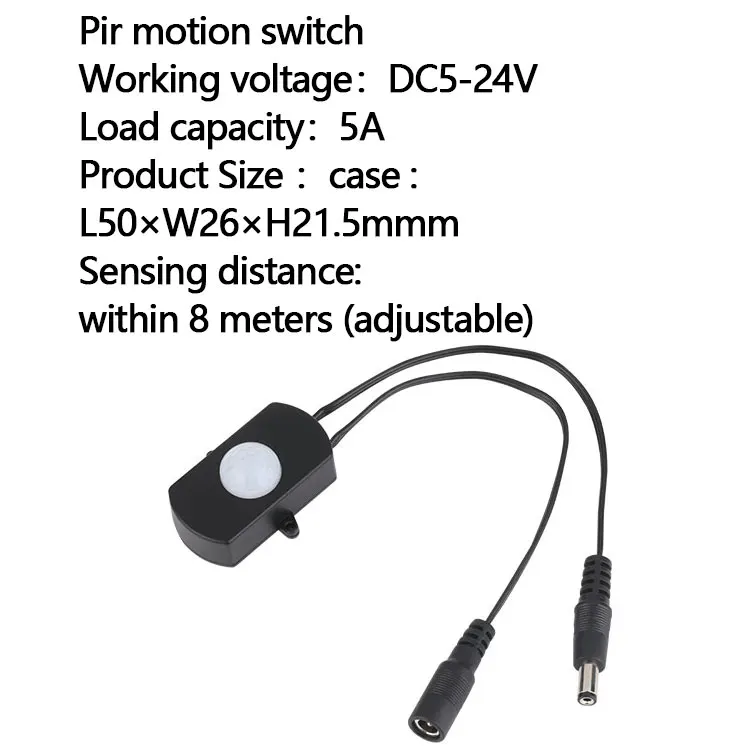

working voltage | DC5-24V ,recommended DC12V | ||||||
Load capacity | 5A | ||||||
Sensing distance | within 8 meters (adjustable) | ||||||
Induction angle | 120 ° | ||||||
Delay time | 5 seconds - 10 minutes (adjustable) | ||||||
Light sensing control | all weather sensing | ||||||
Product size | L50 × W26 × h21.5mm | ||||||
Applicationg | LED light , exhaust fan, alarm, etc control | ||||||
1.Connect the inductive switch according to the wiring diagram, and the LED light will be on automatically. The first time of power on is set by the delay time before power on. After that, the inductive switch will enter the detection state, and the LED light will be on when human activity is detected. 2. Sensing distance: factory default about 8 meters, sens counter clockwise rotation, sensing distance shortened. 3. Delay time: factory default about 5 seconds, ontime clockwise rotation, delay time growth. | |||||||
Working Mode | 1.Automatic induction, when people enter the detection area of the induction switch, the light will be on, and when people leave,it will be automatically delayed and turned off. 2. During the lighting period, every effective human activity will automatically delay the induction switch for a delay period. | ||||||
Wiring mode | Dc2.1 bus is the input line, connected to the power transformer terminal; Dc2.1 bus is the output line, connected to the load led lamp terminal; | ||||||
Installation mode | Open the bottom box, adjust the sensing distance sens parameter setting and the delay time on parameter setting. Fix with 2mm diameter screw. | ||||||
1. During installation, live wiring is not allowed, load short circuit is strictly prohibited, and power on after installation. 2.In strict accordance with the wiring diagram docking, once the wrong connection will damage the switch, resulting in power supply line failure. 3. It is strictly forbidden to use in the range of over power, otherwise the switch will be burned. 4. Do not install the switch in the place with strong light or cold air flow. The switch should not be placed in the place with high power RF radiation (for example, the place with radio, walkie talkie and antenna). | |||||||
Fault diagnosis | 1. Phenomenon: there is no effective movement, load work, reason: the sensitivity is too strong, solution: adjust the sensing distance sens setting,rotate counterclockwise 2. Phenomenon: there is movement activity, the load does not work, reason: the movement speed is too fast or the detection area is set too small, solution: check the detection area setting. | ||||||
Certificate
Company Introduction
Shenzhen Nodav Technology Co., Ltd. is a research and development, production, sales, export, service in one factory. Founded in 2010, the company is located in Shenzhen, the capital of science and technology in China. It is one of the few high-tech enterprises that developed, produced and exported smart sensor switch and smart induction light earlier in China. With 11 years of ODM / OEM experience, professional R & D team and 11 years of export experience, we have a number of product patents, specializing in the production and export of Led sensor switch,led sensor light,led strip,led power supply and other products.
FAQ
1.Q:What are the main products of your factory?
A:Producation and export of smart sensor switch, smart induction light, smart makeup mirror and other products.
2.Q:Where is your factory?
A:Shenzhen, Guangdong, China.
3.Q:What advantages do you have?
A:11 years of ODM / OEM experience, a number of product patents, China's early production of induction lamps, sensors of high-tech enterprises.
4.Q:Do you provide samples? Do you charge for samples and express delivery?
A:Yes.
5.Q:How do you deliver samples?
A:By door to door express DHL, TNT, FedEx, UPS ,EMS...
6.Q:Do you support customization?
A:Yes，Tell us your needs, we can design products to meet your needs.
Recommend RTS Products
model | Type | working voltage | Load capacity | Working Mode |
NS049 | Touch sensor switch | DC5-12V | 2A | Three step dimming： power on, The first touch of low light, the second touch of medium light, the third touch of high light, the fourth touch of turn off. |
NS018 | Touch sensor switch | DC5-24V, recommended DC12V | 8A，recommended ≤6A | Stepless dimming： power on,short press to control on and off, long press to control light brightness. |
NS016 | Touch sensor switch | DC5-24V, recommended DC12V | 3A | Stepless dimming： power on,short press to control on and off, long press to control light brightness. |
NS001 | Infrared human body sensor switch | DC5-24V, recommended DC12V | 5A | 1.Automatic induction, when people enter the detection area of the induction switch, the light will be on, and when people leave,it will be automatically delayed and turned off. 2. During the lighting period, every effective human activity will automatically delay the induction switch for a delay period. |
NS055 | Sound Light sensor switch | DC5-12V | 6A | |
NSB119-10A | Touch sensor switch | DC5-24V, recommended DC12V | 10A recommended≤6A | |
NSB119-5A | Touch sensor switch | DC5-24V, recommended DC12V | 5A | |
NSB120 | Hand scan Infrared sensor switch | DC5-24V, recommended DC12V | 8A | |
NSB121P | Infrared human body sensor switch | DC5-12V | 6A recommend≤5A | 1.Automatic induction, when people enter the detection area of the induction switch, the light will be on, and when people leave,it will be automatically delayed and turned off. 2. During the lighting period, every effective human activity will automatically delay the induction switch for a delay period. |
NSB016 | Ir door Sensor switch | DC5-24V, recommended DC12V | 8A |
