Wood chopping machine
- Category: Wood Chip Machines >>>
- Supplier: Shandong Hongxin Machinery Co. Ltd.
Share on (1600278941998):
Product Overview
Description
Photos

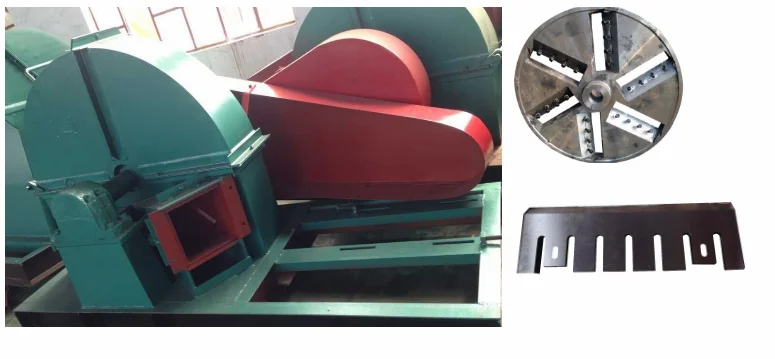

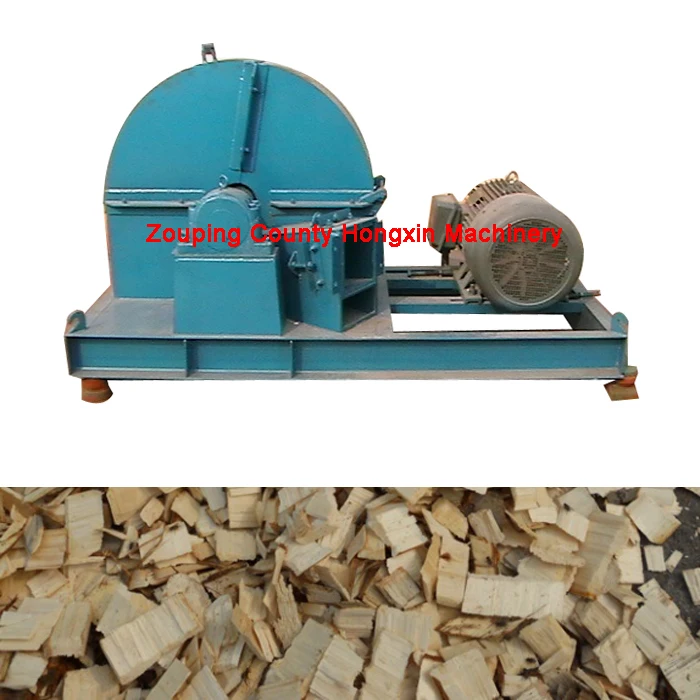

Disc wood chipper
This machine can chip wood logs,cutting residues into wood chips for preparing raw material for density board plant and paper-making.
Features
1.reasonable structure
2.wide usage ,high output
3.qualified chips , safe and reliable
4.easy operation easy maintenance
2.wide usage ,high output
3.qualified chips , safe and reliable
4.easy operation easy maintenance
Specification
model | HX1710 | HX1212 | HX1300 | HX1216 | HX1800 |
disc rotor diameter(mm) | 1150 | 1300 | 1300 | 1600 | 1800 |
blade quantity(piece) | 6 | 6 | 6 | 6 | 6 |
input size(mm) | 270*270 | 320*320 | 350*350 | 420*420 | 500*500 |
rotor rotation speed(rpm) | 635 | 635 | 640 | 620 | 420 |
chip size (mm) | 20-35 | 20-35 | 20-35 | 20-35 | 20-35 |
production capacity(tph) | 5-8 | 10-12 | 12-15 | 15-25 | 20-40 |
main motor power(kw) | 55 | 90 | 90 | 160 | 160 |
feed+discharge motor(kw) | 3+3 | 3+3 | 3+3 | 3+3 | 5.5+5.5 |
feed conveyor length(m) | 4 | 4 | 4 | 6 | 6 |
discharge conveyor length(mm) | 10 | 10 | 10 | 10 | 10 |
weight(t) | 2.18 | 2.9 | 4.25 | 5.58 | 6.5 |
