China Supplier LCD intelligent AC three phase ammeter htew x7i3 y LCD displays digital panel AC voltmeter
- Category: Panel Meters >>>
- Supplier: Beijing,Jiangyuan,Hengtong,Electromechanical,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

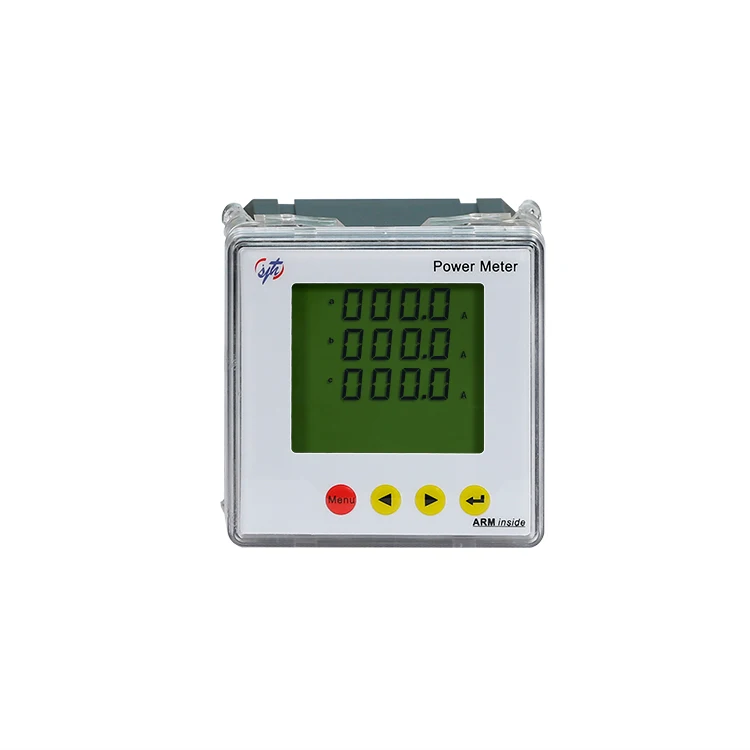

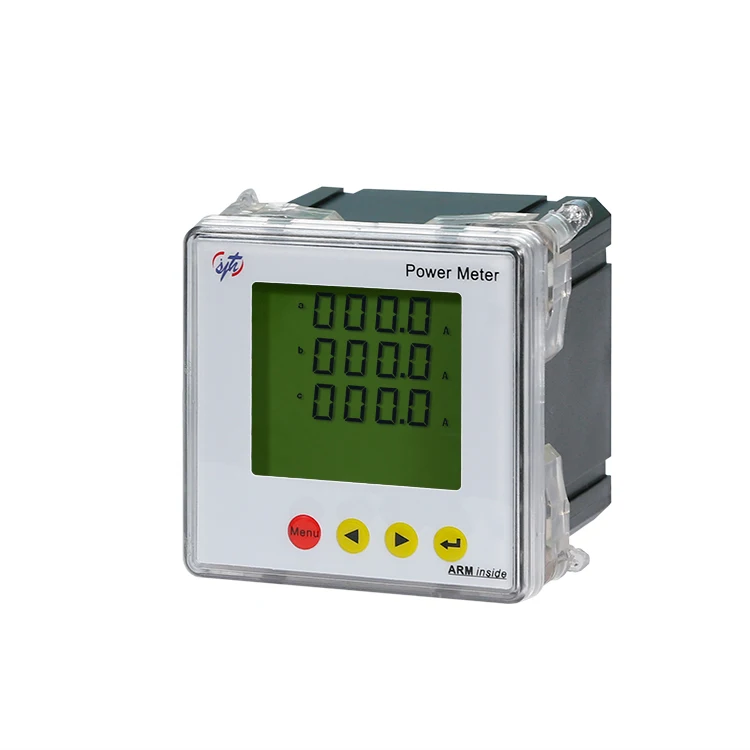

Htew series programmable intelligent AC three phase ammeter
Using AC sampling technology, three-phase current can be measured directly or indirectly. It can be used for field display and connected with industrial control device to form a measurement and control system.
The instrument has RS-485 communication interface, adopts compatible Modbus RTU protocol, and has analog output, relay alarm output, switch input and switch output. According to different requirements, press the relevant key on the instrument panel to set and control the proportion, alarm, communication, etc.
|
Product Name |
Function Description |
Wholesale price |
|
HTEW-X7I3-Y |
LCD display screen; Open hole67*67, AC three-phase ammeter, ac1a or 5A inpu |
Please contact us in detail. We can offer you the best price. |
|
HTEW-K7I3-Y |
LCD display screen; Open hole67*67, AC three-phase ammeter, ac1a or 5A input; With RS485 communication interface (Modbus RTU protocol) |
|
|
HTEW-S7I3-K-Y |
LCD display screen; Open hole67*67, AC three-phase ammeter, ac1a or 5A input; With RS485 communication interface (Modbus RTU protocol) and 4di switch input |
|
|
HTEW-X9I3-Y |
LCD display screen; Open hole91*91, AC three-phase ammeter, ac1a or 5A inpu |
|
|
HTEW-K9I3-Y |
LCD display screen; Open hole91*91, AC three-phase ammeter, ac1a or 5A input; With RS485 communication interface (Modbus RTU protocol) |
|
|
HTEW-S9I3-K-Y |
LCD display screen; Open hole91*91, AC three-phase ammeter, ac1a or 5A input; With RS485 communication interface (Modbus RTU protocol) and 4di switch input |
Product Paramenters
 |
 |
|
Technical parameter |
Value |
||
|
Input |
Rated value |
AC voltage:Single phaseAC 100V(110V),220V,380V(450V) |
|
|
Overload |
Voltage: 1.2 times rated value(continuous); 2 times rated value /10 second |
||
|
Frequency |
45Hz~65Hz |
||
|
Power consumption |
Power consumption of each voltage,current input circuit is less than 0.4VA |
||
|
Accuracy Class |
Class 0.5 |
||
|
Display |
LED or LCD |
||
|
Function |
Communication |
RS485,Modbus-RTU protocol;(1 start bit,8 data bit,1 stop bit,no parity) |
|
|
Alarm |
1 channel passive relay,contact capacity 3A/30VDC,3A/250VAC, |
||
|
Analog |
DC4~20mA,( load <500Ω) |
||
|
switching |
Input |
4 channel or 2 channel dry contact Input,built in power supply |
|
|
Output |
2 channel switching output,NO relay contact,capacity: |
||
|
Auxiliary supply |
Voltage range |
AC/DC80~265VorDC24V,DC48V |
|
|
Power consumption |
<4VA |
||
|
Insulation resistance |
≥ 100MΩ |
||
|
Mean time between failures |
≥5000h |
||
|
Power frequency withstand voltage |
Between power supply set of terminals and signal input,output set of terminals 2kV/1min (RMS) |
||
|
Environment |
Temperature |
Operation: -15℃~+55℃Storage: -30°C ~+70°C |
|
|
Humidity |
≤93%RH,no condensation,without corrosive gas |
||
|
Altitude |
≤2500m |
||

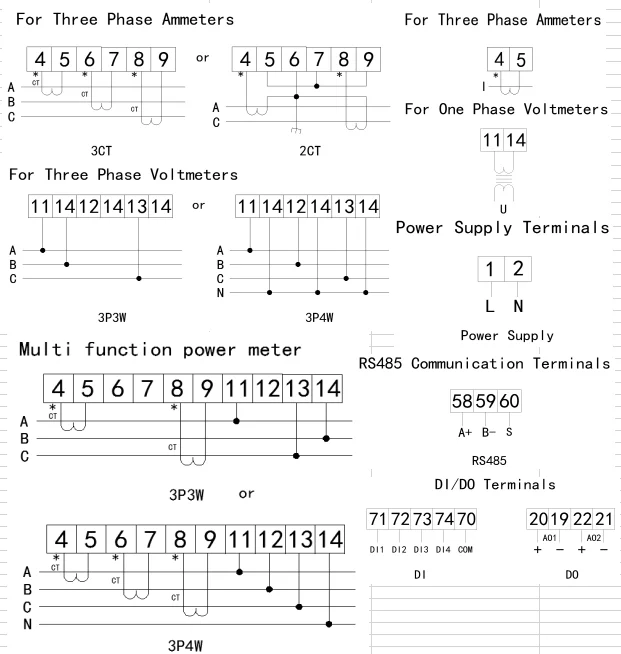

Wiring diagram
Outline and Size of Cut Out
|
Outline |
Panel size |
Housing size |
Cutout size |
||||
|
Unit:mm |
Height |
width |
Height |
width |
Depth |
Height |
width |
|
72*72 |
72 |
72 |
65.5 |
65.5 |
68 |
67 |
67 |
|
96*96 |
96 |
96 |
89.5 |
89.5 |
88 |
91 |
91 |
