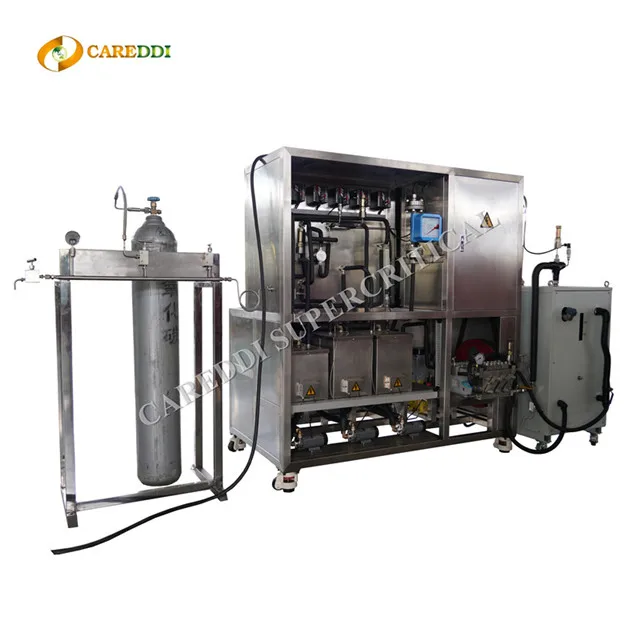

Лабораторные весы, 2 литра, суперкритическая машина для извлечения CO2, фармацевтическое масло для расторопши, экстрактор сверхкритической жидкости
- Category: Extractor >>>
- Supplier: Careddi Technology Co. Ltd.
Share on (1600279280296):
Product Overview
Description
Product Description
What does Careddi Supercritical CO2 Extraction System consist of ?

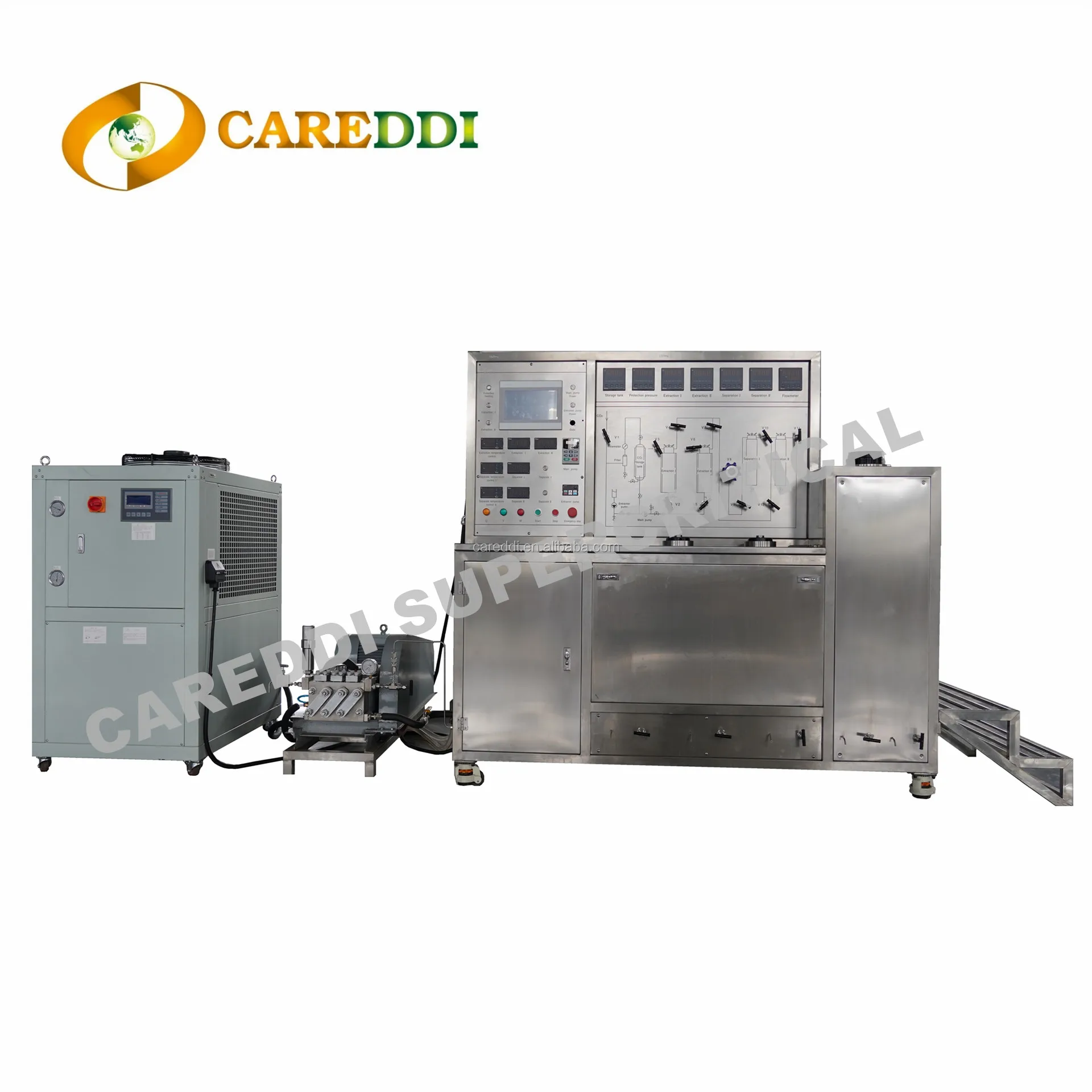

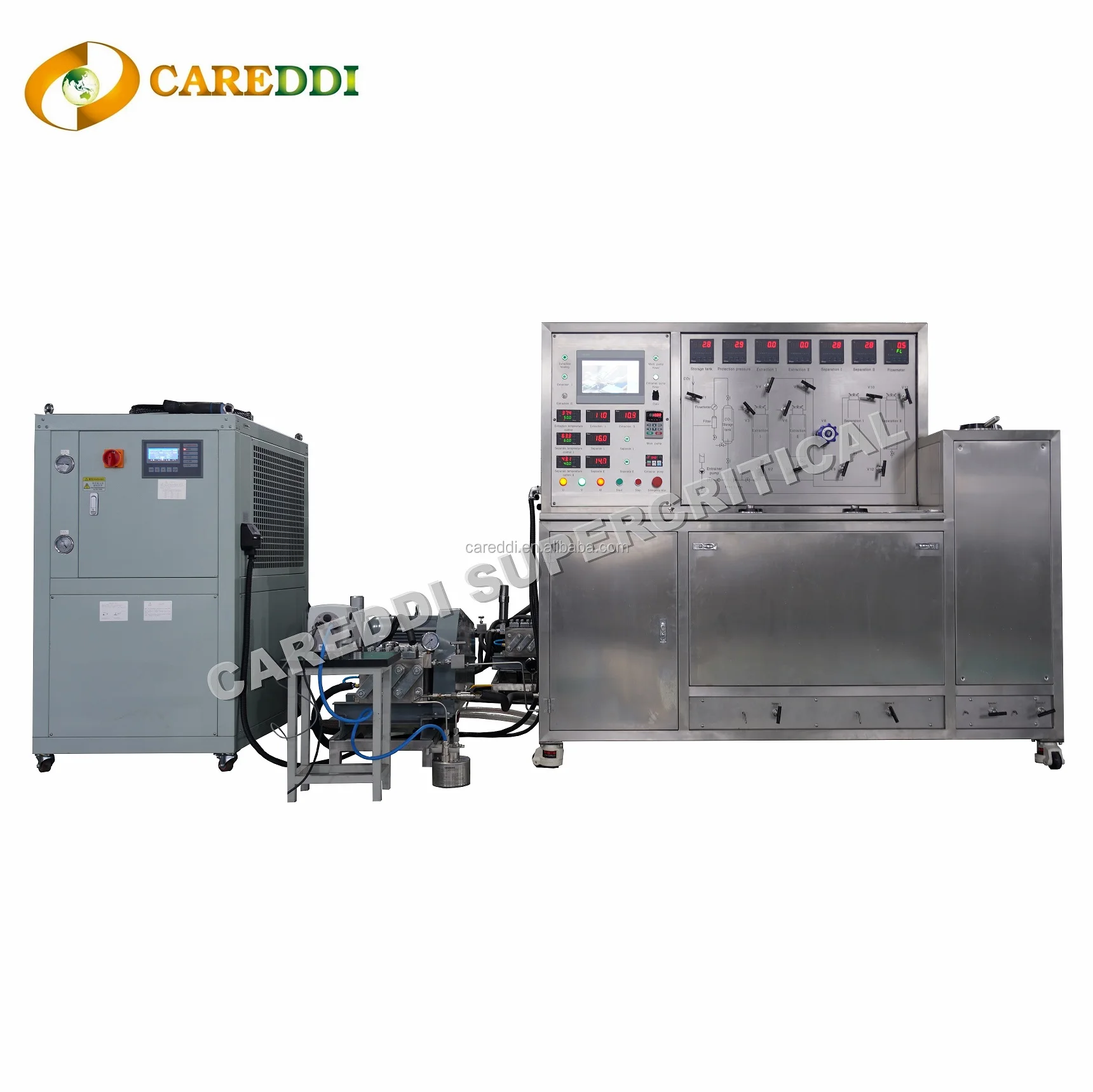

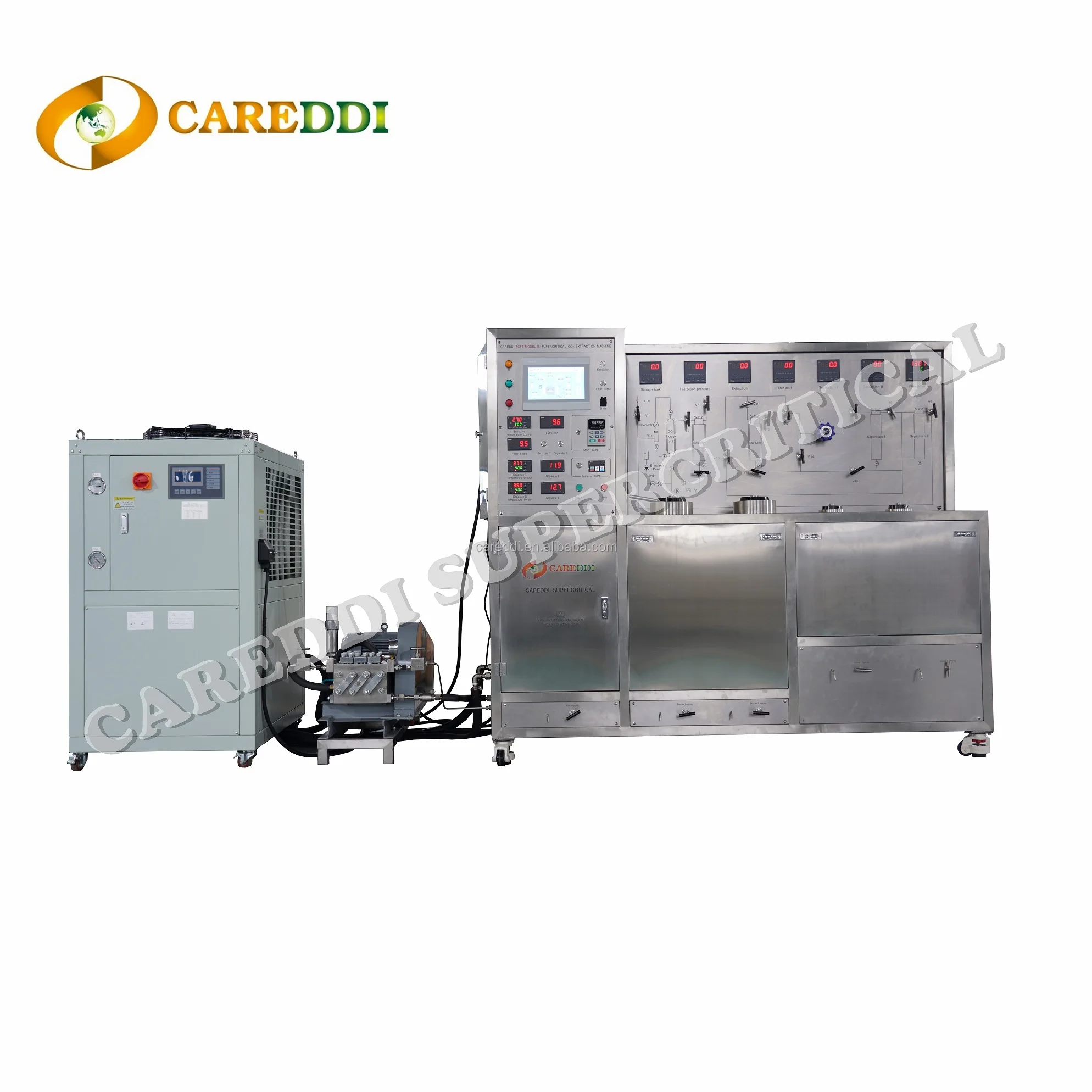

Careddi Supercritical CO2 Extraction Equipment Model 2 Liter

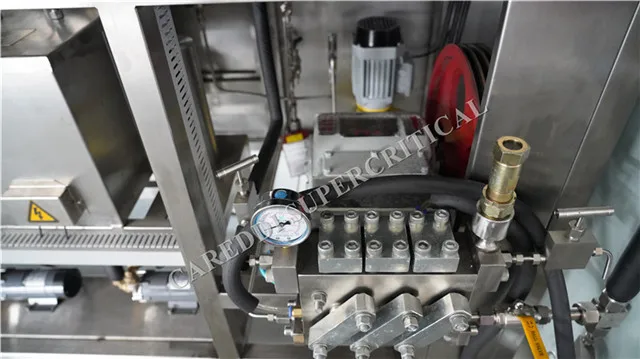

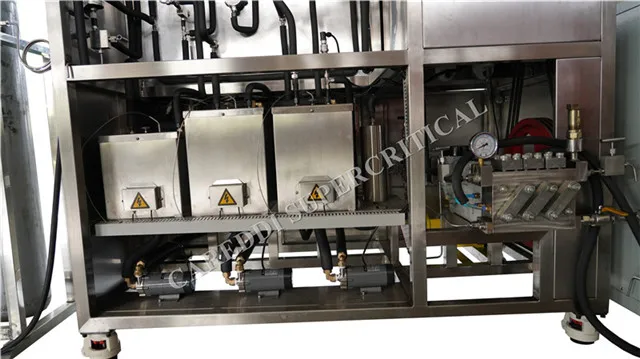

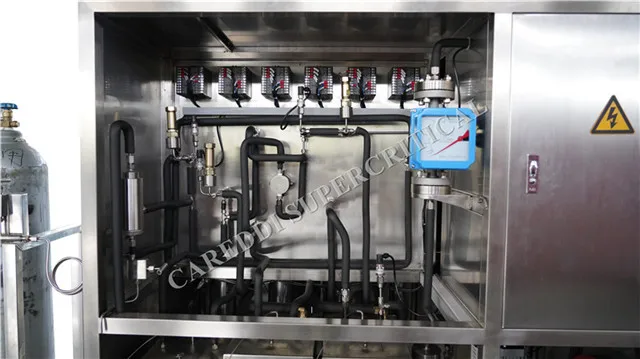

Detailed Pictures
Products Specifications
Careddi Supercritical CO2 Extraction Machine - 2Liter Techinical Parameters | ||||||||
SN | Part Name | Specifications | ||||||
1 | Extraction Vessel | 1Liter, Max working pressure: 50MPa, SS304/316 material | ||||||
2 | Separation Vessel | 0.6Liter x2, Max working pressure: 30MPa, SS304/316 material | ||||||
3 | CO2 High Pressure Pump | Flowrate: 50L/h, Max working pressure: 50MPa | ||||||
4 | CO-Solvent pump | Flowrate: 0.25-4L/h, Max working pressure: 40MPa (Mechanical adjustable) | ||||||
5 | Cooling system | Cooling capacity: 3300Kcal/h (air cooling), Temperature: -5℃～+5℃ | ||||||
6 | Heat exchange system | Φ6/50MPa, circulating water jacket heating system, adjustable temperature. | ||||||
7 | Purification system | 1Liter, Max working pressure: 50MPa | ||||||
8 | CO2 Storage tank | 4Liter, Max working pressure: 16MPa | ||||||
9 | Levelmeter | 6.3-63L/H, indicate both instant flow rate and accumulation | ||||||
10 | Temperature control system | Room temperature~85℃ adjustable, Accuracy: ±1℃ | ||||||
11 | Safety devices and other components | Pressure gauge at high pressure pump outlet, overpressure protection. Safety valve at extraction tank, separation tank, distillation column, Overpressure automatic relief. | ||||||
12 | Pipe lines | Valves, fittings: DW6 All parts connected with fluid material are made by 1Cr18Ni9Ti Stainless steel. | ||||||
13 | Total power | 3 Phase, 10.00kw | ||||||
Customer self-provided Items
3 Phase Electricity Power: 10KW
Installation dimension: 2500×2500×1600mm, plus operation space.
CO2 gas: Food grade≥99.5%, single bottle net weight ≥22Kg
Food grade alcohol ≥99.5%
Installation dimension: 2500×2500×1600mm, plus operation space.
CO2 gas: Food grade≥99.5%, single bottle net weight ≥22Kg
Food grade alcohol ≥99.5%
Standard Models
Sn | Model | Specification | Maximum working pressure | capacity |
1 | 1L | 1 extractors 2 separators | 480bar | 3lbs-10lbs |
2 | 2L | 1 extractors 2 separators | 480bar | 6lbs-13lbs |
3 | 5L | 1 extractors 2 separators | 480bar | 18lbs-30lbs |
4 | 5Lx2 | 2 extractors 2 separators | 480bar | 33lbs-55lbs |
5 | 10Lx2 | 2 extractors 2 separators | 380bar | 66lbs-110lbs |
6 | 15Lx2 | 2 extractors 2 separators | 380bar | 90lbs-160lbs |
7 | 24Lx2 | 2 extractors 2 separators | 380bar | 120lbs-220lbs |
8 | 25Lx2 | 2 extractors 2 separators | 380bar | 125lbs-230lbs |
9 | 24Lx 4 | 4 extractors 2 separators | 380bar | 240lbs-440lbs |
10 | 50Lx2 | 2 extractors 2 separators | 380bar | 400lbs-500lbs |
11 | 50Lx4 | 4 extractors 3 separators | 380bar | 800lbs-1000lbs |
12 | 50Lx6 | 6 extractors 3 separators | 380bar | 1200lbs-1600lbs |
13 | 150Lx2 | 2 extractors 3 separators | 380bar | 1200lbs-1700lbs |
14 | 150Lx4 | 4 extractors 3 separators | 380bar | 2000lbs-3200lbs |
15 | 200Lx2 | 2 extractors 3 separators | 380bar | 1800lbs-2400lbs |
16 | 200Lx4 | 4 extractors 3 separators | 380bar | 3600lbs-4800lbs |
17 | 700Lx3 | 3 extractors 3 separators | 380bar | 8800lbs-12000lbs |
18 | 1000Lx3 | 3 extractors 3 separators | 380bar | 10000lbs-18000lbs |
Applications
Careddi supercritical co2 machines are widely used to extract industrial hemp or cannabis to CBD oil for the pharmaceutical industry. It is also widely used in food industry: it can be used to make the extraction of various flavoring agents, such as various spices commonly eaten in southeast Asian countries. Extract ginger oil, lycopene, chilli oil, etc., which often made in India and Sri Lanka. In addition, also dabbled in the cosmetics industry and health products industry , can be extracted from a variety of essential oil products.

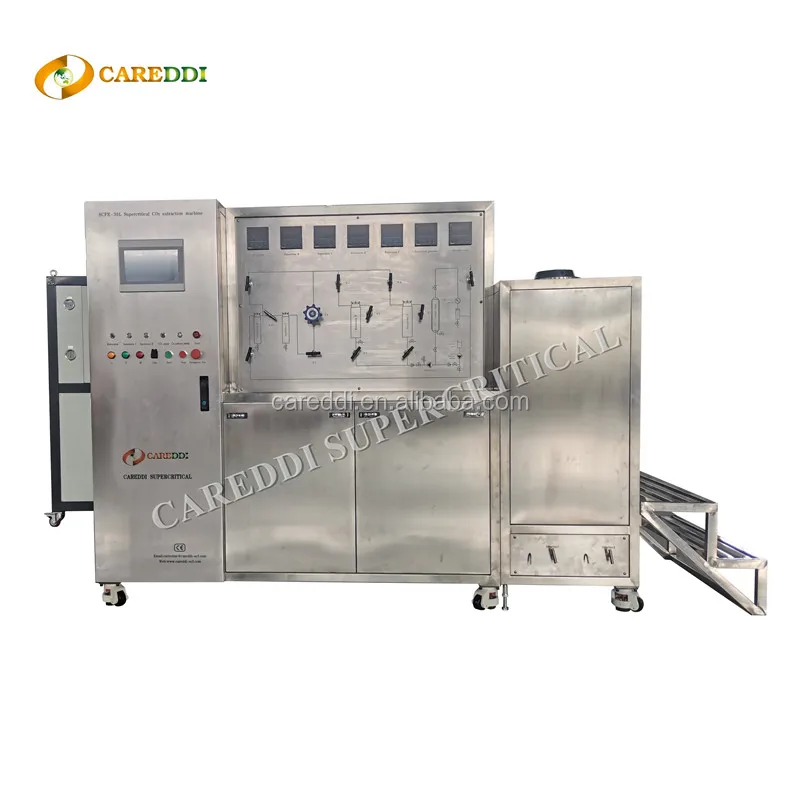

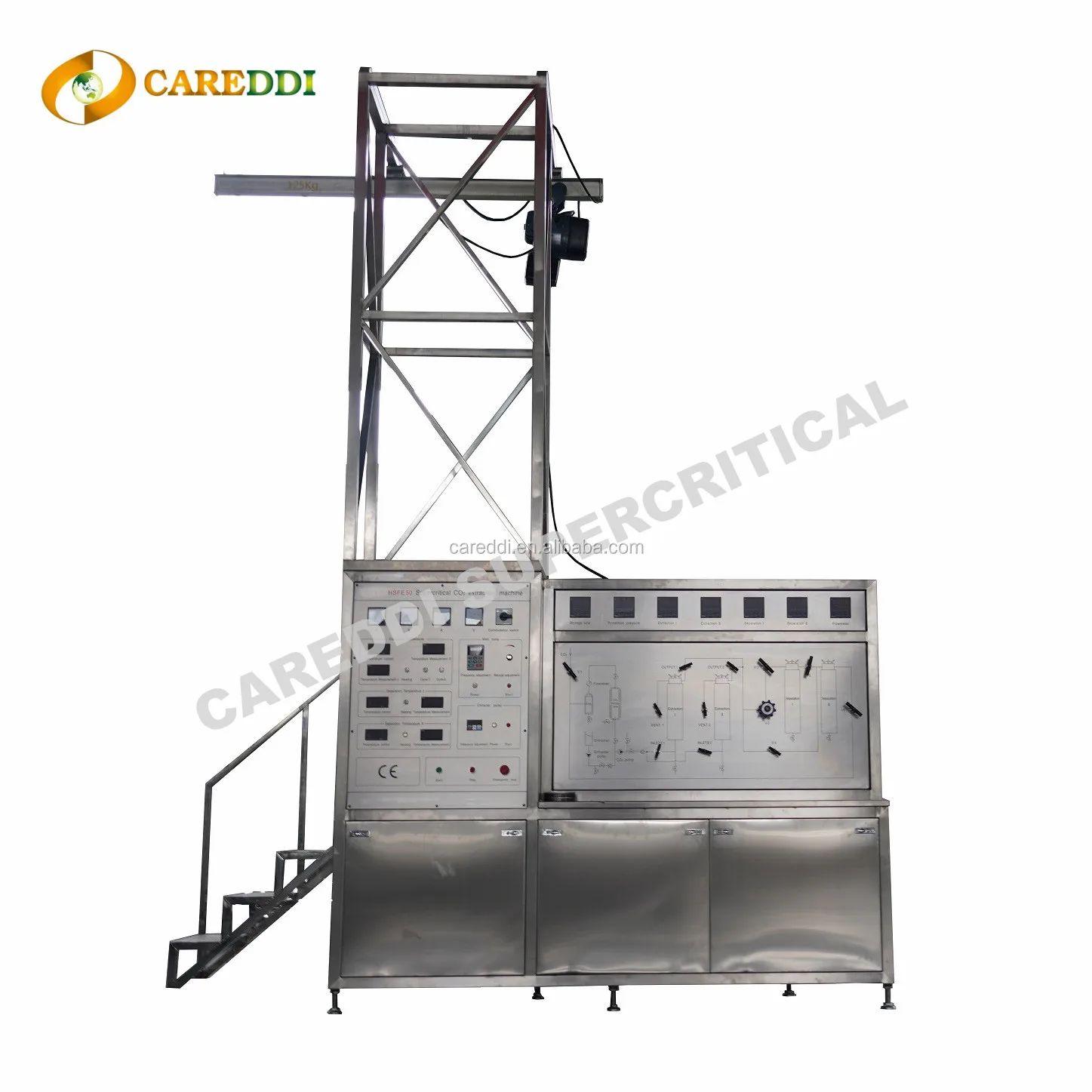

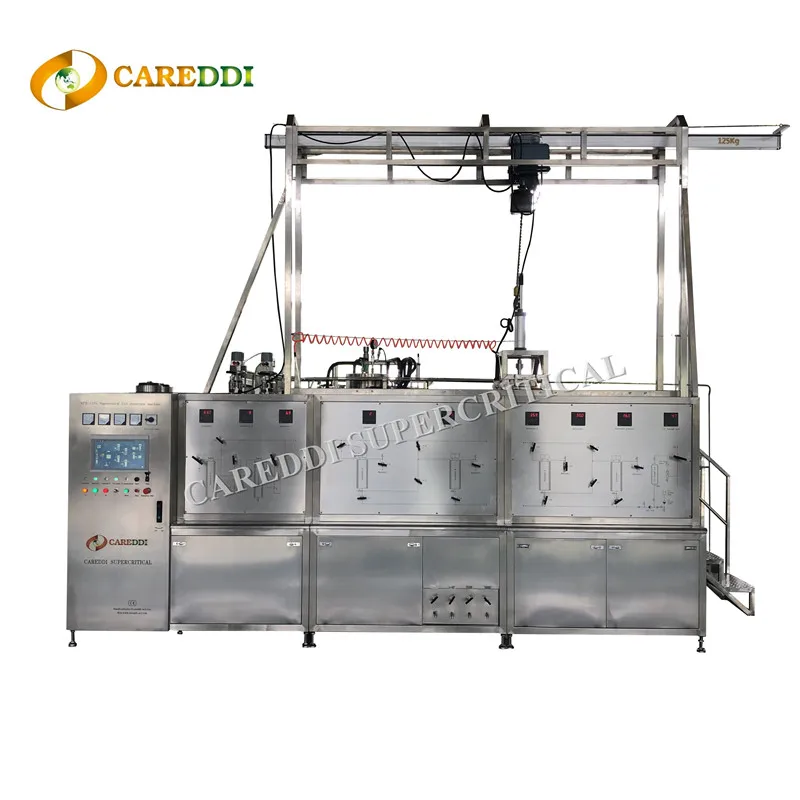

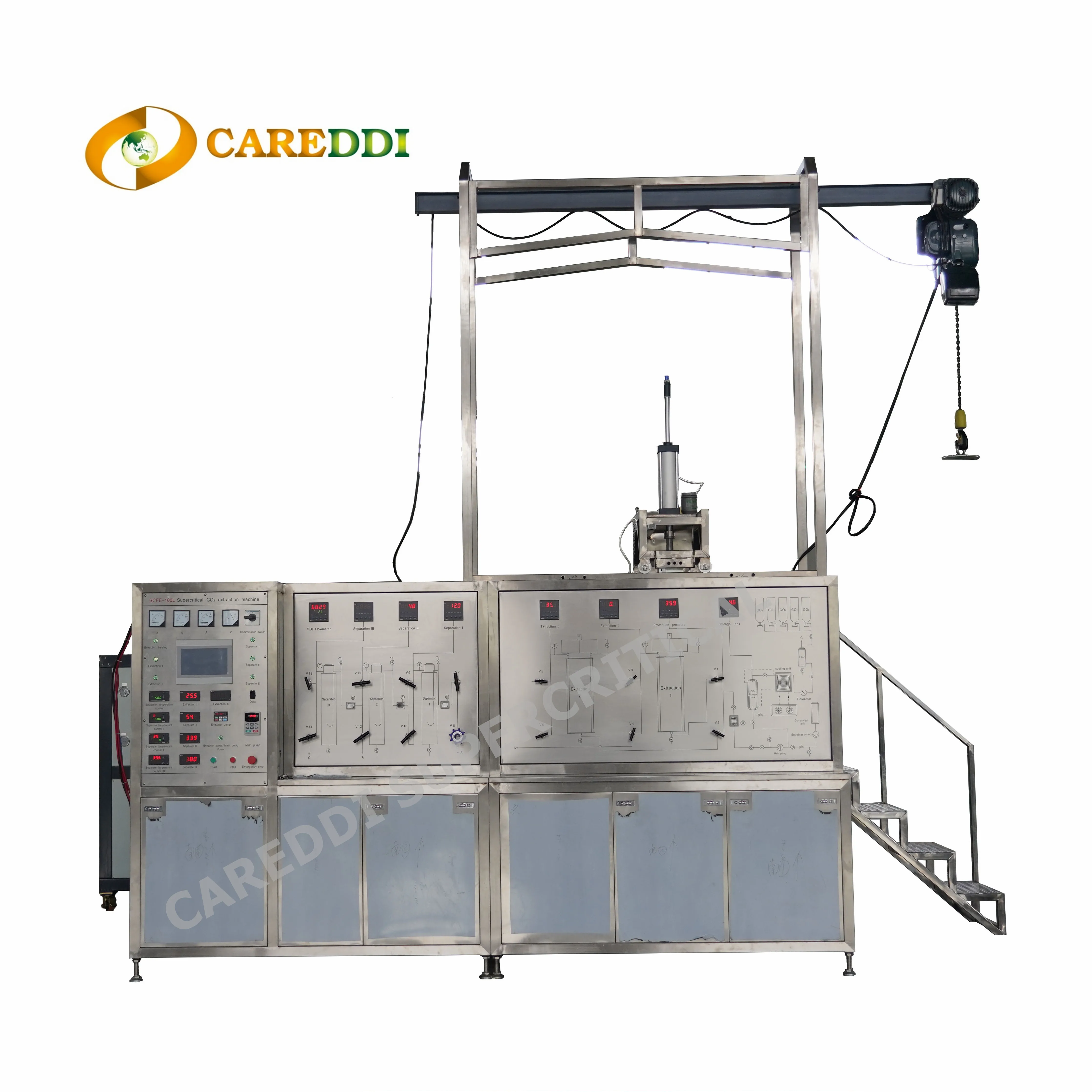

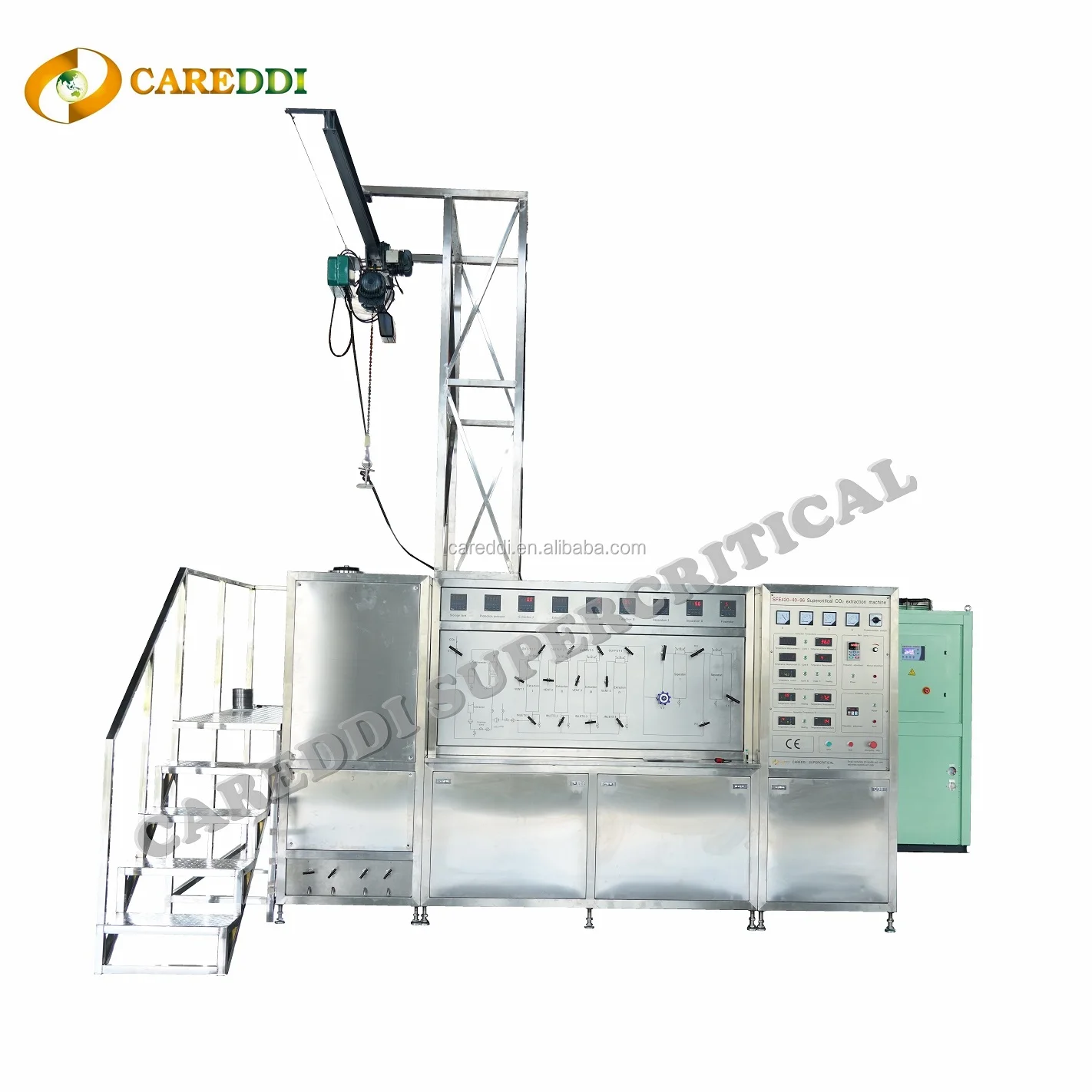

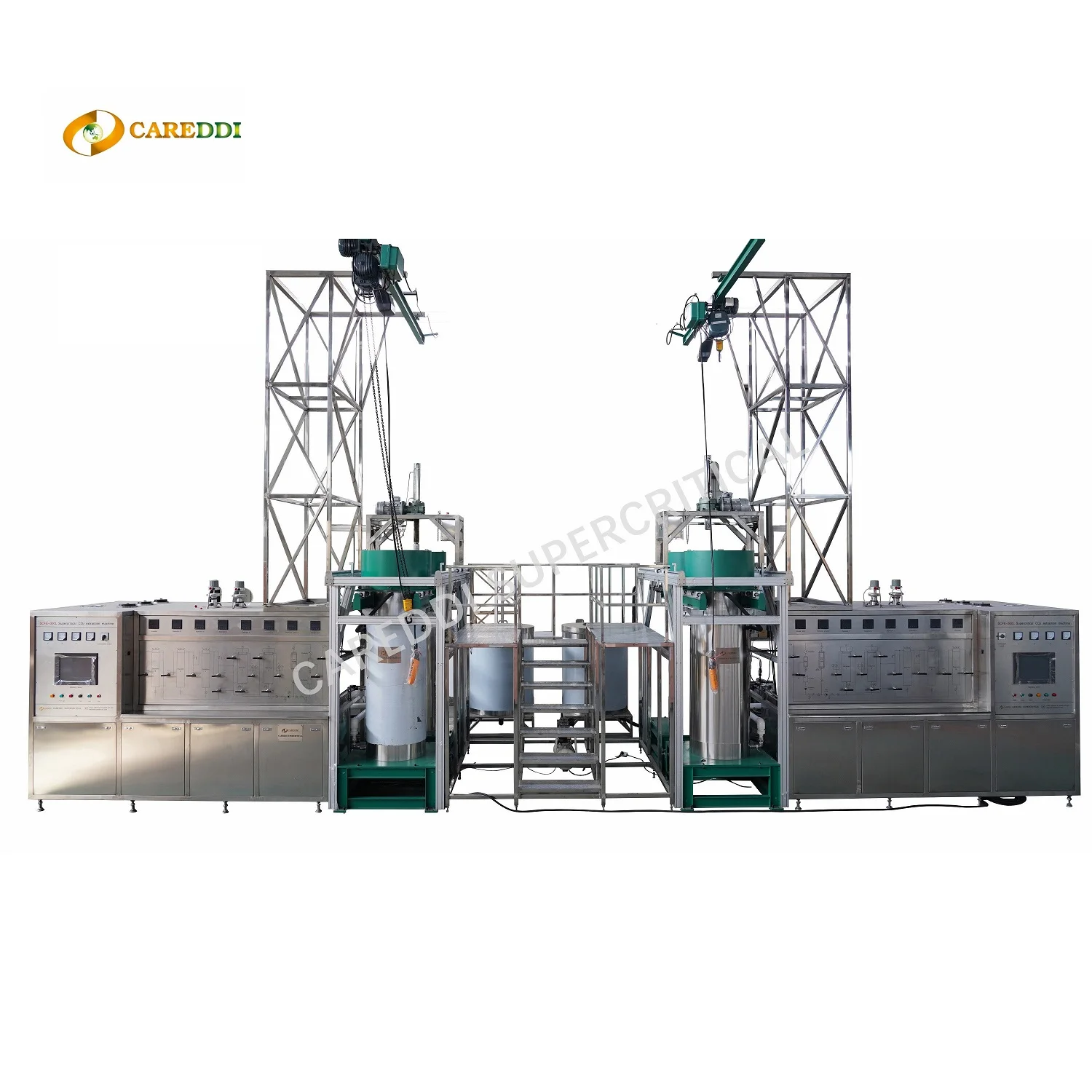

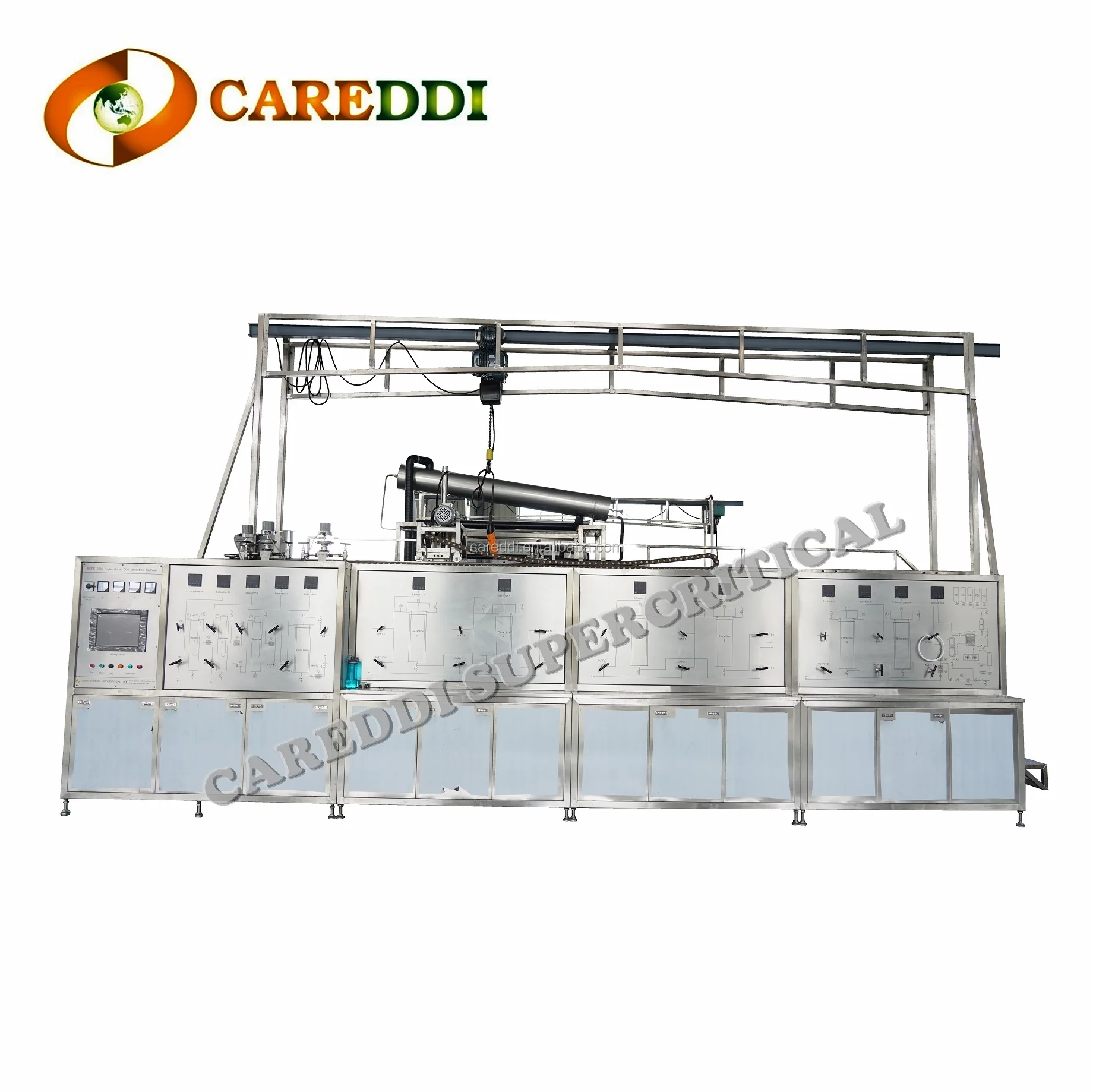

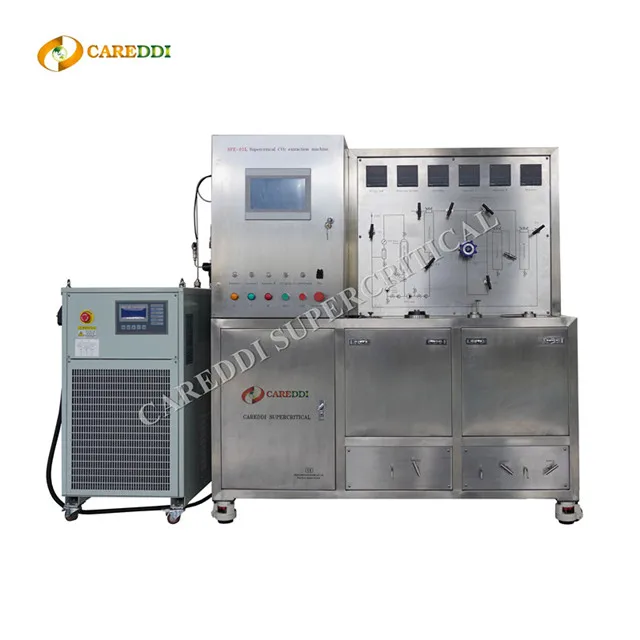

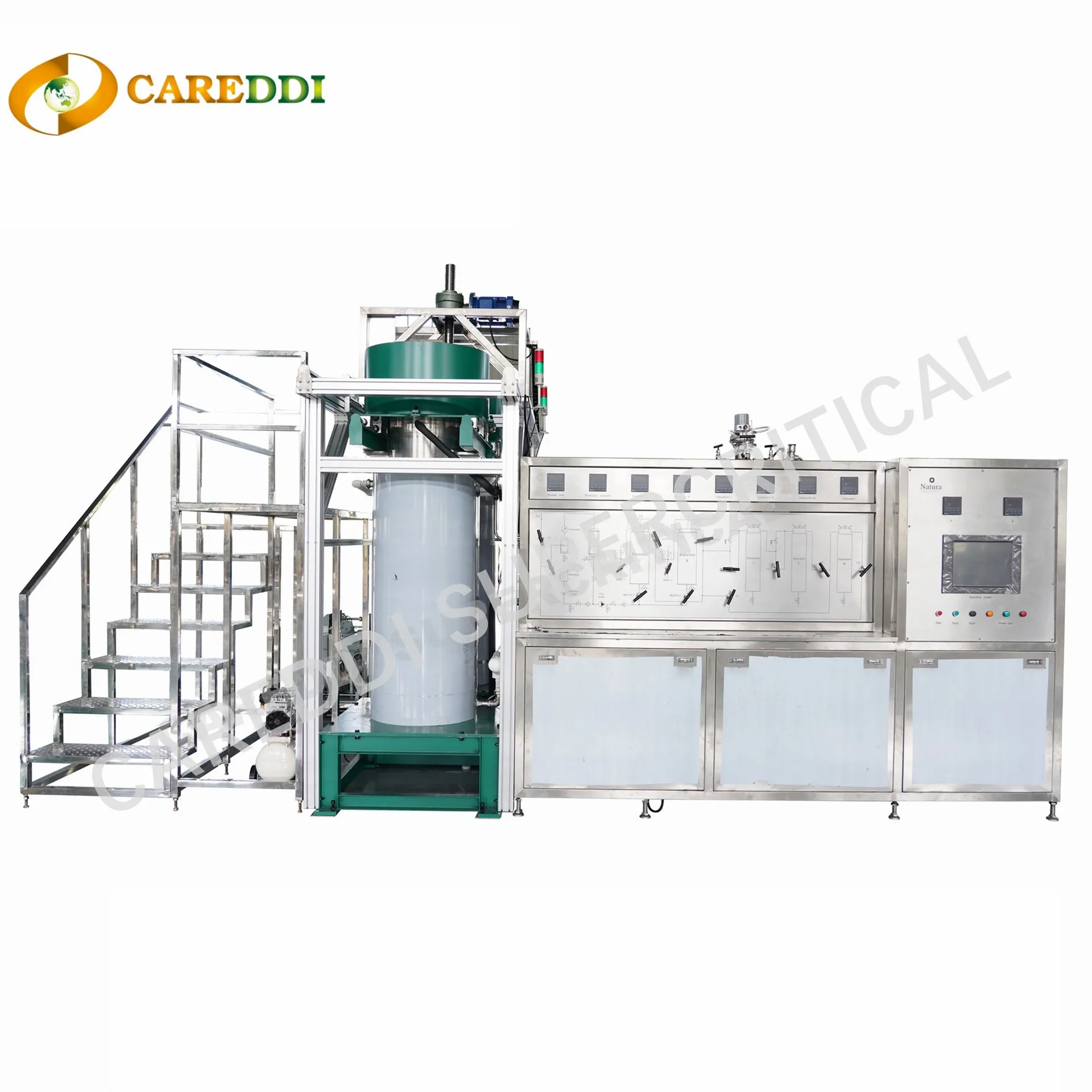

Optional Model
Company Profile
Successful Project
Packing & Delivery

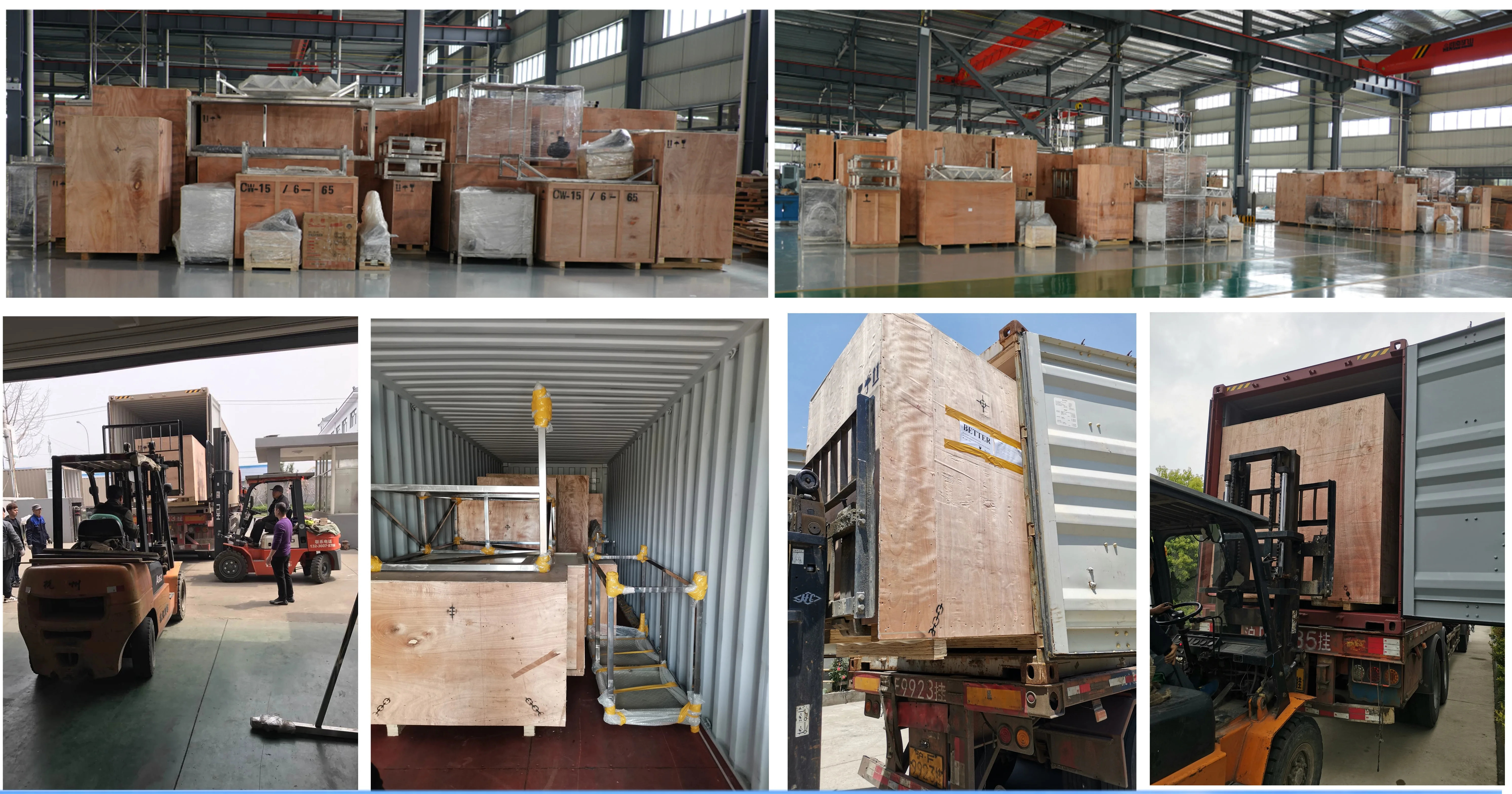

The package is Plywood box. We will assemble and test the machine before packaging.
FAQ
Q1：Is co2 extraction organic?
A1：CO2 Botanical Extracts are completely natural and exceptionally pure. These highly concentrated plant extracts are free of solvent residues and impurities such as heavy metals. All CO2 Extracts are oil soluble.
Q2: Why is co2 better than ethanol?
A2: CO2 is highly tunable. With CO2 you can vary factors such as time, temperature, and pressure to create different products. Ethanol products need to go into more stages of refinement to be turned into various products such as distillate.
Q3: Is co2 extracted CBD oil safe?
A3: CO2 extraction is also a safe and effective way to make medical-quality full spectrum CBD oil. It remains one of the most popular hemp extraction methods in the industry, thanks to the combination of safety and cost-effectiveness.
Q4: How does supercritical co2 extraction work?
A4: To perform an extraction, the plant material must be ground and placed into an extraction vessel. CO2 gas undergoes high temperature and pressure. A pump then forces supercritical co2 into the extraction vessel where it meets the plant and breaks the trichomes allowing it to dissolve part of the plant material.
Q5: Can we conduct an extraction test before buying?
A5: Yes, sure, we can do extraction test with your raw material and send you videos and pictures for your reference.
Q2: Why is co2 better than ethanol?
A2: CO2 is highly tunable. With CO2 you can vary factors such as time, temperature, and pressure to create different products. Ethanol products need to go into more stages of refinement to be turned into various products such as distillate.
Q3: Is co2 extracted CBD oil safe?
A3: CO2 extraction is also a safe and effective way to make medical-quality full spectrum CBD oil. It remains one of the most popular hemp extraction methods in the industry, thanks to the combination of safety and cost-effectiveness.
Q4: How does supercritical co2 extraction work?
A4: To perform an extraction, the plant material must be ground and placed into an extraction vessel. CO2 gas undergoes high temperature and pressure. A pump then forces supercritical co2 into the extraction vessel where it meets the plant and breaks the trichomes allowing it to dissolve part of the plant material.
Q5: Can we conduct an extraction test before buying?
A5: Yes, sure, we can do extraction test with your raw material and send you videos and pictures for your reference.
