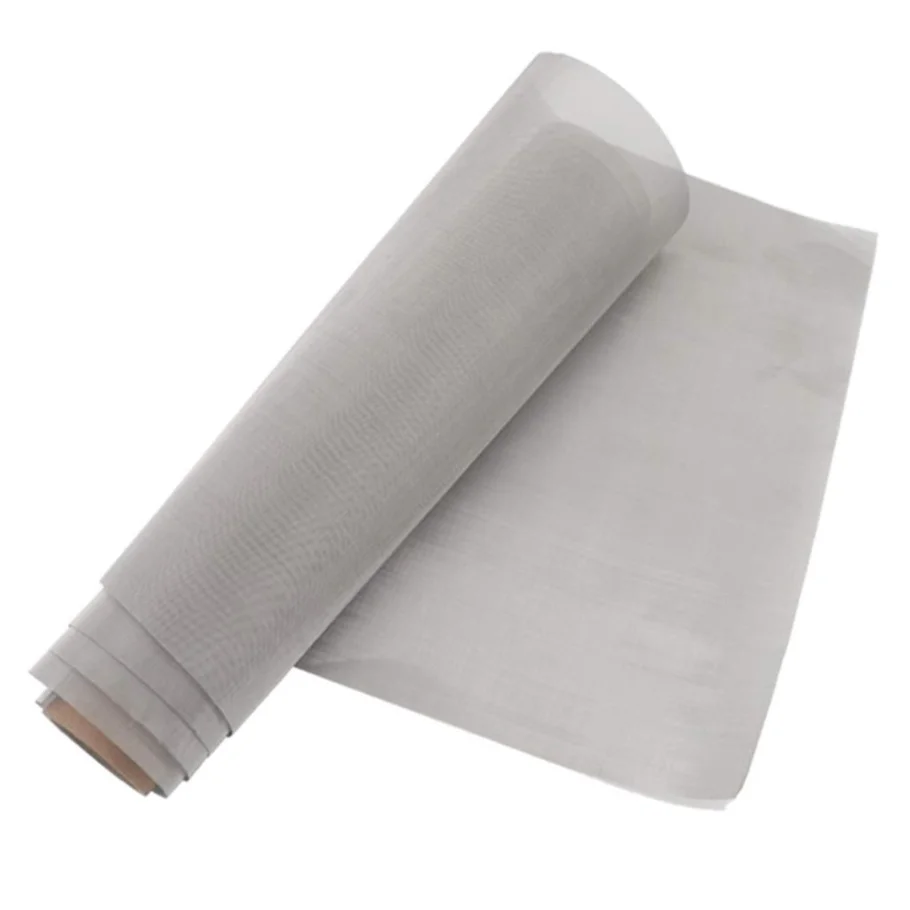

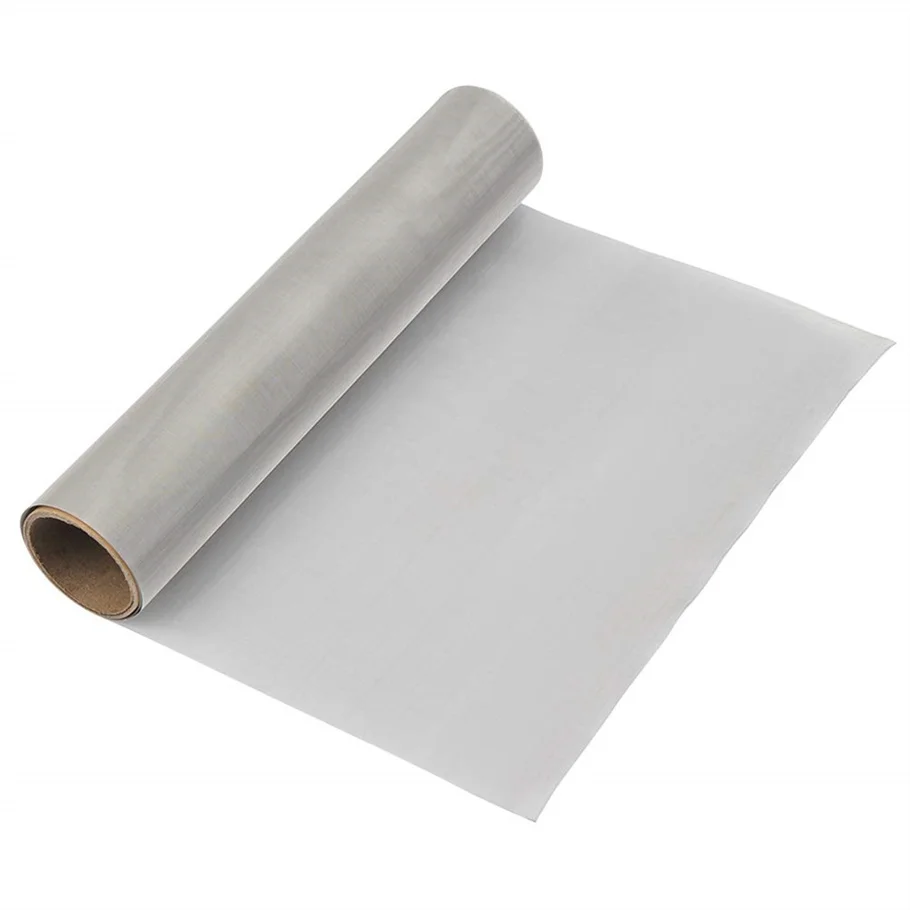

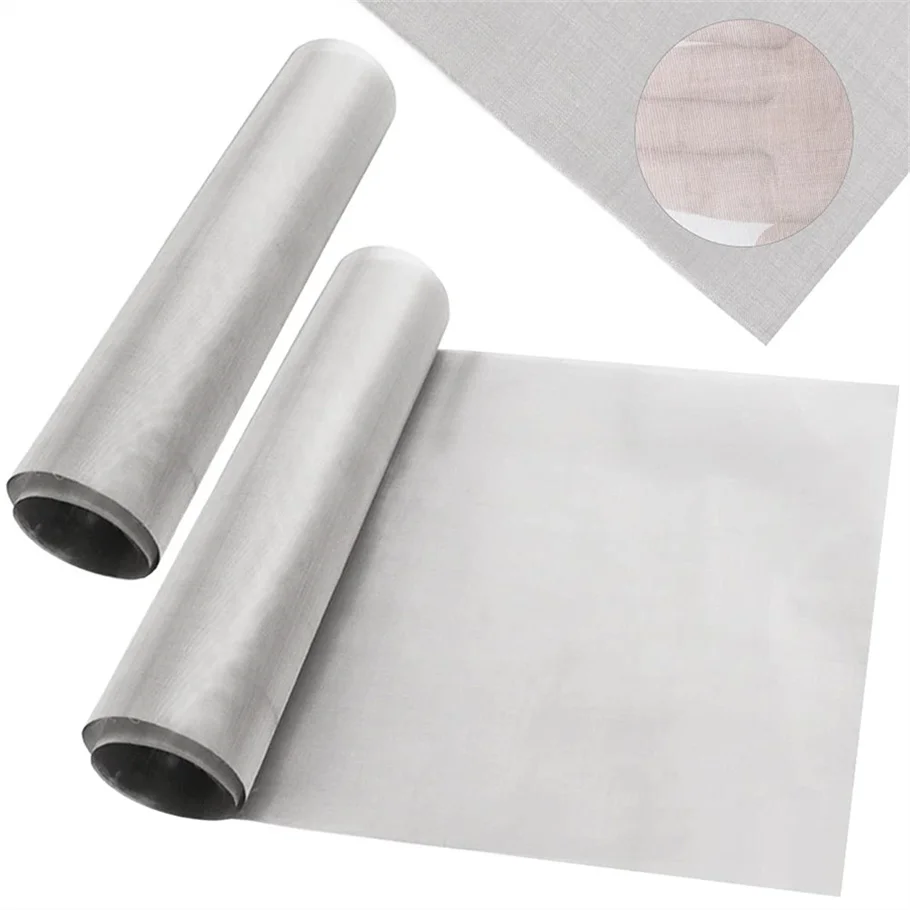

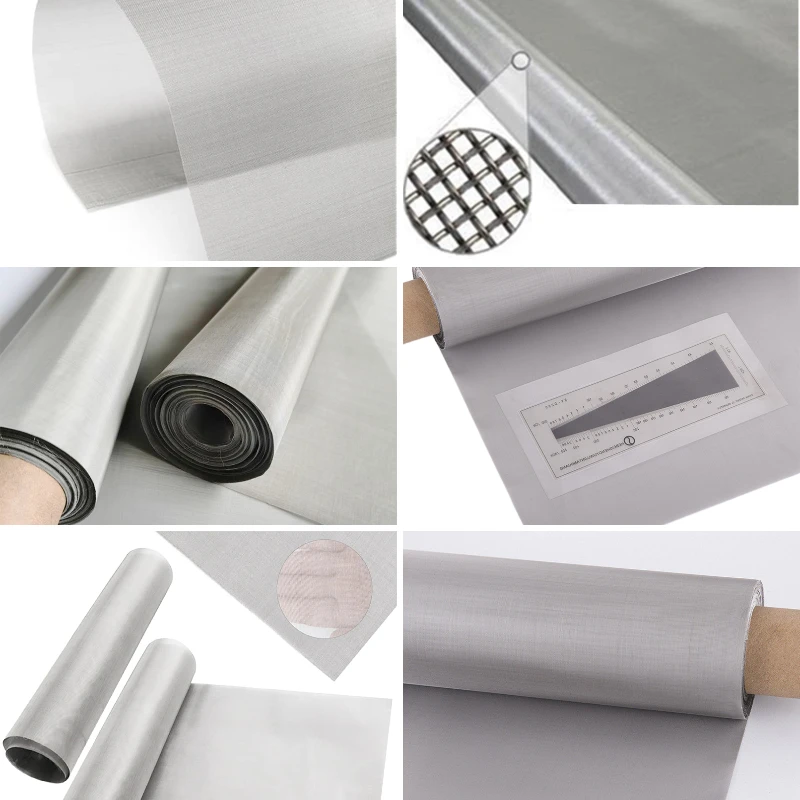

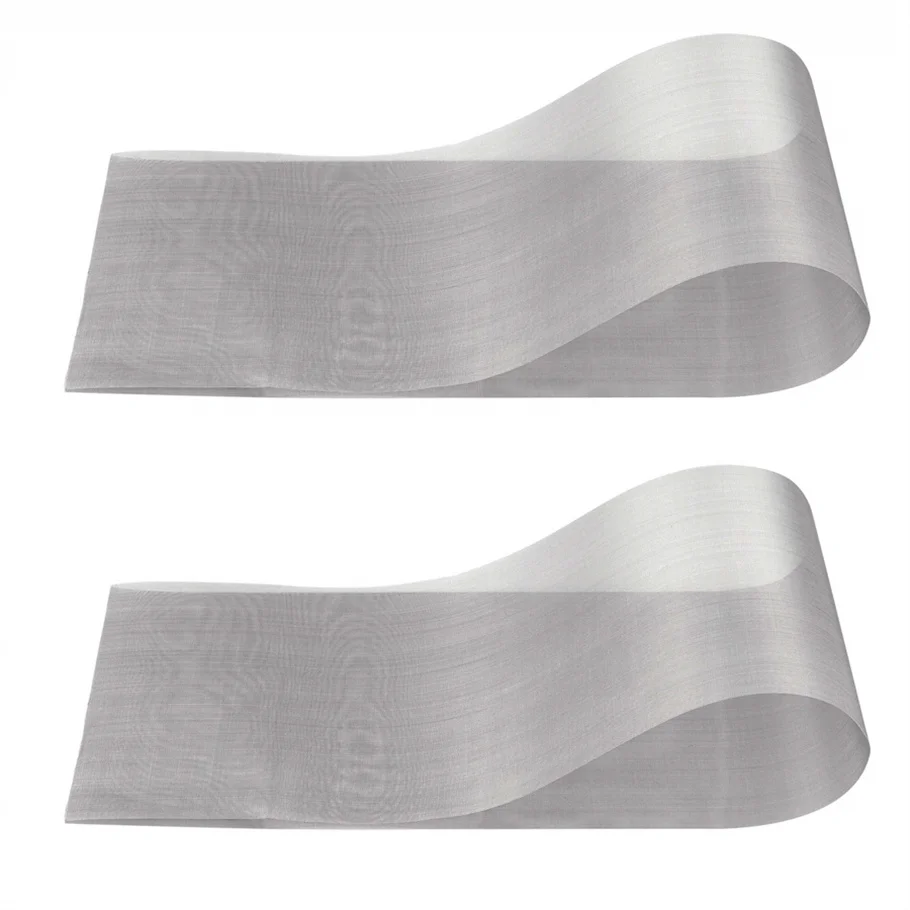

20 25 40 micron 304 stainless steel fabric wire mesh


Products Description


Material
SUS S32750 stainless steel wire
Wire Diameter
0.001-4.0mm

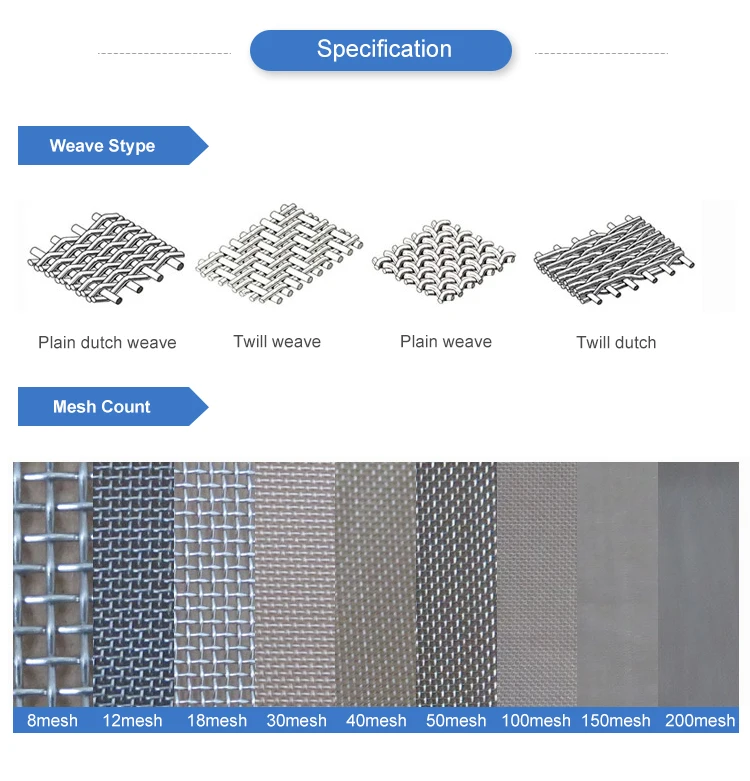

Woven Style
Plain Weave, Twill Weave, Dutch Weave, etc.
Mesh Counts
Plain weave can be woven up to 635 mesh.
Twill weave can be woven from 100 to 635mesh.
Dutch weave can be woven up to 3200mesh
Packaging Details
Inner Kraft, Outside Plastic Cloth, Put Into Wooden Pallet or case
Application
Plain/Twill Weave Stainless Steel Wire Mesh is used for screening and filtering in acid or alkali environment. As mud mesh in oil
industry, chemical packing nets, chemical fiver industry as screen mesh, electroplating industry as pickling nets.
Features
Corrosion resistance.
Anti-acid and alkali
Anti-high temperature.
Good filter performance.
Long using life










Specification




Specification of Plain Weave Stainless Steel Wire Mesh
Mesh/lnch
Wire Diameter (mm)
Aperture (mm)

Mesh/lnch
Wire Diameter (mm)
Aperture (mm)
1
4.00
21.400

60
0.15
0.273
2
1.80
10.900

70
0.14
0.223
3
1.60
6.866

80
0.12
0.198
4
1.20
5.150

90
0.11
0.172
5
0.91
4.170

100
0.10
0.154
6
0.80
3.433

120
0.08
0.132
8
0.600
2.575

140
0.070
0.111
10
0.550
1.990

150
0.065
0.104
12
0.500
1.616

160
0.065
0.094
14
0.450
1.362

180
0.053
0.088
16
0.40
1.188

200
0.05
0.074
18
0.35
1.060

250
0.04
0.061
20
0.30
0.970

300
0.04
0.049
26
0.28
0.696

325
0.03
0.048
30
0.25
0.596

350
0.03
0.042
40
0.21
0.425

500
0.03
0.039
50
0.190
0.318

635
0.001
0.020
Specification of Twill Weave Stainless Steel Wire Mesh
Mesh/lnch
Wire Diameter (mm)
Aperture (mm)

Mesh/lnch
Wire Diameter (mm)
Aperture (mm)
100
0.14
0.114

325
0.035
0.0443
120
0.1
0.111

350
0.032
0.0405
150
0.09
0.079

400
0.03
0.0335
180
0.07
0.071

450
0.026
0.0304
200
0.06
0.067

500
0.025
0.0258
250
0.045
0.0566

600
0.018
0.0243
300
0.04
0.0446

635
0.018
0.022
Specification of Plain Dutch Weave Stainless Steel Wire Mesh
Mesh /Inch
micron （μm)
Weight (Kg/m2)
Cloth Thickness (mm)
80X300
32-36
0.98
0.25
80X400
32-45
0.82
0.23
50X250
56-63
1.00
0.32
50X280
71-75
1.00
0.32
40X200
75-80
1.30
0.4
30X150
80-100
1.00
0.5
24X110
100-112
2.50
0.76
22X140
140-170
2.10
0.66
20X150
160-180
1.55
0.5
20X150
170-190
1.60
0.55
18X100
200-210
2.05
0.69
14X110
220-240
2.15
0.72
12X95
240-260
2.30
0.79
14X88
280-300
3.15
0.76
10X90
270-290
2.50
0.93
12X64
280-300
4.10
1.21

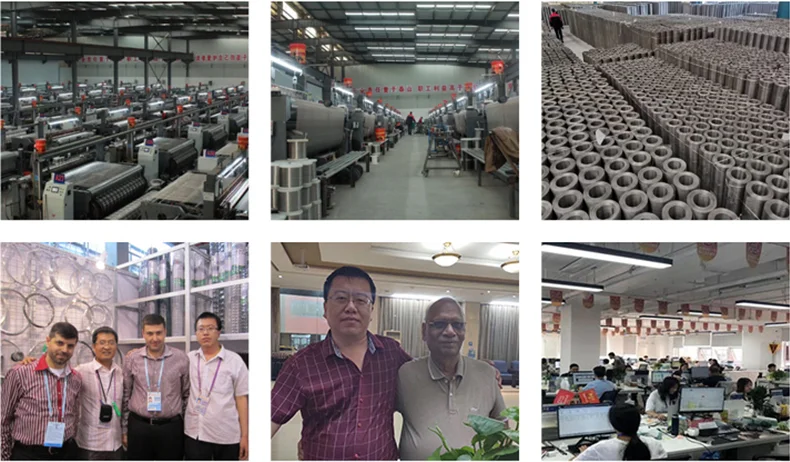

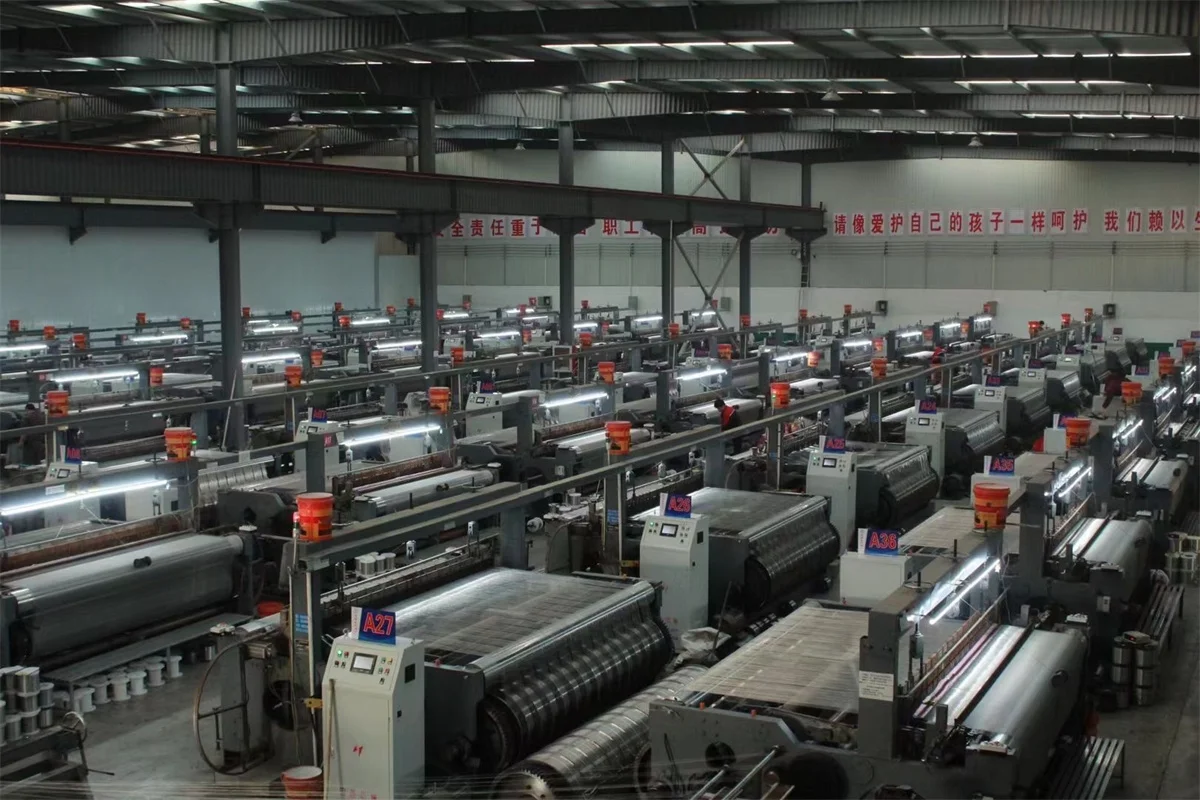

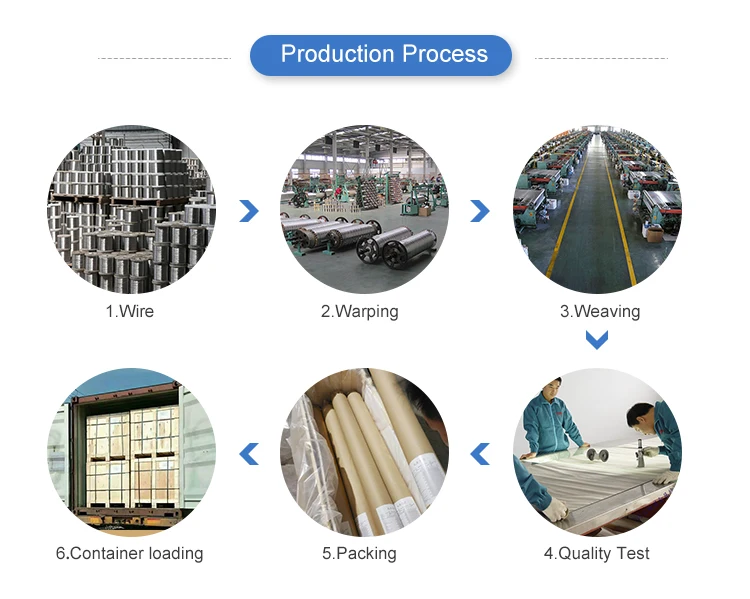

Production Process

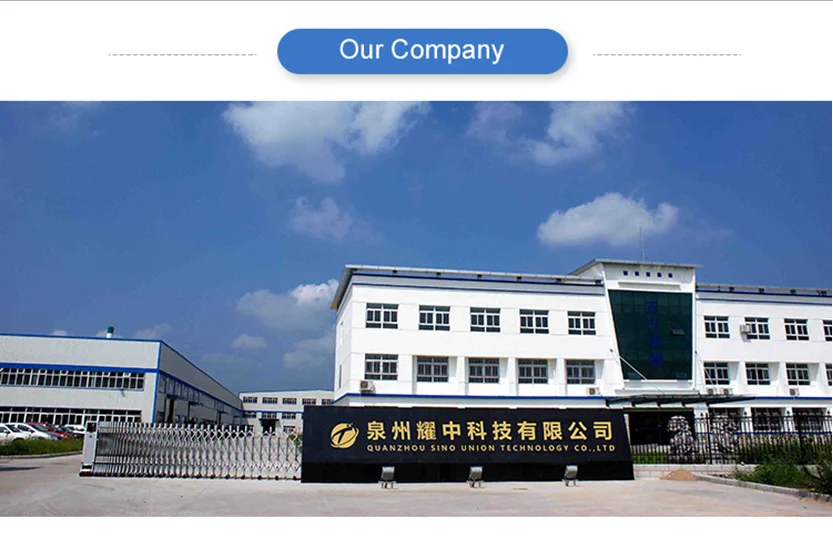

Our Company




\tQuanzhou Sino Union Technology Co., Ltd. is involved in wire mesh products located in Anping, China. We are engaged in wire drawing and wire mesh weaving production more than 20 years and have accumulated rich experience in this field. We offer the following products with complete specifications and good quality: Welded wire mesh, welded wire panels, chain link fence, wire mesh fences, expanded metal mesh, stainless steel wire mesh, special material wire mesh, coffee filters, stainless steel security wire mesh and so on. Our products are widely used in petroleum, chemical, construction, textile, medicine, aviation, aerospace and other industries. We has the expertise, the technical force, the advanced processing and inspection equipment, and the experience to establish good business relationship with world customers. We has adopted modern management system to ensure product quality and reasonable price. Most of our wire mesh products are for export to Europe, the United States, the Middle East, Southeast Asia, and many other countries and regions. We can offer quality products at good price and timely delivery. Welcome to contact us.




Why Choose Us




Certification




Packing & Shipping




FAQ


Q:Are you trading company or manufacturer?
A:We are a 20-years-old manufacturer.
Q:Can you provide mesh sizes by customized?
A: Yes, we can provide mesh sizes by customized.
Q:Can you send me some samples to check your quality?
A:Sure, if you would like charge of the freight cost.
Q: How long is your delivery time?
A:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in
stock, it is according to quantity.
Q:How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.Airline and
sea shipping also optional.
Q:How can we get a specific quotation?
A: 1. Let us know your requirements or application.
2. Let us know the size(length & width) and quantity you need?
3.Please inform us of your company' name, address, phone number and Email.
4.Please inform us of the shipping need by air or sea. We quote according to your
requirements or our suggestions.
Q: How can I pay you?
A: 1.Via Alibaba Trade insurance orders.
2.We issue an invoice to pay our bank account.
Q:What are your terms of payment?
A:1. T /T 100% in advance. (Direct delivery, fast delivery)
2. T/T 30% as deposit, other 70% balance before shipment.(Need to wait until the final
payment arrives, about 5 days will be delayed.
