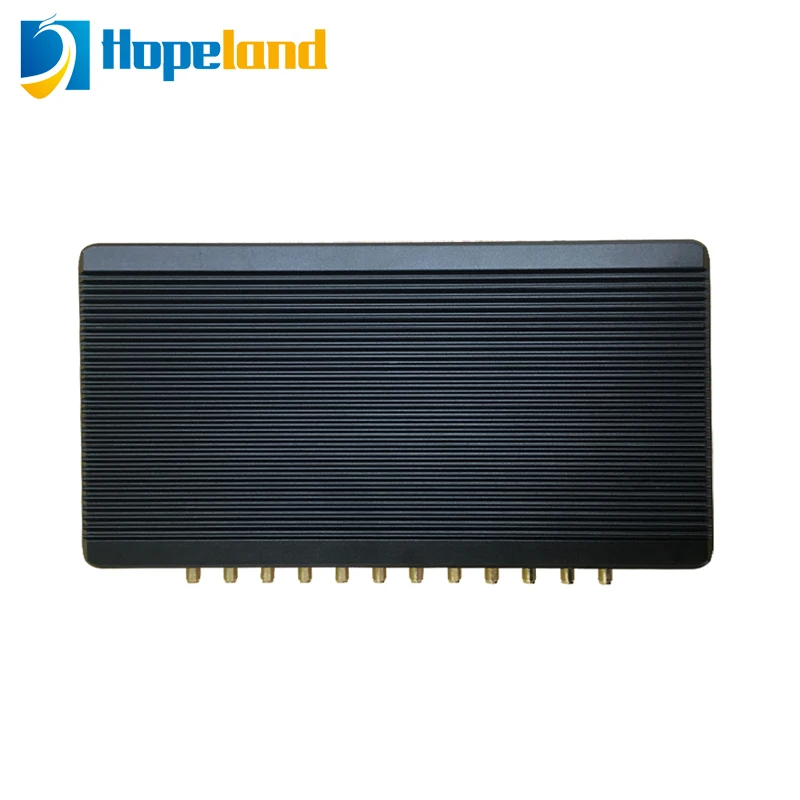

Hopeland UHF rfid reader 24 port Free SDK long reading range distance rfid tag personal tracking management RFID reader
- Category: >>>
- Supplier: Shenzhen Hopeland Technologies Co. Ltd.
Share on (1600279489482):
Product Overview
Description

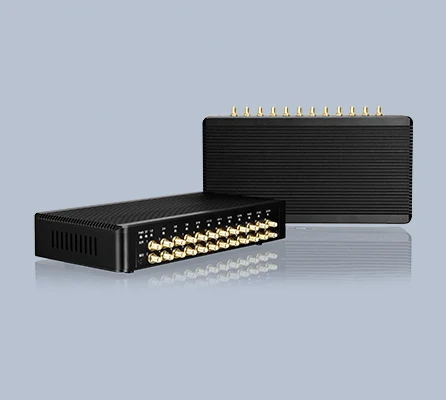

Ultra multi-port RFID reader
HL7206C24
* Die-cast aluminum anti-vibration design
* Impinj R2000 brings max RFID performance
* 24 RF port cover max reading range
* Various communication / software Interfaces helps faster application system
* Various communication / software Interfaces helps faster application system
* Seamlessly compatible with Hopeland RFID middleware/web platform
* OEM, ODM support, customized baseband
* Various communication / software Interfaces helps faster application system
* Seamlessly compatible with Hopeland RFID middleware/web platform
* OEM, ODM support, customized baseband
Details Images

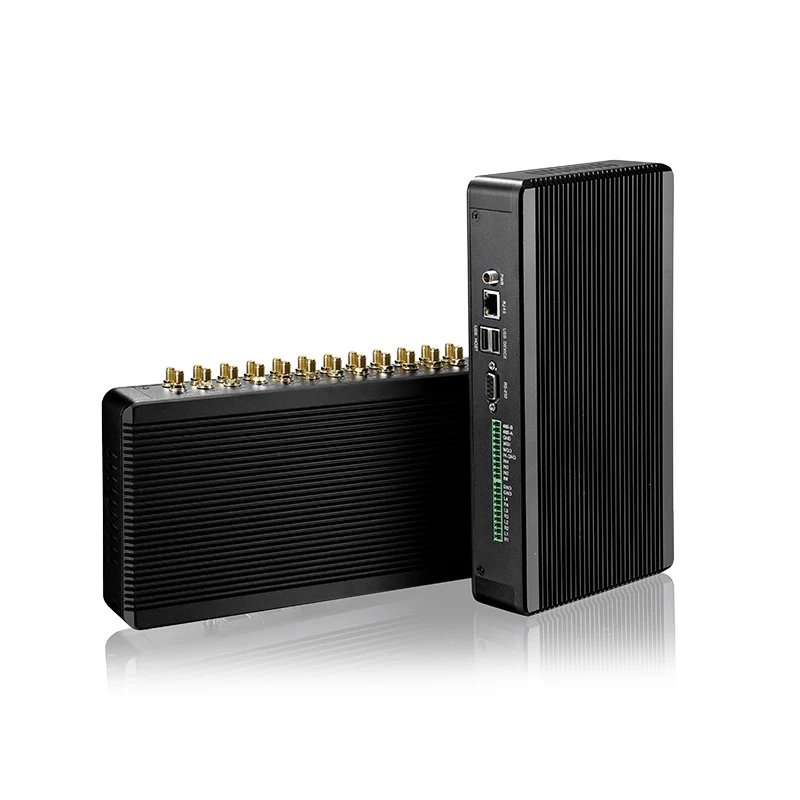

Industrial design with independent IP rights, Die-cast aluminum anti-vibration. Tough lines, simple and technological

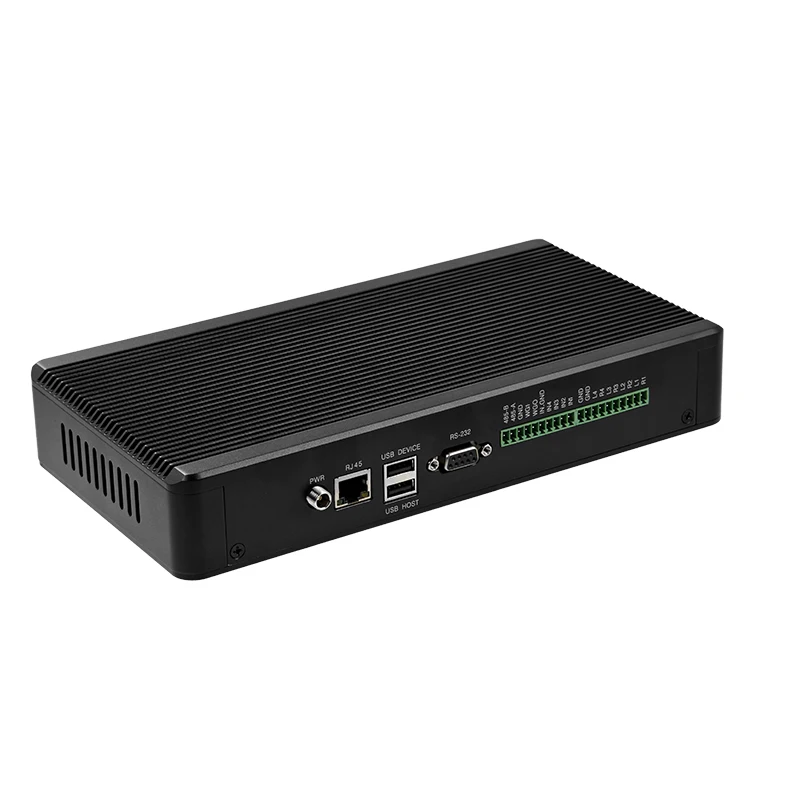

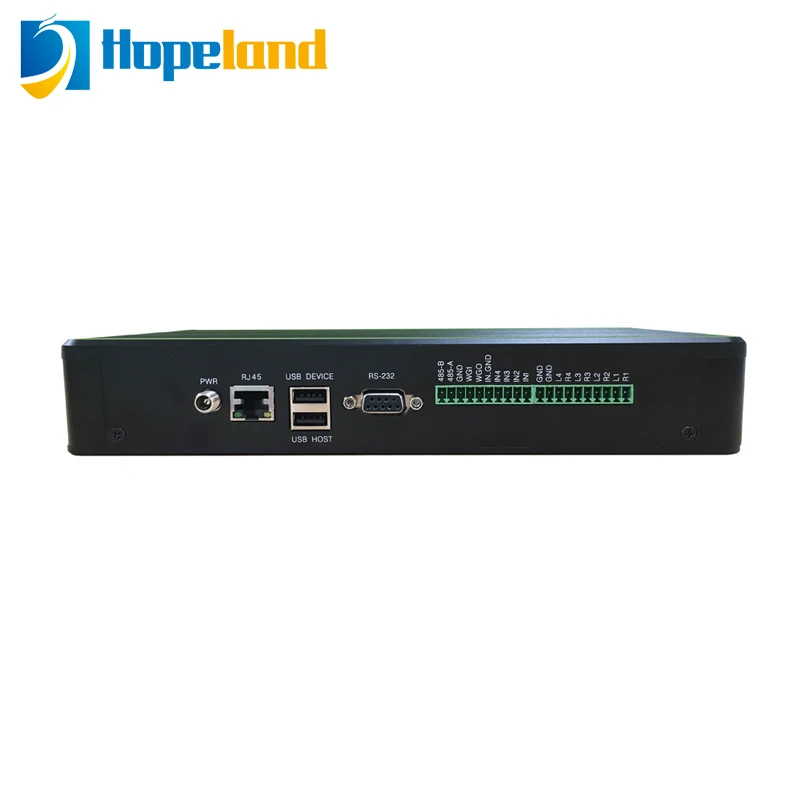

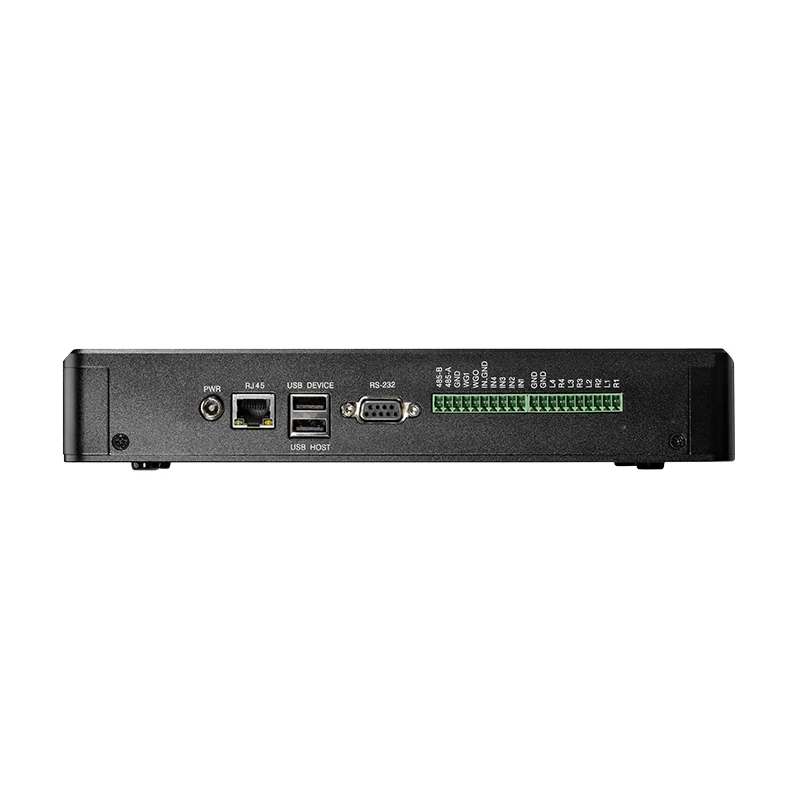

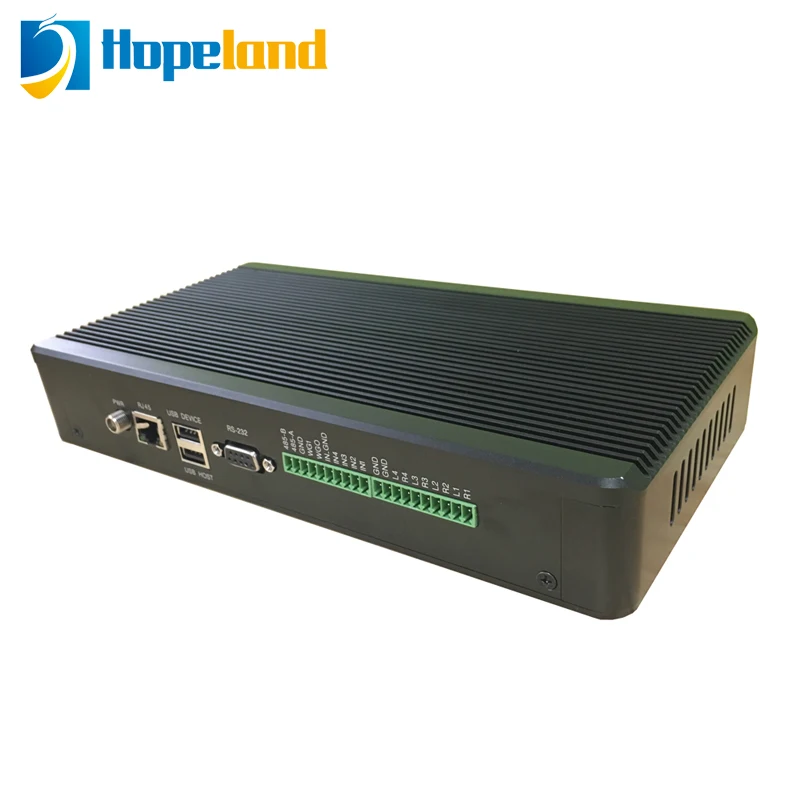

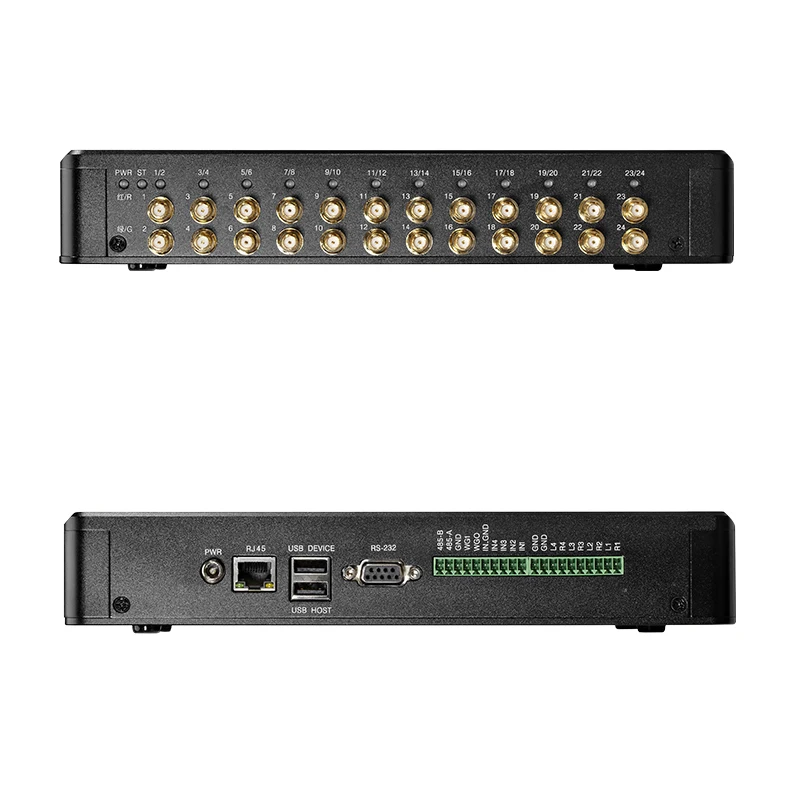

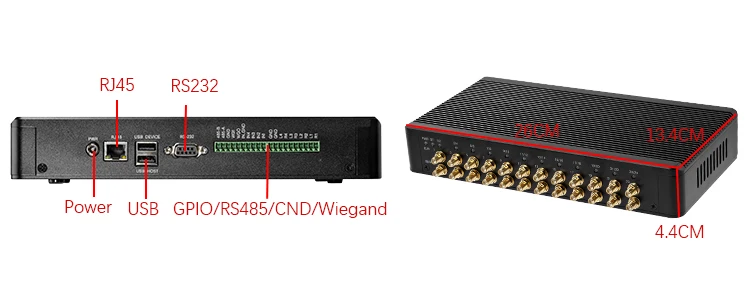

RJ45 USB RS232 GPIO, WiFi 4G optional
SMA port connect with thin cable for indoor use and save cost

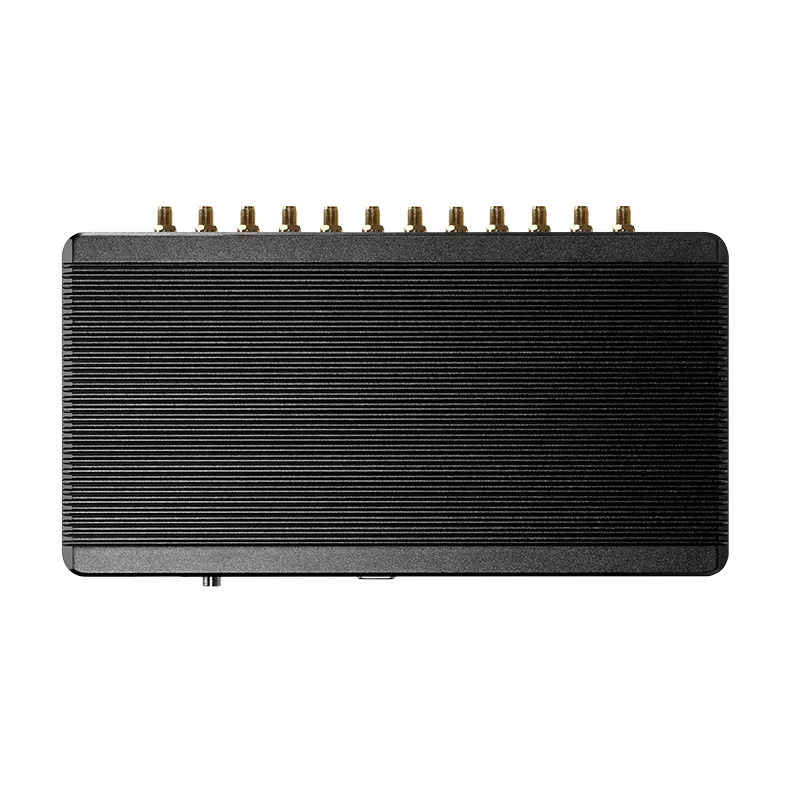

Good cooling design for long time working stably
Specifications | ||

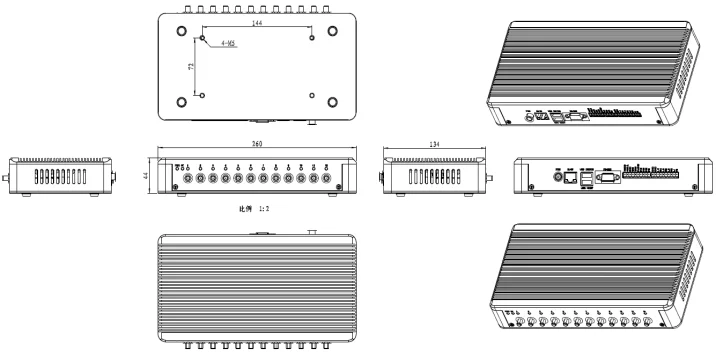

Size & N.W. | 241mm(L)×132mm(W)×36mm(H), 1.2KgsLinux 2.6 | |
CPU & Memory | ARM9, 400MHz; Flash 128MB; DRAM 32 MB | |
Operating System | Linux 2.6 | |
Network Characteristics | TCP/IP(RJ45), RS-232, RS-485, USB Host & Client, Wiegand, External WIFI / 4G optional | |
GPIO | GPIO 4 inputs, 4 outputs, optically isolated (Terminal Block) | |
Reading Distance | 0~ ≥20m(According to Tag & Environment, max 30m) | |
RFID | Protocol: ISO/IEC 18000-6B, ISO/IEC18000-6C / EPC C1G2, GEN2V2 IMPINJ R2000 chipset Frequency: FCC / CE(ETSI) / CN(CMII) in standard Russia, Japan, Brazil, Australia, etc, special frequency band optional RF output: 0-33dBm adjustable | |

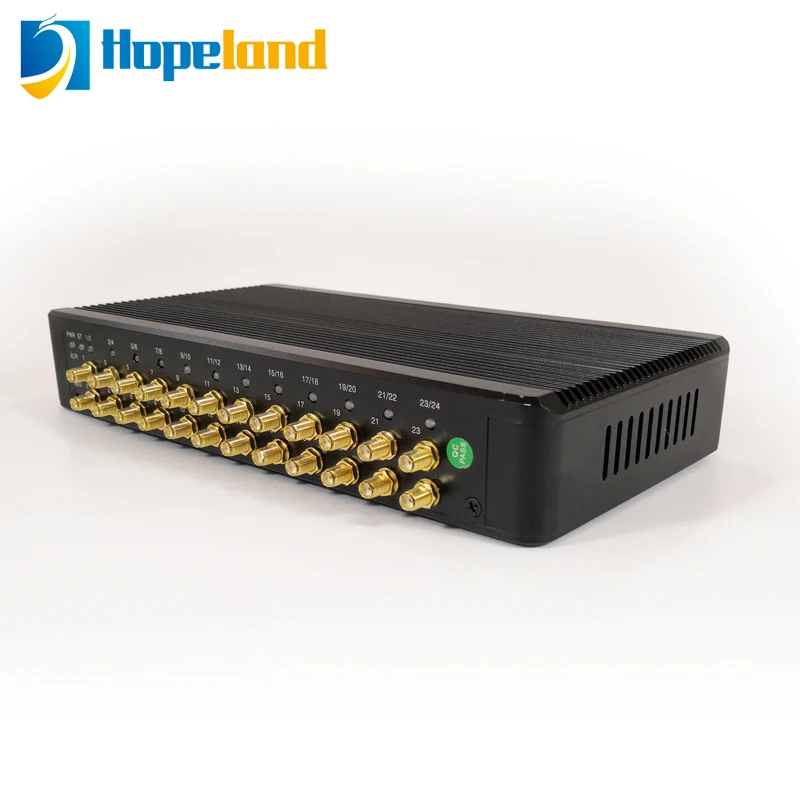

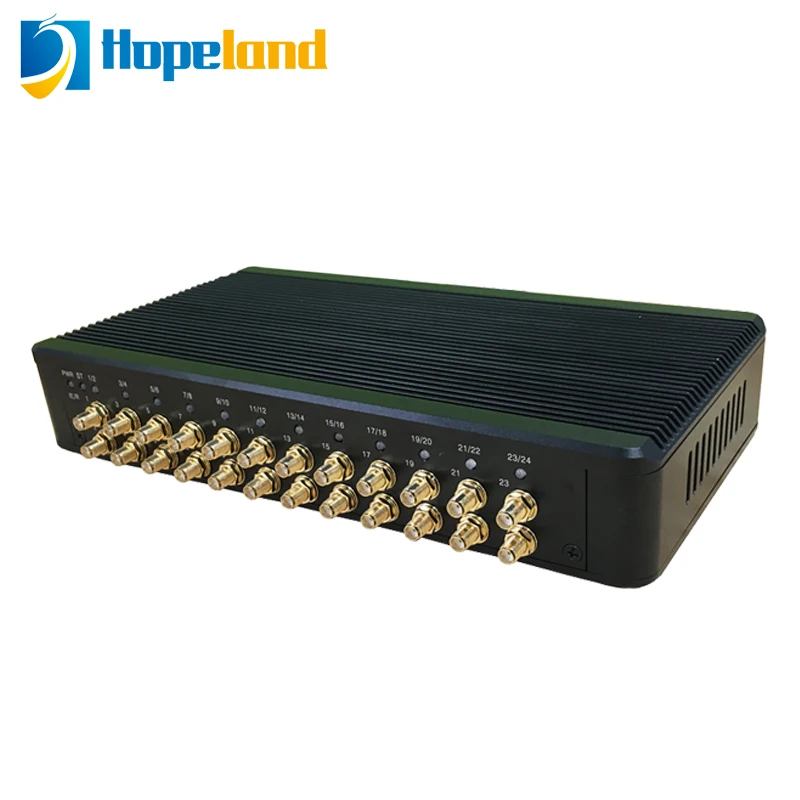

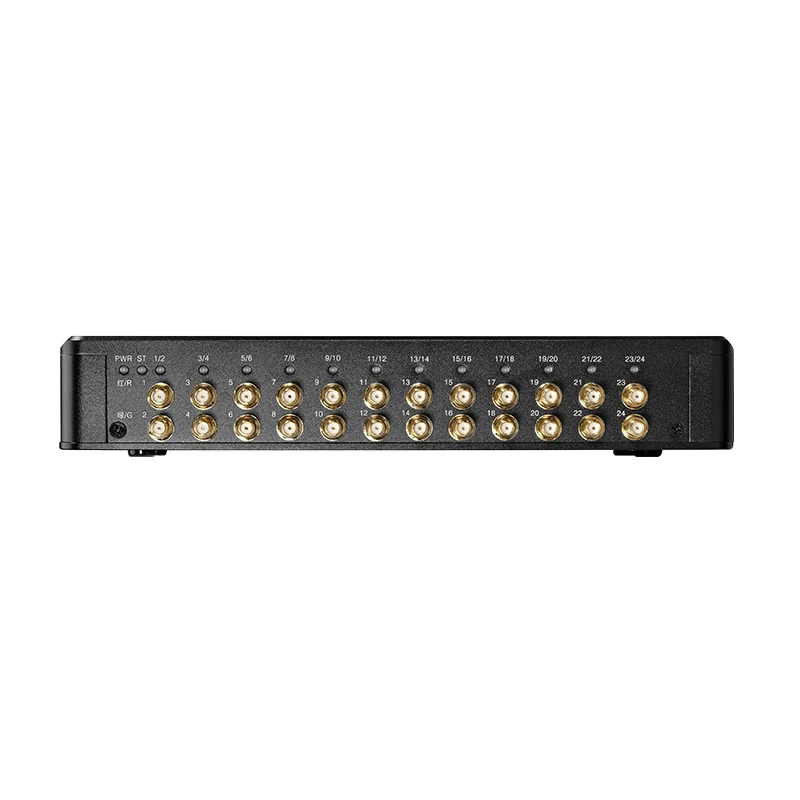

RF port | 24* SMA-K / female ports, circular or linear polarization; near and far field compatible | |
Programing Functions | Automatic reading/ White list Breakpoint Resume / Match reading / Data filter Data format customizable (PLC / Modbus compatible) RF Micron / EM Temperature sensor custom Services | |
API Support | Windows – .NET, C++ and Java SDK Android - Java Linux platform – C and Java SDK | |
Web platform functions | HttpPost, MQTT, MySQL, Microsoft SQL, | |
Packages
Package size: about 25.2*27.15*5.35cm（single box); Gross weight: about 1.5kg（single package）
Nice and Safe box within foam
Good carton material
Pallet packaging plus film
Application& Cases
Intelligent Manufacturing - BMW auto parts
Stock Inventory - Grid area
Tools management
Documents cabinet
Goods keeping cabinet
