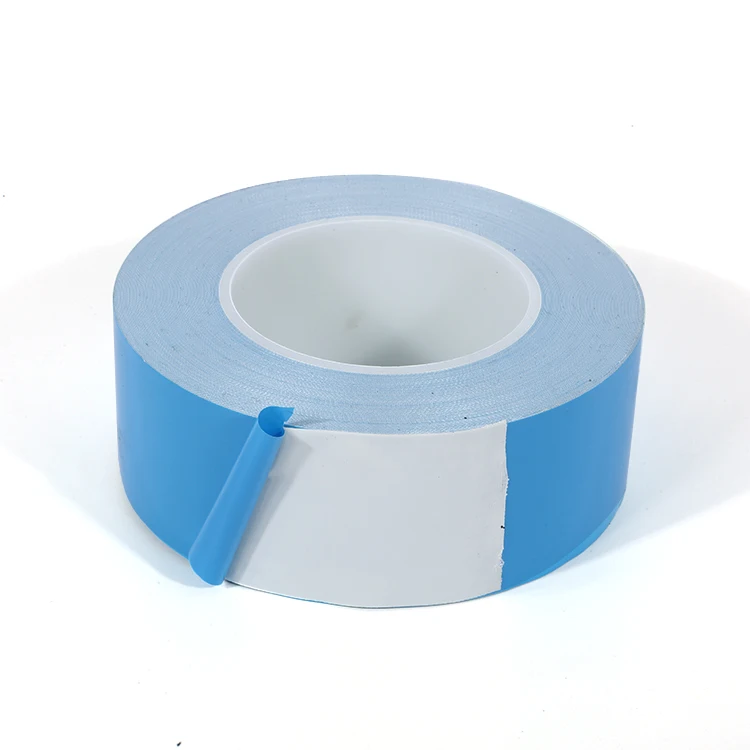

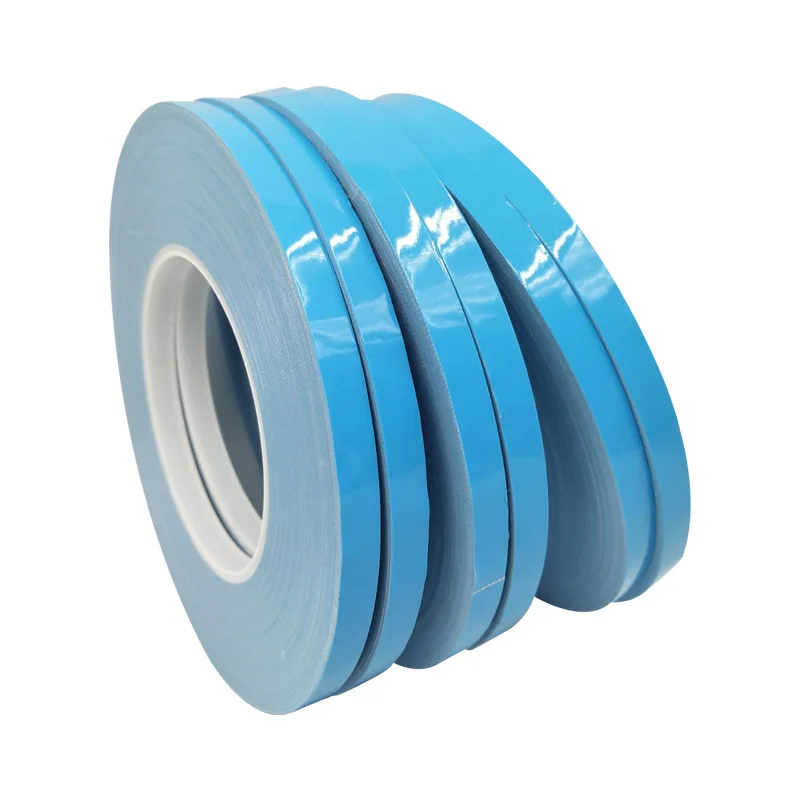

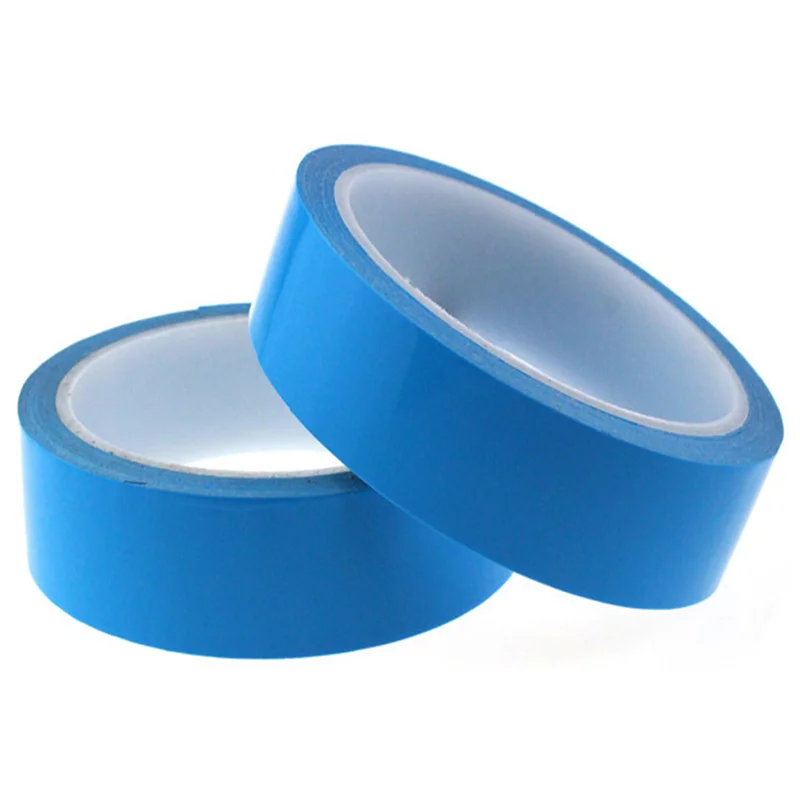

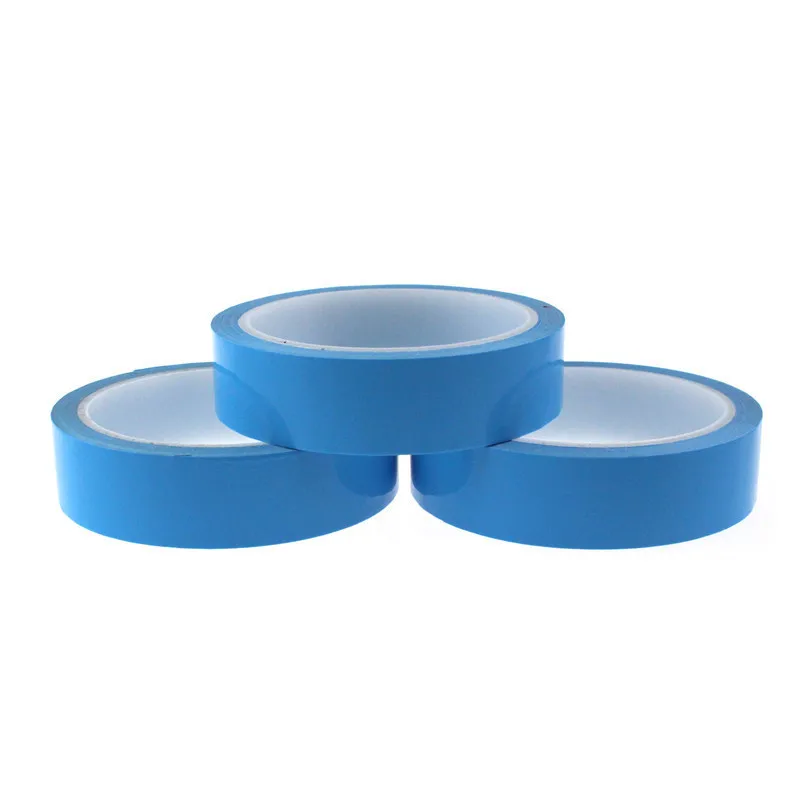

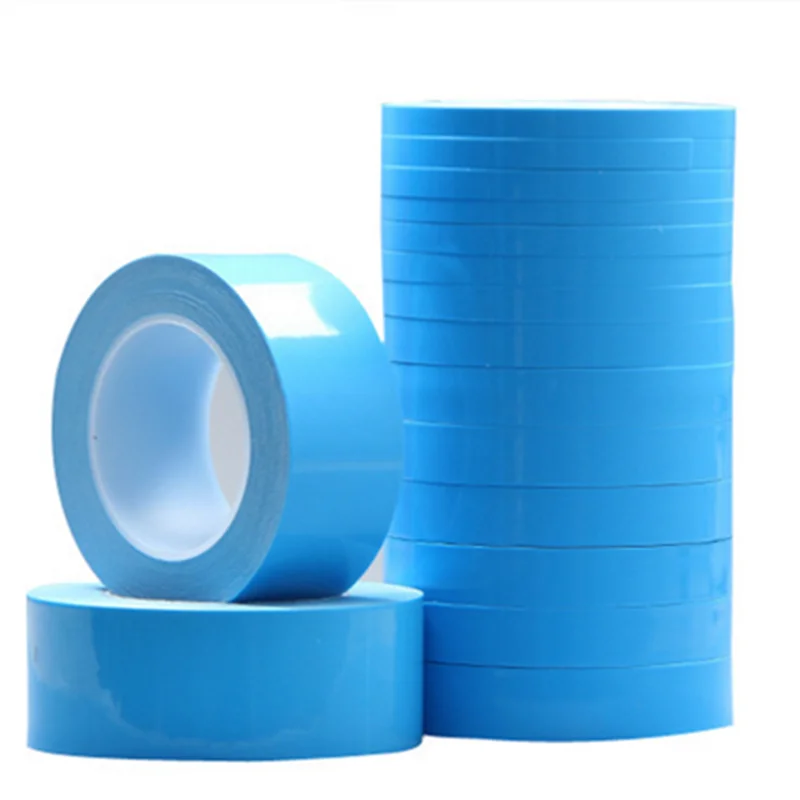

ZZX Double Sided Silicone Adhesive Fiberglass Thermal Tape
- Category: >>>
- Supplier: Shenzhen Zhenzhixing Technology Co. Ltd.
Share on (1600279529059):
Product Overview
Description

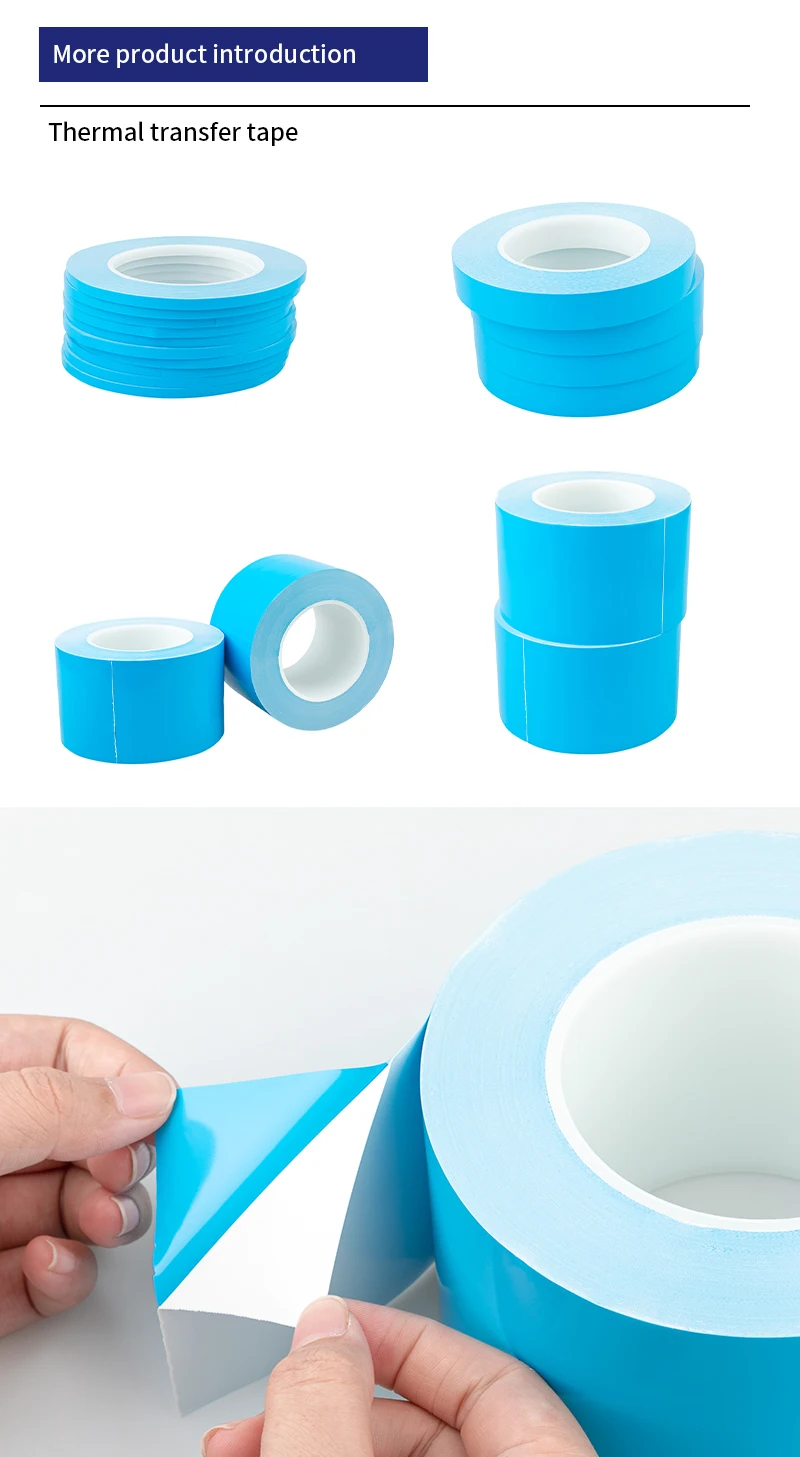

Fiberglass self adhesive thermal conductive tape
Product Description:
Model | Unit | BP-15 | BP-20 | BP-25 | BP-30 | BP-50 |
Total Thickness | mm | 0.15 | 0.20 | 0.25 | 0.30 | 0.5 |
Film Thickness | mm | 0.05 | 0.09 | 0.09 | 0.09 | 0.09 |
Thermal conductivity | W/M.K | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
Breakdown Voltage | KV | >=4.5 | >=4.5 | >=4.5 | >=4.5 | >=4.5 |
Long-term Temperature | ℃ | 80~+100 | 80~+100 | 80~+100 | 80~+100 | 80~+100 |
Short-term Temperature | ℃ | 120~+150 | 120~+150 | 120~+150 | 120~+150 | 120~+150 |
Adhesion | kg/in | >=1500g | >=1500g | >=1800g | >=2500g | >=2900g |
Retention | hr | 748↑ | 748↑ | 748↑ | 748↑ | 748↑ |
FAQ:
Q1: What's the thermal conductivity test method given on the data sheet ?
A1: All the data in the sheet are tested out by the third party. ASTM D5470 is utilized to test the thermal conductivity.
Q2: How to find a right thermal conductivity for my
application ?
application ?
A2: It depends on the watts of power source , ability of heat dissipation .
Q3: Do you accept custom orders ?
A3:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
Q4: Do you offer free samples ?
Q4: Do you offer free samples ?
A4: Yes, we are willing to offer free sample but pls kindly note that your side pay for freight .
Q5: How to ship the orders ?
A5: We will help to arrange transportation for you . If you want to use your own courier account pls
kindly tell us before shipping out.
kindly tell us before shipping out.
Q6: What's the leading time ?
A6: Sample order costs 1~3 workdays and 3~7 workdays for mass production.
