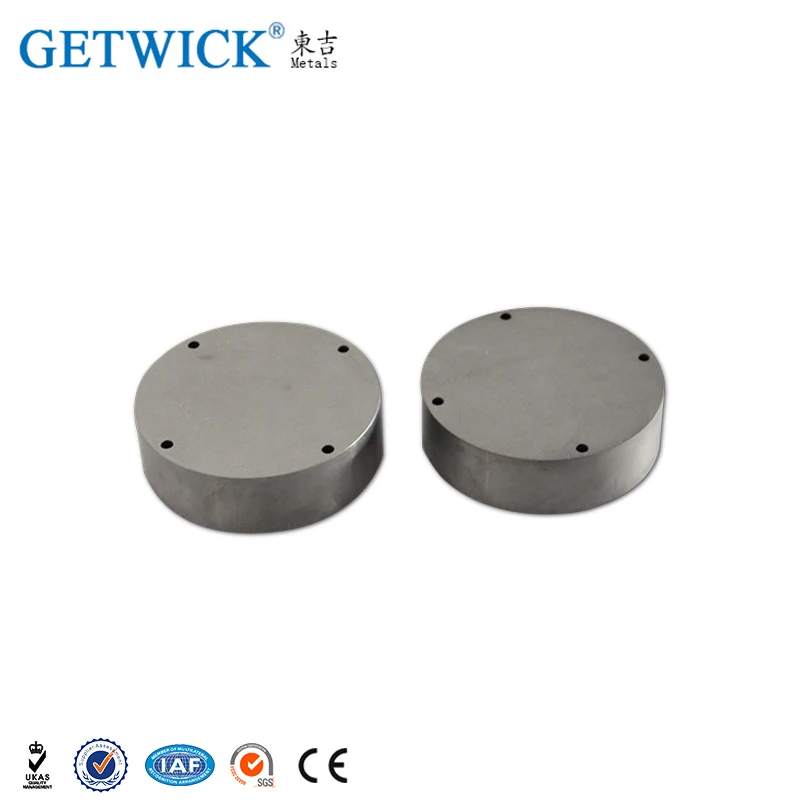

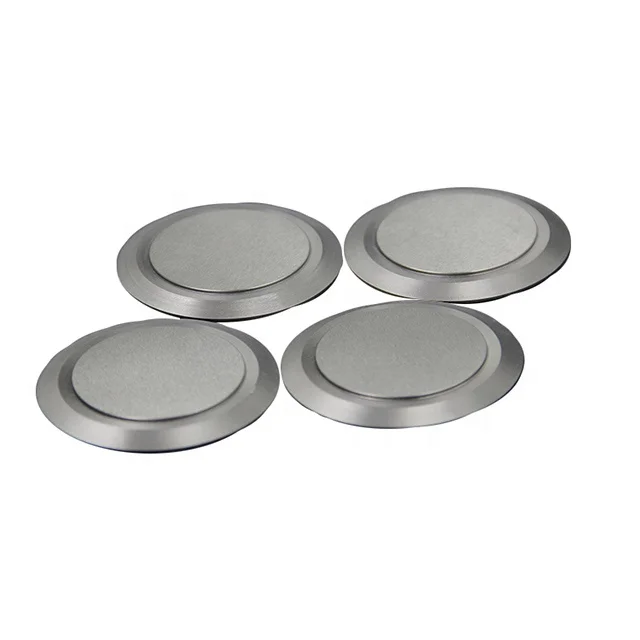

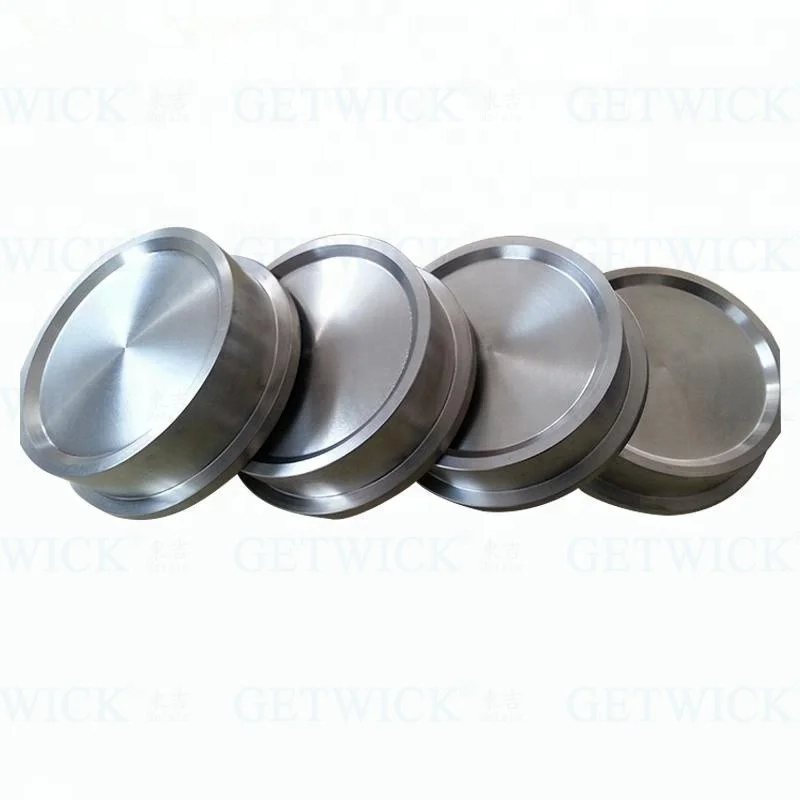

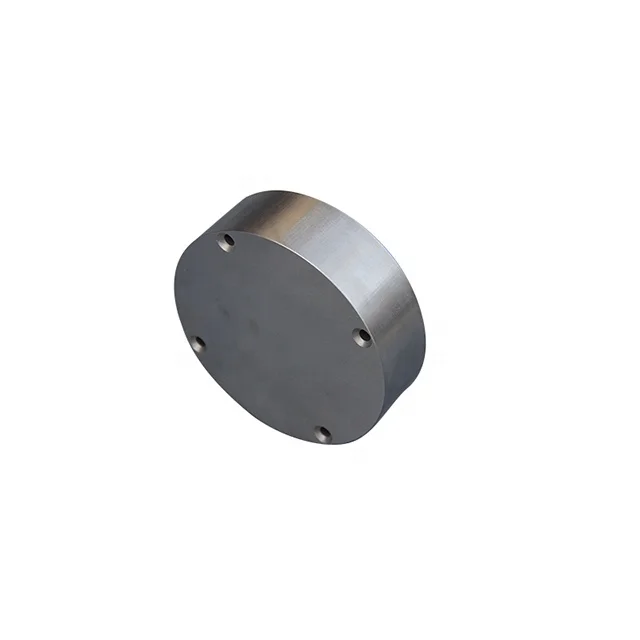

Tungsten alloy sputtering target WTi tungsten titanium PVD coating target
- Category: Tungsten Sheets >>>
- Supplier: Shaanxi Getwick Metal Technologies Co. Ltd.
Share on (1600279903643):
Product Overview
Description
Tungsten alloy sputtering target WTi tungsten titanium PVD coating target
Specificition:
| MIL-T-21014 Rev D | Class 1 | Class 2 | Class 3 | Class 4 | Class 1 | Class 2 | Class 3 |
| SAE-AMS-T-21014 | Class 1 | Class 2 | Class 3 | Class 4 | Class 1 | Class 2 | Class 3 |
| ASTM B777-07 | Class 1 | Class 2 | Class 3 | Class 4 | Class 1 | Class 2 | Class 3 |
| AMS 7725 C | 7725 C | 7725 C | |||||
| Matrix (wt. %) | 90.0% W | 92.5% W | 95.0% W | 97.0% W | 90.0% W | 92.5% W | 95.0% W |
| Binder (wt. %) | 10.0% Ni-Fe | 7.5% Ni-Fe | 5.0% Ni-Fe | 3.0% Ni-Fe | 10.0% Ni-Cu | 7.5% Ni-Fe | 5.0% Ni-Cu |
| Nominal Density (g/cm3) | 16.85-17.25 | 17.15-17.85 | 17.75-18.35 | 18.25-18.85 | 16.85-17.25 | 17.15-17.85 | 17.75-18.35 |
| Nominal Density (lb/in3) | 0.614 | 0.632 | 0.65 | 0.668 | 0.614 | 0.632 | 0.65 |
| Typical Hardness (Rc) | 26 | 26 | 28 | 30 | 26 | 26 | 28 |
| Ultimate Tensile Strength - Min. (psi) | 110,000 | 110,000 | 105,000 | 100,000 | 94,000 | 110,000 | 94,000 |
| 0.2% Offset Yield Strength - Min. (psi) | 75,000 | 75,000 | 75,000 | 75,000 | 75,000 | 75,000 | 75,000 |
| Magnetic Characteristics | Slightly magnetic | Slightly magnetic | Slightly magnetic | Slightly magnetic | Nonmagnetic | Nonmagnetic | Nonmagnetic |
Advantage
1) leading producer, more than 15 years producing experience
2) low price in the market,factory direct sales.
3) the whole production line from powder to finished products, top and steady quality assured
4) fast delivery and best after-sale service
Application:
1. Metallurgy industry, chemical industry, machinery industry, Medical;
2. Electronics technology industry source technology industry;
3. Electric light source parts, heat shield;
4. Tungsten boat, high temperature furnace;
5. Computer, communications technology, optical materials, medicine;
6. Aerospace development, new energy materials, photosensitive material and catalyst materials
